DESCRIPTION
A hub version of our ever popular mid-drive bike. Please contact us or your local retailer before placing an order as sizes are limited
With city commutes getting ever so popular thanks to the vast cycle networks being introduced around CBDs we've added a hub model back into our fleet.
Great for those companies looking to introduce a fleet e-bike or those looking at starting the government e-bike schemes into their workplace
An entry level e-bike which ticks all the boxes and is perfect for the commuter at an affordable price. Comes with essential hydraulic brakes which we think should be on all electric bikes, a Shimano 8speed drivetrain, Suntour XCM forks, throttle assist and fully integrated battery are some of the main features not to mention some great extras supplied with the bike at no extra cost which includes a carrier and mudguards and large gel seat to give you a comfortable ride.
Colours:

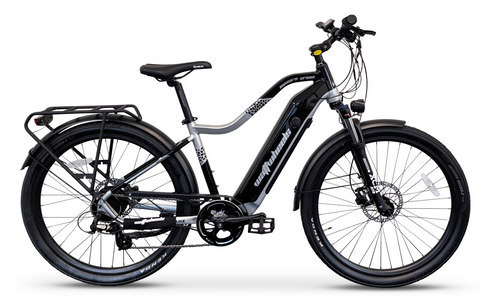

Standard Frame (top tube) - no picture available
Blue & Black - same as Bighorn MD colour
Low Step Frame
White & Black
Blue & Black (on picture)

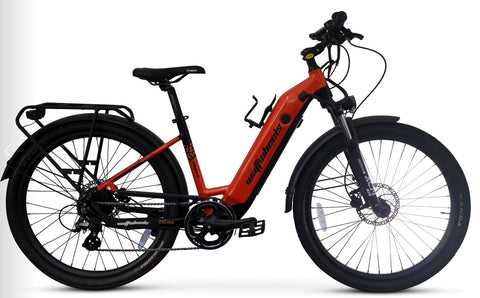

Orange
E-BIKE SPECIFIC SPECIFICATIONS
MOTOR - AKM 48V300WATT Rear HUB
BATTERY - 48V10.4Ah 2600mAh Samsung Li-Ion (500WH) (Upgradeable to 48V14ah - 672Wh +$299)
DISPLAY - Key Display easy to read colour display
THROTTLE - Key Display easy to read colour display
CHARGER - Sans 48V2Ah Smart Charger
SPEED- Up to 32km/h
DISTANCE - 25-30km Throttle only, PAS up to 60Km
(depending on terrain, rider's weight etc.)
SPECIFICATIONS
Standard Top tube in Med(17inch) and Large(19inch)
16inch Low Step - small/medium size, Standard Top tube in Med and Large
- BRAKES
Tektro Hydraulic E350, 180mm Rotors - DERAILLEUR
Shimano Altus 8 Speed - CASSETTE
11-34T Shimano Freewheel - SHIFTER
Shimano Altus 8sp Rapid Fire - CRANKSET
Pioneer 44T, 170mm - DISPLAY
Key Disp Colour K286 - FRONT FORK
Suntour XCM with Lockout - 100mm Travel - TYRES
Kenda K1052 27.5 *2.20
- SEAT
SR Gel Relaxed Unisex - Black - CHAIN
8sp Anti Rust ebike Chain - SEAT POST
31.60 Alloy - HUBS
Sealed bearing, Quick Release - RIMS
sealed bearing, Quick Release - HANDLEBAR
640mm wide, 31.8 clamp , 38mm rise, 38deg backsweep - GRIPS
Velo 140mm Lock On - NET WEIGHT
24.5kg (includes battery 4kg) - WARRANTY
Full Comprehensive - 5 years frame, 2 years motor/battery/display and 12months rest ) - LIMITED WEIGHT
120Kg Total load weight
