Product details

Description

ALL IN. ALL OUT

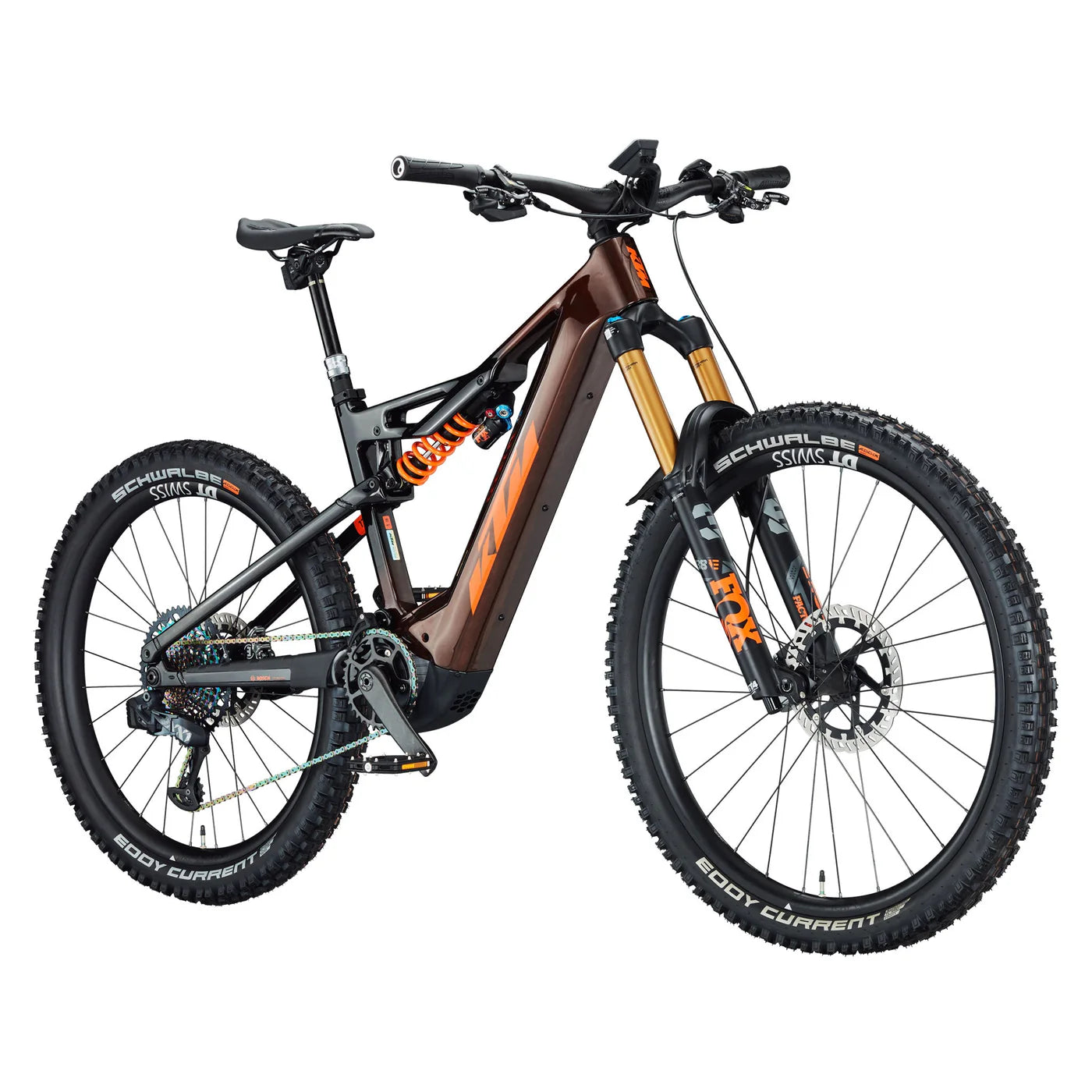

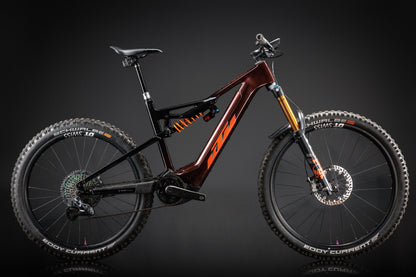

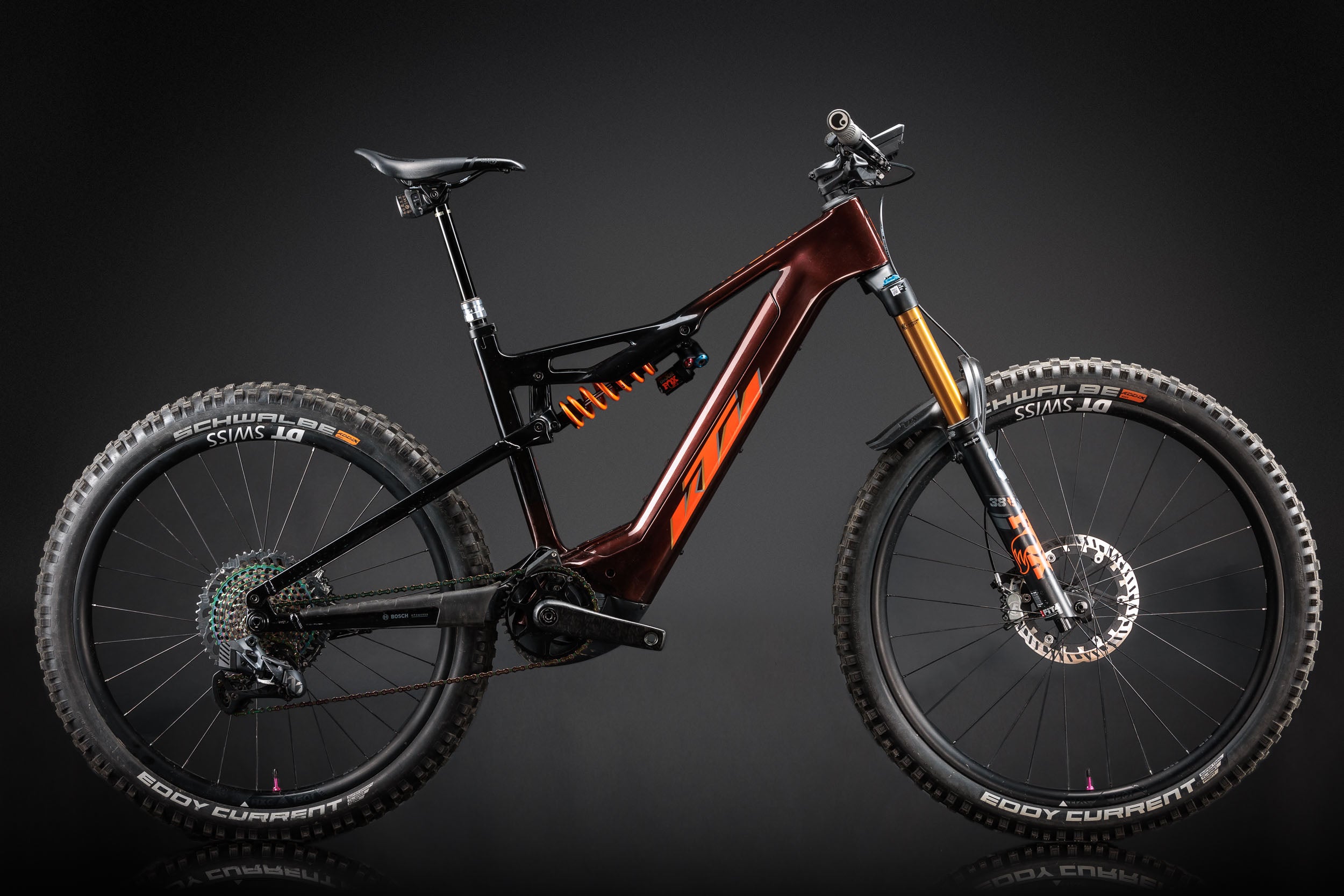

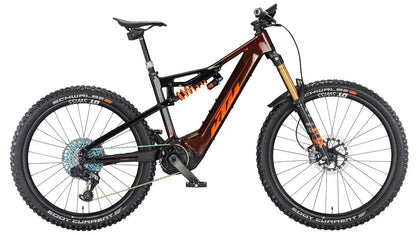

Your ace up the jersey sleeve! With the MACINA PROWLER carbon frame our engineering team has gone "all in". All PROWLER models have been thought through, conceived, and trimmed to perfection down to the last detail.


STRAIGHT-LINE-LINK (SLL)

Thanks to the proven STRAIGHT-LINE-LINK (SLL) concept for a sensitive and direct suspension performance, 180mm travel at the fork and 170mm at the rear, the PROWLER's field of application is on demanding enduro trails.


DIMENSION-MIX (DIMMIX)

The Dimension-Mix (DiMMiX) provides a decisive advantage in difficult situations: 29-inch wheel at the front for optimal riding stability paired with the 27.5-inch PLUS tyre at the rear for best power transmission and traction.


BOSCH PERFORMANCE LINE CX RACE

The new Bosch Performance Line CX Race is only available on a few selected models across the world, it's lighter and provides 60% more support compared to its counterpart, the CX Gen 4. It's easily configured and tuned to your liking through the Bosch Flow app.

E-bike Specific
  • DRIVE UNIT
    Bosch Performance Line CX-Race 85NM (SMART SYSTEM)
  • BATTERY
    Bosch PowerTube 750Wh (SMART SYSTEM)
  • DISPLAY
    Bosch Kiox 300 TFT & Bosch LED Remote (SMART SYSTEM)
  • CHARGER
    Bosch STANDARD Charger 4A (SMART SYSTEM)
  • BOSCH CONNECT MODULE:
    Bosch Smart System ConnectModule eBike Alarm installed


Technical Info
  • FRAME
    Macina Prowler Dimmix Perf. Carbon SLL-LTE 170mm UDH
  • FORK
    FOX 38 Factory FLOAT FIT4 Kashima 180 mm
  • SHOCK
    FOX DHX2 Factory 250x75, 170 mm
  • SEATPOST
    RockShox Reverb AXS, 150 mm
  • BRAKES
    MAGURA MT7 HC3, 4 Piston
  • ROTOR
    Front: Magura MDR-P CL, 203 mm
    Rear: Magura MDR-P CL, 180 mm
  • DERAILLEUR
    SRAM AXS Eagle XX1, 12-Speed
  • CASSETTE
    SRAM XX Eagle T-Type XS-1297 / 10-52T
  • CHAIN
    SRAM XX Eagle T-Type 12s
  • SHIFTER
    SRAM AXS Pod Ultimate Controller
    CHAIN RING
    SRAM XX Eagle Transmission, 36T, Direct Mount
  • WHEELS
    Front: DT Swiss HXC 1501 SPLINE 29 CL 110/15TA / 622x30TSS
    Rear: DT Swiss HXC 1501 SPLINE 27 CL 148/12TA / 584x35TSS
  • TYRES
    Front: Schwalbe Eddy Current,Evo SuperTrail, TLE, 27.5 x 2.8
    Rear: Schwalbe Eddy Current, Evo SuperGravity,TLE, 29 x 2.6
  • HANDLEBAR
    KTM Prime Trail35, Carbon rizer20, 800mm
  • STEM
    KTM TEAM II Trail 35, 50 mm
  • HEADSET
    Acros AICR internal 1.1/8"-1.5" angle limit
  • CRANKSET
    FSA CK-702/IS Carbon 160mm
  • GRIPS
     Ergon GA20
  • SADDLE
    Selle San Marco GND, Open Fit, Supercomfort
  • BOSCH POWERMORE COMPATIBLE
    NO

* Subject to technical modification without notice. Errors and omissions excepted.

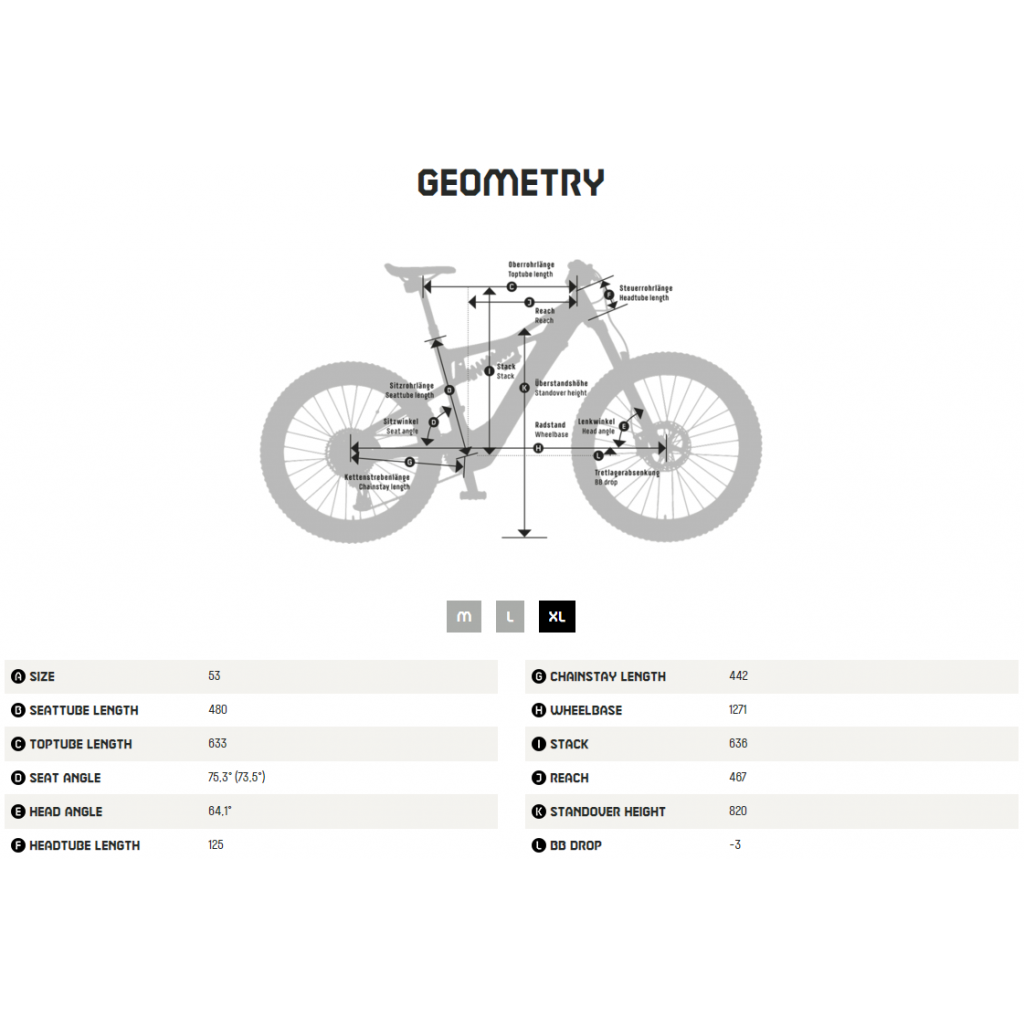

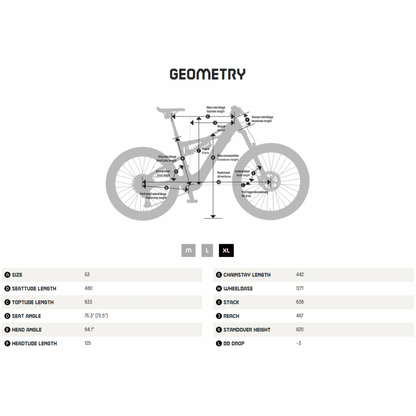

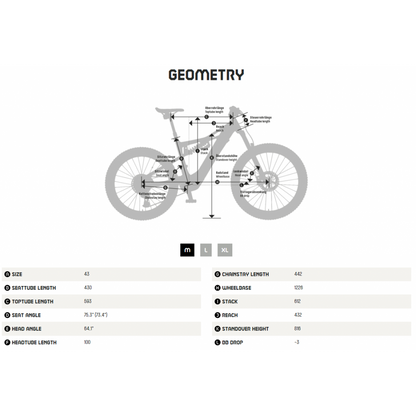

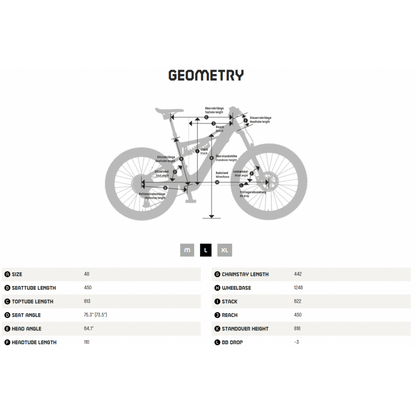

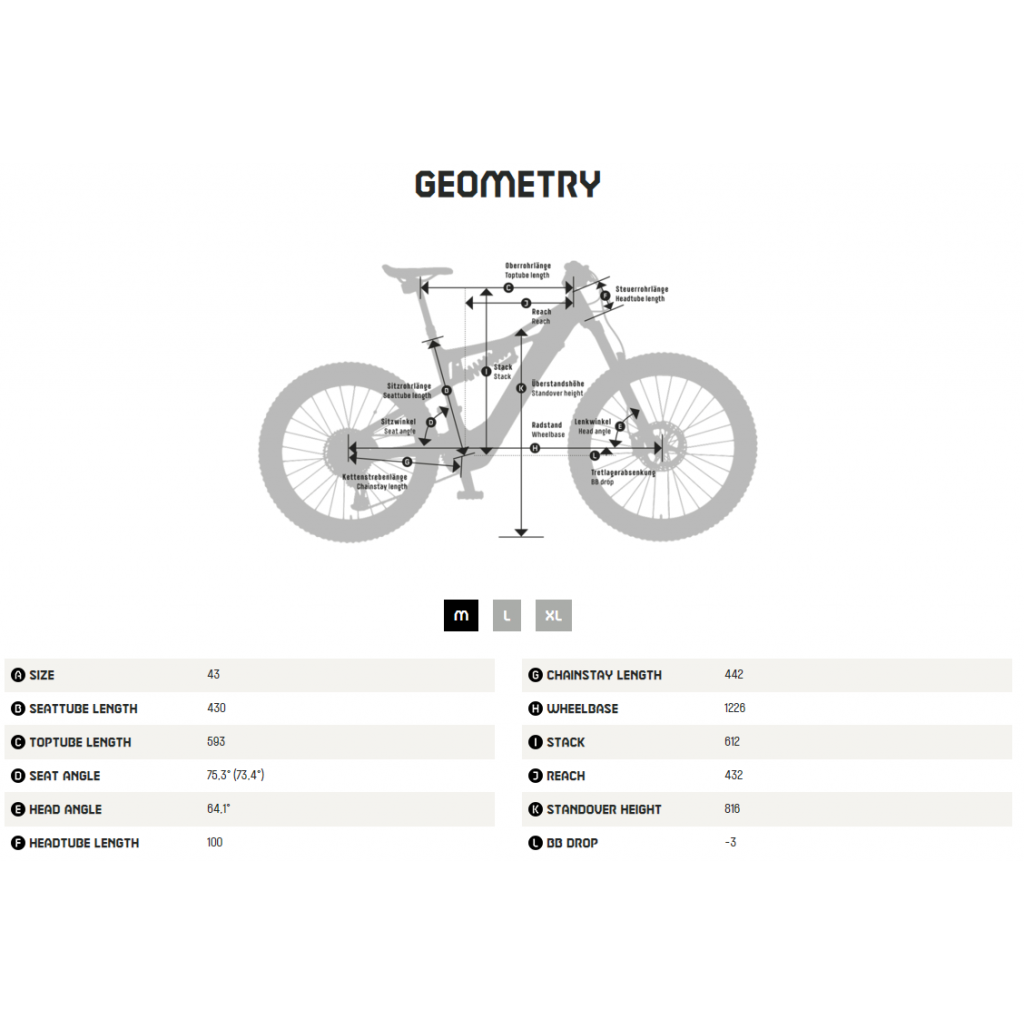

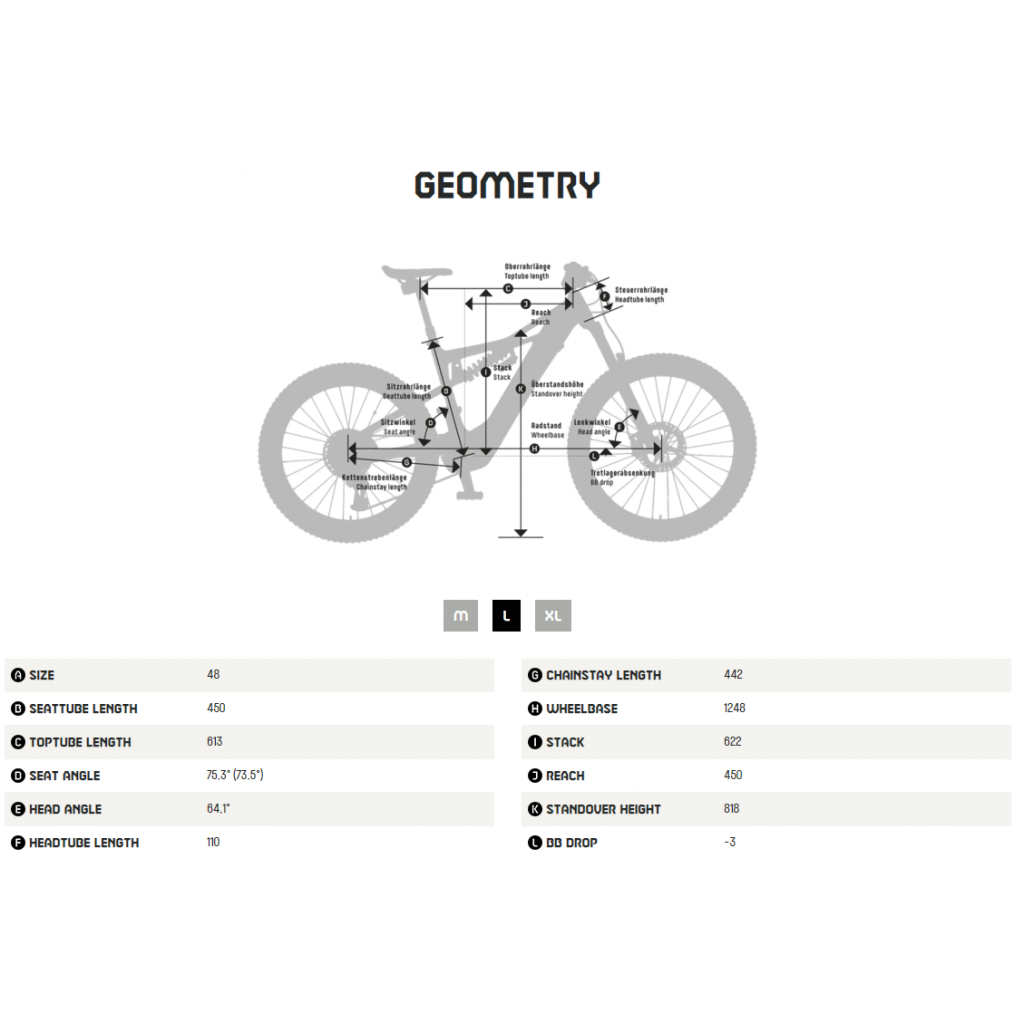

Bike Geometry
Bike geometry
Geometry KTM Macina Prowler
Bike Size Guide
Size chart
Size Chart KTM

  • Bosch Performance Line CX-Race 85NM (SMART SYSTEM)

  • Bosch PowerTube 750WH (SMART SYSTEM)

  • FOX 38 Factory FLOAT FIT4, 180 mm | DHX2 Factory 250x75, 170

  • Magura MT7 HC3, 4 Piston

  • Mullet (F:29" R:27,5")
