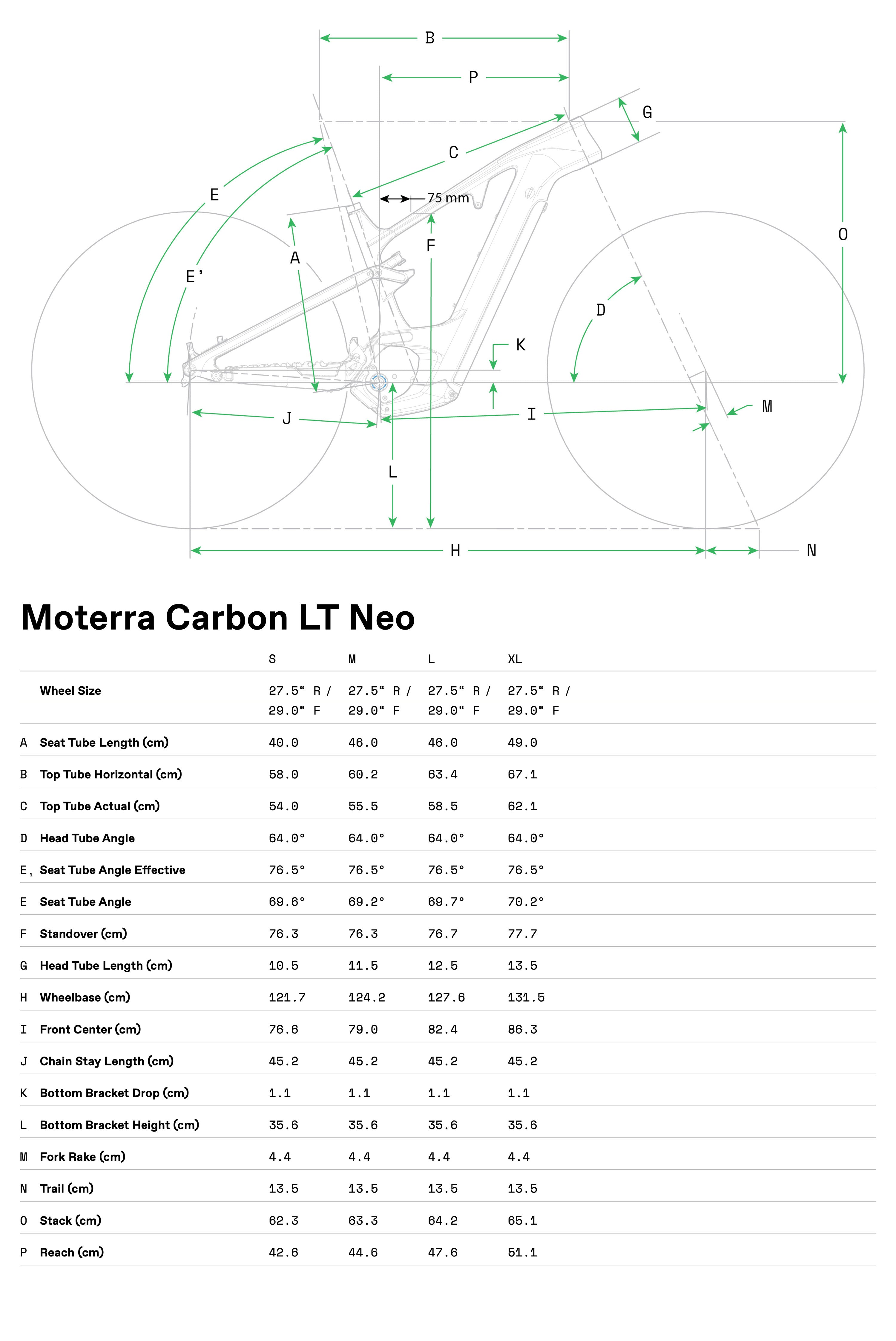

- GEOMETRY
Breaking Boundaries of how an E-MTN bike handles, Moterra Neo LT is in a league of its own. It’s a big, long travel e-mountain bike that rides like a snappy trail bike - agile and quick on the climbs, stable and composed on even the nastiest descents. It’s the kind of machine that makes you a better rider, wherever you ride.
BREAKING BOUNDARIES
Breaking Boundaries of how an E-MTN bike handles, Moterra Neo LT is in a league of its own. It’s a big, long travel e-mountain bike that rides like a snappy trail bike - agile and quick on the climbs, stable and composed on even the nastiest descents. It’s the kind of machine that makes you a better rider, wherever you ride.
Where it thrives
Whatever and wherever you didn't think possible
What it's built for
Handling, Traction, Efficiency, Durability
KEY FEATURES
DRIVE UNIT Bosch Performance Line CX SmartSystem
BATTERY Bosch PowerTube 750Wh
DISPLAY Bosch Kiox 300 w/ LED remote
CHARGER Bosch 4A
SPECIFICATIONS
- FRAMESET
- FORK
RockShox Zeb Select, Charger RC, 170mm, DebonAir, 15x110mm, 44mm offset - REAR SHOCK
RockShox Deluxe Select+, Coil, 2-Pos mode adjust, adjustable rebound - FRAME
SMoterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount - HEADSET
Acros integrated sealed bearing, tapered
DRIVETRAIN
- CHAIN
Shimano SLX, 12-speed - CRANK
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T - REAR COGS
Shimano SLX, 10-51, 12-speed - REAR DERAILLEUR
Shimano XT - SHIFTERS
Shimano SLX, 12-speed
BRAKES - BRAKE LEVERS
Shimano MT501 hydraulic disc - BRAKES
Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors
- WHEELS
- HUBS
(F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle - RIMS
WTB ST i30 TCS, 32h, tubeless ready - SPOKES
Stainless Steel, 14g - TYRES
(F) Maxxis Assegai, 29x2.6", 3C, EXO+, tubeless ready 27.5x2.6", 3C, EXO+, tubeless ready
(R) Maxxis DHR II, 27.5x2.6", 3C, EXO+, tubeless ready - WHEELS SIZE
29''
COMPONENTS - GRIPS
Fabric FunGuy - HANDLEBAR
Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm - SADDLE
Fabric Scoop Shallow Sport, steel rails - SEATPOST
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL) - STEM
Cannondale 2, 6061 Alloy, 35mm, 0°
OTHERS - EXTRAS
PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
