The S-model e-160 has all the right elements to take your rides to the next level. Our unique lowered centre of gravity concept delivers class leading handling and agility. And thanks to a huge 750Wh battery and high power 85Nm Bosch Performance Line CX motor, you're geared up for maximum enjoyment on the trails.
Our brand-new frameset adds a single-bolt release downtube protection system and tool-free battery removal to our legendary, multi award winning low centre of gravity and Total Geometry handling. That gives it incredible agility and accuracy for dominating the rowdiest trails in twin 29er format or choose the 27.5in rear wheel MX version if you’re a shredder who really want to get loose. XS and S sizes come with 27.5in wheels both ends for balanced handling and all bikes get top spec Maxxis tyres, oversized RockShox Zeb forks and 220mm front brake rotors for maximum confidence.
Because at Whyte we don’t cut corners, we just hit them as hard as possible.
Gravity
The new 85Nm Performance Line CX drive unit and Bosch’s largest capacity 750Wh battery are positioned to give an ultra-low centre of gravity, delivering responsive and intuitive power with the most agile handling imaginable.
Tuned by the Fastest Racers
Our Senior Design Engineer Sam Shucksmith, the current and two-time British Enduro Series Champion is dedicated to researching and developing the ultimate suspension tune. He has set up the best, most optimised suspension performance for the e-160 to give you the best grip, confidence and control.
E-BIKE SPECIFIC
DRIVE UNIT The new 85Nm Performance Line CX drive unit, the smart system
BATTERY Bosch’s largest capacity 750Wh battery
DISPLAY Bosch LED remote
SPECIFICATIONS
- FRAME
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts - FORK
RockShox ZEB 29", 160mm Travel, 44mm Offset, DebonAir, Rush RC Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate - SHOCK
RockShox Deluxe Select R, Fast Black Coating, Adjustable Rebound - RIMS
WTB HTZ i30 TCS 2.0 System, Asymmetric, Sleeved Joint, Super Tough Construction, Tubeless Ready, 32 Hole - HUB
Rear: Alloy, E-Bike Specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Front: Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole - SPOKES
DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples - HEADSET
FSA No. 55R/35 Orbit 1.5 ZS, 1.8" Lower and 1 1/8" Upper Sealed Cartridge Bearings - TYRES
Maxxis Assegai WT, TR, 27.5" x 2.5" 120TPI, EXO+ Casing, 3C Maxx Grip, Dual Compound, Front, Maxxis Minion DHR II WT, TR, 27.5" x 2.4" 120TPI, Double Down, 3C Maxx Terra, Dual Compound, Folding Bead, Rear - CRANK SET
Whyte, Forged Alloy, 165mm, direct mount 36T - CHAIN

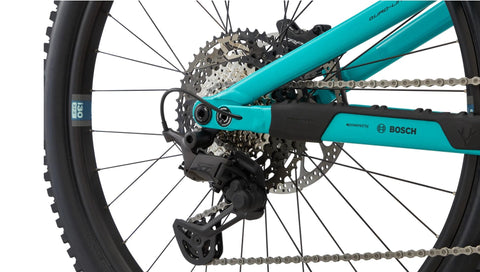

Shimano CN-LG500, 11 speed - REAR DERAILLEUR
Shimano M8130 Deore XT, Shadow Plus, direct mount
- SHIFTER
Shimano M8130 Deore XT 11 speed - CASETTE
Shimano CS-LG600, 11 speed, 11-50T - HANDLEBAR
Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 780mm Wide - GRIPS
Whyte Lock-On Enduro Grip - STEM
Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension - BRAKES FRONT
TRP Trail Evo, 5mm Hose, 4 Piston Caliper with Sintered Metal Pads, 220mm 2.3mm Disc - BRAKES REAR
TRP Trail Evo, 5mm Hose, 4 Piston Caliper with Sintered Metal Pads, 203mm 2.3mm Disc - BRAKE LEVERS
TRP Trail Evo - SADDLE
Whyte Custom, Dual Density, Triple Panel Design - SEATPOST
Whyte drop.it Adjust, 30.9mm, M/L 140-170mm Travel, XL 170-200mm Travel, Paddle Remote Lever - SIZES
XS, M - COLOUR
Gloss Turquoise with Black & White - WEIGHT
TBC
