Whyte E-180 RSX Enduro / Gravity E- Mountain Bike

Q: Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

Super e-enduro/gravity electric mountain bike

$11,499.00 $14,499.00

Pairs well with

We ship E-bikes all over the country! Fully charged and assembled, ready to ride! Find out more here.

Got questions or ready to order? Reach out through our contact form or call us — the EBR team is ready to assist you!

Share:

Share

Product details

Description

“The E-180’s descending performance is virtually untouchable”

Go bigger, go faster – then go again

Our E-180 RSX is the chaos-crushing, downhill-dominating, climb-shrinking super electric mountain bike (e-MTB) for self-shuttled gravity riding, bike park play, and big mountain terrain. Engineered with our innovative low centre of gravity (CoG) design, it ‘plays and slays’ on the tightest, steepest tracks but still has your back when you’re flat out through boulder fields with handling that’s agile and alive for maximum fun, hour after hour, and run after run. If having the best time dropping in on the biggest terrain is why you ride, the E-180 RSX is ready.

Highlights

Optimised low centre of gravity gives you untouchable gravity handling.
180mm front + 170mm rear of trail-dominating suspension travel.
Multi-butted 6061 T-6 aluminium hydroformed frame is built to last.
Bosch Performance CX 85Nm motor (600W peak power) for class-leading performance and reliability.
750Wh battery gives you the range to get more runs in between charges.
MX wheels (29er front, 27.5in rear) so you can tackle everything full-gas – no matter how rowdy or steep.

Dressed to perform, zero compromises

To give you the best performance possible for when you’re pushing hard on the biggest terrain, we've equipped the E-180 RSX with 'sorted right from the box' parts selection headlined by Fox's impeccable Factory series suspension units front and rear; wireless electronic shifting across the 1x12 transmission from SRAM's X01 Eagle AXS; reliable and controllable braking power on even the longest, roughest descents with SRAM Code RSC four-piston hydraulic disc brakes (220mm front rotor; 200mm rear); eBike-tough DT Swiss wheels; and top-drawer Maxxis' dual-compound Assegai WT TR EXO+ tyres with Double Down Casing in the rear to shrug off the hardest knocks.

E-bike Specific

DRIVE UNIT
85Nm Performance Line CX drive unit (600W peak power), the smart system
BATTERY
Bosch 750Wh battery
DISPLAY
Bosch LED remote

Technical Info

FRAMESET

FRAME
6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link and 12mm x 148mm Boost dropouts
FORK
Fox Float 38, Factory 29in, 180mm travel, 44mm offset with Grip 2 damper and custom tune, tapered steerer, Kashima coating, 110mm x 15mm Boost, E-Thru axle
REAR SHOCK
Fox Float X2, Factory, independently adjustable compression and rebound damping, Kashima coating
HEADSET
FSA No. 55/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings

DRIVETRAIN

CHAIN
SRAM GX T-Type Eagle, 12 speed
CRANK SET
Race Face Affect e-bike, 165mm, ISIS with X-SYNC direct mount 36t for Bosch Performance Line CX, black
CASSETTE
SRAM XS-1275 T-Type Eagle, 10-52, 12 speed
REAR DERAILLEUR
SRAM GX T-Type Eagle, 12 speed
SHIFTERS
SRAM GX AXS pod 2, two button, MMX, 12 speed

BRAKES

BRAKES
SRAM Code RSC, four piston hydraulic with sintered metal pads, Front: 220mm diameter disc rotor, 200mm rear

WHEELS

HUBS
Rear: DT Swiss Hybrid HX1700, 30mm wide rim, 12 x 148mm Boost, SRAM XD
Front: DT Swis Hybrid HX1700, 30mm wide rim, 15 x 110mm Boost
RIMS
DT Swiss Hybrid HX1700
TYRES
Front: Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead,

Rear; Maxxis Assegai WT, TR, 27.5in x 2.5in 120TPI, Double Down Casing, 3C MaxxGrip, Dual Compound, rear

COMPONENTS

GRIPS
Whyte Lock-On Enduro Grip
HANDLEBAR
Race Face Turbine R, 35mm rise, 35mm bar bore, 800mm wide
STEM
Race Face Atlas, 35mm bar bore, 35mm extension
SADDLE
Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
SEATPOST
Crank Bro High-Line 3, 30.9mm, M/L 150mm travel, XL 170mm travel, High-Line ball socket remote lever

OTHERS

COLOUR
Gloss Orange with Matt Black
SIZES
M, L, XL
WEIGHT
26.1 kg's (medium)
BOSCH POWERMORE COMPATIBLE
No

Although we've taken every effort to ensure the accuracy of the information listed here, sometimes things change, so we reserve the right to change or update bike specifications, features, prices and colours as and when required, as per the manufacturer.

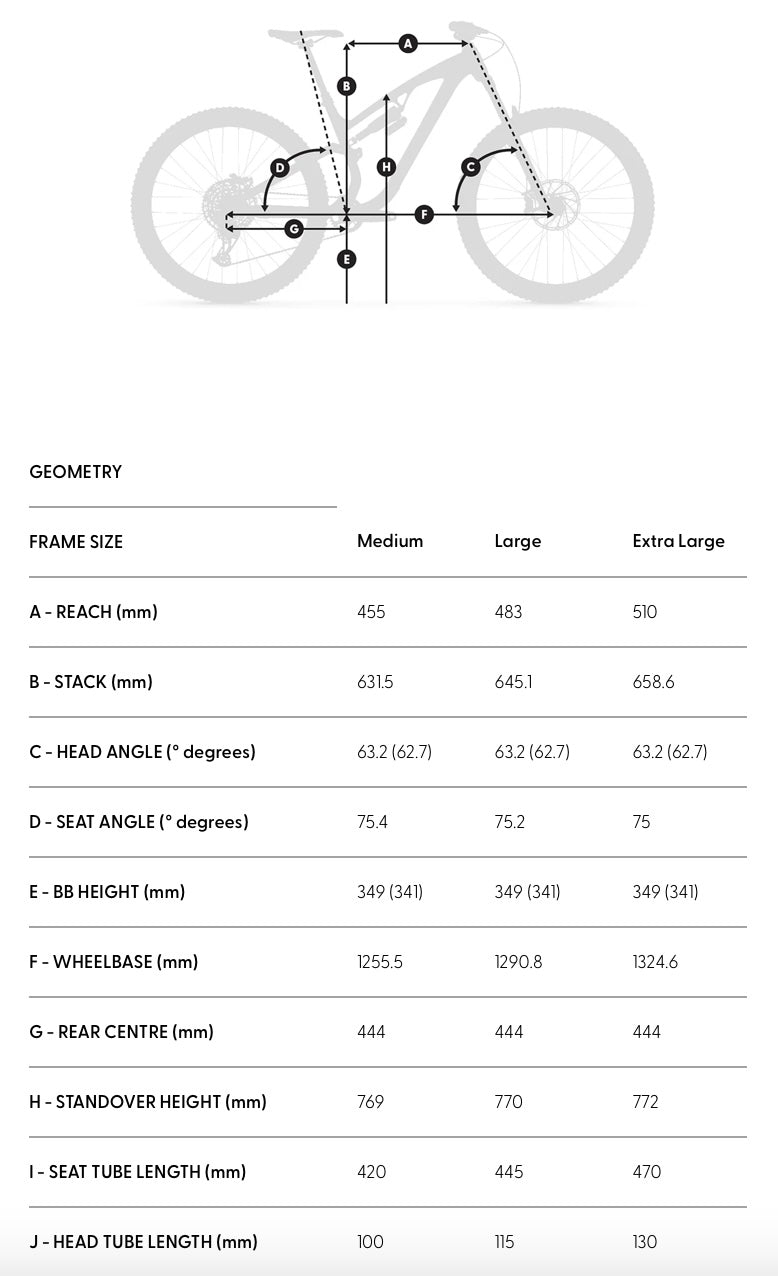

Bike Geometry

Bike geometry

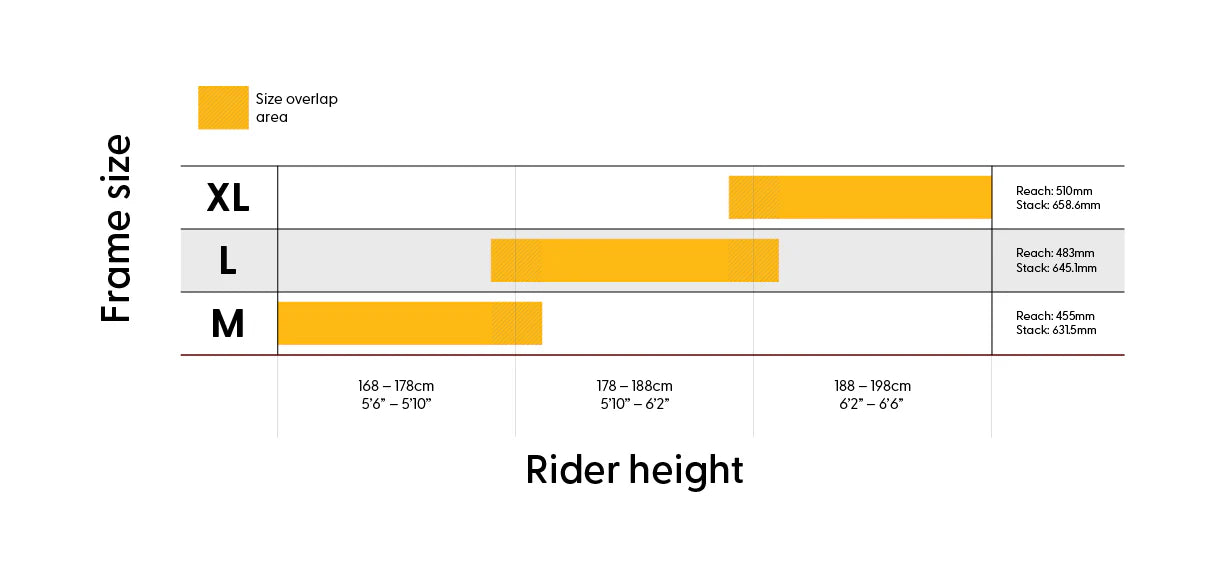

Bike Size Guide

Size chart

Performance Line CX (BDU374Y)
Bosch 750Wh battery
Fox Float 38, Factory, 180mm | Float X2, Factory
SRAM Code RSC, 4-piston
Mullet (F:29" R:27,5")

Contact Us

Complete the contact form below if you are interested in this E-bike or if you would like more information.

FAQs

Why can I not order this bike through the webshop?

We aim to provide you with the best service in finding the right E-bike. As a result, we don't directly sell our bikes from our online store. However, we do provide delivery of E-bikes nationwide. Please contact our team using the form above to get in touch, +64 7 460 0844.

Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

What is the battery range on this E-bike?

Determining the exact range of your E-bike is not straightforward, as it depends on various factors such as the total load, the terrain, temperature, battery size, and motor unit. Some motor brands provide a range indication or provide a tool, like the Bosch Range Calculator.

--> Please reach out to the EBR team, and we can provide you with a good estimate by asking a few simple questions, +64 7 460 0844.

Are there any services included in the bike sale?

We offer an in-house complimentary first check for all bikes purchased at Electric Bike Rotorua. The first check is done at 6 weeks (after the bike purchase) or 250km, whichever comes first.
