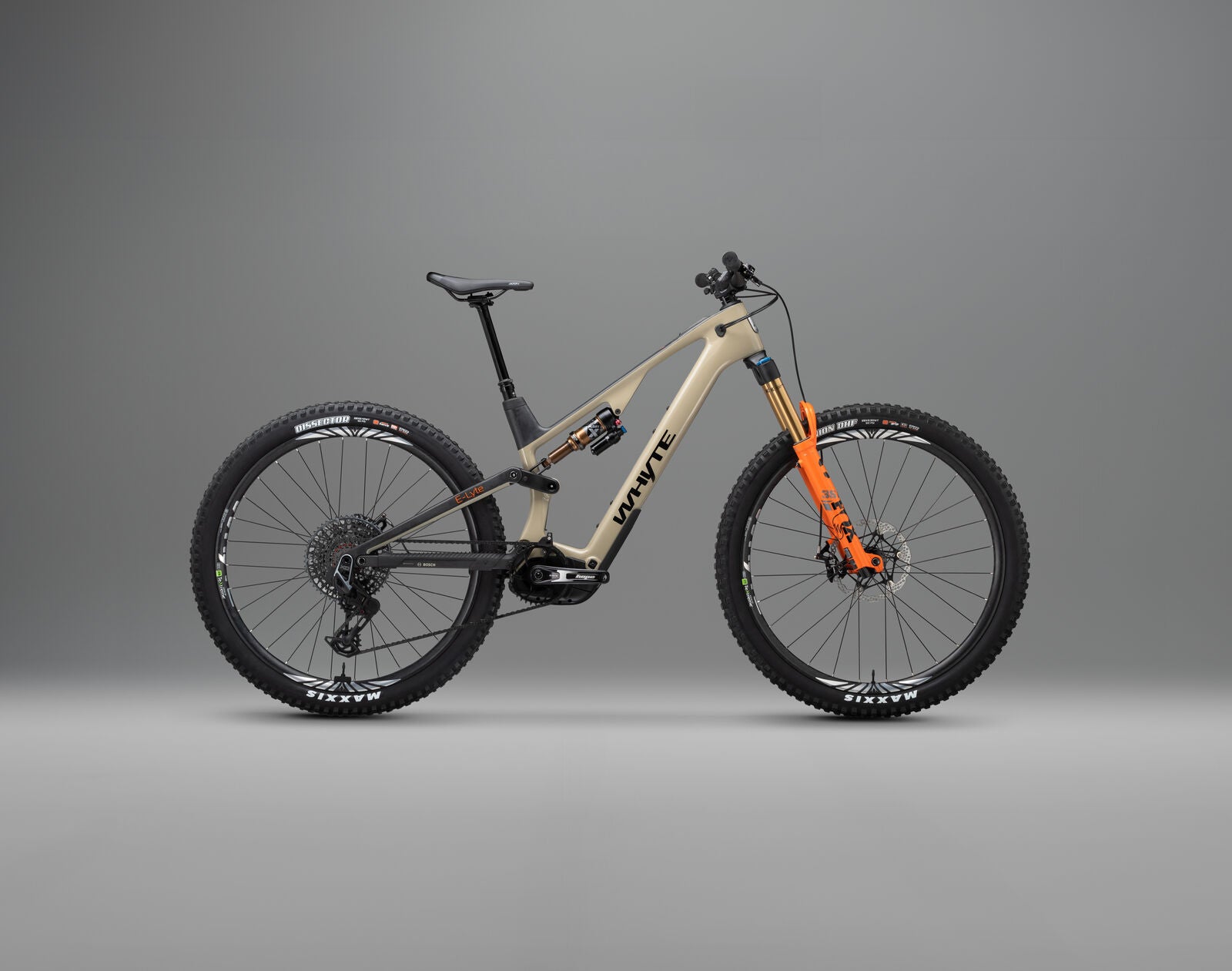

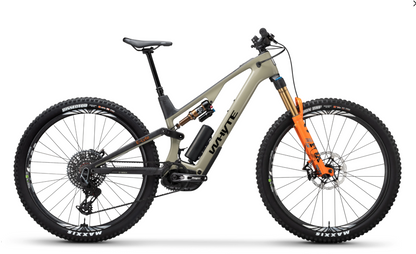

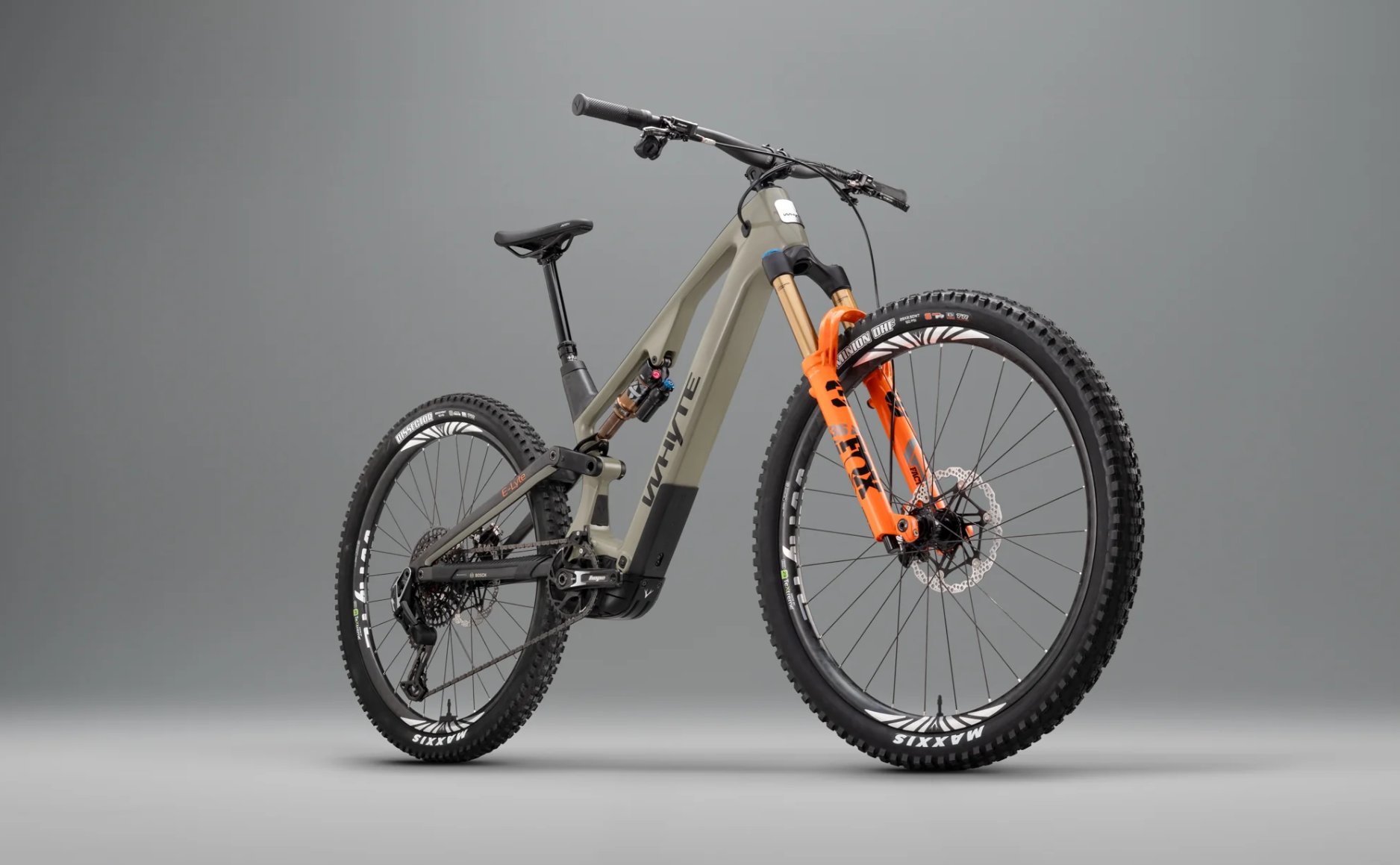

The trail bike without equal


Fast, light and powerful, our top of the range E-Lyte 150 Works masterfully blends the very best natural mountain bike handling and ride feel with the power and capability of full-fat electric mountain bikes (eMTBs). Weighing just 19.2kg (size M) with 55Nm of torque, 600W of peak power, and a total combined battery capacity of 650Wh, it has the power – and the range – to do it all: the singletrack, the all-day epic, the home trail hot laps, the drop-ins, the descents, the tech and the climbs back out.

Highlights

  • 150mm front + 142mm rear of custom-tuned suspension travel.
  • Uni-directional carbon fibre frame is light and reassuringly strong.
  • Bosch Performance Line SX mid-torque (55Nm), full power (600W) motor.

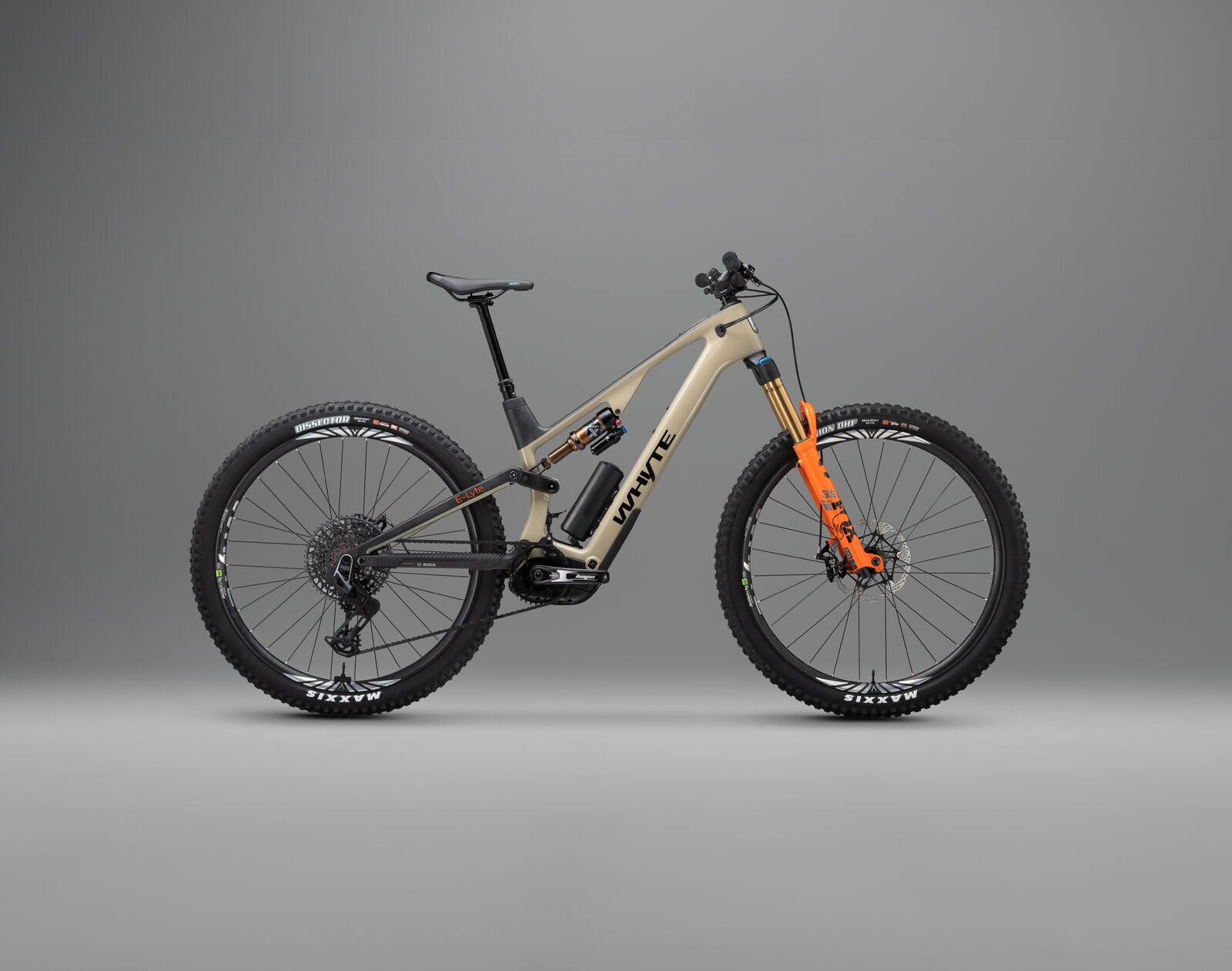

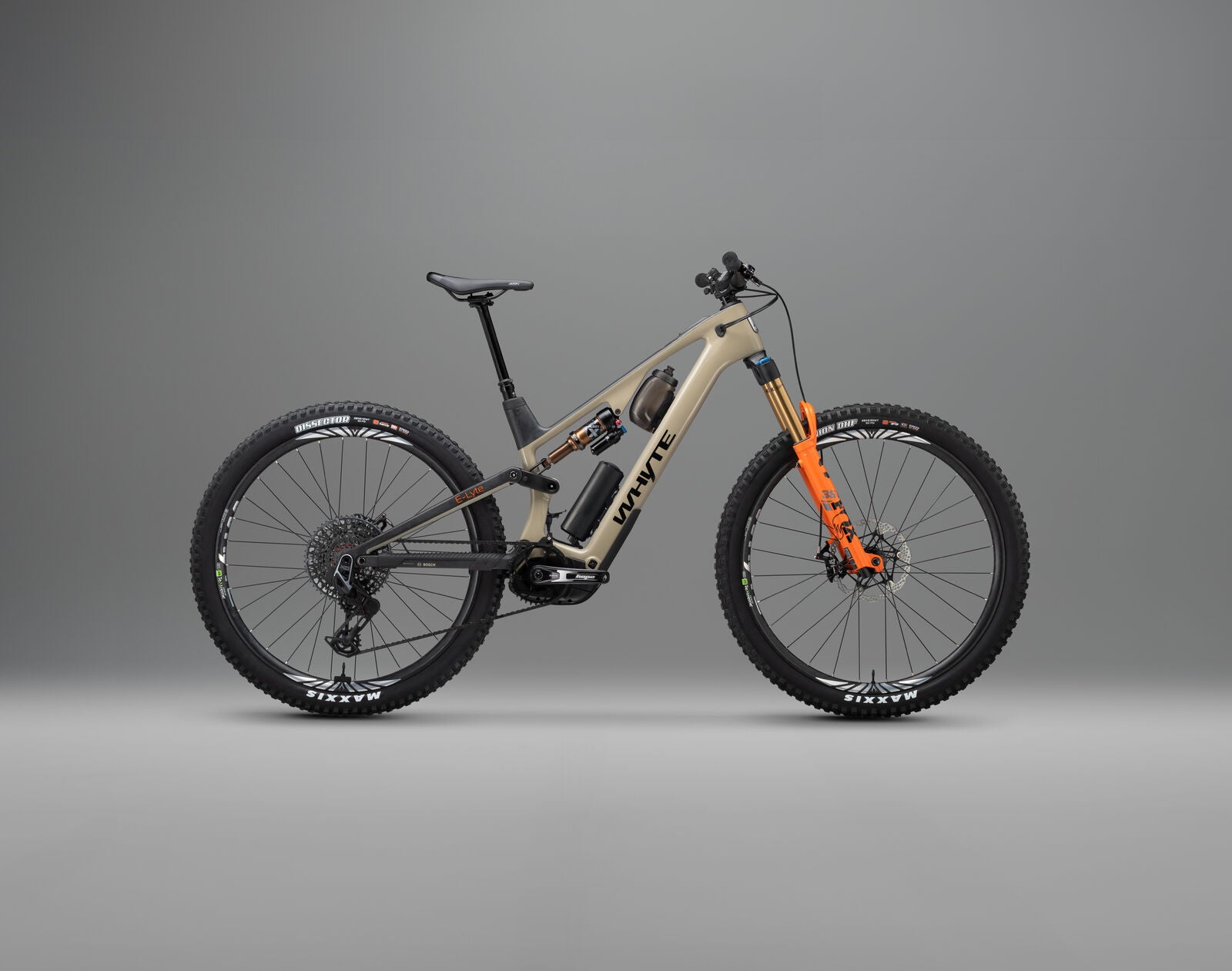

  • 650Wh of combined battery (400Wh internal + 250Wh PowerMore range extender) so you can ride further.
  • 29er wheels front and rear for balanced handling.
  • 250Wh PowerMore range extender included.

Flawless trail perfection

Every E-Lyte 150 Works is specced to perform flawlessly right from the first pedal stroke so you can focus on what really counts – your ride. Top of the range Fox Factory suspension front and rear tames the roughest trails with ease; SRAM's XO T-Type AXS electronic gearing gives you reliably impeccable shifting performance; richly powerful Hope Tech 4 V4 four-piston hydraulic disc brakes deliver the ultimate in braking control; Hope cranks and hubs; traction-rich Maxxis tyres; and more. It’s the finest trail-proven kit to serve you perfectly, wherever and however hard you ride.

E-Lyte 150 Works: lightweight, mid-torque, full power. The trail bike without equal.

E-bike Specific

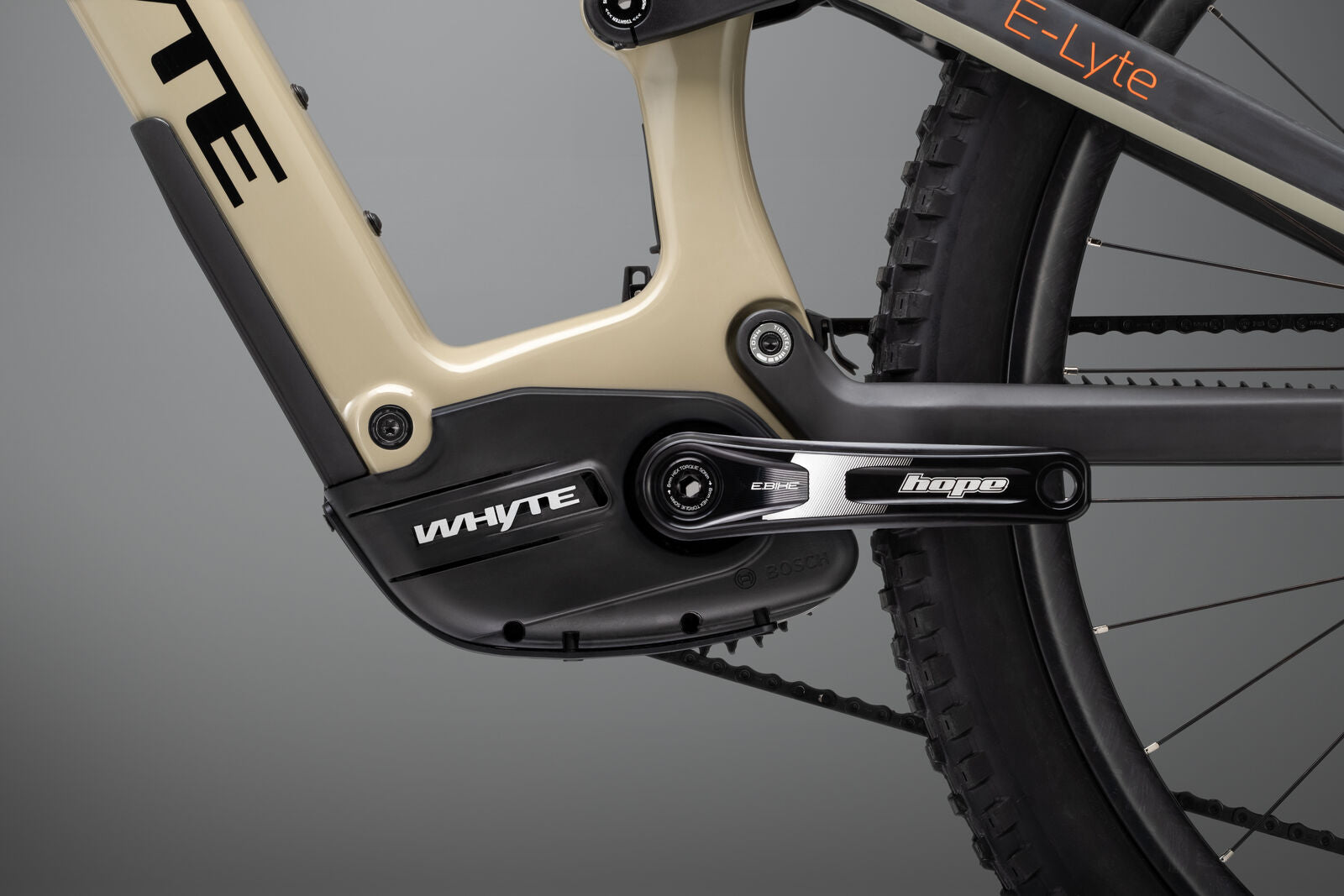

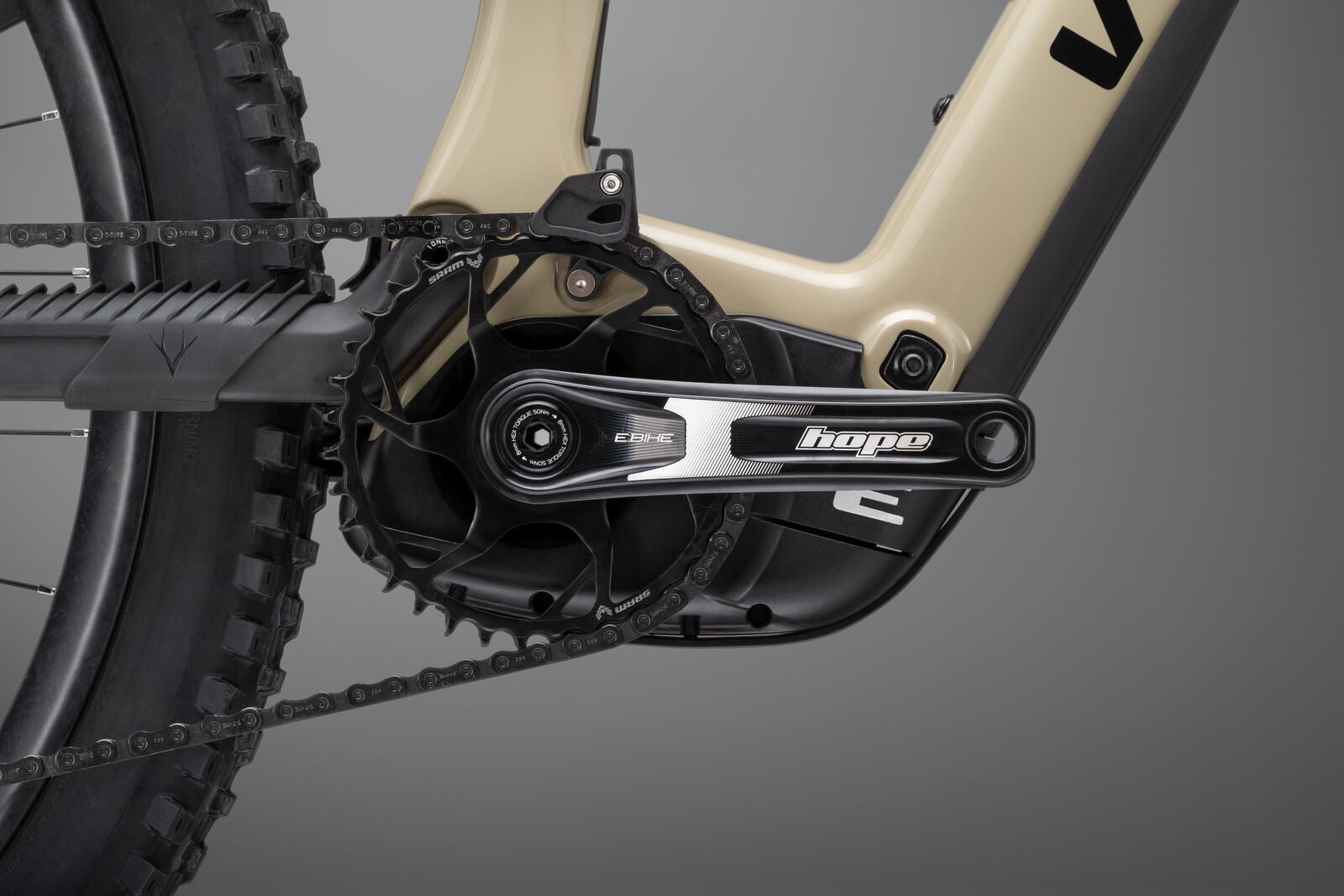

  • DRIVE UNIT
    Bosch Performance Line SX mid-torque (55Nm), full power (600W) motor.
  • BATTERY
    650Wh of combined battery (400Wh internal + 250Wh power range extender) so you can ride further.
Technical Info

FRAMESET

  • FRAME
    Uni-directional carbon mainframe and seat stays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts

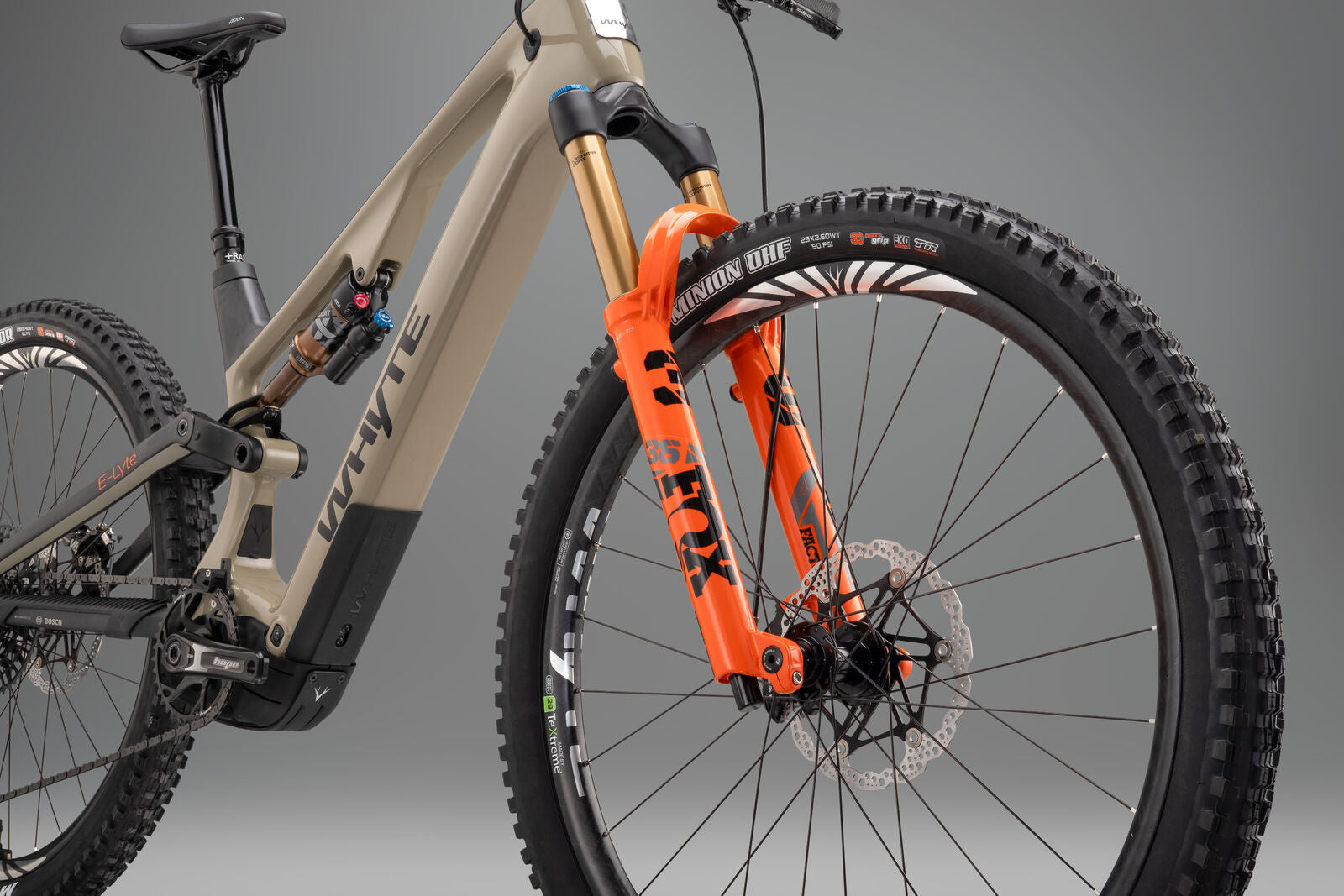

  • FORK
    Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip2 damper, tapered steerer, 110m x 15mm Kabolt axle
  • REAR SHOCK
    Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm
  • HEADSET
    FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing

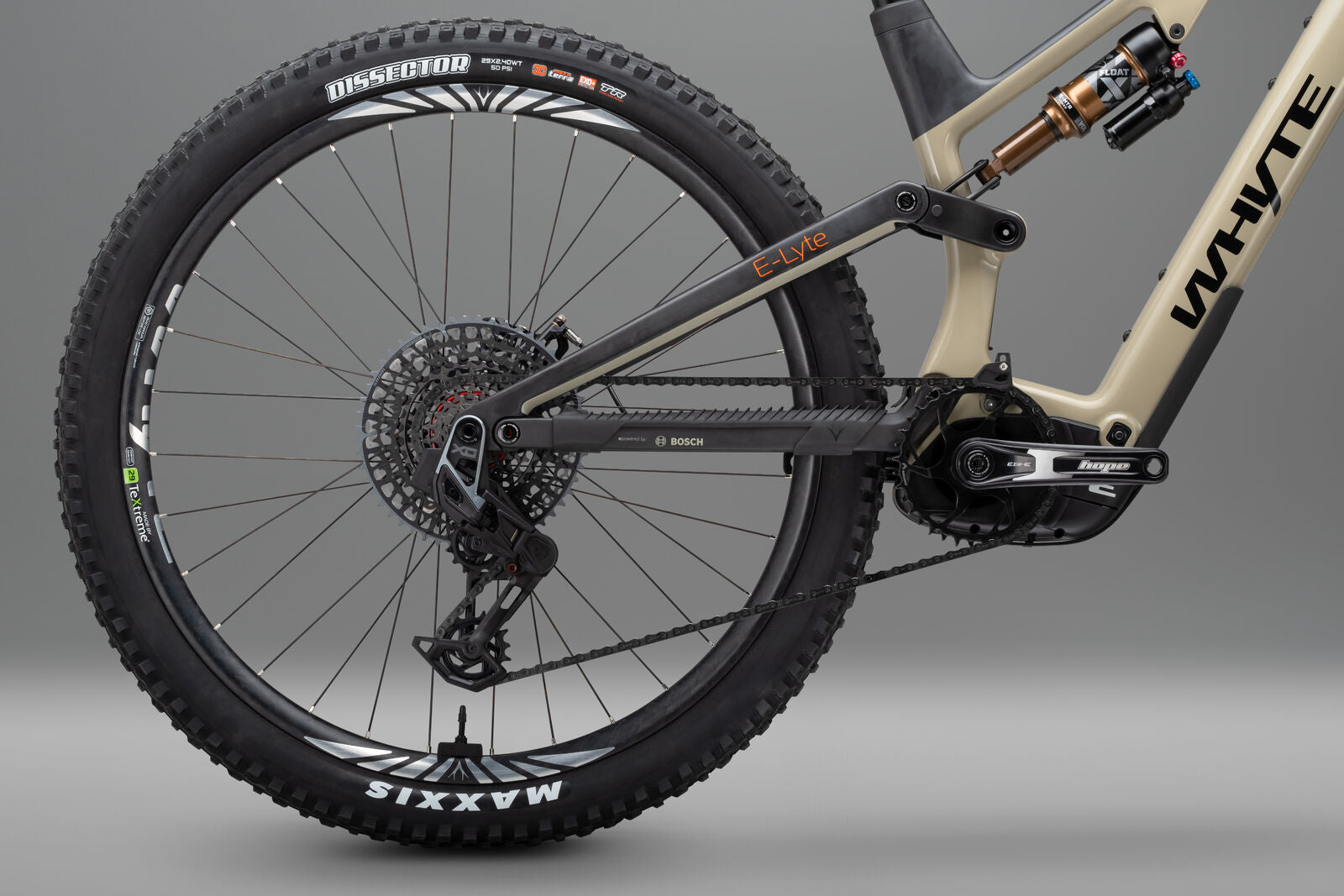

DRIVETRAIN

  • CHAIN
    SRAM XO T-Type, 12 speed
  • CRANK SET
    Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type
  • CASSETTE
    SRAM XS 1295, T-Type, 10-52T, 12 speed
  • REAR DERAILLEUR
    SRAM XO T-Type AXS, 12 speed

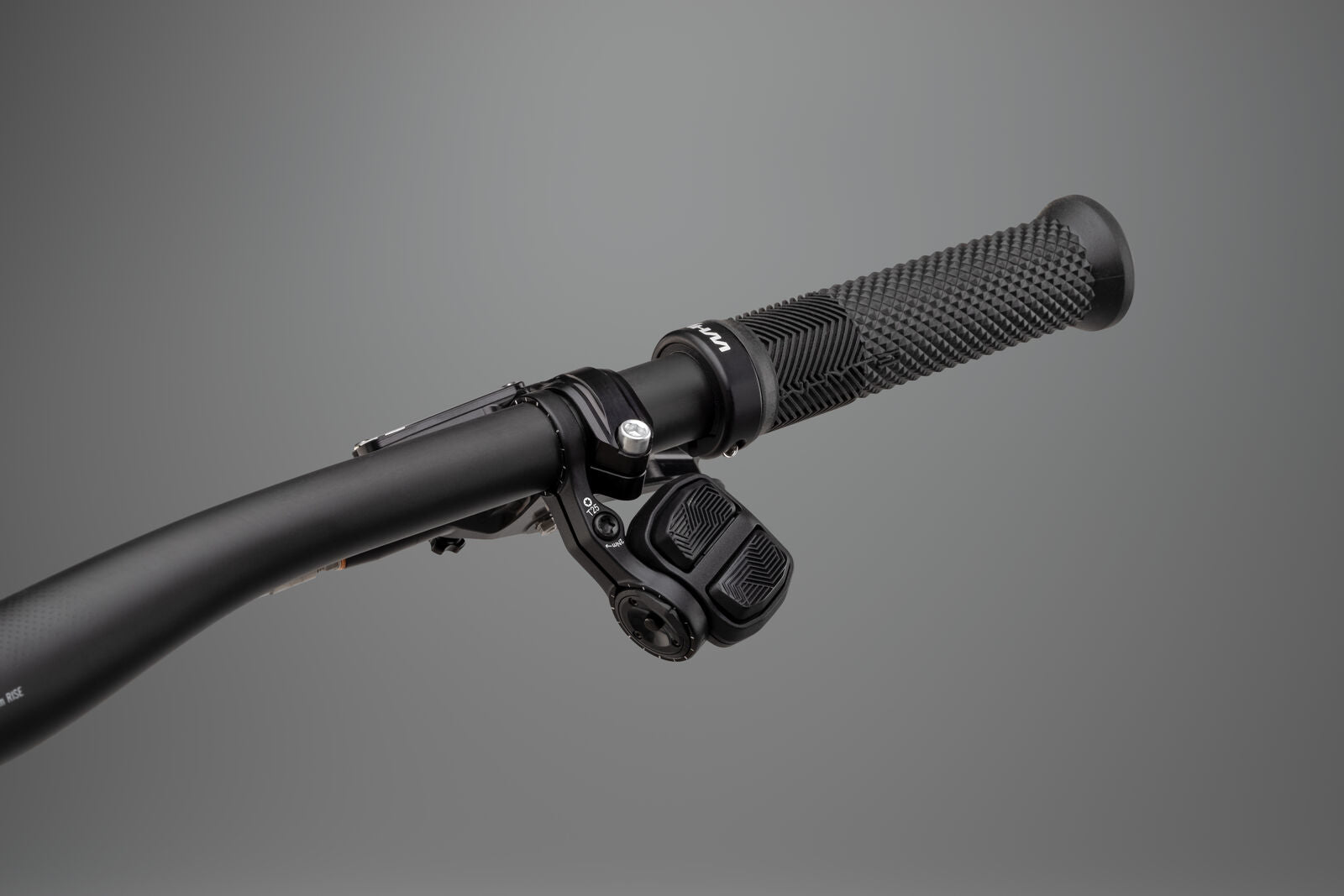

  • SHIFTERS
    SRAM AXS Pod, right, MMX, 12 speed


BRAKES

  • BRAKES
    Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor

WHEELS

  • HUBS
    Rear: Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole
    Front: Hope Pro 5, six bolt, 15mm x 110mm Boost spacing, 28 hole
  • RIMS
    Whyte TeXtreme Innegra infused, carbon Trail rims, 28 hole front, 32 hole rear
  • SPOKES
    DT Swiss New Champion 2.0mm, black stainless, brass nipples
  • TYRES
    Front: Maxxis Minion DHF, EXO TR MaxxGrip 29x2.5"
  • Rear; Maxxis Dissector, EXO+ TR MaxxTerra 29x2.4"

COMPONENTS

  • GRIPS
    Whyte Lock-On Enduro Grip
  • HANDLEBAR
    Whyte Trail full CNC, 32mm extension, 35mm bar bore
  • SADDLE
    Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
  • SEATPOST

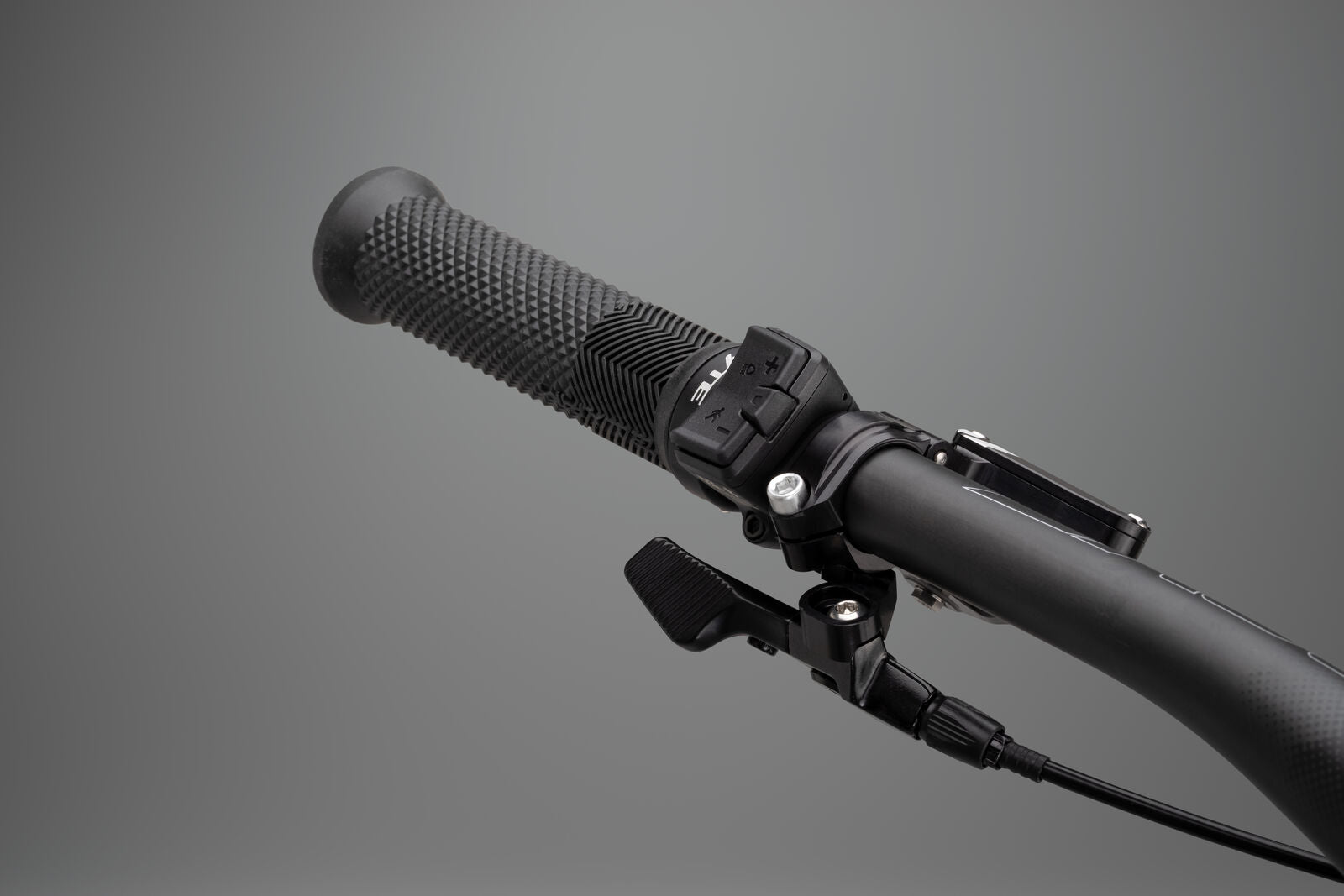

    Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever
  • STEM
    Whyte Trail full CNC, 32mm extension, 35mm bar bore
  • PEDALS
    Fibre reinforced composite platform

OTHERS

  • COLOUR
    Gloss olive with matt unidirectional (UD) carbon
  • SIZES
    M, L, XL
  • WEIGHT
    19.2kg (size M)
  • BOSCH POWERMORE COMPATIBLE
    Yes, included

Although we've taken every effort to ensure the accuracy of the information listed here, sometimes things change, so we reserve the right to change or update bike specifications, features, prices and colours as and when required, as per the manufacturer.

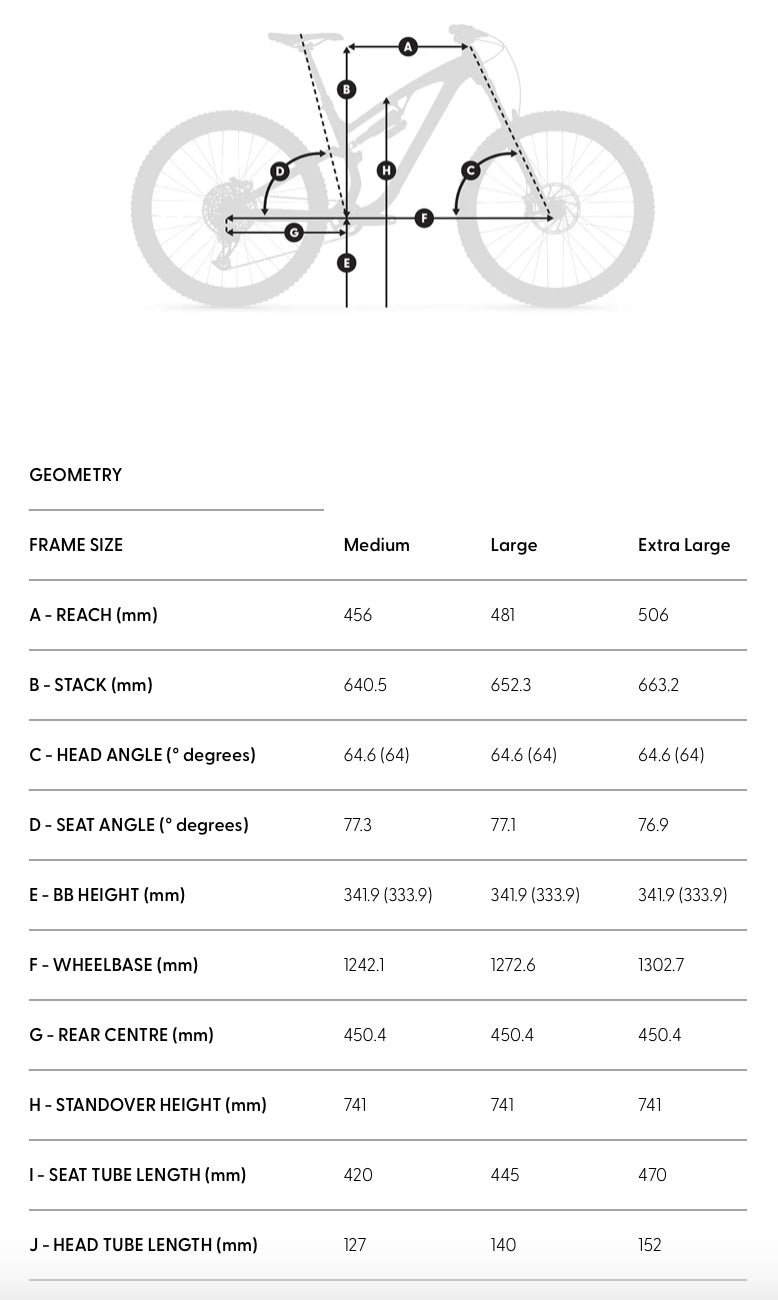

Bike Geometry
Bike geometry

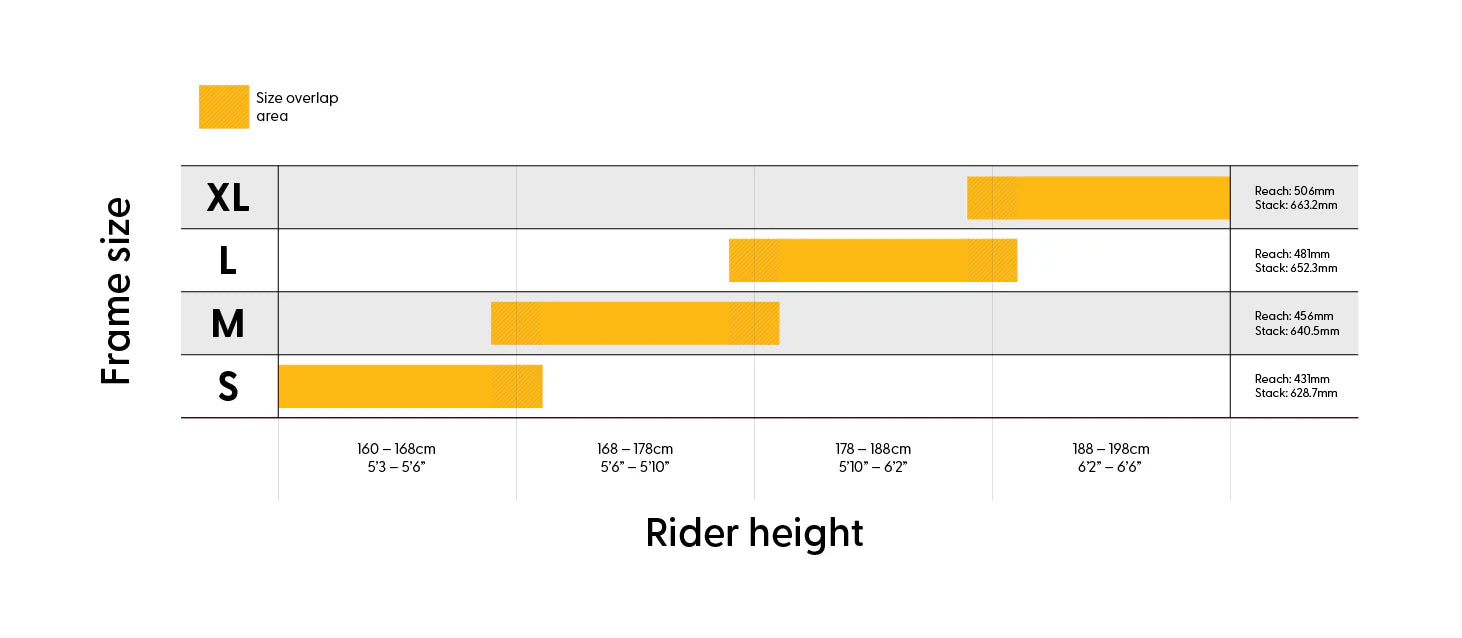

Bike Size Guide
Size chart

  • Bosch Performance Line SX

  • Bosch Compact PowerTube 400Wh & PowerMore 250Wh

  • Fox Float 36 Factory, 150mm | X Factory Series, EVOL

  • Hope Tech4 V4, 4-piston

  • 29"

Contact Us

Complete the contact form below if you are interested in this E-bike or if you would like more information.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

FAQs

Why can I not order this bike through the webshop?

We aim to provide you with the best service in finding the right E-bike. As a result, we don't directly sell our bikes from our online store. However, we do provide delivery of E-bikes nationwide. Please contact our team using the form above to get in touch, +64 7 460 0844.

Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

What is the battery range on this E-bike?

Determining the exact range of your E-bike is not straightforward, as it depends on various factors such as the total load, the terrain, temperature, battery size, and motor unit. Some motor brands provide a range indication or provide a tool, like the Bosch Range Calculator.

--> Please reach out to the EBR team, and we can provide you with a good estimate by asking a few simple questions, +64 7 460 0844.

Are there any services included in the bike sale?

We offer an in-house complimentary first check for all bikes purchased at Electric Bike Rotorua. The first check is done at 6 weeks (after the bike purchase) or 250km, whichever comes first.
