Product details

Description

 Fast, light and powerful

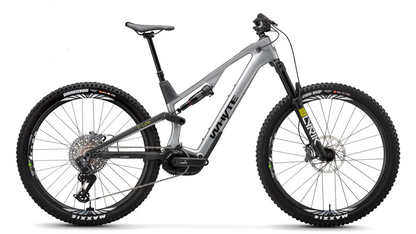

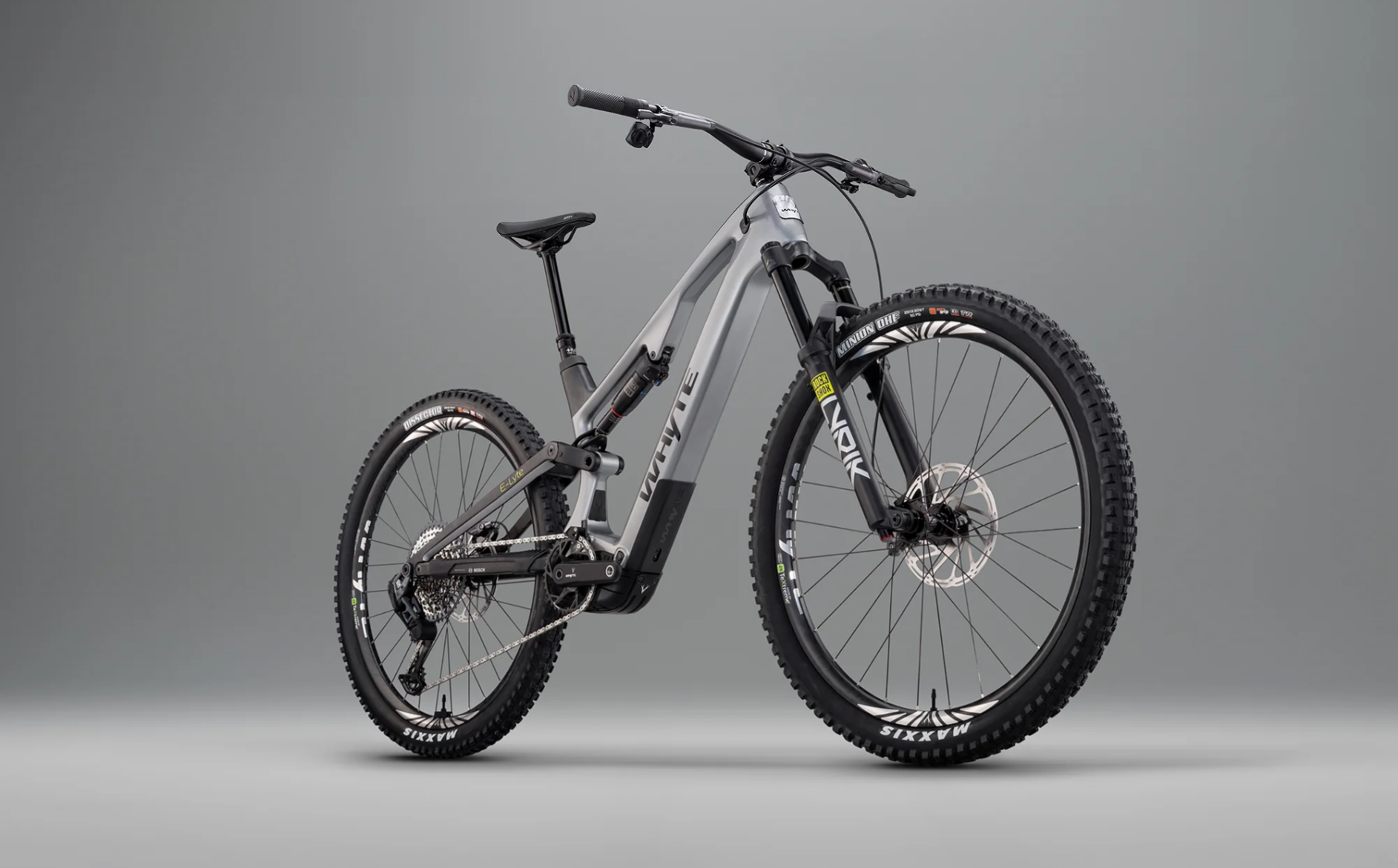

The E-Lyte 150 RSX delivers the very best lightweight, natural mountain bike handling and ride feel together with the capability of full-fat electric mountain bikes (eMTBs). At just 18.9kg (size M) with 55Nm of torque, 600W of peak power, and 400Wh of battery, it packs the power to do it all: the climb, the singletrack, the all-day epic, the home trail hot laps, the drop-ins, the descents, the tech and the climbs back out.


Highlights

  • 150mm front + 142mm rear of custom-tuned suspension travel.
  • Uni-directional carbon fibre frame is light and reassuringly strong.
  • Bosch Performance Line SX mid-torque (55Nm), full power (600W) motor.
  • 400Wh internal battery.
  • 29er wheels front and rear for balanced handling.



Pitch perfect parts


The E-Lyte 150 RSX is dressed in a curated parts list of trail-proven, real-world kit that will serve you brilliantly both now and for the long haul: SRAM GX T-Type AXS 1x12 wireless electronic gearing, Maxxis tyres, feedback-rich SRAM Code Bronze four-piston brakes, and more. Our own custom-tuned suspension from RockShox has also been meticulously tuned to deliver you outstanding, ground-hugging grip with the support you need to right from your first pedal stroke.

E-Lyte 150 RSX: fast, light and powerful.

E-bike Specific
  • DRIVE UNIT

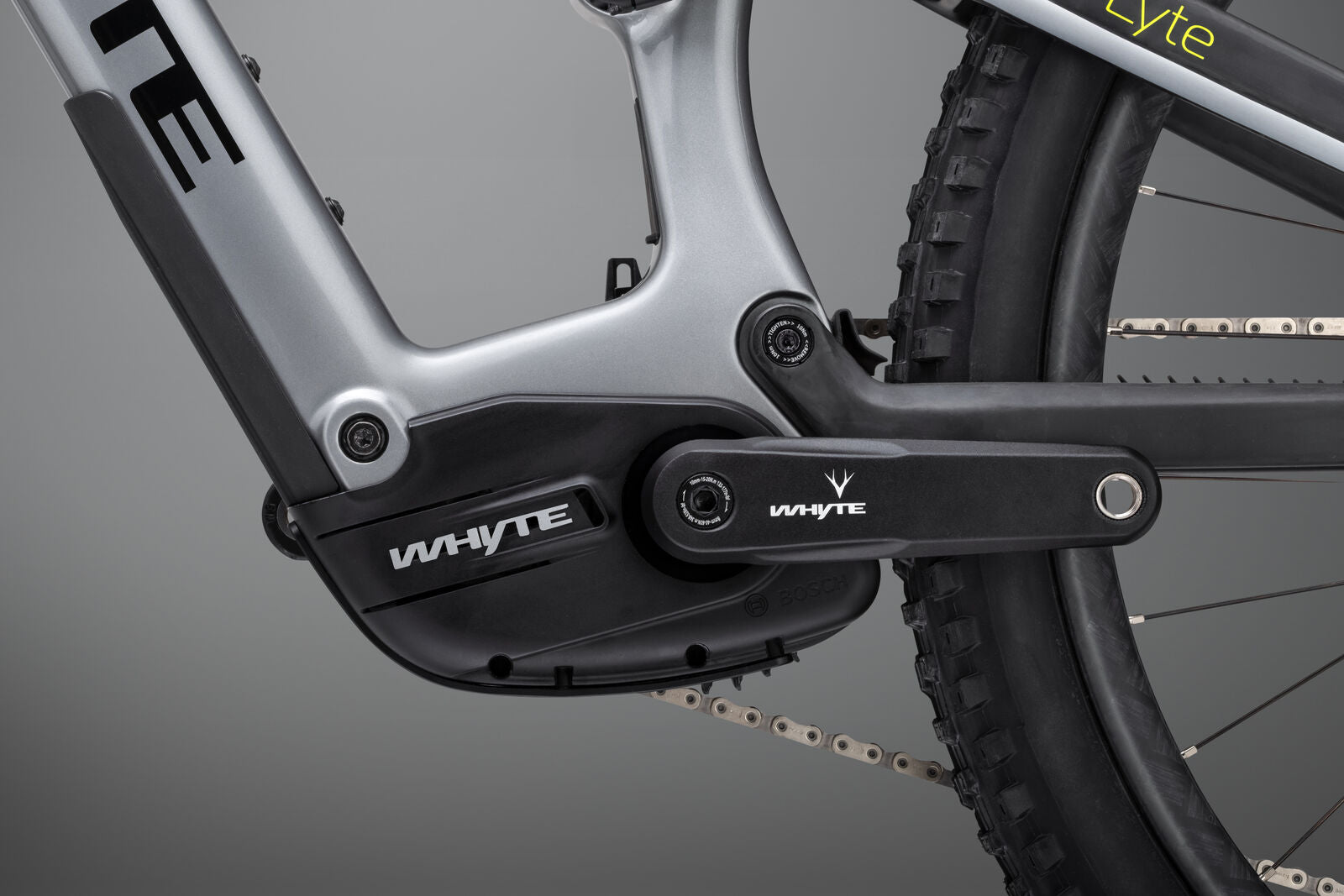

    Bosch Performance Line SX mid-torque (55Nm), full power (600W) motor.

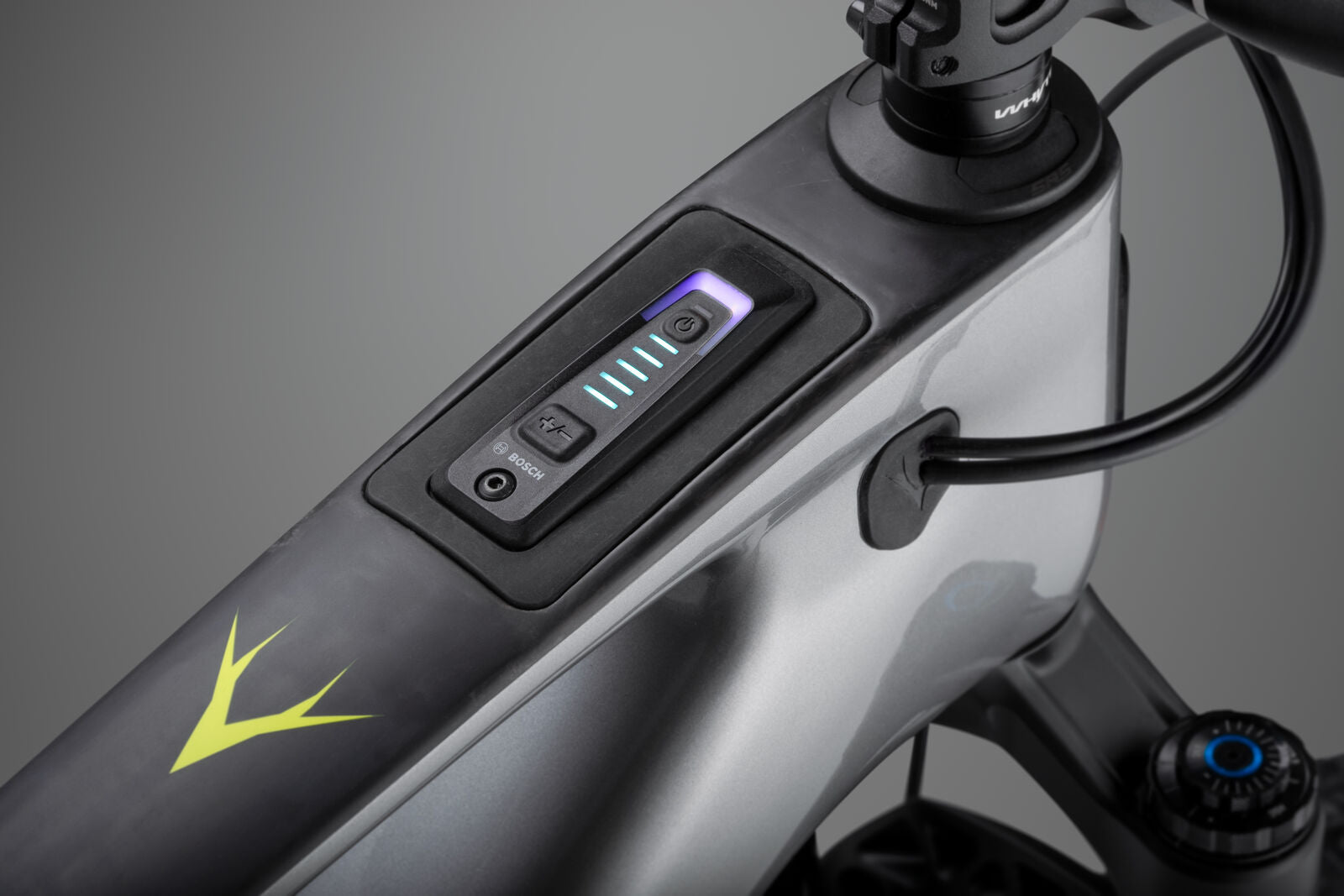

  • BATTERY |
    400Wh internal battery
Technical Info

FRAMESET

  • FRAME

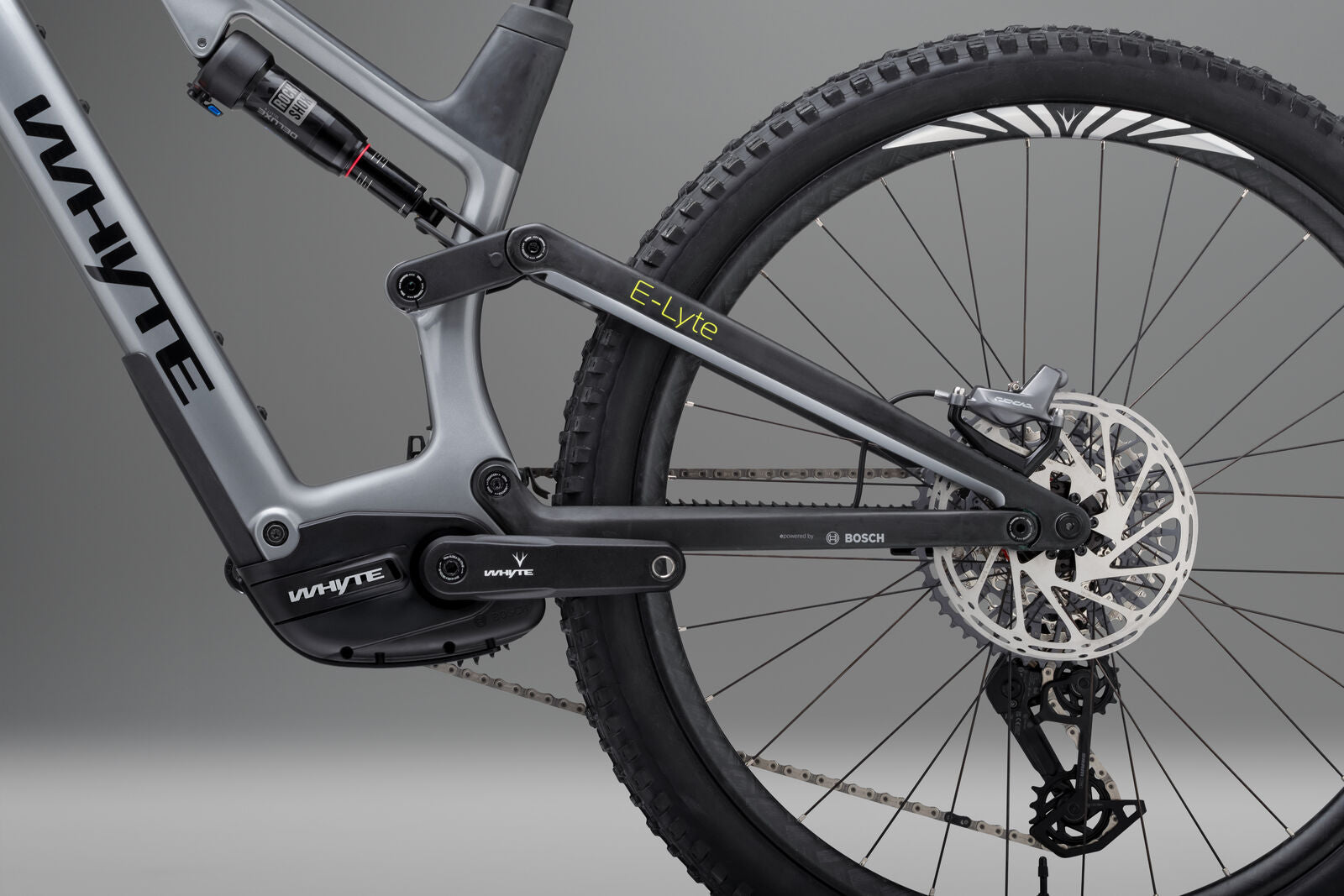

    Uni-directional carbon mainframe and seat stays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts

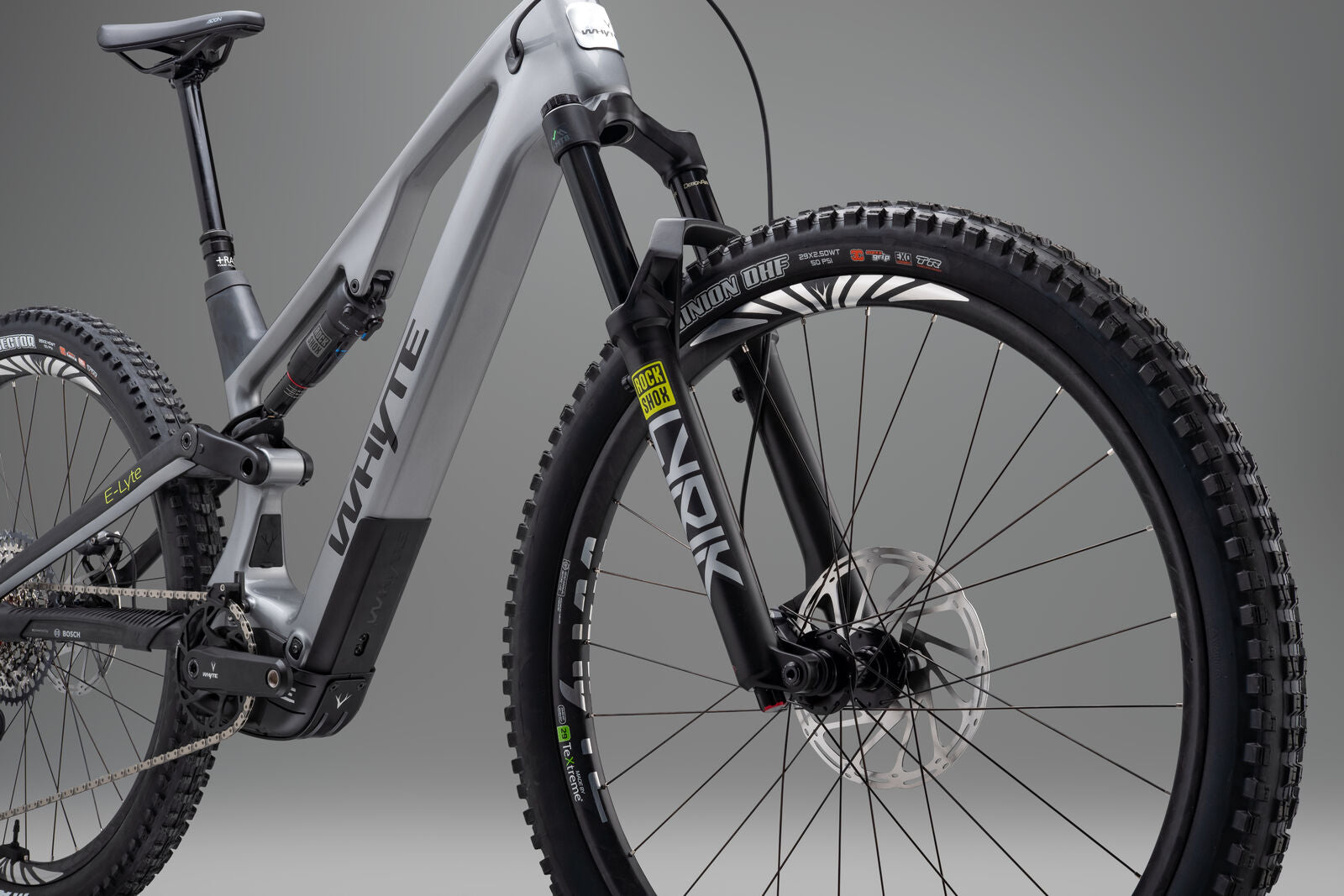

  • FORK
    RockShox Lyrik Select+ 29in, 150mm travel, 44mm offset, DebonAir+, Charger 3 RC2 damper, Fast Black coating, tapered steerer, 110mm x 15mm BoostRockShox Lyrik Select+ 29in, 150mm travel, 44mm offset, DebonAir+, Charger 3 RC2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost

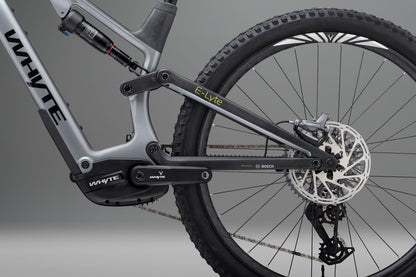

  • REAR SHOCK
    RockShox Deluxe Select + RT, DebonAir, Fast Black coating, adjustable rebound and two position compression adjustment
  • HEADSET
    FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) cartridge bearings, with side entry internal routing

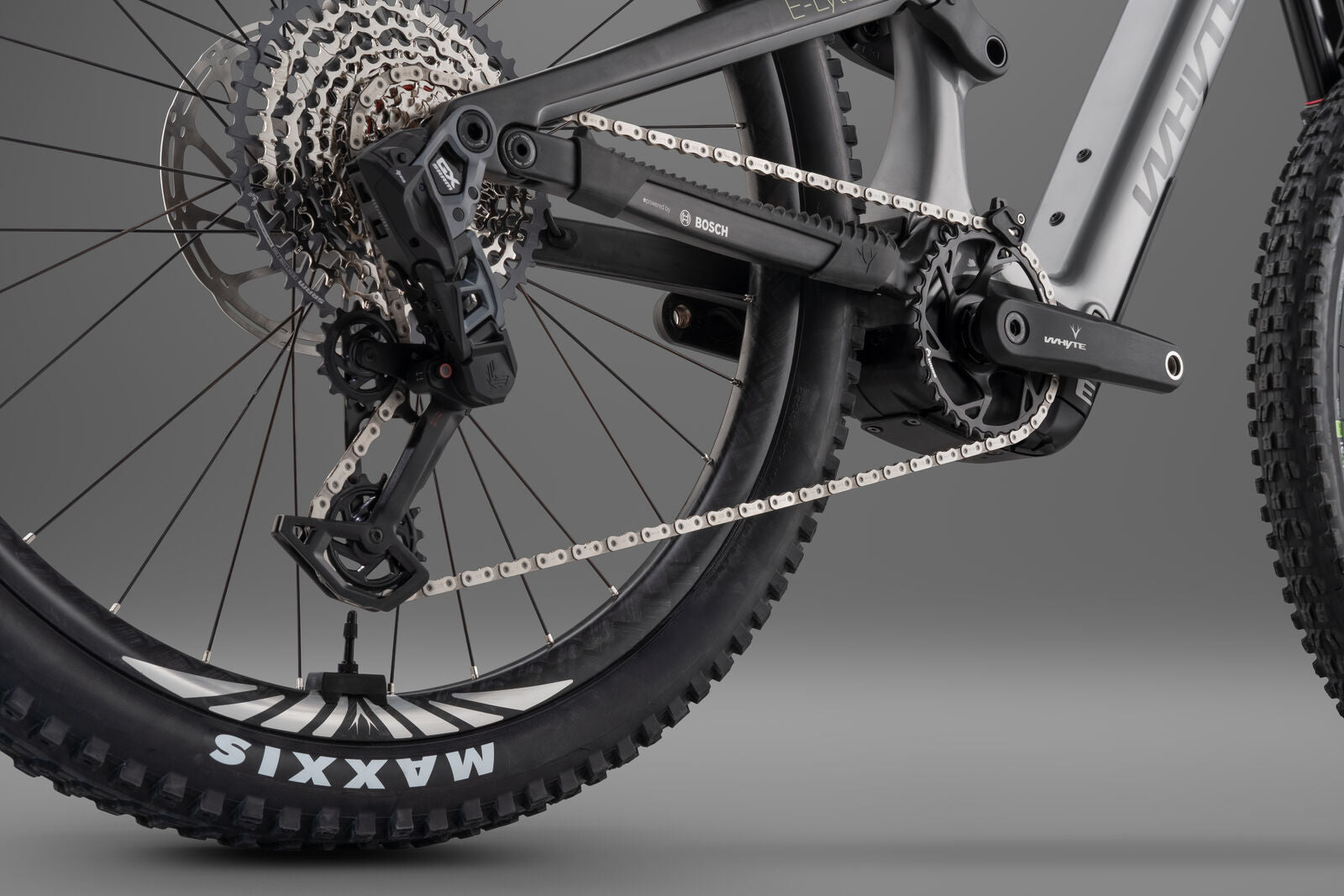

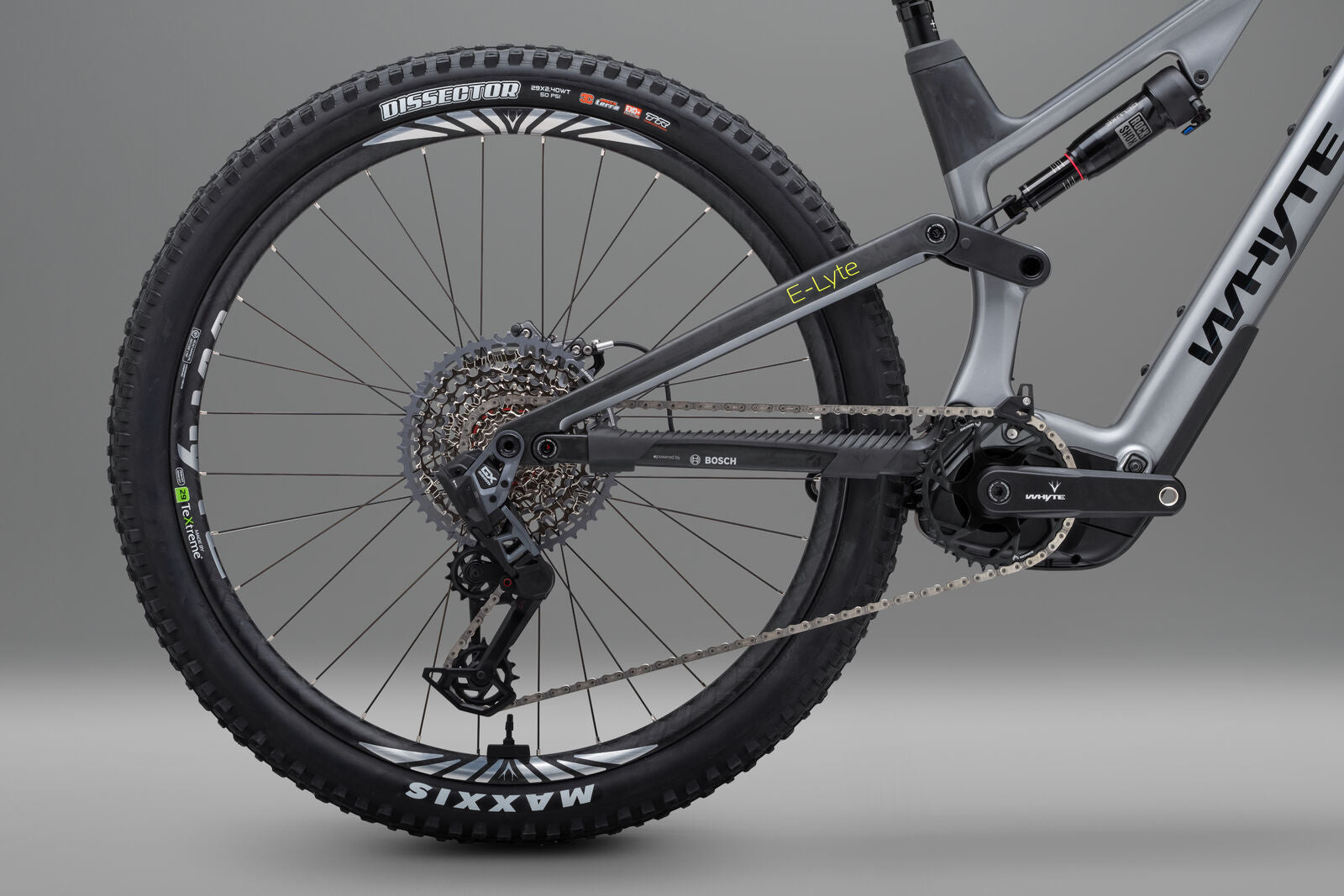

DRIVETRAIN

  • CHAIN
    SRAM GX T-Type, 12 speed
  • CRANK SET

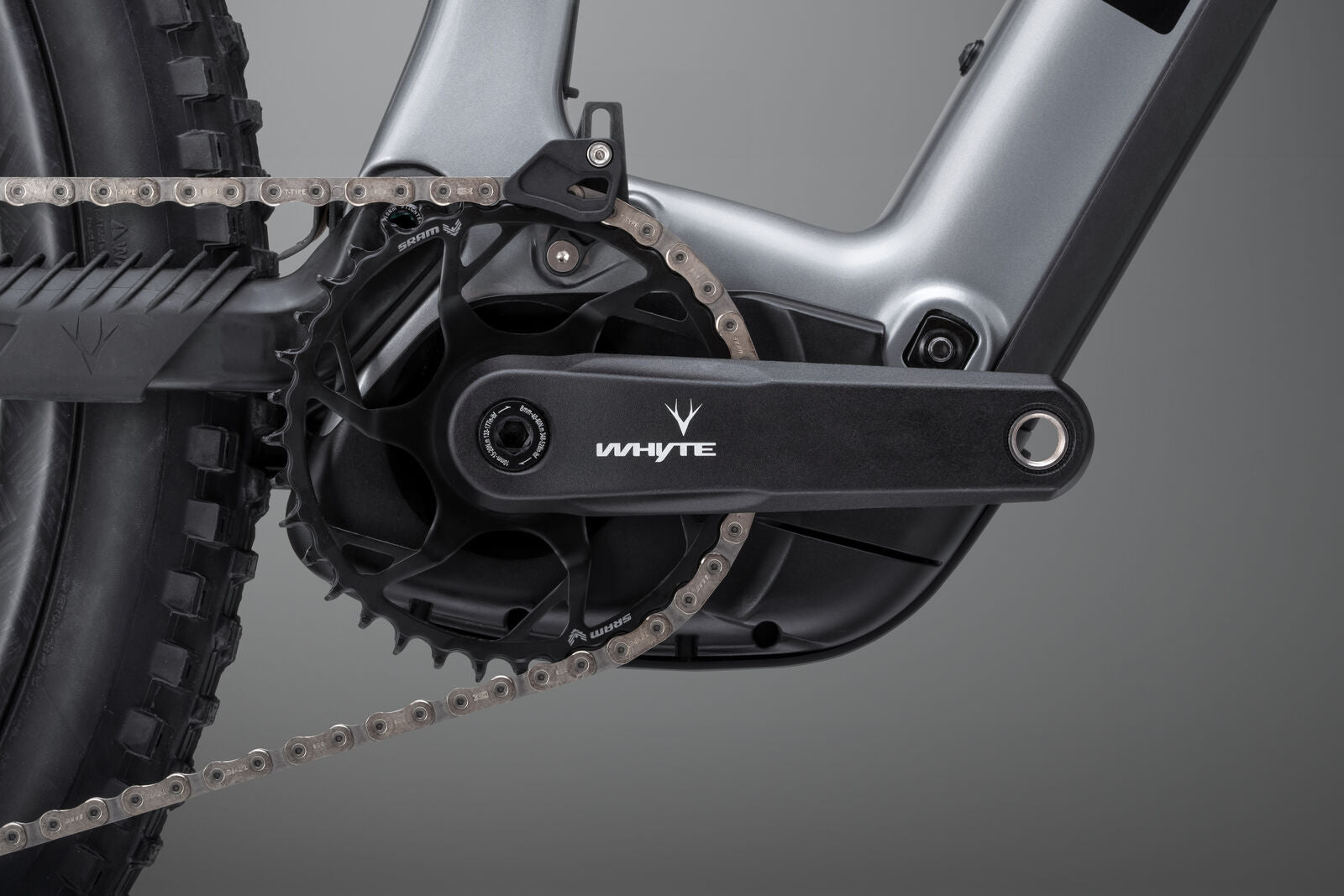

    Whyte 155mm ISIS arms, GX Gen4 direct mount 36T chainring, T-Type
  • CASSETTE
    SRAM XS 1275, T-Type, 10-52T, 12 speed
  • REAR DERAILLEUR
    SRAM GX T-Type AXS, 12 speed
  • SHIFTERS
    SRAM AXS Pod, right, MMX, 12 speed


BRAKES

  • BRAKES
    SRAM Code Bronze Stealth, four piston hydraulic, 200mm diameter disc rotor

WHEELS

  • HUBS
    Rear: Alloy, light assist e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole. Front: Alloy, double sealed cartridge bearings, 15mm x 110mm Boost spacing, 28 hole
  • RIMS
    Whyte TeXtreme Innegra infused, carbon Trail rims, 28 hole front, 32 hole rear
  • SPOKES
    Whyte TeXtreme Innegra infused, carbon Trail rims, 28 hole front, 32 hole rear
  • TYRES
    Front: Maxxis Minion DHF, EXO TR MaxxGrip 29x2.5".
  • Rear; Maxxis Dissector, EXO+ TR MaxxTerra 29x2.4"

COMPONENTS

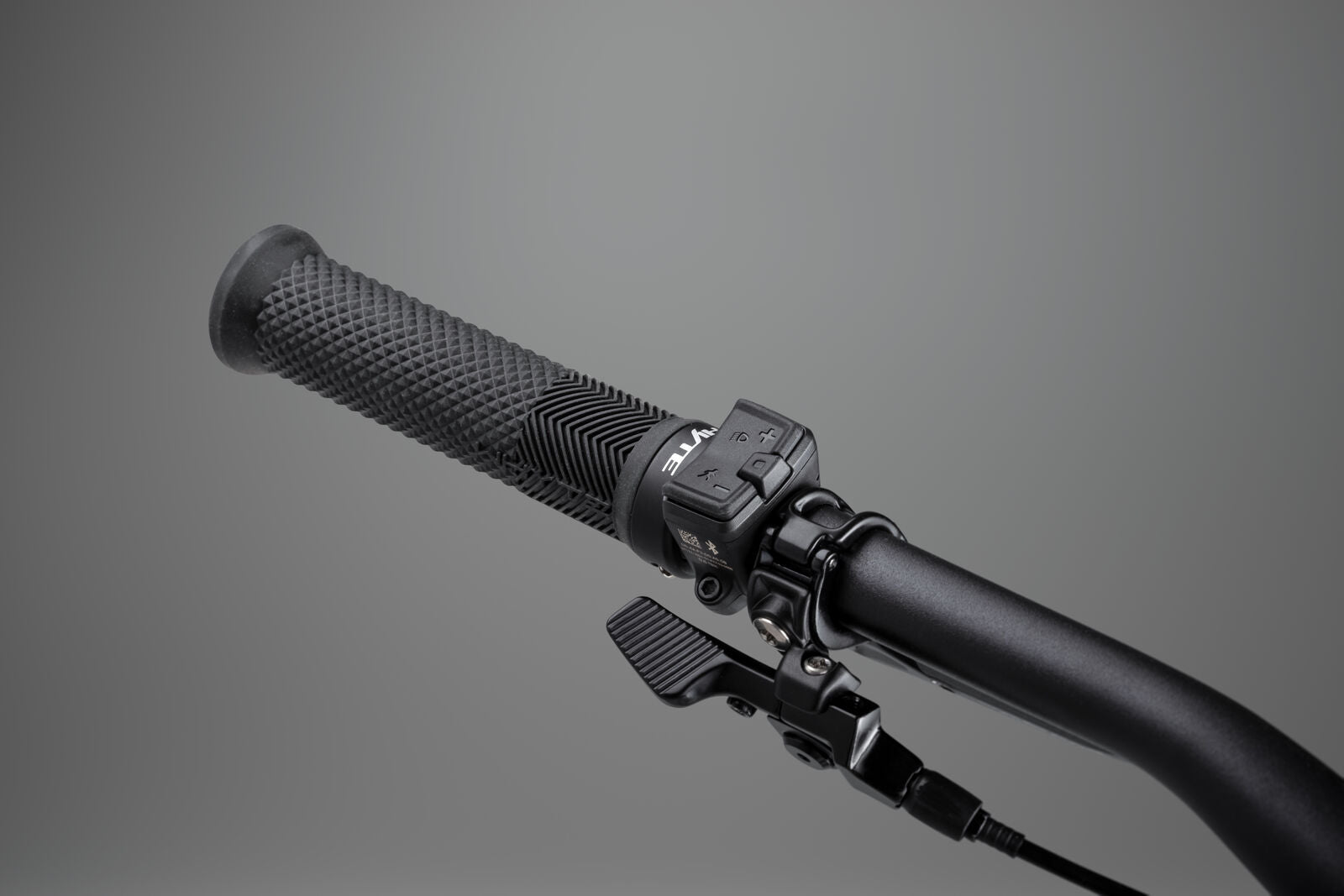

  • GRIPS
    Whyte Lock-On Enduro Grip

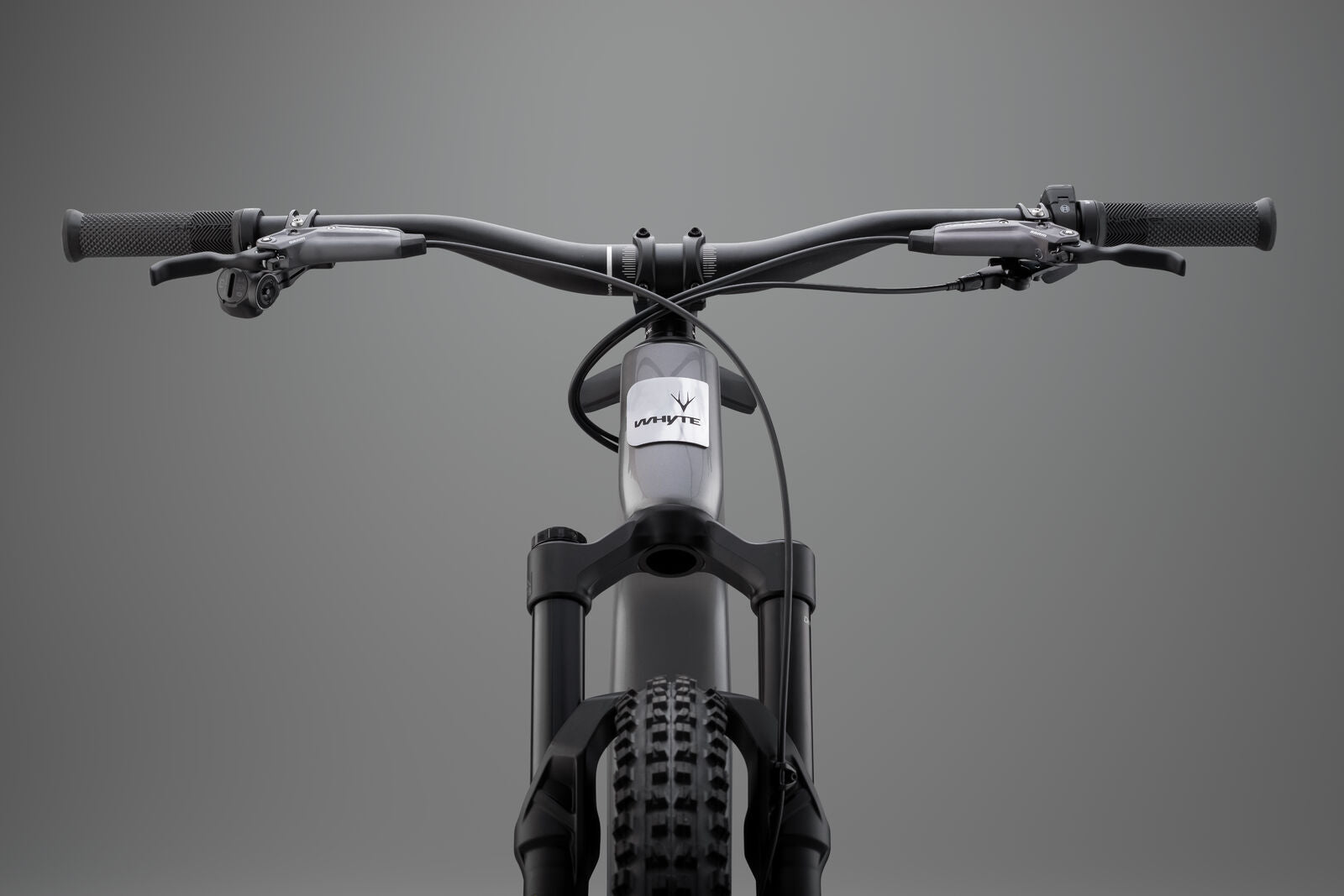

  • HANDLEBAR

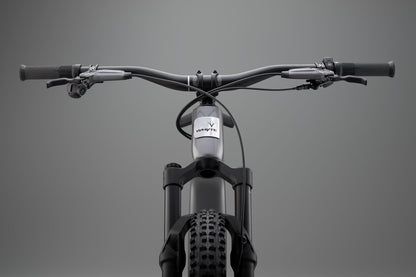

    Whyte Custom 6061 alloy, 20mm rise, 35mm bar bore, 800mm wide
  • SADDLE
    Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
  • SEATPOST
    Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever
  • STEM
    Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever
  • PEDALS
    Fibre reinforced composite platform

OTHERS

  • COLOUR
    Gloss silver with matt uni-directional (UD) carbon
  • SIZES
    M, L, XL
  • WEIGHT
    18.9kg (size M)
  • BOSCH POWERMORE COMPATIBLE
    Yes

Although we've taken every effort to ensure the accuracy of the information listed here, sometimes things change, so we reserve the right to change or update bike specifications, features, prices and colours as and when required, as per the manufacturer.

Bike Geometry
Bike geometry
Bike Size Guide
Size chart

  • Bosch Performance Line SX

  • Bosch 400Wh internal battery

  • RockShox Lyrik Select+, 150mm | Deluxe Select + RT

  • SRAM Code Bronze Stealth, 4-piston

  • 29"

Contact Us

Complete the contact form below if you are interested in this E-bike or if you would like more information.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

FAQs

Why can I not order this bike through the webshop?

We aim to provide you with the best service in finding the right E-bike. As a result, we don't directly sell our bikes from our online store. However, we do provide delivery of E-bikes nationwide. Please contact our team using the form above to get in touch, +64 7 460 0844.

Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

What is the battery range on this E-bike?

Determining the exact range of your E-bike is not straightforward, as it depends on various factors such as the total load, the terrain, temperature, battery size, and motor unit. Some motor brands provide a range indication or provide a tool, like the Bosch Range Calculator.

--> Please reach out to the EBR team, and we can provide you with a good estimate by asking a few simple questions, +64 7 460 0844.

Are there any services included in the bike sale?

We offer an in-house complimentary first check for all bikes purchased at Electric Bike Rotorua. The first check is done at 6 weeks (after the bike purchase) or 250km, whichever comes first.
