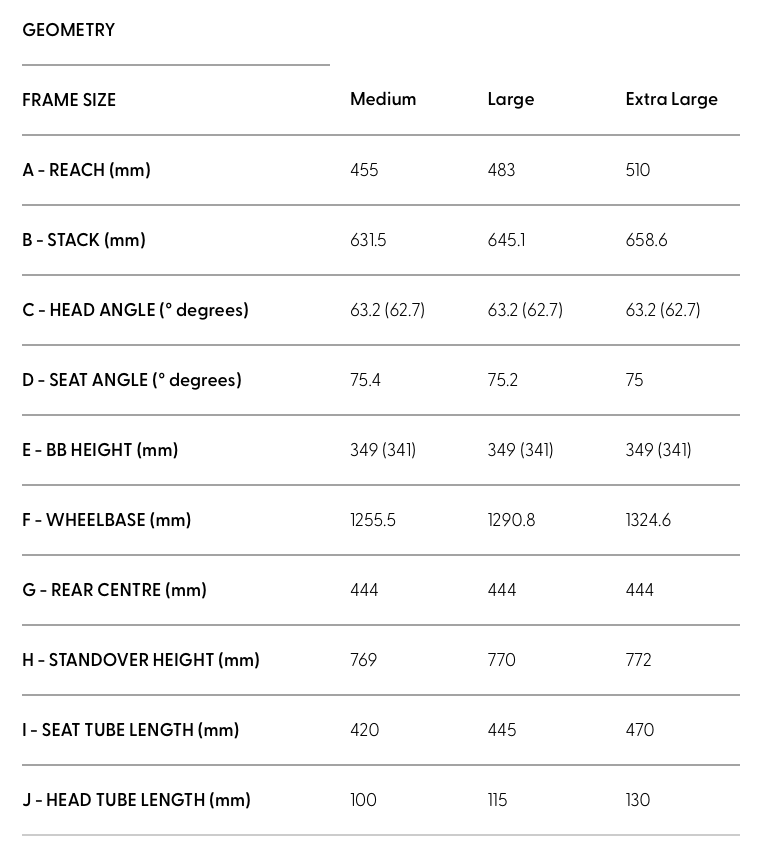

- GEOMETRY
Go faster, go bigger – then go again
Our premium self-shuttle gravity e-MTB is ready for sending the
biggest lines, jumps, drops and features with total confidence.
If having the best time doing the biggest lines in the biggest terrain
is why you ride, the E-180 RSX is ready.
Highlights
– Optimised low centre of gravity gives you untouchable gravity handling.
– 180mm front + 170mm rear of trail-dominating suspension travel.
– Multi-butted 6061 T-6 aluminium hydroformed frame is built to last.
– Bosch Performance CX 85Nm motor (600W peak power) for class-leading performance and reliability.
– 750Wh battery gives you the range to get more runs in between charges.
– MX wheels (29er front, 27.5in rear) so you can tackle everything full-gas – no matter how rowdy or steep.
E-BIKE SPECIFIC
DRIVE UNIT 85Nm Performance Line CX drive unit (600W peak power), the smart system
BATTERY Bosch’s largest capacity 750Wh battery
DISPLAY Bosch LED remote
SPECIFICATIONS
- FRAME
6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link and 12mm x 148mm Boost dropouts - FORK
Fox Float 38, Factory 29in, 180mm travel, 44mm offset with Grip 2 damper and custom tune, tapered steerer, Kashima coating, 110mm x 15mm Boost, E-Thru axle - SHOCK
Fox Float X2, Factory, independently adjustable compression and rebound damping, Kashima coating - RIMS
DT Swiss Hybrid HX1700 - HUBS
Rear: DT Swiss Hybrid HX1700, 30mm wide rim, 12 x 148mm Boost, SRAM XD
Front: DT Swis Hybrid HX1700, 30mm wide rim, 15 x 110mm Boost - HEADSET
FSA No. 55/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings - TYRES
Front: Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead,
Rear; Maxxis Assegai WT, TR, 27.5in x 2.5in 120TPI, Double Down Casing, 3C MaxxGrip, Dual Compound, rear - CRANK SET
Race Face Affect e-bike, 165mm, ISIS with X-SYNC direct mount 36t for Bosch Performance Line CX, black - CHAIN
SRAM X0 T-Type Eagle, 12 speed - REAR DERAILLEUR
SRAM Xo T-Type Eagle, 12 speed
- SHIFTER
SRAM GX AXS pod 2, two button, MMX, 12 speed - CASETTE
SRAM XS-1295 T-Type Eagle, 10-52, 12 speed - HANDLEBAR
Race Face Turbine R, 35mm rise, 35mm bar bore, 800mm wide - GRIPS
Whyte Lock-On Enduro Grip - STEM
Race Face Atlas, 35mm bar bore, 35mm extension - BRAKES FRONT
SRAM Code RSC, four piston hydraulic with sintered metal pads, Front: 220mm diameter disc rotor, 200mm rear - SADDLE
Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail - SEATPOST
Crank Bro High-Line 3, 30.9mm, M/L 150mm travel, XL 170mm travel, High-Line ball socket remote lever 170-200mm travel, MMX Paddle remote lever - SIZES
M, L, XL - COLOUR
Gloss Orange with Matt Black - WEIGHT
tbc - BOSCH POWERMORE COMPATIBLE
No
