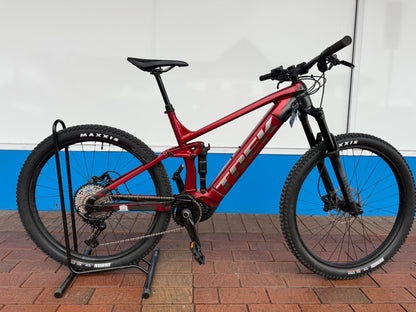

Trek Rail 5 2022 E-Mountain Bike – Pre-loved / size XL

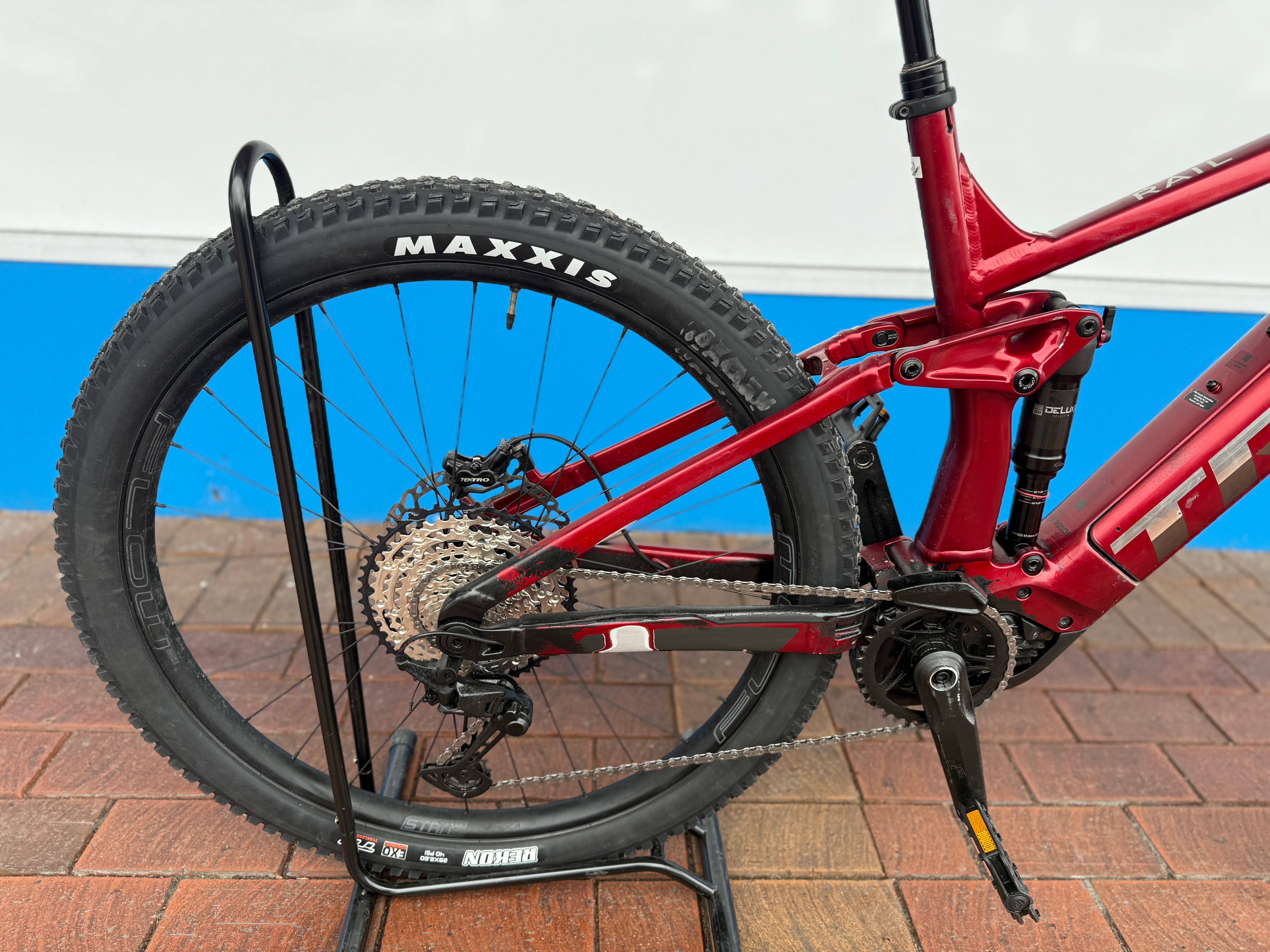

Trek Rail 5 2022 E-Mountain Bike rear triangle

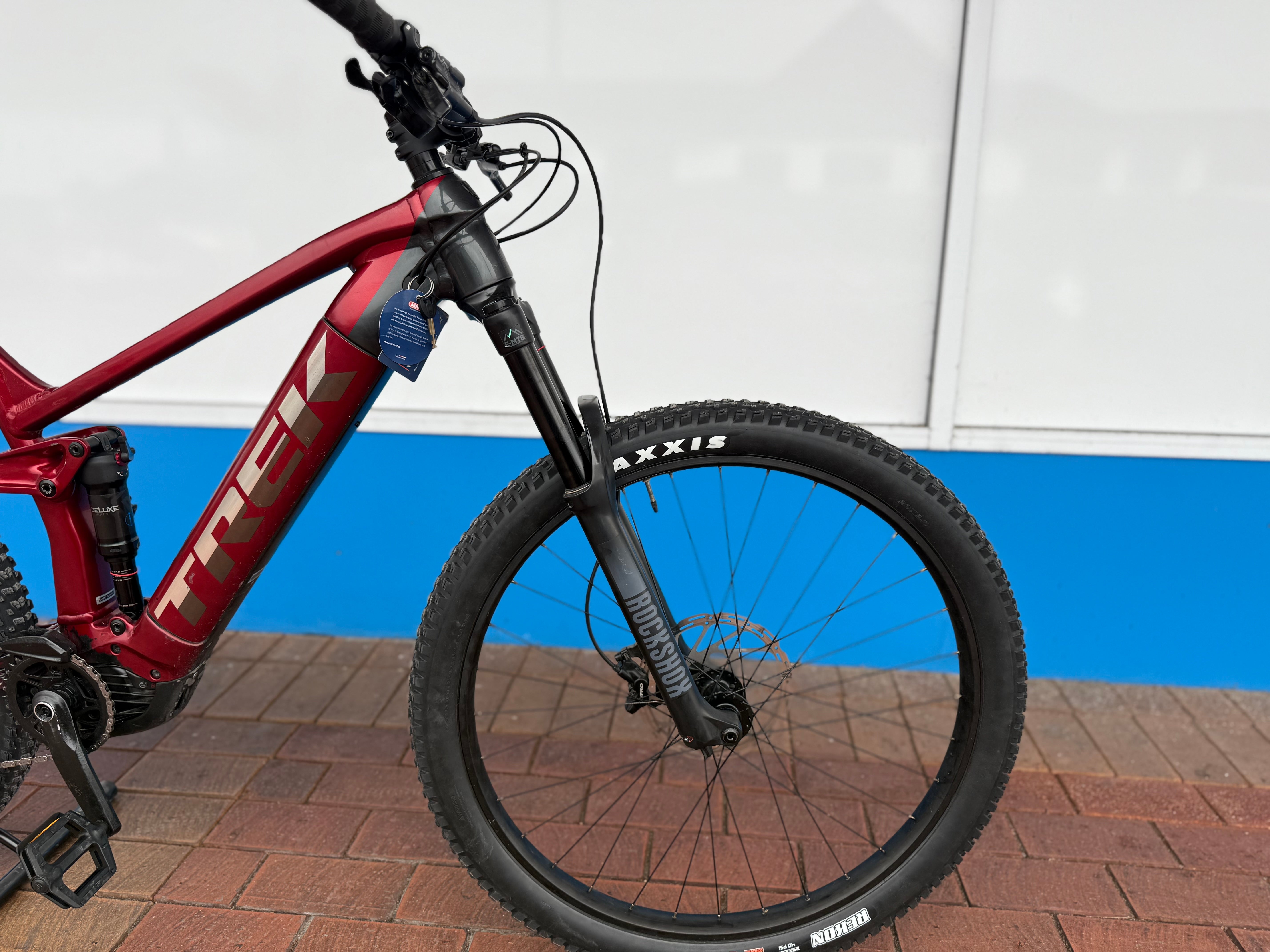

Trek Rail 5 2022 E-Mountain Bike front triangle

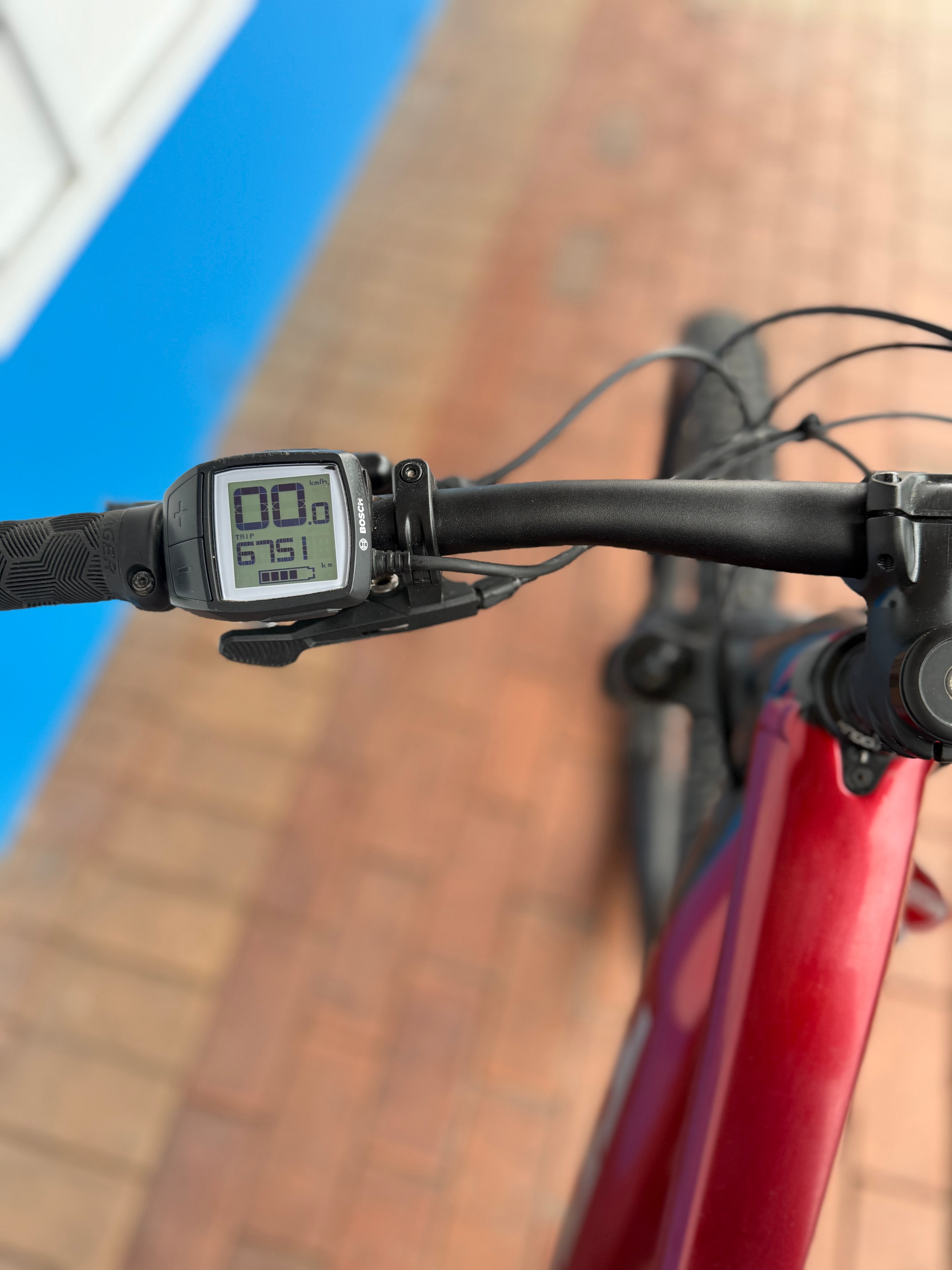

Trek Rail 5 2022 E-Mountain Bike - display/odometer

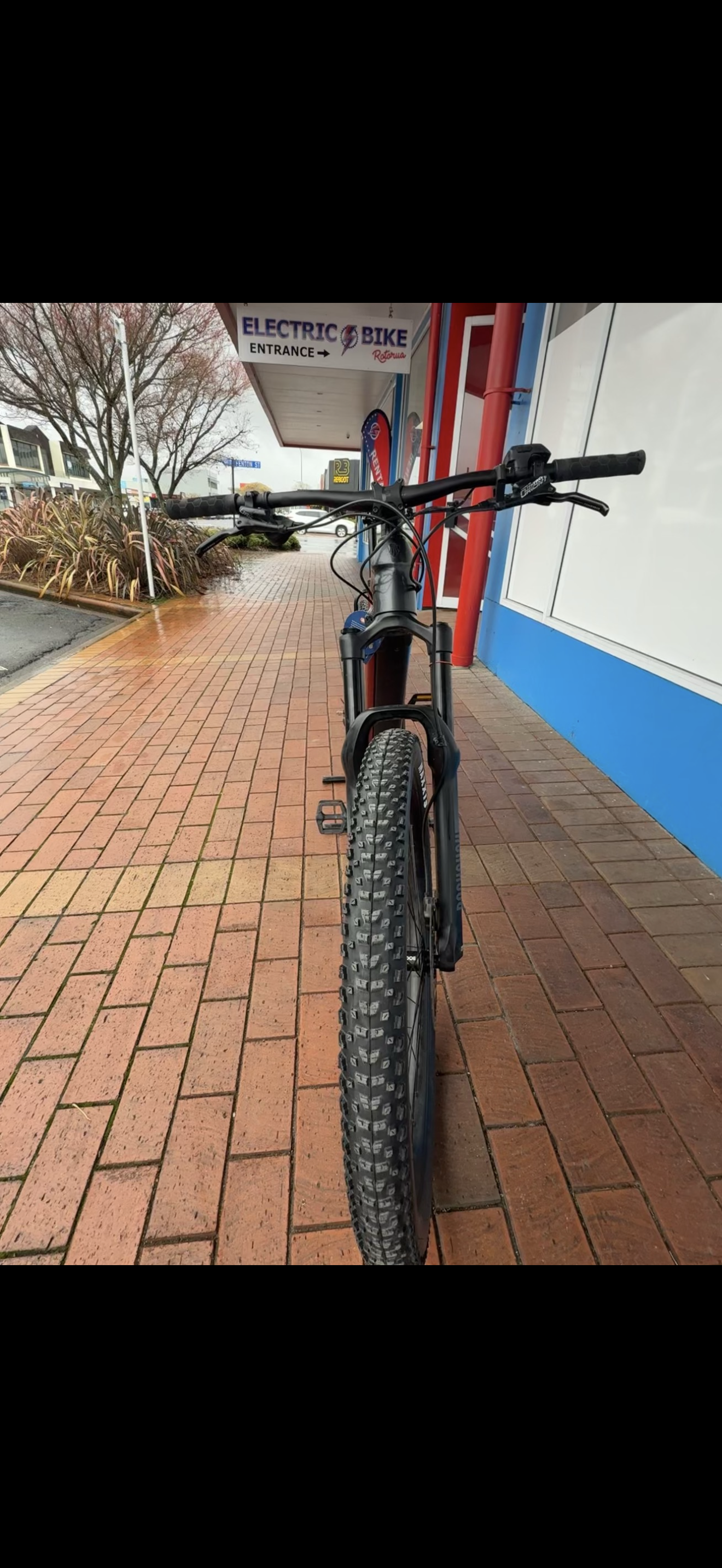

Trek Rail 5 2022 E-Mountain Bike - front

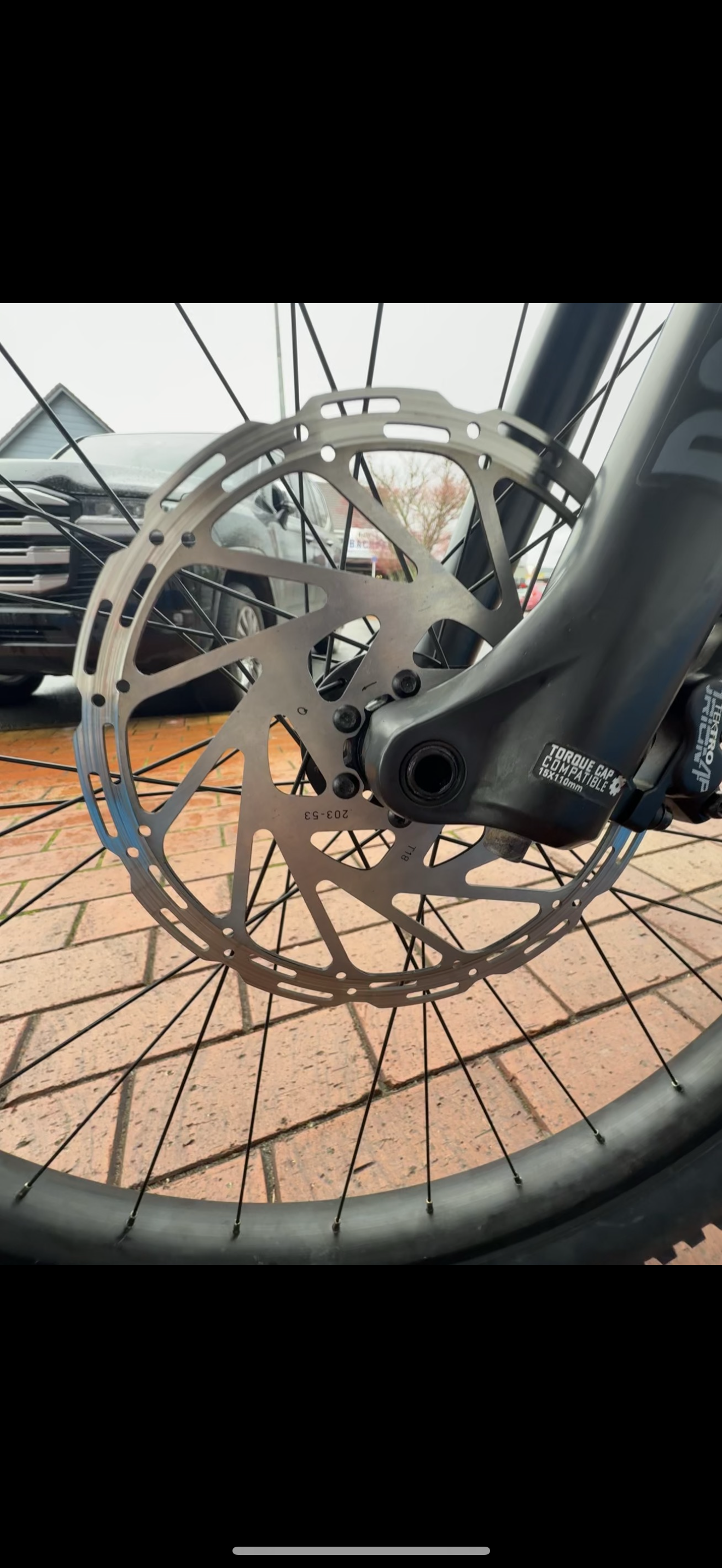

Trek Rail 5 2022 E-Mountain Bike - front brake

Trek

Trek Rail 5 2022 E-Mountain Bike – Pre-loved / size XL

Name: Trek Rail 5 2022 E-Mountain Bike – Pre-loved / size XL
Brand: Electric Bike Rotorua
Price: 4999.00 NZD
Availability: InStock

$4,999.00

Pairs well with

We ship E-bikes all over the country! Fully charged and assembled, ready to ride! Find out more here.

Got questions or ready to order? Reach out through our contact form or call us — the EBR team is ready to assist you!

Share:

Share

Product details

Description

Pre loved Trek Rail 5 - size Extra Large

Selling on behalf

The bike is fully checked by our mechanic.

The Rail 5 is a full-suspension electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analogue trail bikes, plus a powerful Bosch drive system that's basically like having your own shuttle.

Frameset

Frame	Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork	RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
Shock	RockShox Deluxe Select+, 230 mm x 57.5 mm
Max compatible fork travel	170mm (580mm axle-to-crown)

Wheels

Hub front	Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear	Bontrager alloy, loose bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
Rim	Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
Spokes	14 g stainless steel, black
Tyre	Maxxis Rekon EXO, wire bead, 60 tpi, 29x2.60"
Max tyre size	Frame: 29x2.60", Fork: See manufacturer

E-system

Battery	Bosch PowerTube 500 Wh

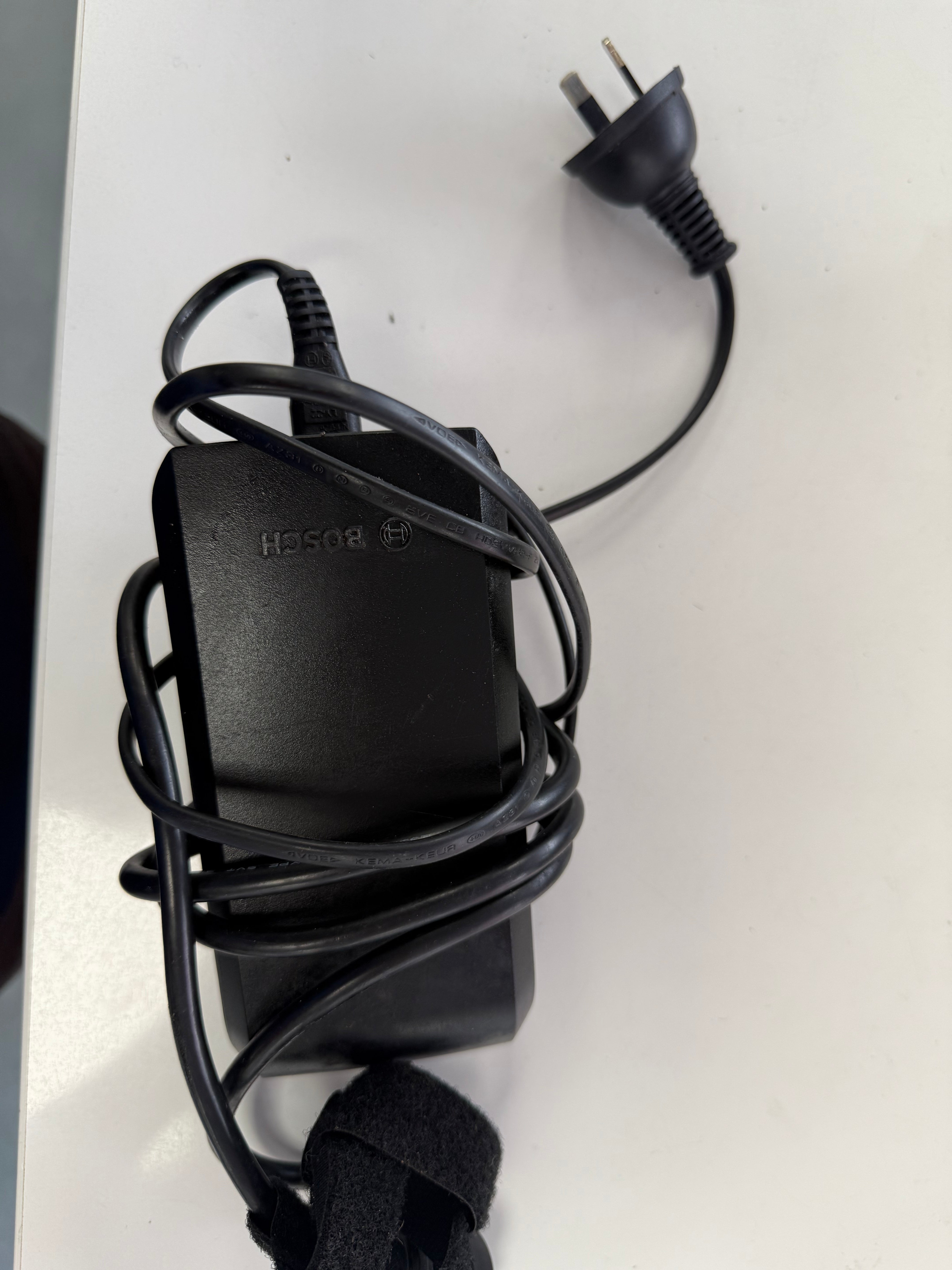

Charger	Bosch compact 2A, 100–240V
Computer	Bosch Purion
Motor	Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20 mph or 32 km/h max assist

Drivetrain

Shifter	Shimano Deore M6100, 12-speed
Rear derailleur	Shimano Deore M6100, long cage
Crank	Ethirteen Espec Plus, 165 mm length
Chainring	E*thirteen, 34T, steel
Cassette	Shimano Deore M6100, 10-51, 12-speed
Chain	Shimano Deore M6100, 12-speed
Pedal	VP-536 nylon platform
Max. chainring size	1x: 34T

Components

Saddle	Bontrager Arvada, steel rails, 138 mm width
*Seatpost	Size: S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
*Seatpost	Size: M, L, XL TranzX JD-YSP18, 130 mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar	Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
Stem	Bontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length
Head set	Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
Brake	Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake rotor	Shimano RT76, 6-bolt, 203 mm

Weight

Weight	M - 23.88 kg / 52.65 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Size	Rider Height	Inseam
S	155 - 165 cm 5'1" - 5'5"	74 - 78 cm 29" - 31"
M	165 - 176 cm 5'5" - 5'9"	79 - 83 cm 31" - 33"
L	177 - 188 cm 5'10" - 6'2"	84 - 89 cm 33" - 35"
XL	188 - 195 cm 6'2" - 6'5"	89 - 91 cm 35" - 36"

Size

Rider Height

Inseam

S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 176 cm

5'5" - 5'9"

79 - 83 cm

31" - 33"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"

Contact Us

Complete the contact form below if you are interested in this E-bike or if you would like more information.

FAQs

Why can I not order this bike through the webshop?

We aim to provide you with the best service in finding the right E-bike. As a result, we don't directly sell our bikes from our online store. However, we do provide delivery of E-bikes nationwide. Please contact our team using the form above to get in touch, +64 7 460 0844.

Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

What is the battery range on this E-bike?

Determining the exact range of your E-bike is not straightforward, as it depends on various factors such as the total load, the terrain, temperature, battery size, and motor unit. Some motor brands provide a range indication or provide a tool, like the Bosch Range Calculator.

--> Please reach out to the EBR team, and we can provide you with a good estimate by asking a few simple questions, +64 7 460 0844.

Are there any services included in the bike sale?

We offer an in-house complimentary first check for all bikes purchased at Electric Bike Rotorua. The first check is done at 6 weeks (after the bike purchase) or 250km, whichever comes first.
