Product details

Description
Recommended by Consumer NZ!

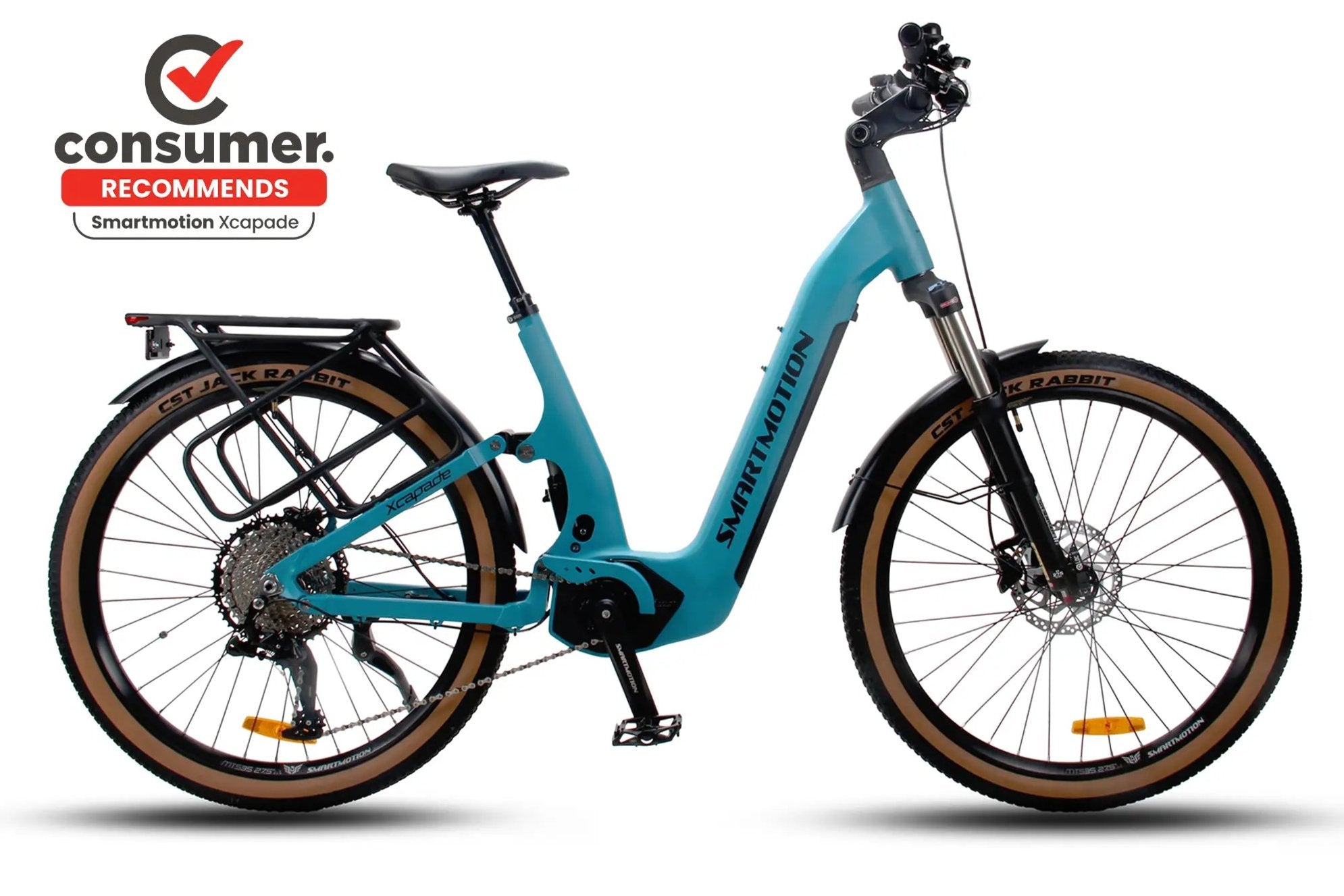

The innovative new Smartmotion Xcapade continues the X-City Neo's classic low step-through mid-motor design, but with integrated rear suspension through a 165/38mm shock creatively built into the rear of the seat tube, utilizing weld-free technology. We integrated the pivot base seamlessly with the seat tube to enhance the visual flow of the frame. Our one-piece, weld free down tube & motor mount design increases strength while reducing the amount of frame distortion caused by welding.

The Smartmotion Xcapade sets a new standard for comfort adventure biking. The 720WH battery integrated into the downtube extends range and peak power available to the super quiet and efficient, Smart mode capable motor for an intuitive riding experience.
E-bike Specific
  • MOTOR
    Motinova, 36v 250w, 75nm, Canbus, 40km/h
  • DISPLAY
    Motinova C800S-W/T USB, A500 Thumb pad
  • ASSIST SPEED
    full assist to 38km/h then assistance will taper off to 45km/h
  • BATTERY
    36v 20AH, 720WH (LG Cells)
  • CHARGER
    Motinova 36v4A Fast Charger
  • Extras
    Throttle (Optional extra)
Technical Info
  • FRAMESET
  • FRAME
    Aluminium, CNC Machined
  • FORK
    Suntour XCR32 120MM, rebound adjustment, through-axle
  • REAR SUSPENSION
    Exaform 562R 165x38mm

  • DRIVETRAIN
  • SHIFTER
    Shimano SL-U6000-10R CUES 10SPD
  • REAR DERAILLEUR
    Shimano RD-U6000 CUES 10SPD
  • CRANK SET
    Smartmotion 160mm
  • CHAIN
    KMC X10 116L
  • CASSETTE
     Shimano CS-LG400-10, CUES 11-48T
  • CHAIN RING
    11/128’’ - 18T
  • WHEELS
  • FRONT WHEEL
    MT-009F hub, MTSC35D A/V rim, 13G 258/260mm spokes
  • REAR WHEEL
    MT-009F hub, MTSC35D A/V rim, 13G 258/260mm spokes
  • WHEEL SIZE
    27,5"
  • TYRE
    CST Jack Rabbit 27.5x2.25
  • COMPONENTS
  • SADDLE
    Smartmotion Comfort
  • SEATPOST
    Smartmotion Dropper, 31.6mm, 150mm travel
  • HANDLEBAR
    ALLOY 700**22.2*31.8 ,9 degree
  • BRAKES
  • BRAKES
    Shimano BR/BL M4100
  • BRAKE ROTOR
    Shimano SM-RT26-M
  • ETILITY FEATURES
  • EXTRA's
    Kickstand (Rear Mounted), Integrated Front & Rear lights, Carrier rack
  • MAX LOAD
    120 KG's

  • Motinova, 36v 250w, 75nm, Canbus, 40km/h

  • 36v 20AH, 720WH (LG Cells)

  • Suntour XCR32 120MM | Exaform 562R

  • Shimano BR/BL M4100

  • 27,5"

Contact Us

Complete the contact form below if you are interested in this E-bike or if you would like more information.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

FAQs

Why can I not order this bike through the webshop?

We aim to provide you with the best service in finding the right E-bike. As a result, we don't directly sell our bikes from our online store. However, we do provide delivery of E-bikes nationwide. Please contact our team using the form above to get in touch, +64 7 460 0844.

Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

What is the battery range on this E-bike?

Determining the exact range of your E-bike is not straightforward, as it depends on various factors such as the total load, the terrain, temperature, battery size, and motor unit. Some motor brands provide a range indication or provide a tool, like the Bosch Range Calculator.

--> Please reach out to the EBR team, and we can provide you with a good estimate by asking a few simple questions, +64 7 460 0844.

Are there any services included in the bike sale?

We offer an in-house complimentary first check for all bikes purchased at Electric Bike Rotorua. The first check is done at 6 weeks (after the bike purchase) or 250km, whichever comes first.
