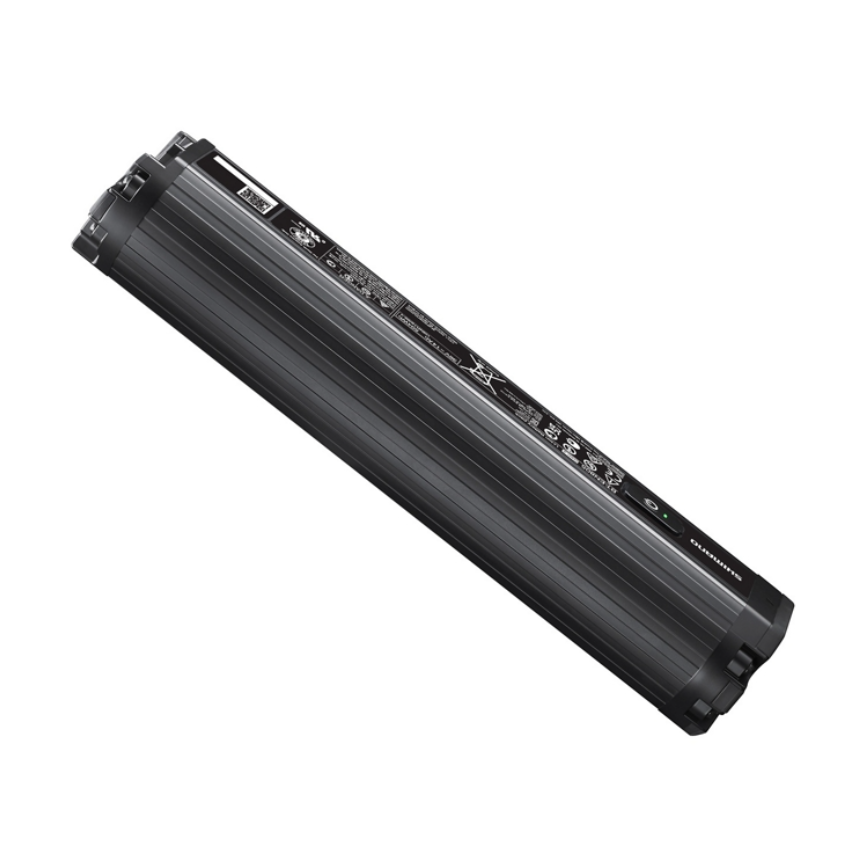

FEATURES
Capacity: 504 Wh (36 V, 14 Ah)
Fully charge in 5 hours with EC-8004 charger
Temperature: 0°C - 40°C (charging) -10°C - 50°C (operating)
Long-lasting battery retains more than 60% of its initial maximum capacity after 1,000 full charges
Compatible with SHIMANO STEPS second-generation down tube battery mount
Durable construction with IPX5 water resistance stands up to the elements and low-pressure washes
Same mount as BT-EN805-L and BT-EN806
Supports sleek frame design
PRODUCT SPECIFICATIONS
| MODEL NO |
BT-EN805 |
| SERIES |
EP8 EP801 Series |
| Color |
Standard |
| Average weight |
2.9 |
| Remarks |
* By EC-E8004 (** In case of 100 V AC) *** with SM-BTE80 or EW-CP100 |
| Chemistry |
Li-Ion |
| Position |
Integrated |
| Rated voltage (V) |
36 |
| Rated capacity (Ah) |
14 |
| Rated capacity (Wh) |
504 |
| Cyclelife span for charge (times) |
1,000 (more than 60%) |
| Time to charge (hour)|SOC = 100% |
* 4 (** 4.5) |
| Time to charge (hour)|SOC = 80% |
* 2.5 (** 3.2) |
| Charge level display |
✔ |
| Error signal |
✔ |
| Charging port |
*** - |
| System on/off switch |
✔ |
| Compatible battery mount |
BM-EN800-A BM-EN800-B BM-EN801-A BM-EN801-B |
| Compatible charger |
EC-E6002, EC-E8004 |
| Compatible adaptor for charge |
SM-BTE80 |
