BOSCH SMART SYSTEM COMPACTTUBE BATTERIES
For the highest demands in terms of performance and aesthetics: Bosch PowerTubes and CompactTubes blend ideally into the clean design of the E-Bike – they are integrated into the frame tube. They come in two variants, horizontal or vertical. Both are installed directly by the manufacturer to match the relevant E-Bike model. A safety catch prevents the battery from falling out. Where provided for, however, the batteries can be easily and conveniently removed.
Types of batteries fitting

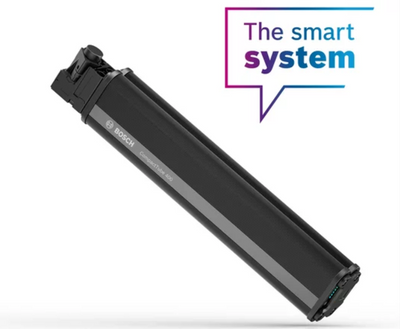

CompactTube
Slim, integrated, compact and delivering 400 watt hours at a weight of only around 2 kilograms, it's a real energy champion: The CompactTube 400 with innovative battery cell technology offers the highest energy density of all Bosch E-Bike batteries. This makes the extra-lightweight battery the ideal choice for sporty, light E-MTBs, minimalist E-Gravel bikes or design-oriented E-Urban bikes – in short, for anyone who loves the sleek appearance of conventional bikes but doesn't want to do without electric support.

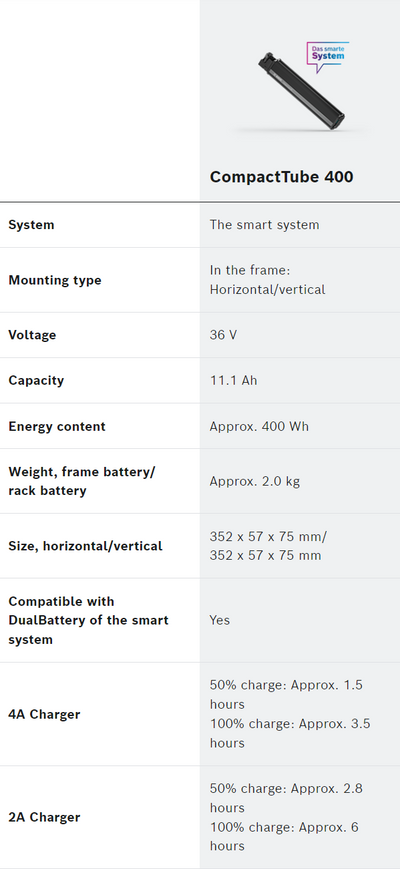

Technical specifications:
- Type of battery: lithium-ion
- Voltage: 36V
- Compatible with: only Bosch Smart System
- Mounting type: horizontal and vertical
- Type of fitting: integrated
Sizes:
Please double check the orientation of the battery you need, Horizontal or Vertical!
Battery Care:
For long battery life, avoid extreme temperatures when not in use. Storing and charging at room temperature is ideal.
For long-term storage, it is recommended to store the battery at 30–60% charge and at room temperature.
Learn more about battery care and maintenance [here]
