Product details

Description

ALL IN. ALL OUT

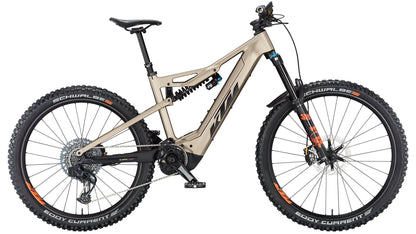

Your ace up the jersey sleeve! With the MACINA PROWLER carbon frame our engineering team has gone "all in". All PROWLER models have been thought through, conceived, and trimmed to perfection down to the last detail.


STRAIGHT-LINE-LINK (SLL)

Thanks to the proven STRAIGHT-LINE-LINK (SLL) concept for a sensitive and direct suspension performance, 180mm travel at the fork and 170mm at the rear, the PROWLER's field of application is on demanding enduro trails.


DIMENSION-MIX (DIMMIX)

The Dimension-Mix (DiMMiX) provides a decisive advantage in difficult situations: 29-inch wheel at the front for optimal riding stability paired with the 27.5-inch PLUS tyre at the rear for best power transmission and traction.


BOSCH PERFORMANCE LINE CX

The BOSCH PERFORMANCE LINE CX motor and the most powerful BOSCH POWERTUBE battery ever (750WH) provide massive support. In addition, the EBIKE FLOW APP opens the door to the digital world and connects you with your bike.

E-bike Specific
  • DRIVE UNIT
    Bosch Performance Line CX, (SMART SYSTEM)
  • BATTERY
    Bosch PowerTube 750WH (SMART SYSTEM)
  • DISPLAY
    Bosch Kiox 300 TFT & Bosch LED Remote (SMART SYSTEM)
  • CHARGER
    Bosch STANDARD Charger 4A (SMART SYSTEM)
Technical Info
  • FRAME
    Macina Prowler Dimmix Perf. Carbon SLL-LTE 170mm UDH
  • FORK
    FOX 38 Float 29" Performance e-bike, 180mm, 15x110 taper
  • SHOCK
    FOX DHX2 Performance Elite, 2-Pos 250x75
  • SEATPOST
    FOX Transfer Performance, internal
  • BRAKES
    MAGURA MT7 HC3, 4 Piston
  • ROTOR
    Front: Shimano MT800 CL, 203 mm
    Rear: Shimano MT800 CL, 180 mm
  • DERAILLEUR
    SRAM GX AXS Eagle T-Type 12speed
  • CASSETTE
    SRAM GX Eagle T-Type XS-1275 / 10-52
  • CHAIN
    SRAM GX Eagle T-Type 12s
  • SHIFTER
    SRAM POD AXS Controller
    CHAIN RING
    SRAM Eagle Transmission E-MTB, 36T, Direct Mount
  • WHEELS
    Front: KTM E-Team Trail 29 CL 110/15TA / 622x30TC made by DT Swiss
    ear: KTM E-Team Trail 27 CL 148/12TA / 622x35TC made by DT Swiss
  • TYRES
    Front: Schwalbe Eddy Current,Evo SuperTrail, TLE, 27.5 x 2.8
    Rear: Schwalbe Eddy Current, Evo SuperGravity,TLE, 29 x 2.6
  • HANDLEBAR
    KTM Prime Trail35, Carbon rizer20, 800mm
  • STEM
    KTM TEAM II Trail 35, 50 mm
  • HEADSET
    Acros AICR internal 1.1/8"-1.5" angle limit
  • CRANKSET
    KTM E-TRAIL ISIS 160mm Q16
  • GRIPS
     Ergon GA20
  • SADDLE
    Selle San Marco Ground Short Open Fit Narrow
  • BOSCH POWERMORE COMPATIBLE
    No

* Subject to technical modification without notice. Errors and omissions excepted.

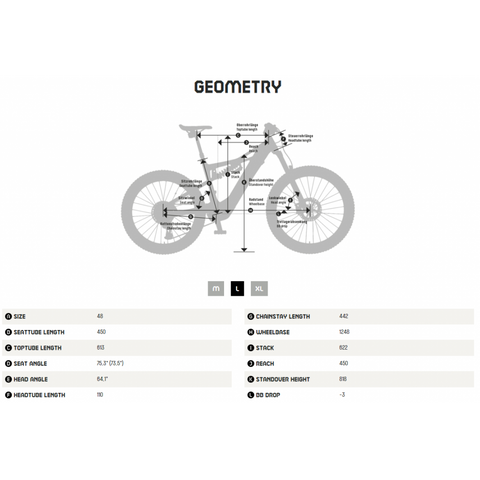

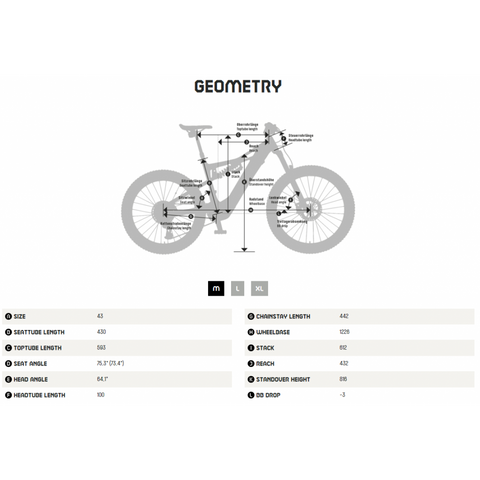

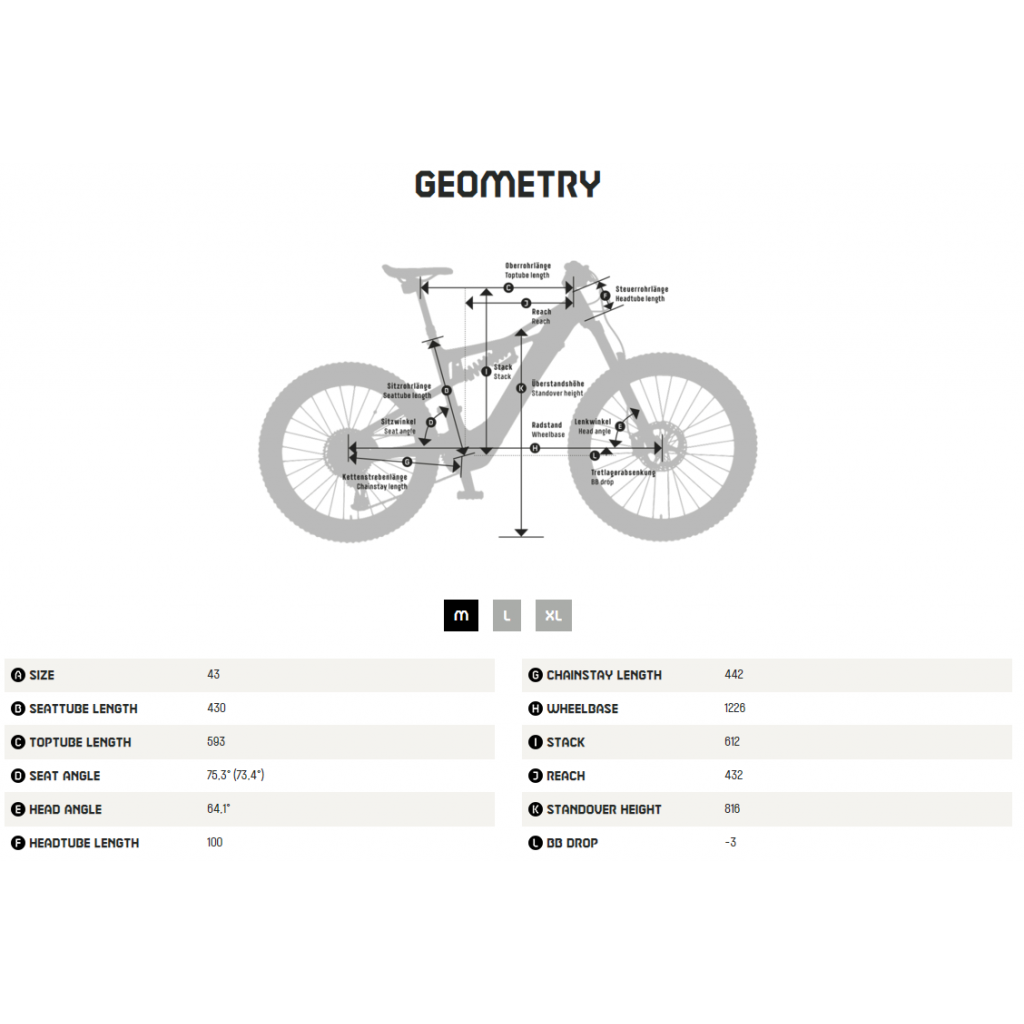

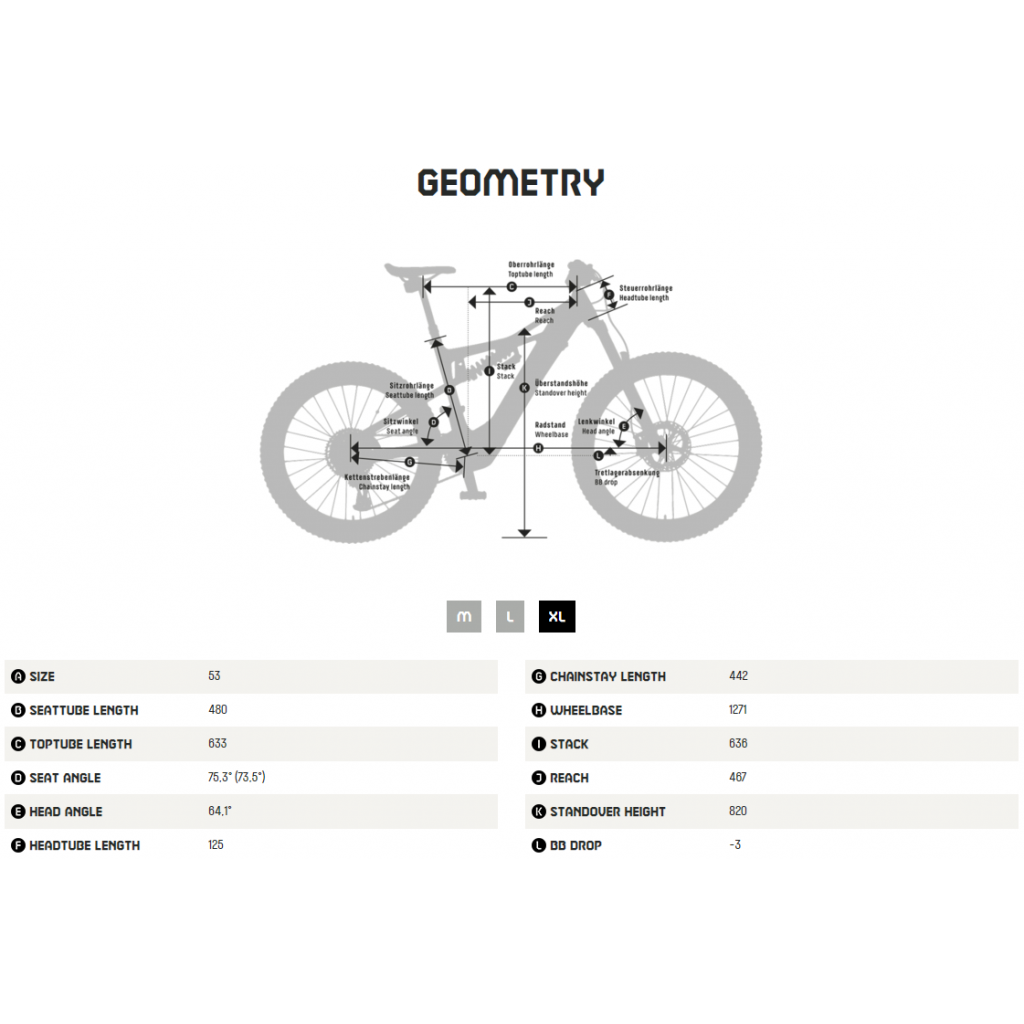

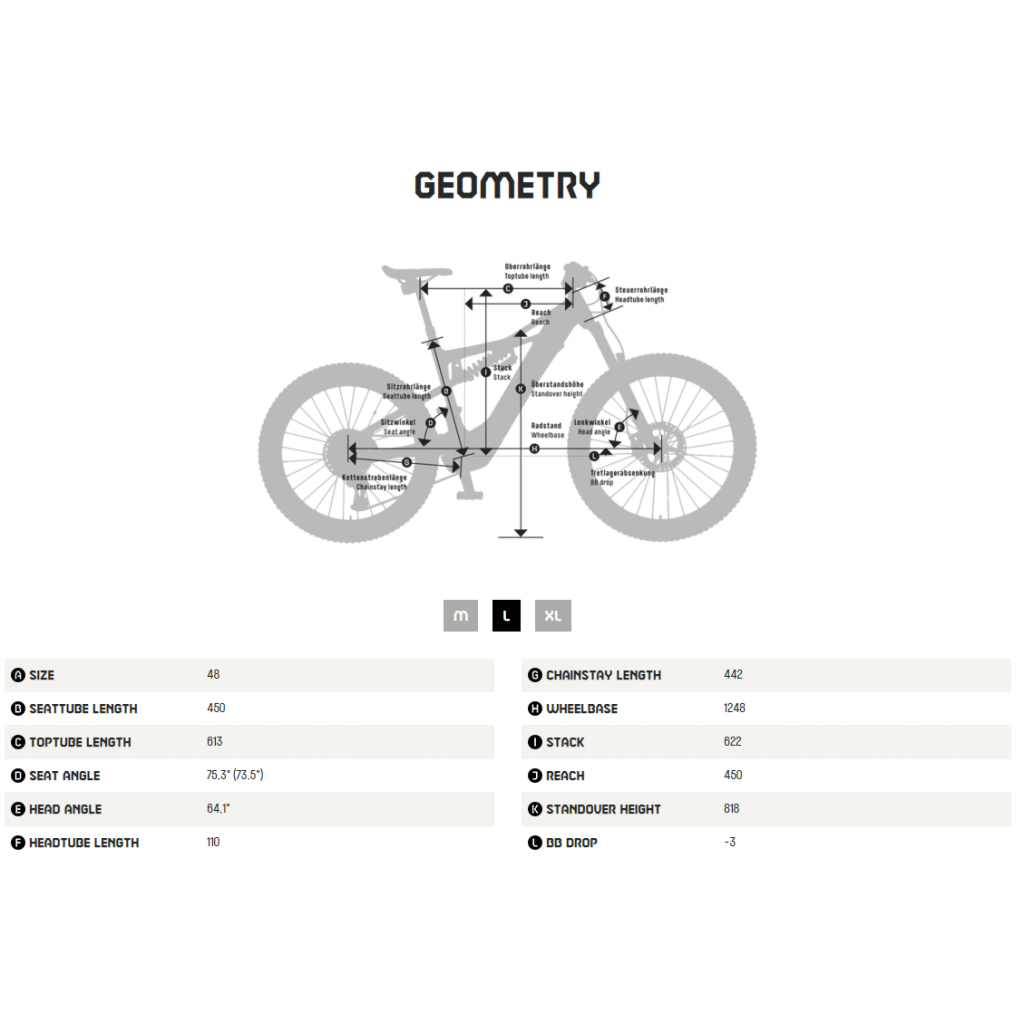

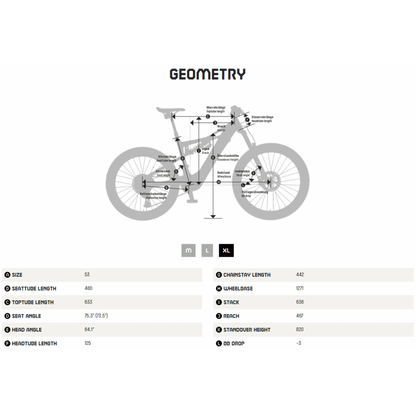

Bike Geometry
Bike geometry

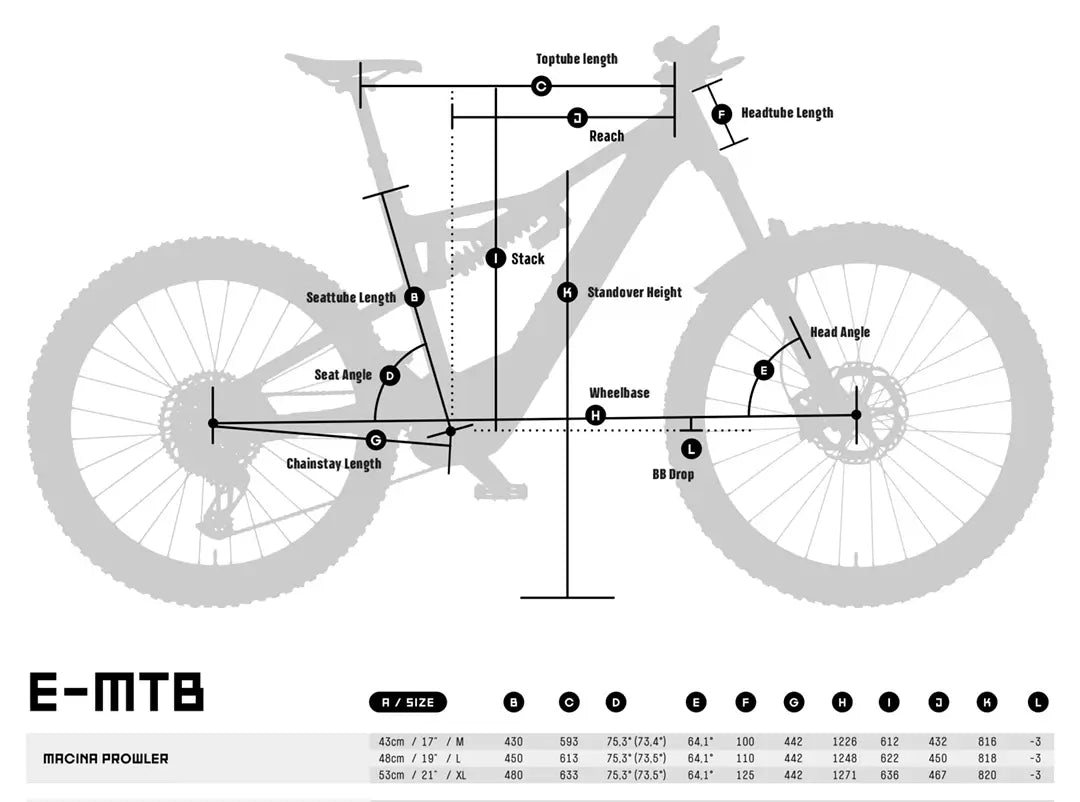

Geometry KTM Macina Prowler
Bike Size Guide
Size chart

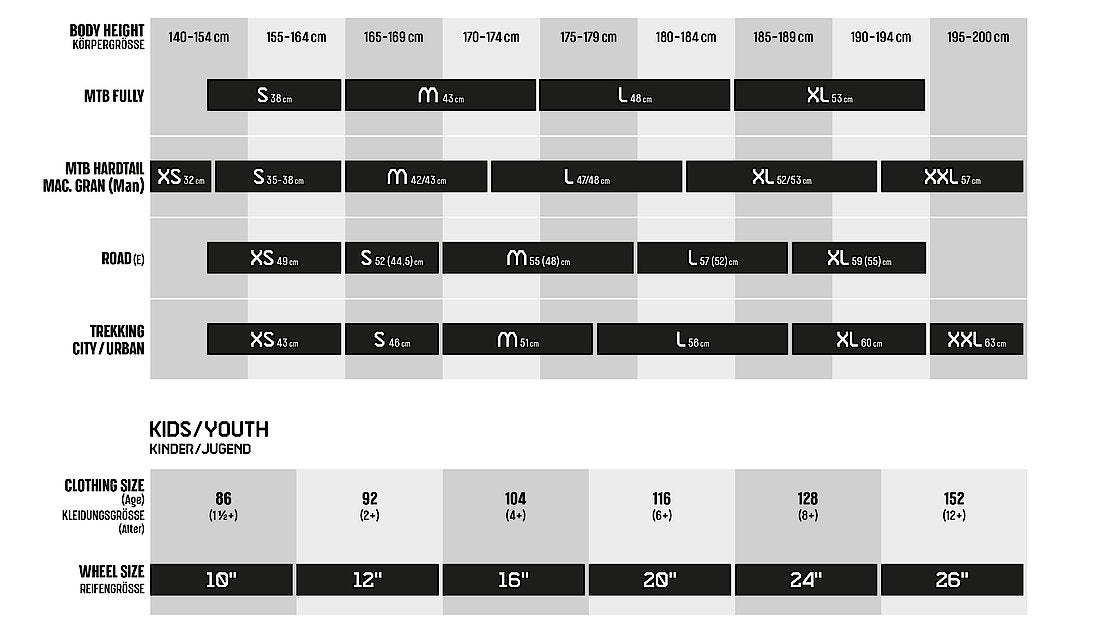

Size Chart KTM

  • Bosch Performance Line CX, (SMART SYSTEM)

  • Bosch PowerTube 750WH (SMART SYSTEM)

  • FOX 38 Float 29" Perfor. e-bike, 180mm | DHX2 Perfor. Elite

  • MAGURA MT7 HC3, 4 Piston

  • Mullet (F:29" R:27,5")

Contact Us

Complete the contact form below if you are interested in this E-bike or if you would like more information.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

FAQs

Why can I not order this bike through the webshop?

We aim to provide you with the best service in finding the right E-bike. As a result, we don't directly sell our bikes from our online store. However, we do provide delivery of E-bikes nationwide. Please contact our team using the form above to get in touch, +64 7 460 0844.

Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

What is the battery range on this E-bike?

Determining the exact range of your E-bike is not straightforward, as it depends on various factors such as the total load, the terrain, temperature, battery size, and motor unit. Some motor brands provide a range indication or provide a tool, like the Bosch Range Calculator.

--> Please reach out to the EBR team, and we can provide you with a good estimate by asking a few simple questions, +64 7 460 0844.

Are there any services included in the bike sale?

We offer an in-house complimentary first check for all bikes purchased at Electric Bike Rotorua. The first check is done at 6 weeks (after the bike purchase) or 250km, whichever comes first.
