Product details

Description

Breaking Boundaries

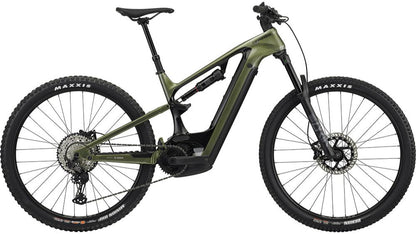

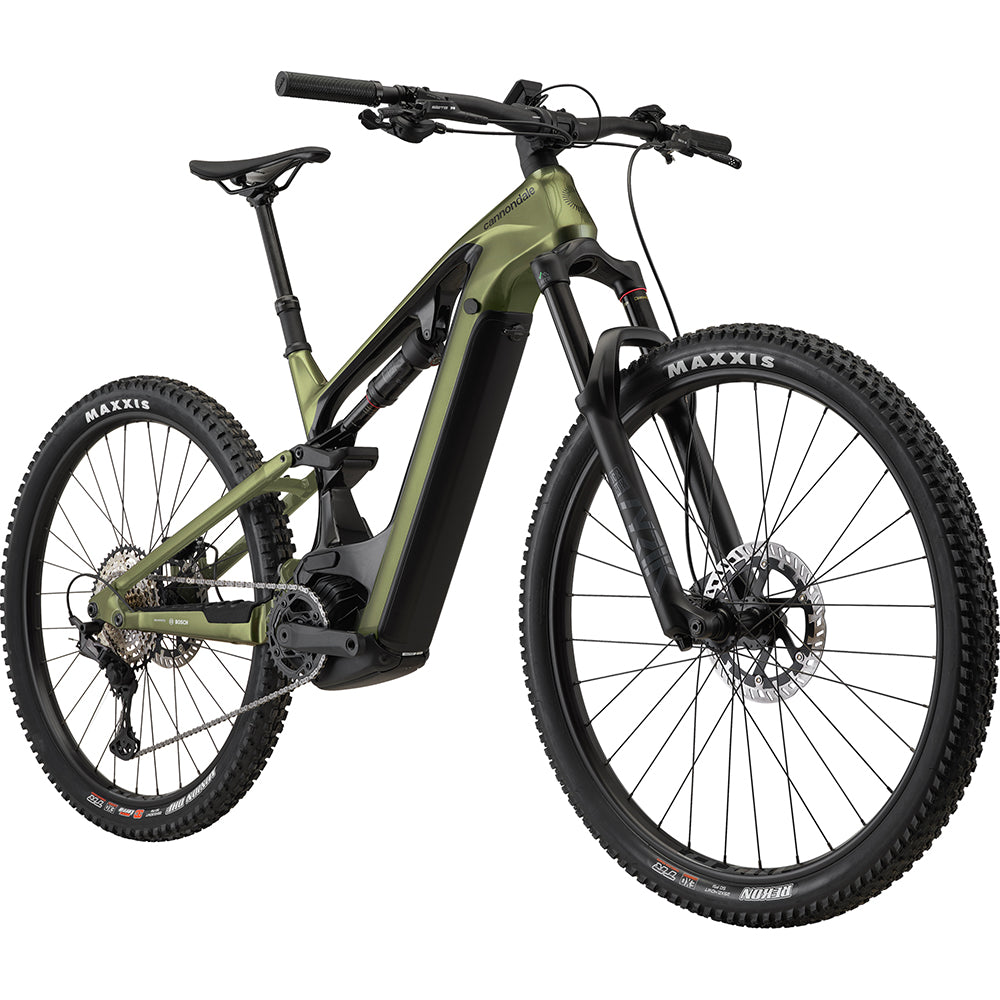

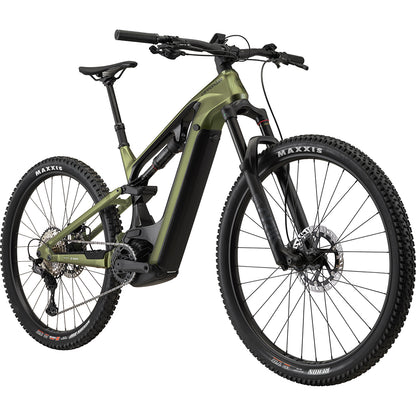

A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.

Where it thrives
Challenging trails, Up and down hills, Out in the elements

What it's built for
Handling, Traction, Efficiency, Durability



Highlights

  • Proportional Response Tuned carbon frame / RockShox Lyrik Select+ fork, 150mm travel
  • Bosch SmartSystem - 750wh battery & Performance CX motor
  • Shimano XT/SLX 12-speed drivetrain




E-bike Specific
  • DRIVE UNIT
    Bosch Performance Line CX SmartSystem
  • BATTERY
    Bosch PowerTube 750Wh
  • DISPLAY
    Bosch Kiox 300 w/ LED remote
Technical Info

FRAMESET

  • FORK
    RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
  • REAR SHOCK
    RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound
  • FRAME
    Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension
  • HEADSET
    Acros integrated sealed bearing, tapered

DRIVETRAIN

  • CHAIN
    Shimano SLX, 12-speed
  • CRANK
    FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
  • REAR COGS
    Shimano SLX, 10-51, 12-speed
  • REAR DERAILLEUR
    Shimano XT
  • SHIFTERS
    Shimano SLX, 12-speed

BRAKES

  • BRAKE LEVERS
     Shimano MT501 hydraulic disc
  • BRAKES
     Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors

WHEELS

  • HUBS
    (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
  • RIMS
    WTB ST i30 TCS, 32h, tubeless ready
  • SPOKES
    DT Swiss Champion
  • TYRES
    ((F) Maxxis Minion DHF, 29 x 2.6", EXO
    (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO

COMPONENTS

  • GRIPS
    Fabric FunGuy
  • HANDLEBAR
    Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
  • SADDLE
    Fabric Scoop Shallow Sport, steel rails
  • SEATPOST
    Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
  • STEM
    Cannondale 2, 6061 Alloy, 35mm, 0°
  • BOSCH POWERMORE COMPATIBLE
    NO
  • EXTRAS

Pre-installed light cable

Although we've taken every effort to ensure the accuracy of the information listed here, sometimes things change, so we reserve the right to change or update bike specifications, features, prices and colours as and when required, as per the manufacturer.

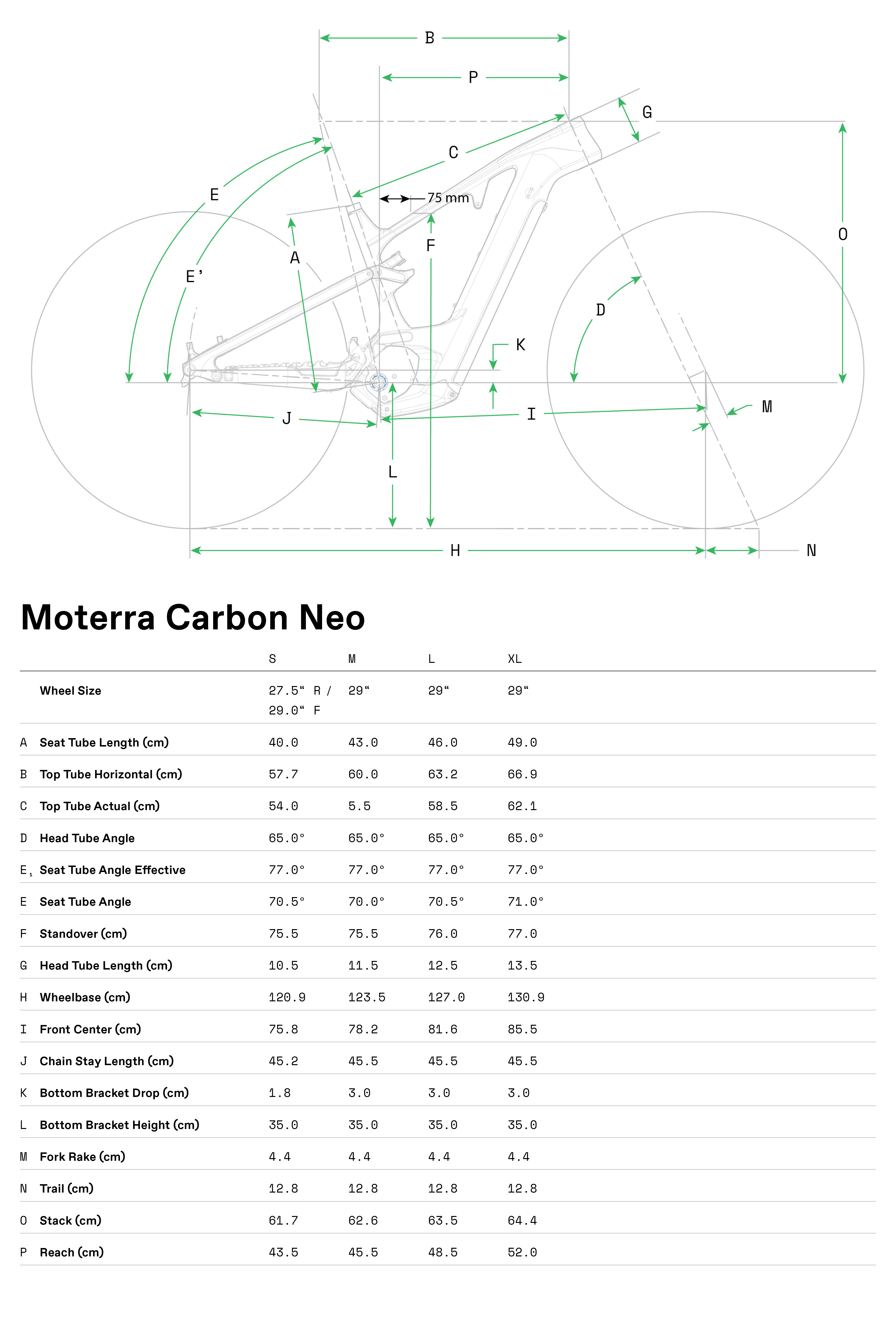

Bike Geometry
Bike geometry

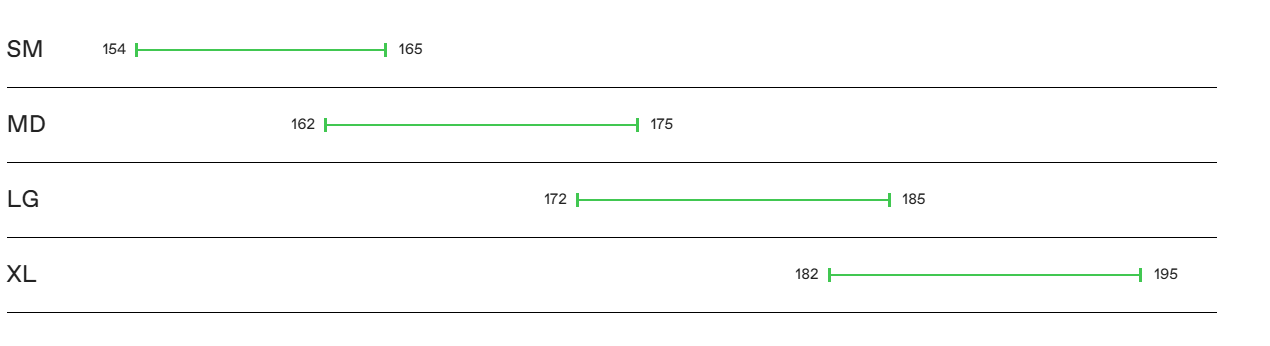

Bike Size Guide
Size chart

  • Bosch Performance Line CX 250W, Smart System

  • Bosch PowerTube, 750Wh

  • RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle,

  • Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotor

  • 29"

Contact Us

Complete the contact form below if you are interested in this E-bike or if you would like more information.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

FAQs

Why can I not order this bike through the webshop?

We aim to provide you with the best service in finding the right E-bike. As a result, we don't directly sell our bikes from our online store. However, we do provide delivery of E-bikes nationwide. Please contact our team using the form above to get in touch, +64 7 460 0844.

Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

What is the battery range on this E-bike?

Determining the exact range of your E-bike is not straightforward, as it depends on various factors such as the total load, the terrain, temperature, battery size, and motor unit. Some motor brands provide a range indication or provide a tool, like the Bosch Range Calculator.

--> Please reach out to the EBR team, and we can provide you with a good estimate by asking a few simple questions, +64 7 460 0844.

Are there any services included in the bike sale?

We offer an in-house complimentary first check for all bikes purchased at Electric Bike Rotorua. The first check is done at 6 weeks (after the bike purchase) or 250km, whichever comes first.
