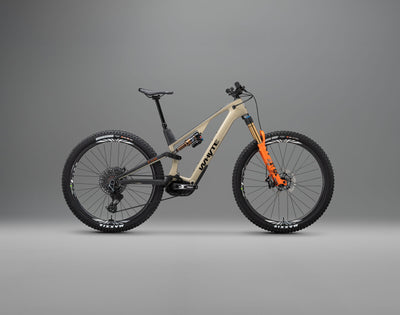

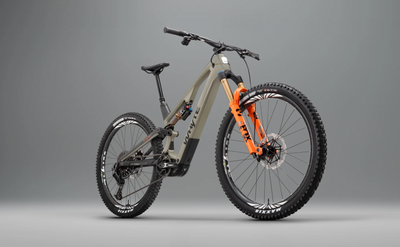

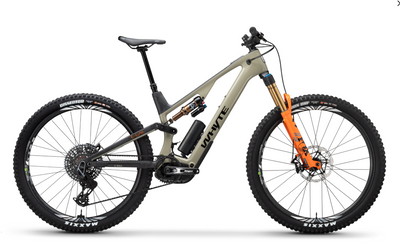

The trail bike without equal
Fast, light and powerful, our top of the range E-Lyte 150 Works masterfully blends the very best natural mountain bike handling and ride feel with the power and capability of full-fat electric mountain bikes (eMTBs). Weighing just 19.2kg (size M) with 55Nm of torque, 600W of peak power, and a total combined battery capacity of 650Wh, it has the power – and the range – to do it all: the singletrack, the all-day epic, the home trail hot laps, the drop-ins, the descents, the tech and the climbs back out.
Highlights
- 150mm front + 142mm rear of custom-tuned suspension travel.
- Uni-directional carbon fibre frame is light and reassuringly strong.
- Bosch Performance Line SX mid-torque (55Nm), full power (600W) motor.

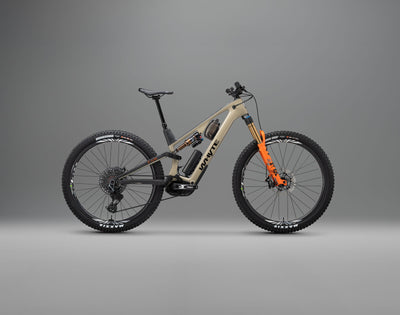

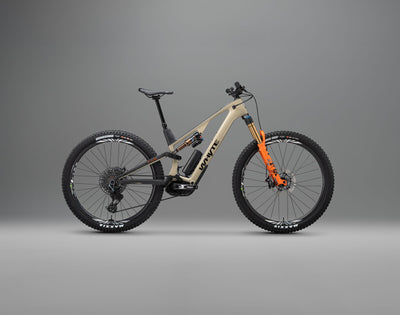

- 650Wh of combined battery (400Wh internal + 250Wh Power, range extender) so you can ride further.
- 29er wheels front and rear for balanced handling.
- 250Wh Power
- range extender included
Flawless trail perfection
Every E-Lyte 150 Works is specced to perform flawlessly right from the first pedal stroke so you can focus on what really counts – your ride. Top of the range Fox Factory suspension front and rear tames the roughest trails with ease; SRAM's XO T-Type AXS electronic gearing gives you reliably impeccable shifting performance; richly powerful Hope Tech 4 V4 four-piston hydraulic disc brakes deliver the ultimate in braking control; Hope cranks and hubs; traction-rich Maxxis tyres; and more. It’s the finest trail-proven kit to serve you perfectly, wherever and however hard you ride.
E-Lyte 140 Works: lightweight, mid-torque, full power. Zero compromises.
E-BIKE SPECIFIC

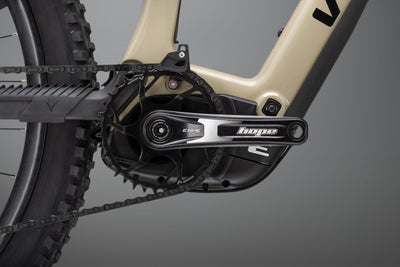

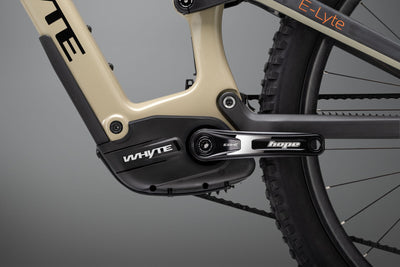

DRIVE UNIT Bosch Performance Line SX mid-torque (55Nm), full power (600W) motor.
BATTERY 650Wh of combined battery (400Wh internal + 250Wh power range extender) so you can ride further.
SPECIFICATIONS
- FRAME
Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts - FORK

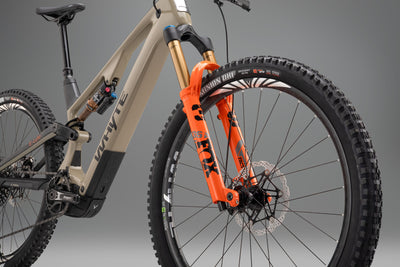

Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip2 damper, tapered steerer, 110m x 15mm Kabolt axle - SHOCK
Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm - RIMS
Whyte TeXtreme Innegra infused, carbon Trail rims, 28 hole front, 32 hole rear - HUB
Rear: Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole
Front: Hope Pro 5, six bolt, 15mm x 110mm Boost spacing, 28 hole - SPOKES
DT Swiss New Champion 2.0mm, black stainless, brass nipples - HEADSET
FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing - TYRES
Maxxis Minion DHF, EXO TR MaxxGripp 29in x 2.5in front; Maxxis Dissector, EXO+ TR MaxxTerra 29in x 2.4in, rear - CRANK SET
Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type - CHAIN

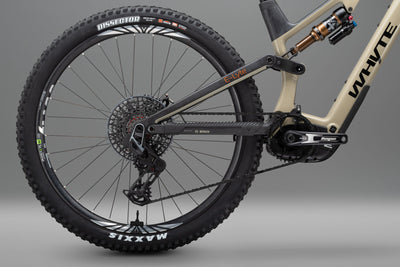

SRAM XO T-Type, 12 speed - REAR DERAILLEUR
SRAM XO T-Type AXS, 12 speed

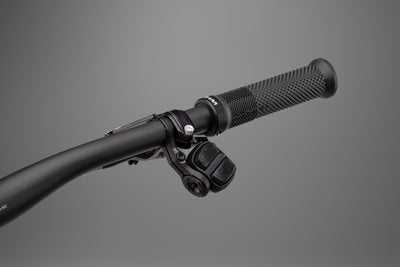

- SHIFTER
SRAM AXS Pod, right, MMX, 12 speed - CASETTE
SRAM XS 1295, T-Type, 10-52T, 12 speed - HANDLEBAR
Race Face Next R Carbon, 20mm rise, 35mm bar bore, 800mm width - GRIPS
Whyte Enduro lock-on - STEM
Whyte Trail full CNC, 32mm extension, 35mm bar bore - BRAKES FRONT
Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor - BRAKES REAR
Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor - BRAKE LEVERS
Hope Tech 4 - SADDLE
Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail - SEATPOST

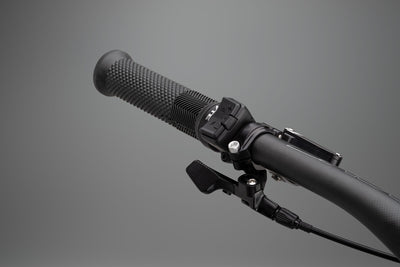

Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever - COLOUR
Gloss olive with matt uni-directional (UD) carbon - PEDALS
Fibre reinforced composite platform - WEIGHT
19.2kg (size M)
