Fast, light and powerful

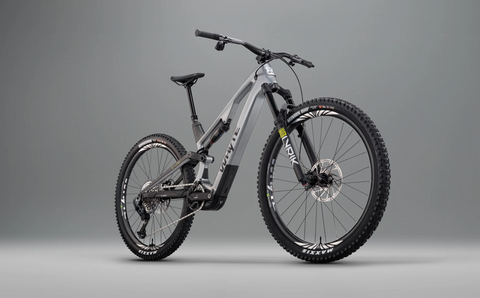

The E-Lyte 150 RSX delivers the very best lightweight, natural mountain bike handling and ride feel together with the capability of full-fat electric mountain bikes (eMTBs). At just 18.9kg (size M) with 55Nm of torque, 600W of peak power, and 400Wh of battery, it packs the power to do it all: the climb, the singletrack, the all-day epic, the home trail hot laps, the drop-ins, the descents, the tech and the climbs back out.
Highlights
- 150mm front + 142mm rear of custom-tuned suspension travel.
- Uni-directional carbon fibre frame is light and reassuringly strong.
- Bosch Performance Line SX mid-torque (55Nm), full power (600W) motor.
- 400Wh internal battery.
- 29er wheels front and rear for balanced handling
Pitch perfect parts
The E-Lyte 150 RSX is dressed in a curated parts list of trail-proven, real-world kit that will serve you brilliantly both now and for the long haul: SRAM GX T-Type AXS 1x12 wireless electronic gearing, Maxxis tyres, feedback-rich SRAM Code Bronze four-piston brakes, and more. Our own custom-tuned suspension from RockShox has also been meticulously tuned to deliver you outstanding, ground-hugging grip with the support you need to right from your first pedal stroke.
E-Lyte 150 RSX: fast, light and powerful.
E-BIKE SPECIFIC

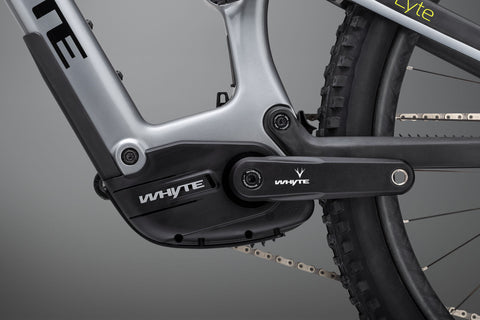

DRIVE UNIT Bosch Performance Line SX mid-torque (55Nm), full power (600W) motor.

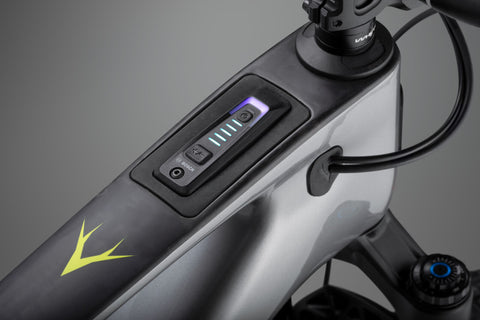

BATTERY 400Wh internal battery
SPECIFICATIONS
- FRAME
Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts - FORK

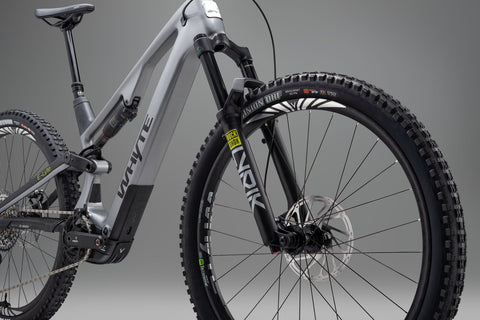

RockShox Lyrik Select+ 29in, 150mm travel, 44mm offset, DebonAir+, Charger 3 RC2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost - SHOCK
RockShox Deluxe Select + RT, DebonAir, Fast Black coating, adjustable rebound and two position compression adjustment - RIMS
Whyte TeXtreme Innegra infused, carbon Trail rims, 28 hole front, 32 hole rear - HUB
Rear: Alloy, light assist e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole
Front: Alloy, double sealed cartridge bearings, 15mm x 110mm Boost spacing, 28 hole - SPOKES
DT Swiss New Champion 2.0mm, black stainless, brass nipples - HEADSET
FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) cartridge bearings, with side entry internal routing - TYRES
Front: Maxxis Minion DHF, EXO TR MaxxGrip 29x2.5".
Rear; Maxxis Dissector, EXO+ TR MaxxTerra 29x2.4" - CRANK SET

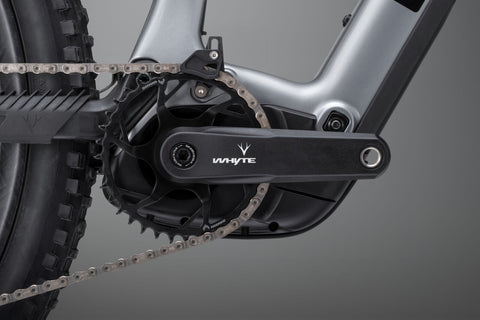

Whyte 155mm ISIS arms, GX Gen4 direct mount 36T chainring, T-Type - CHAIN

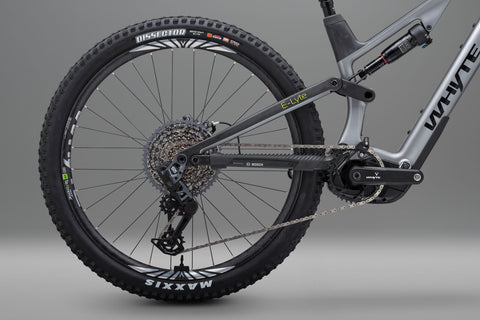

SRAM GX T-Type, 12 speed - REAR DERAILLEUR

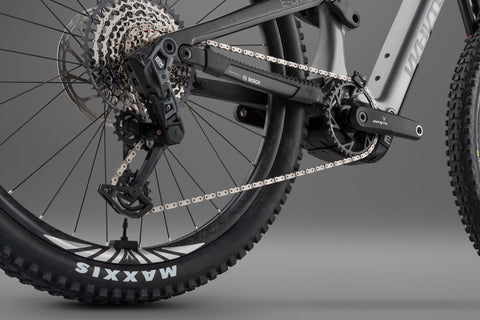

SRAM GX T-Type AXS, 12 speed
- SHIFTER

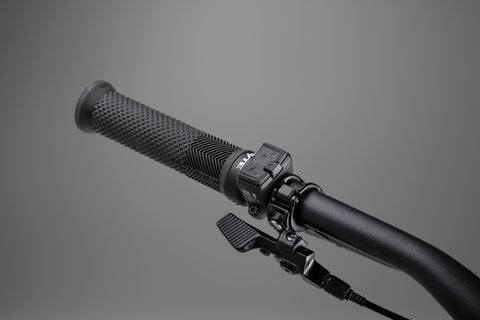

SRAM AXS Pod, right, MMX, 12 speed - CASETTE
SRAM XS 1275, T-Type, 10-52T, 12 speed - HANDLEBAR

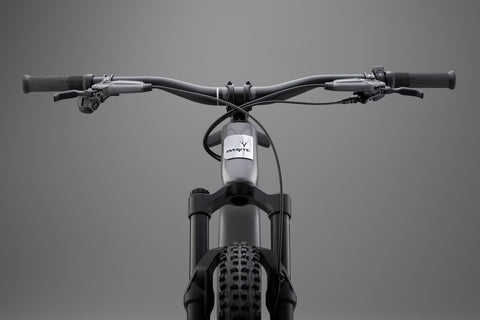

Whyte Custom 6061 alloy, 20mm rise, 35mm bar bore, 800mm wide - GRIPS
Whyte Enduro lock-on - STEM
Whyte Trail full CNC, 32mm extension, 35mm bar bore - BRAKES
SRAM Code Bronze Stealth, four piston hydraulic, 200mm diameter disc rotor - SADDLE
Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail - SEATPOST
Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever - COLOUR
Gloss silver with matt uni-directional (UD) carbon - PEDALS
Fibre reinforced composite platform - WEIGHT
18.9kg (size M) - BOSCH POWERMORE COMPATIBLE
Yes
