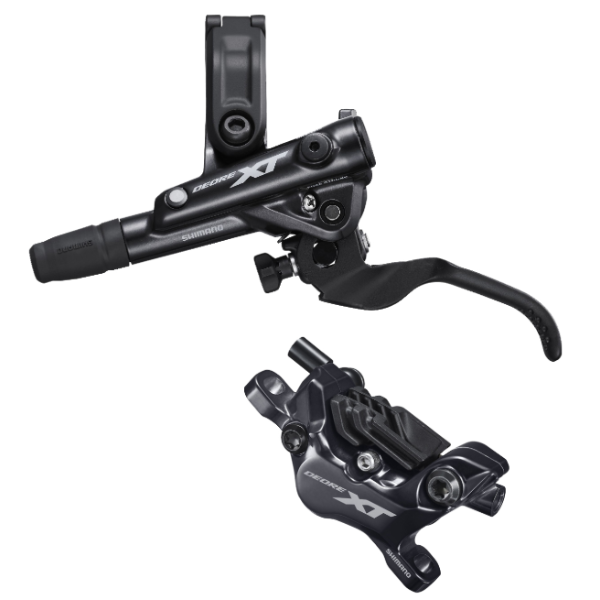

With a focus on reduced weight and cross-country tuned stopping power, the SHIMANO DEORE XT BL-M8100 lever provides intuitive modulation so that you can explore your limits with confidence.
FEATURES
Intuitive and versatile braking keeps your focus on the trail
Optimized lever axle position with additional contact point and refined ergonomics
Greater flexibility and action-optimized cockpit layout
I-SPEC EV
High rigidity
10% stiffer than M8000 even under high temp conditions
Quicker brake engagement with shorter free stroke
Rider tuned adjustment
Toolless reach adjust
Free stroke adjust
PRODUCT SPECIFICATIONS
| MODEL NO |
BL-M8100 |
| SERIES |
DEORE XT M8100 Series |
| Color |
Series color |
| Average weight |
105 |
| Brake hose color (kit) |
Black |
| Brake hose (Kit) |
SM-BH90-SBM |
| Brake type |
Hydraulic disc brake |
| Hose joint |
Straight |
| Compatible shift lever mount_I-SPEC EV |
✔ |
| Free stroke adjust |
✔ |
| Funnel bleeding |
✔ |
| J-Kit spec (for OEM) |
✔ |
| Lever size (finger) |
2 |
| Oil |
SHIMANO Mineral |
| Reach adjust_Toolless |
✔ |
| Recommended brake caliper |
BR-M8100, BR-M8110-R, BR-M8120 |
| SERVO WAVE |
✔ |
| Compatible shift lever mount_Clamp band |
✔ |
| Clamp band_Open clamp |
✔ |
| Shift lever rotation angle adjust range (I-SPEC EV ; deg.) |
20 |
---------------------------------------------------------------
The SHIMANO DEORE XT M8120 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston caliper instills greater downhill confidence and control.
