Product details

Description

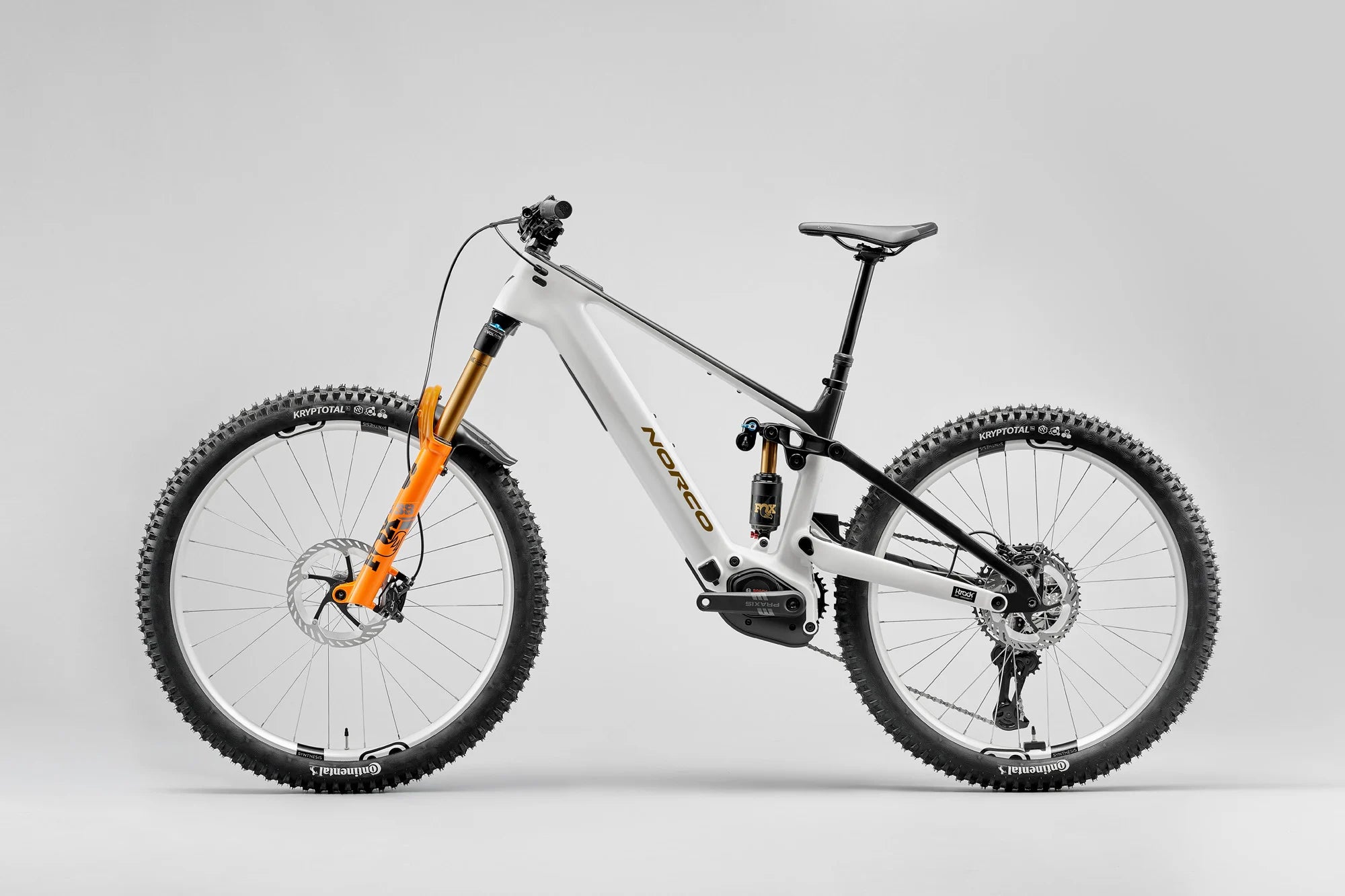

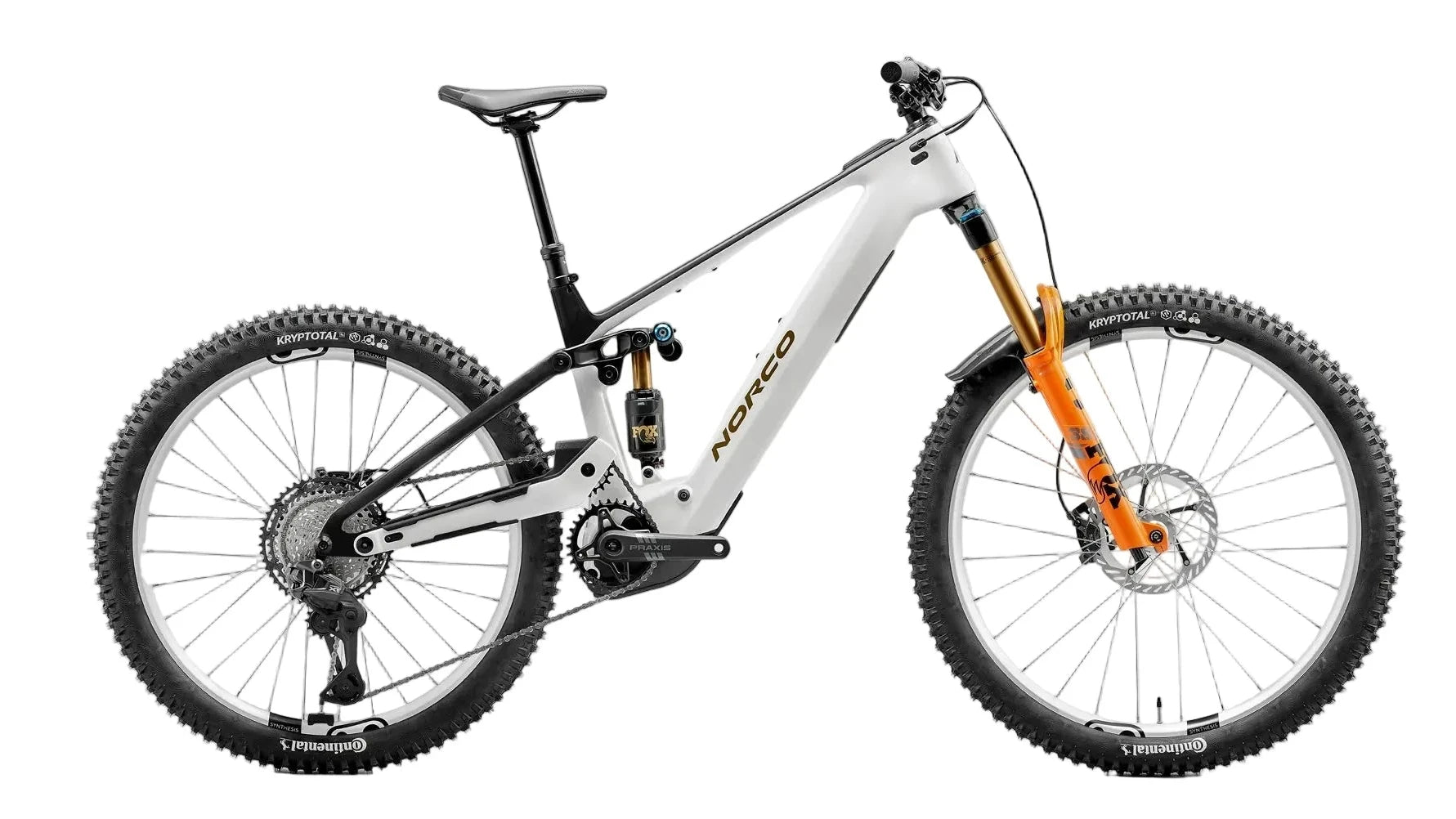

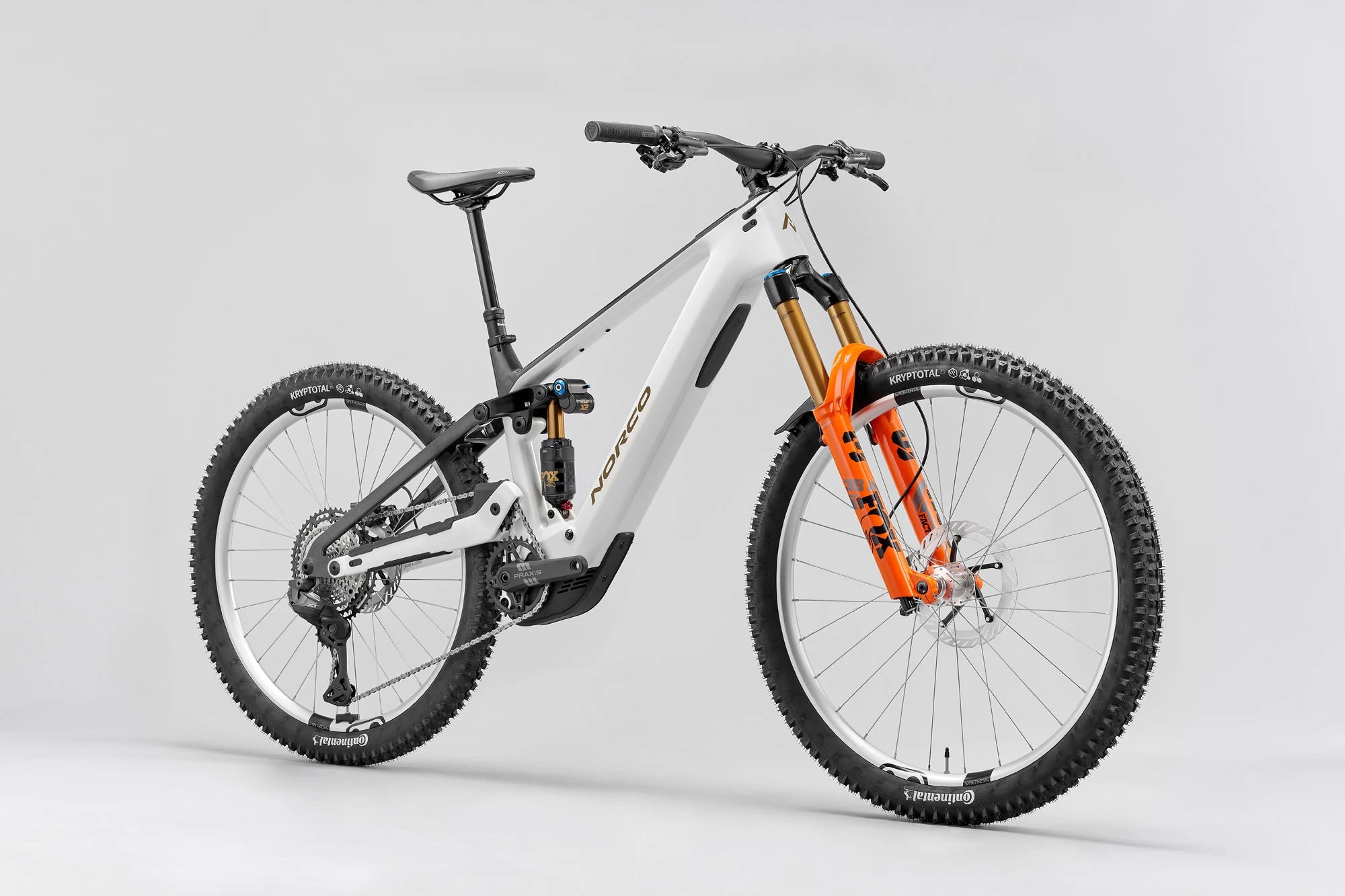

With 170/160 mm of travel, Range VLT CX C1 is the big burly brother of the Sight made to take on the steepest trails with ease. A high torque, efficient motor and large battery capacity combined into a much lighter package, without sacrificing a full power motor — it’s the anti-shuttle, enduro rig for people who live for the descents.

The new Bosch Performance Line CX drive unit is lighter and quieter than previous models, without losing the exceptional torque and power the CX system is known for.

The VPSHP (Virtual Pivot Suspension | High Pivot) layout has a rearward axle path that moves out of the way of square-edged hits, maintaining momentum and smooth handling through the rough.

DETAILS

E-bike Specific
  • DRIVE UNIT
    Bosch Performance Line CX, 100Nm, 120Nm update via Flow App (*performance upgrade 2.0)
  • BATTERY
    Bosh Power Tube 800 Wh

*Upgrade with the eBike Flow App to unlock more power.
What you get with "performance upgrade 2.0": faster acceleration and more powerful support, thanks to an increase in maximum torque of up to 120 Newton meters and maximum support up to 600%.

Technical Info

FRAMESET

  • FRAME
    Carbon Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
  • FORK
    Fox 38 Factory Float, Grip X2, HSC / LSC / LSR, 170mm, 44mm Offset, Fender Included
  • SHOCK
    Fox Factory Float X2, 205x65mm TR,HSC/LSC, HSR/LSR 2 pos-Adj

DRIVETRAIN

  • SHIFTER
    Shimano Deore XT SW-M8250-IR, 12spd
  • REAR DERAILLEUR
    Shimano Deore XT RD-M8250, SGS, 12sp
  • CASSETTE
    Shimano Deore XT RD-M8250, SGS, 12sp
  • CHAIN
    Shimano Deore XT CN-M8100, 12sp
  • CRANKSET
    Praxis Carbon Bosch Cranks, 34T,165mm


BRAKES

  • FRONT BRAKE
    Shimano XT M8220 4-P, Mettalic pads
  • REAR BRAKE
    Shimano XT M8220 4-P, Mettalic pads
  • BRAKE LEVER
    Shimano XT BL-M8200
  • DISC BRAKE ROTORS
    Shimano RT-MT905, Front 203mm/ Back 180mm, 6 bolt

WHEELS

  • FRONT HUB
    Crank Bros. Synthesis Enduro, 15x110mm Boost, 32h, 6 Bolt
  • REAR HUB
    Crank Bros. Synthesis Enduro, 12x148mm Boost, Micro Spline, 32h, 6 Bolt
  • SPOKES/NIPPLES
    Sapim D-Light (front), Sapim Race (rear)
  • RIMS
    Crank Bros. Synthesis Alloy, F- 31.5mm 28h, R- 29.5mm 32h, 29”-27.5 F/R
  • TYRES
    Continental Kryptotal-F, Enduro, Soft, 29” x 2.4”, Foldable | Continental Kryptotal-R, Enduro, Soft, 27.5” x 2.4”, Foldable

COMPONENTS

  • GRIPS
    WTB Wavelength, 130mm Length
  • HANDLEBAR
    Norco 6061 DB Alloy, 800mm, 25mm Rise
  • STEM
    6061 Alloy, 40mm Length, 35mm Clamp
  • HEADSET
    FSA No. 57 ZS, Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 | ZS56/40 )GRIPS
  • SADDLE
    Fizik Terra Aidon X5
  • SEATPOST
    TranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5)

OTHERS

  • SIZES
    2, 3, 4, 5
  • WEIGHT
    23.46 kgs (Size S3)

Although we've taken every effort to ensure the accuracy of the information listed here, sometimes things change, so we reserve the right to change or update bike specifications, features, prices and colours as and when required, as per the manufacturer.

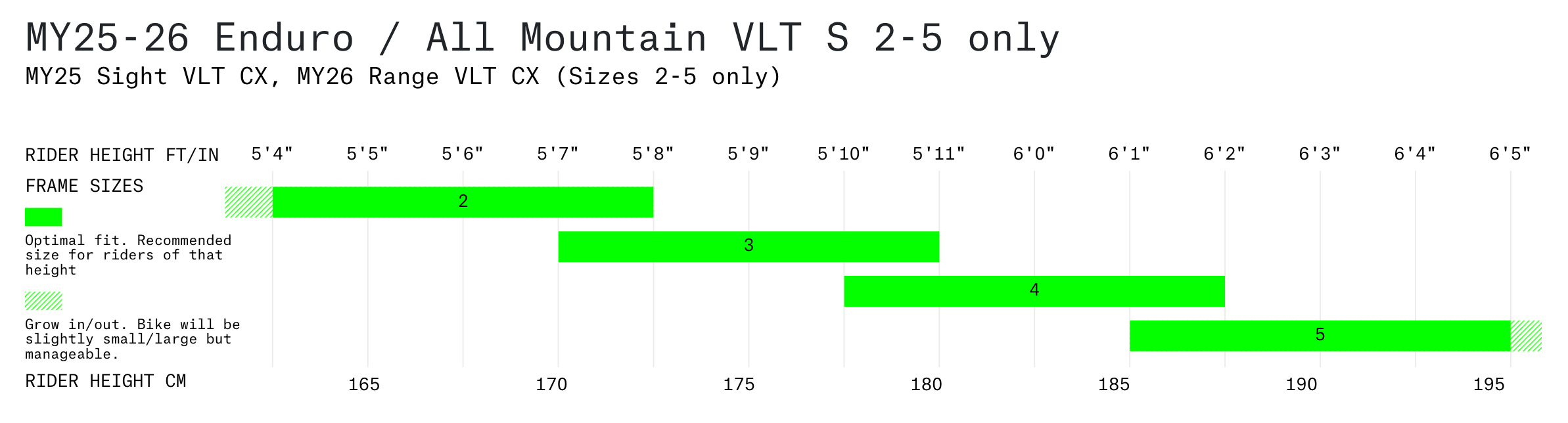

Bike Size Guide
Size chart

  • Bosch Performance Line CX, 120Nm*

  • Bosch PowerTube Li-Ion (800 Wh)

  • Fox 38 Factory Float 170mm | Factory Float X2

  • Shimano XT M8220 4-P

  • Mullet (F:29" R:27,5")

Contact Us – Talk to our E-bike Experts

Interested in this E-bike? Send us a quick enquiry below for friendly advice and more information, or call us on +64 7460 0844

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Why Choose Electric Bike Rotorua?

WE GO THE EXTRA MILE – FROM EXPERT SUPPORT AND CUSTOM SETUP TO FINDING THE PERFECT E-BIKE FOR YOUR RIDING STYLE.

E-Bike Specialists

We specialise in E-bikes, with years of experience and expert knowledge to help you choose with confidence.

First Service Included

Your first service is on us, plus we offer ongoing workshop support to keep your bike running at its best.

Finance Options

Including finance plans and work programme options to make getting on your E-bike easier.

Support Beyond the Sale

We’re a rider-first team — here for setup, support, and every ride that follows.

FAQs

Why can I not order this bike through the webshop?

We aim to provide you with the best service in finding the right E-bike. As a result, we don't directly sell our bikes from our online store. However, we do provide delivery of E-bikes nationwide. Please contact our team using the form above to get in touch, +64 7 460 0844.

Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

What is the battery range on this E-bike?

Determining the exact range of your E-bike is not straightforward, as it depends on various factors such as the total load, the terrain, temperature, battery size, and motor unit. Some motor brands provide a range indication or provide a tool, like the Bosch Range Calculator.

--> Please reach out to the EBR team, and we can provide you with a good estimate by asking a few simple questions, +64 7 460 0844.

Are there any services included in the bike sale?

We offer an in-house complimentary first check for all bikes purchased at Electric Bike Rotorua. The first check is done at 6 weeks (after the bike purchase) or 250km, whichever comes first.
