Point and Play.

The Moterra LT thrives in chaos. Point it wherever you want to go, power through climbs, and tear down descents like a mosh pit in motion. With 170mm front, 165mm rear travel, a mullet wheelset, and the Bosch 800Wh battery, it plays hard, all day long.

The Strong, Silent Type.

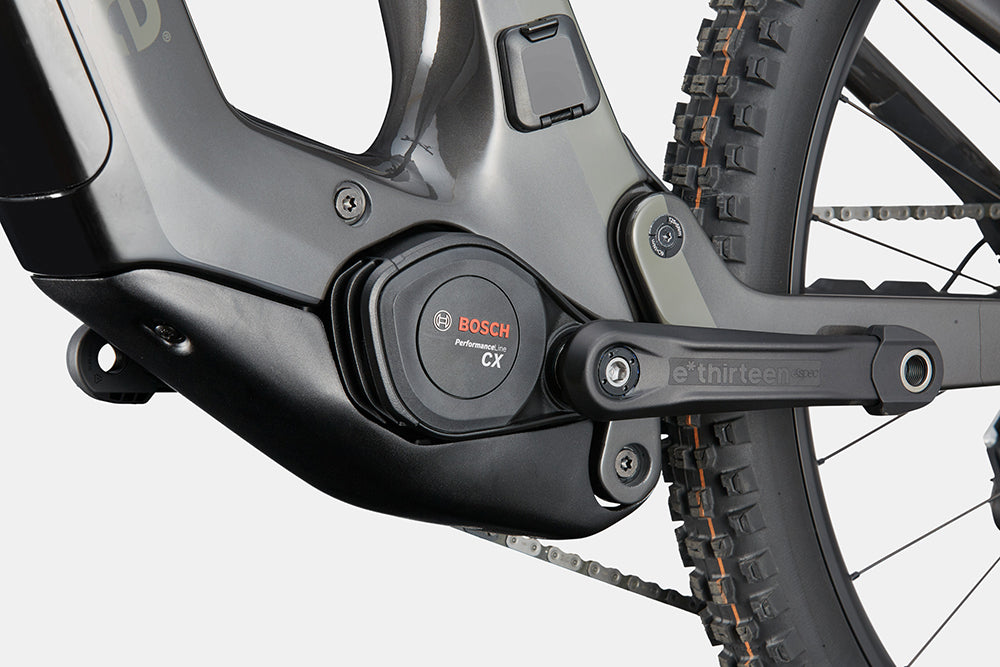

Bosch’s most powerful motor, the Performance CX, is your stealthy sidekick, delivering huge power and serious torque, smoothly and silently. With a removable 800Wh battery integrated into the frame, you can tackle endless climbs and explore all day while keeping things low-key for both you and your riding crew. The Bosch mini remote gives you command on-demand, putting all the control right at your fingertips.

Takes Hits, Not Prisoners

A new full-carbon frame that, along with refined e-system small parts, saves almost 1000g over the previous version, plus a 170mm Fox Performance 38 fork and 165mm DHX coil shock, give the Moterra LT the hard-charging agility to rip though whatever you throw at it.

E-bike Specific
  • DRIVE UNIT
    Bosch Performance Line CX SmartSystem Gen 5
  • BATTERY
    Bosch PowerTube 800Wh
  • DISPLAY
     Top Tube System Controller w/ Mini Remote
Technical Info

FRAMESET

  • FORK
    Fox 38 Perfomance, Grip 3-Pos, 170mm, DebonAir, 15x110mm, 44mm offset
  • REAR SHOCK
    Fox DHX Performance, Coil, 2 pos adj, 230×65mm
  • FRAME
    Moterra LT Carbon, 27.5" rear wheel, 29" front wheel, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery
  • HEADSET
    Acros ICR, 1.5" to 1.8", sealed bearings

DRIVETRAIN

  • CHAIN
    SRAM Eagle 70, 12-speed
  • CRANK
    e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
  • REAR COGS
    SRAM Eagle 70, 12-speed

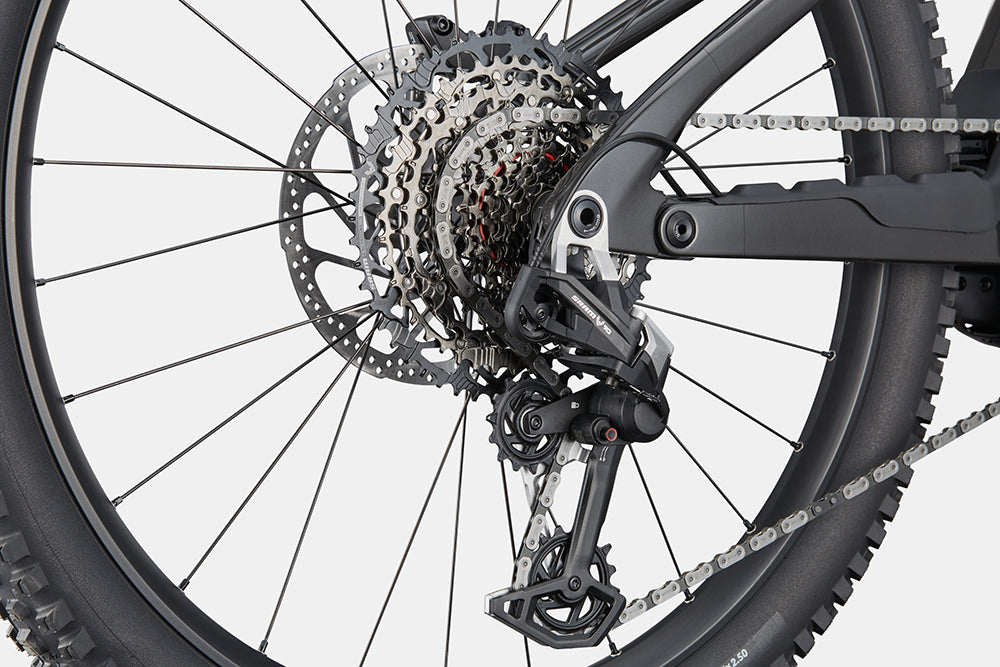

  • REAR DERAILLEUR
    SRAM Eagle 90, T-Type
  • SHIFTERS
    SRAM Eagle 90, T-Type

BRAKES

  • BRAKES LEVERS
    TRP EVO Pro Hydraulic
  • BRAKES
    TRP EVO Pro 4-piston hydraulic disc, 220/203mm rotors

WHEELS

  • HUBS
    (F) DT Swiss 370, 15×110mm thru-axle / (R) DT Swiss 370 Ratchet System 18, 12×148mm thru-axle, 6-bolt
  • RIMS
    DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready)
  • SPOKES
    DT Swiss Competition, straight pull
  • TYRES
    (F) Schwalbe Shredda Front, 29×2.5", Radial casing, Addix Ultra Soft Foldable / (R) Schwalbe Albert, 27.5×2.5", Radial casing, Addix Soft Foldable

COMPONENTS

  • GRIPS
    Cannondale TaperRidge
  • HANDLEBAR
    Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
  • SADDLE
    Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
  • SEATPOST
    Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
  • STEM
    Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
  • BOSCH POWERMORE COMPATIBLE
    Yes

Although we've taken every effort to ensure the accuracy of the information listed here, sometimes things change, so we reserve the right to change or update bike specifications, features, prices and colours as and when required, as per the manufacturer.

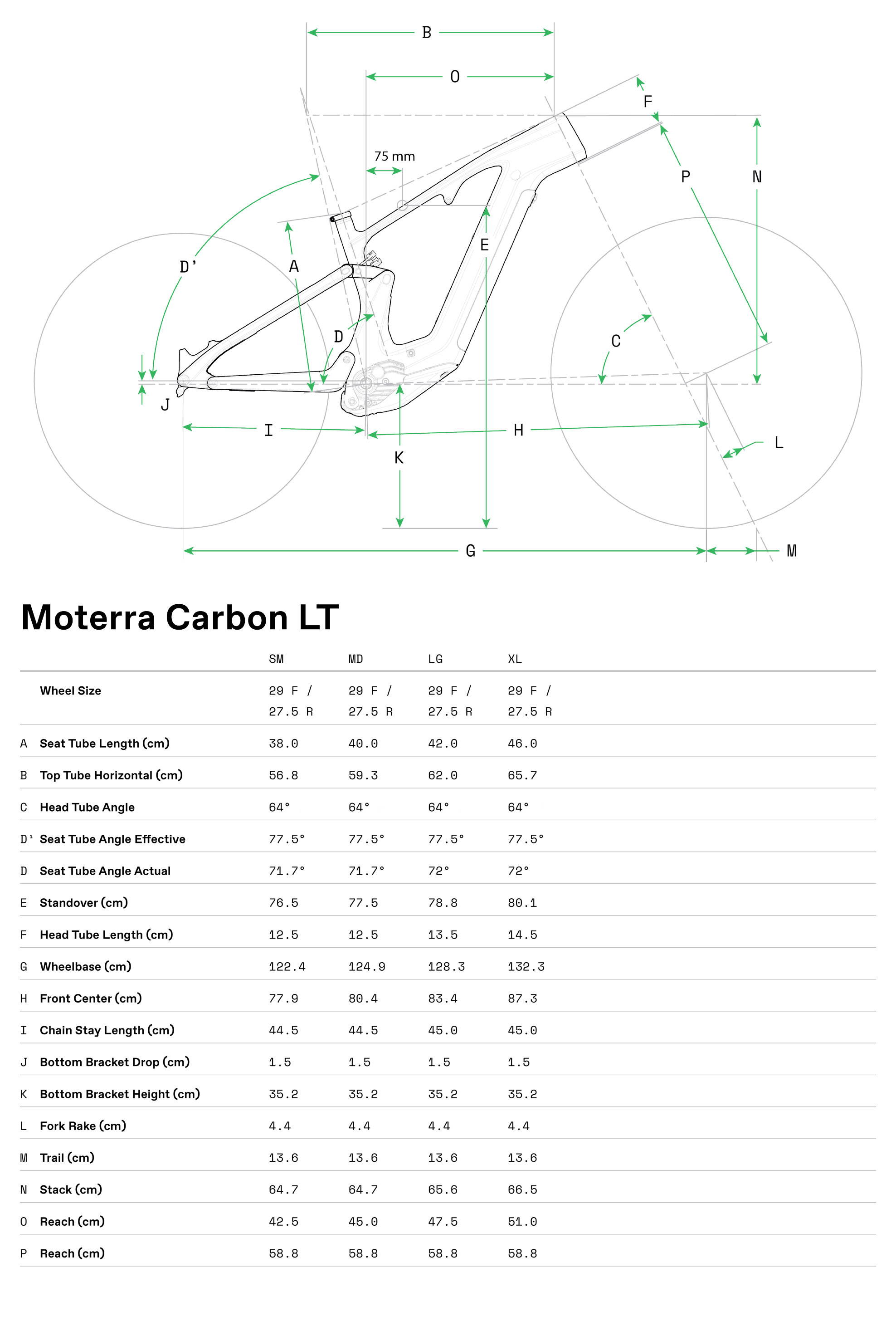

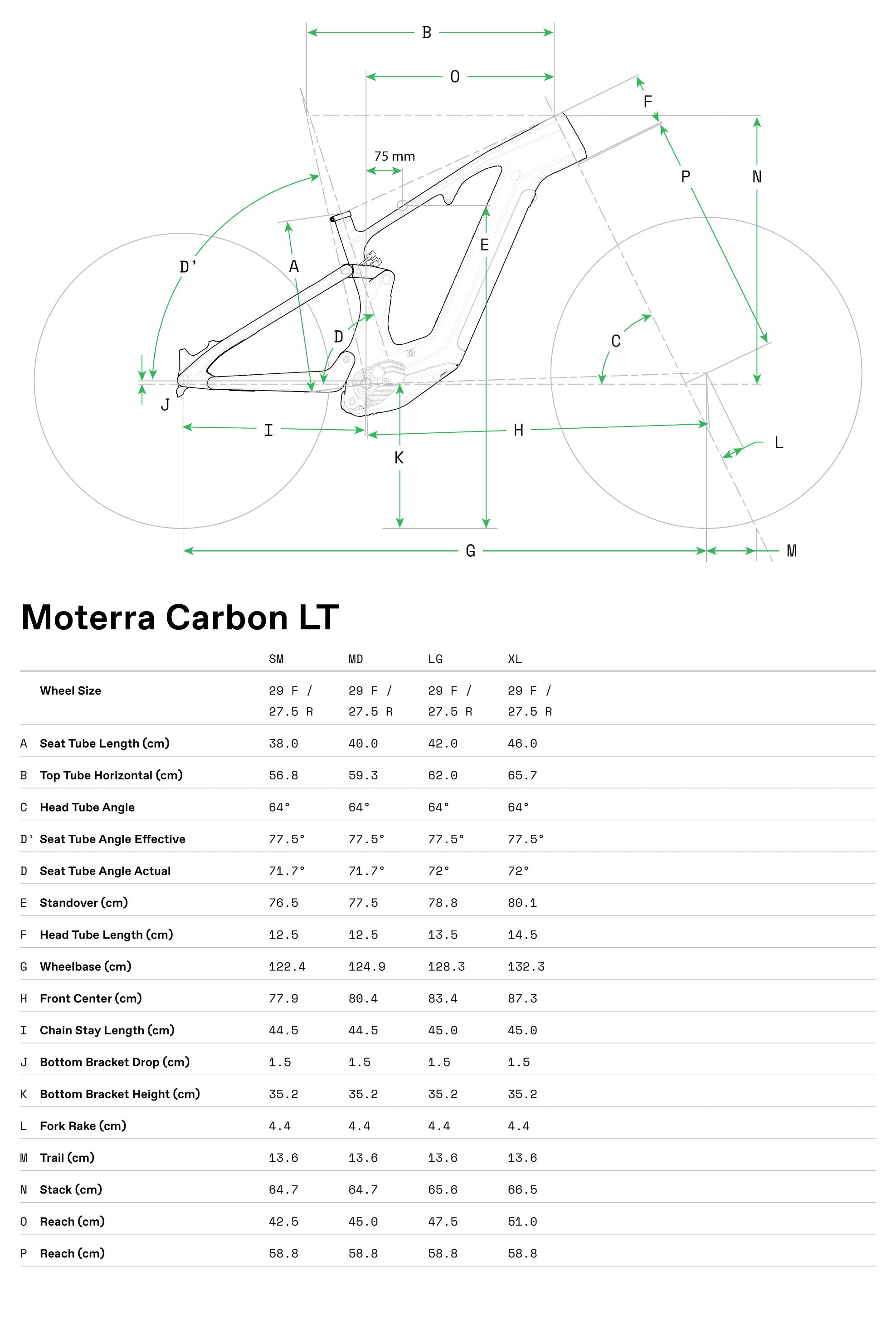

Bike Geometry
Bike geometry

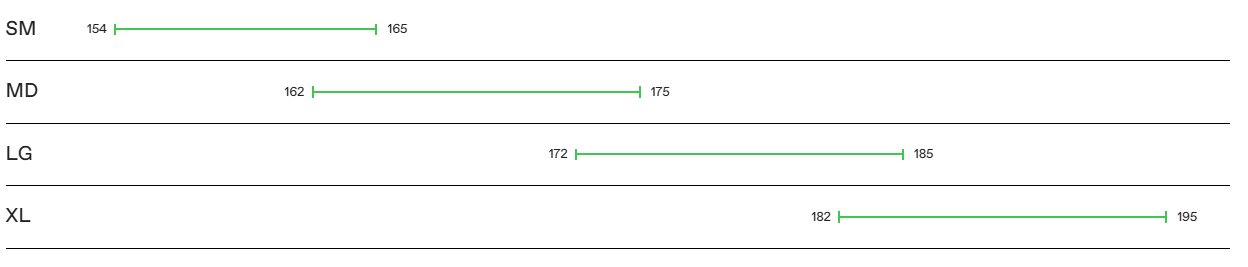

Bike Size Guide
Size chart

  • Bosch Performance Line CX 600W, Smart System Gen 5

  • Bosch PowerTube, 800Wh

  • Fox Float 38 Performance, 3Pos Grip damper, 170mm, 15x110mm

  • TRP EVO Pro Hydraulic 203mm/220mm rotors

  • Mullet (F:29" R:27,5")

Contact Us

Complete the contact form below if you are interested in this E-bike or if you would like more information.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

FAQs

Why can I not order this bike through the webshop?

We aim to provide you with the best service in finding the right E-bike. As a result, we don't directly sell our bikes from our online store. However, we do provide delivery of E-bikes nationwide. Please contact our team using the form above to get in touch, +64 7 460 0844.

Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

What is the battery range on this E-bike?

Determining the exact range of your E-bike is not straightforward, as it depends on various factors such as the total load, the terrain, temperature, battery size, and motor unit. Some motor brands provide a range indication or provide a tool, like the Bosch Range Calculator.

--> Please reach out to the EBR team, and we can provide you with a good estimate by asking a few simple questions, +64 7 460 0844.

Are there any services included in the bike sale?

We offer an in-house complimentary first check for all bikes purchased at Electric Bike Rotorua. The first check is done at 6 weeks (after the bike purchase) or 250km, whichever comes first.
