Product details

Description

Get Your Carry On
Big hauler. Small footprint. Cargowagen is stable, maneuverable, powerful, and flexible enough to carry just about anything.

Where it thrives
City streets, bike lanes and around town

What it's built for
Getting you, your kids, and/or your stuff wherever you need to go.



Highlights

  • A total capacity of 200kg lets you carry 2 kids and lots of stuff with ease
  • Bosch Cargo Line motor offers effortless power to move any load
  • 545Wh battery for plenty of range
  • Shimano Deore LinkGlide 10-speed gearing for smooth, durable shifting



E-bike Specific
  • MOTOR
    Bosch Cargo Line
  • BATTERY
    Bosch PowerPack, 545Wh
  • DISPLAY
    Bosch Kiox 300 w/LED remote (Smart System)
  • CHARGER
    Bosch 4A
Technical Info

FRAMESET

  • FRAME
    SmartForm C2 Alloy step-thru frame, integrated rear cargo rack (80kg), integrated headtube rack mounts, dual battery ready, internal cable routing, disc brake
  • FORK
    SR Suntour Mobie 34 Cargo, BOOST DS, tapered, 80mm travel
  • HEADSET
    Acros Blocklock w/ steering stop, semi-integrated

DRIVETRAIN

  • CHAIN
    KMC EGlide
  • REAR DERAILLEUR
    Shimano Deore 5130, 10-speed
  • CRANK SET
    Samox, 52T
  • CASSETTE
    Shimano CUES CS-LG300, 11-41, 10-speed
  • SHIFTERS
    Shimano Deore, 10-speed


BRAKES

  • BRAKES
    Tektro HD-T5040, 4-piston hydraulic disc, 203/180mm rotors
  • BRAKE LEVERS
    Tektro HD-T5040, hydraulic disc
  • ROTORS
    203/180mm rotors

WHEELS

  • RIMS
    Heavy Duty, Alloy, double wall, 36 hole, 35mm internal width, disc-specific
  • HUBS
    (F) Formula, cartridge sealed bearings, 15x110mm, centerlock / (R) Formula, cartridge sealed bearings, 12x148mm, centerlock
  • SPOKES
    DT Swiss Champion, 13g
  • TYRES
    Schwalbe Pick-Up, (F) 20x2.6" (65-406), (R) 20x2.15" (55-406)

COMPONENTS

  • GRIPS
    Cannondale Ergo Lock-on
  • HANDLEBAR
    Cannondale Cruise Control Hi-Rise, 6061 Alloy, 31.8mm, 15° back, 740mm
  • STEM
    Alloy, Adjustable angle, 31.8
  • SADDLE
    Cannondale Comfort
  • SEATPOST
    TranzX Suspension dropper post, 31.6, 70mm drop
  • PEDALS
    N/A

OTHERS

  • SIZES
    One Size
  • COLOUR
    Sage Gray (SGG)
  • Extras
    Cannondale heavy-duty center stand, fenders, high visibility LED headlight, Lezyne Super Bright rear light, running boards, Abus ring lock, Schwalbe Air Plus high retention inner tubes

Compatible with Thule Yepp child seats

Although we've taken every effort to ensure the accuracy of the information listed here, sometimes things change, so we reserve the right to change or update bike specifications, features, prices and colours as and when required, as per the manufacturer.

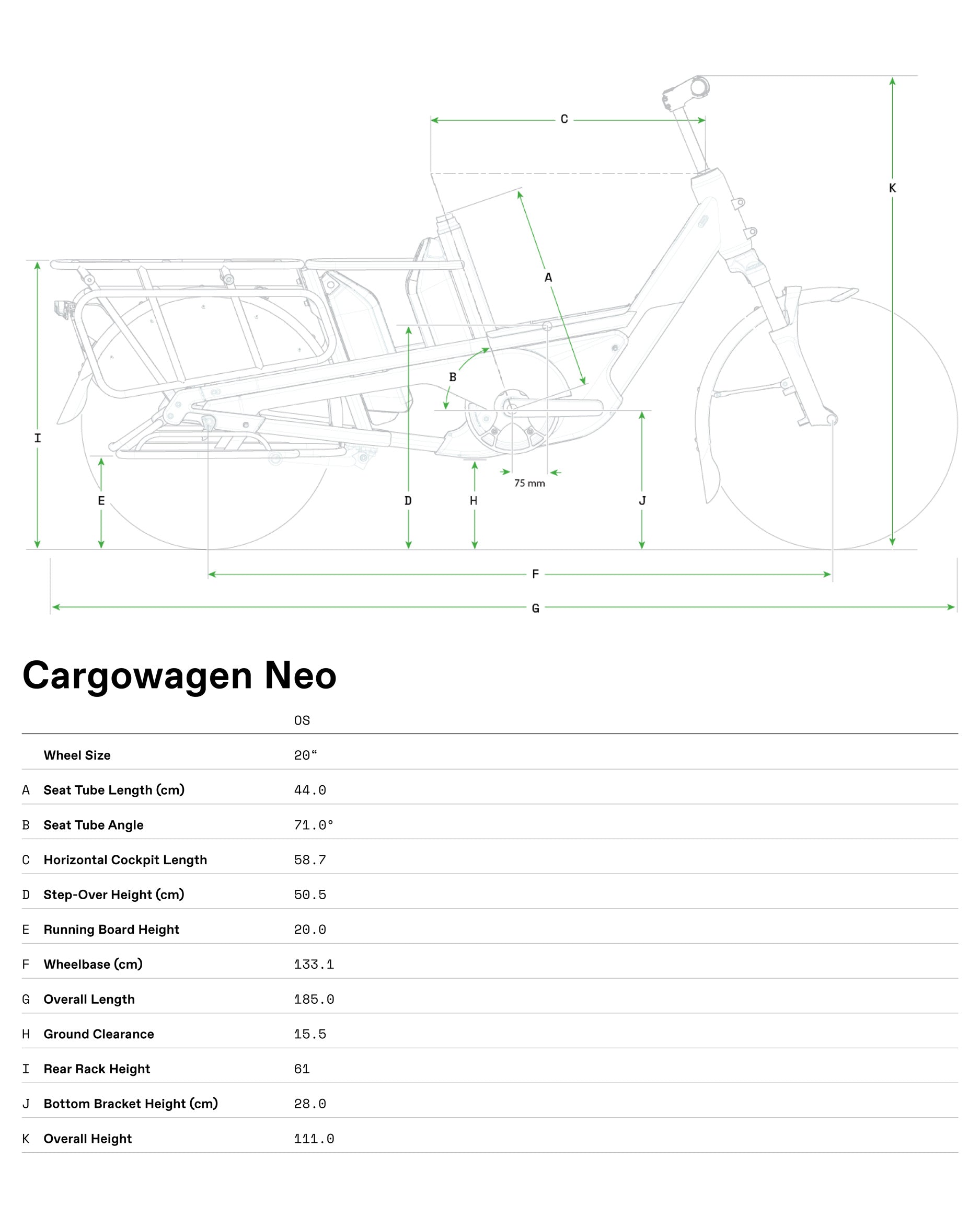

Bike Geometry
Bike geometry

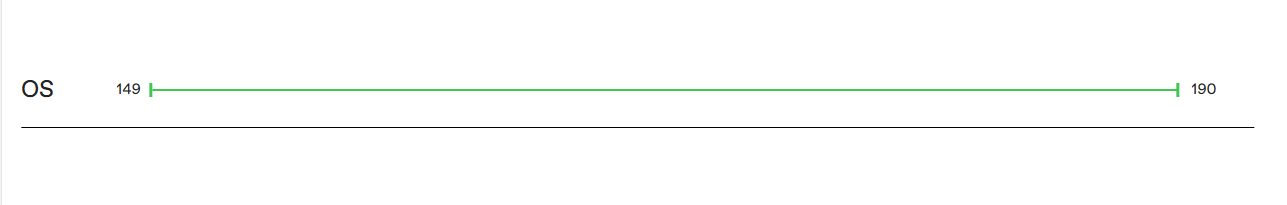

Bike Size Guide
Size chart

  • Bosch Cargo Line

  • Bosch PowerPack, 545Wh

  • SR Suntour Mobie 34 Cargo, BOOST DS, tapered, 80mm travel

  • Tektro HD-T5040, 4-piston hydraulic disc, 203/180mm rotors

  • 20"

Contact Us

Complete the contact form below if you are interested in this E-bike or if you would like more information.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

FAQs

Why can I not order this bike through the webshop?

We aim to provide you with the best service in finding the right E-bike. As a result, we don't directly sell our bikes from our online store. However, we do provide delivery of E-bikes nationwide. Please contact our team using the form above to get in touch, +64 7 460 0844.

Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

What is the battery range on this E-bike?

Determining the exact range of your E-bike is not straightforward, as it depends on various factors such as the total load, the terrain, temperature, battery size, and motor unit. Some motor brands provide a range indication or provide a tool, like the Bosch Range Calculator.

--> Please reach out to the EBR team, and we can provide you with a good estimate by asking a few simple questions, +64 7 460 0844.

Are there any services included in the bike sale?

We offer an in-house complimentary first check for all bikes purchased at Electric Bike Rotorua. The first check is done at 6 weeks (after the bike purchase) or 250km, whichever comes first.
