Product details

Description

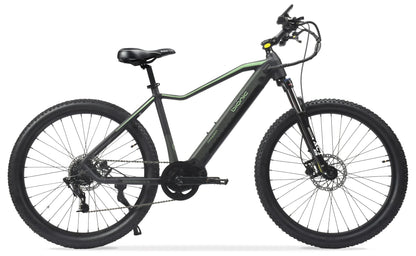

Bionic’s Ranger Mid Drive e-bike is tailored for trail riding up to Grade 3 level trails. With a fully integrated battery using slim tube technology for optimal performance and aesthetics, it ensures a stylish look. The adjustable front stem allows for a comfortable upright riding position, complemented by a wider, comfier seat. Powered by Bafang's high-performance M420 mid-drive motor, the Ranger Mid Drive boasts one of the highest power levels in its class, delivering perfect balance to the bike.

Available in Matte Black and Gecko Green, the Ranger Mid Drive is a powerful and stylish choice for trail enthusiasts.

E-bike Specific
  • DRIVE UNIT
    Bafang M420s 300W 80Nm mid motor
  • VOLTAGE:
    48V
  • SENSOR
    Sensor Drive system
  • BATTERY
    504Wh Samsung cells
  • RANGE
    50-90km subject to rider’s weight, terrain etc
  • DISPLAY
    LCD display with 5 levels of assist
Technical Info

FRAMESET

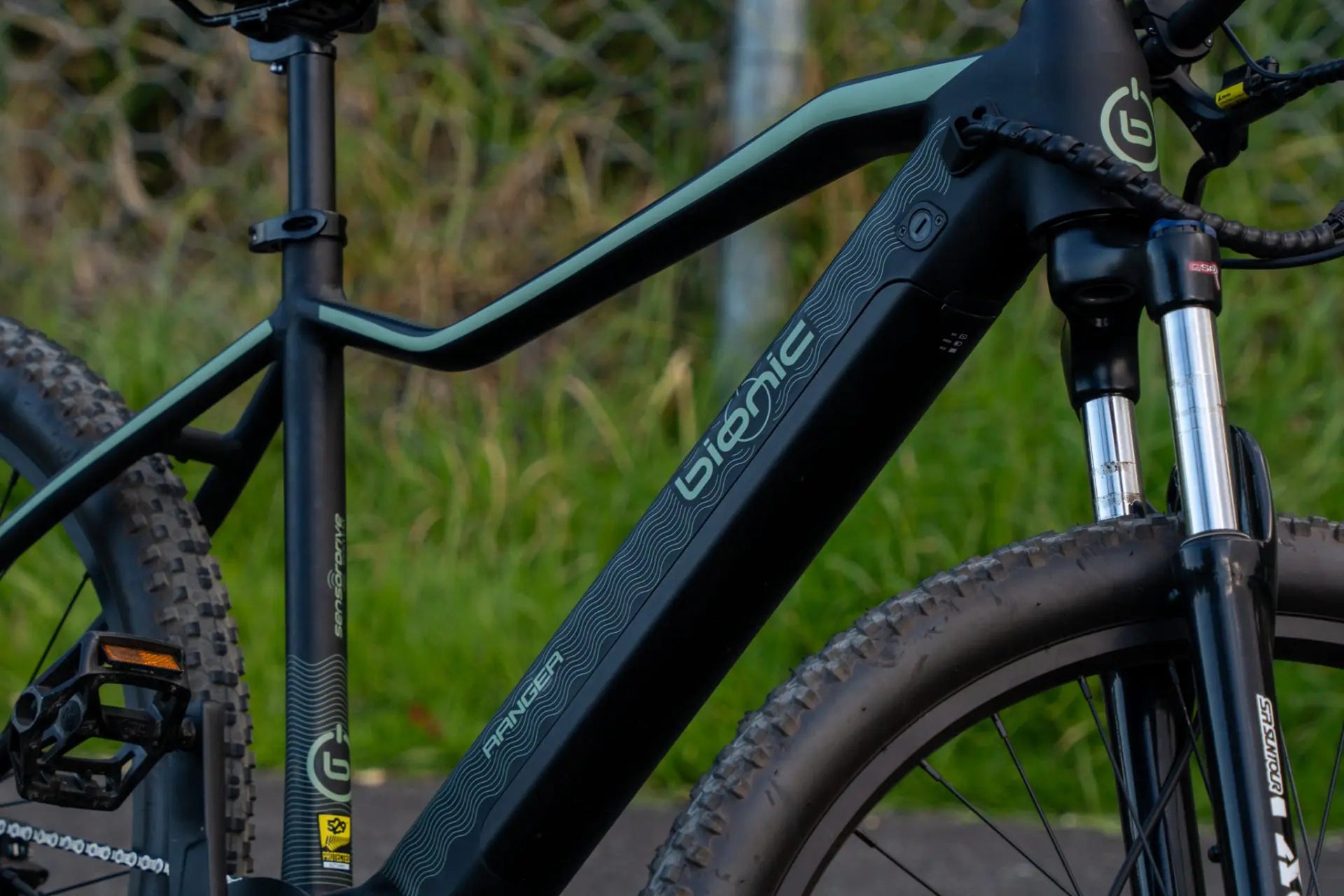

  • FRAME
    Alumuinium 6061-T6 (Aerospace grade)
  • FORK
    SR Suntour XCT 100mm travel (with lock-out)
  • CABLING
    Internal - through frame

DRIVETRAIN

  • REAR DERAILLEUR
    Shimano 9 speed/SRAM 8 speed
  • SHIFTER
    Shimano/SRAM index trigger

BRAKES

  • BRAKES
    Shimano/Tektro hydraulic with safety cut-out (180mm rotors)
  • BRAKE LEVER
    180mm Rotors

WHEELS

  • TYRES
    Kenda 27.5” x 2.35” tires

OTHERS

  • SIZES
    One size
  • WEIGHT
    23.5kg

Although we've taken every effort to ensure the accuracy of the information listed here, sometimes things change, so we reserve the right to change or update bike specifications, features, prices and colours as and when required, as per the manufacturer.

  • Bafang M420s, 300W, 80Nm Mid Drive Motor

  • 504Wh Samsung cells

  • SR Suntour XCT 100mm travel (with lock-out)

  • Shimano/Tektro hydraulic with safety cut-out (180mm rotors)

  • 27,5"

Contact Us

Complete the contact form below if you are interested in this E-bike or if you would like more information.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

FAQs

Why can I not order this bike through the webshop?

We aim to provide you with the best service in finding the right E-bike. As a result, we don't directly sell our bikes from our online store. However, we do provide delivery of E-bikes nationwide. Please contact our team using the form above to get in touch, +64 7 460 0844.

Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

What is the battery range on this E-bike?

Determining the exact range of your E-bike is not straightforward, as it depends on various factors such as the total load, the terrain, temperature, battery size, and motor unit. Some motor brands provide a range indication or provide a tool, like the Bosch Range Calculator.

--> Please reach out to the EBR team, and we can provide you with a good estimate by asking a few simple questions, +64 7 460 0844.

Are there any services included in the bike sale?

We offer an in-house complimentary first check for all bikes purchased at Electric Bike Rotorua. The first check is done at 6 weeks (after the bike purchase) or 250km, whichever comes first.
