Build for you!

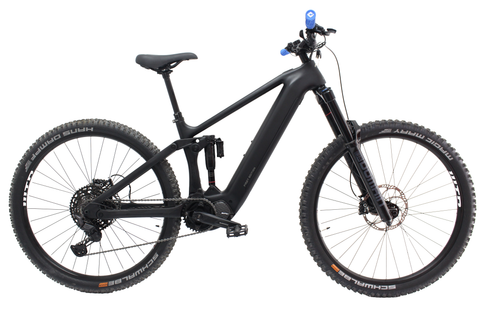

The Rhyolite Limited First Edition Core build is a great value for money E-bike.
Our goal is to offer a fully carbon bike at a sharp price without any compromises
Equipped with the Rockshox 35 Fork, Super Deluxe RT shock, Magura Trail brakes and 29" wheels makes it a great trail E-bike
We offer the freedom to swap or change parts around to fit your needs.
Talk to our team today!
One Bike, Unlimited POSSIBILITIES
Our mission is to put the power of choice back into the hands of the rider. To create an E-bike that fits your individual wants, needs and riding style. A bike that you will be far happier with than a bike off the shelf.
Starting with a base product that is created by the people who have dedicated their lives to a knowledge base around bikes and preserving the skills of your local bike shop; wheel builder, and suspension specialist - you end up with a custom E-bike tailored for you.
We don’t strive to be the biggest brand...
Frameset, Ready To Ride or Full Custom Build
Buy a frameset and build your bike from the ground up! Talk to us about your dream build and allow us to source you all the parts needed then build it in store. Choosing a budget friendly, ready to ride option is also possible.
Tailor your Ride, Made To Measure
Building a bike to be a scalpel or a sledgehammer, we can use boutique, handmade components or donor parts you're migrating from the old rig - this build is entirely yours!
We are here to provide advice along the way to help you get the most out of your ride.

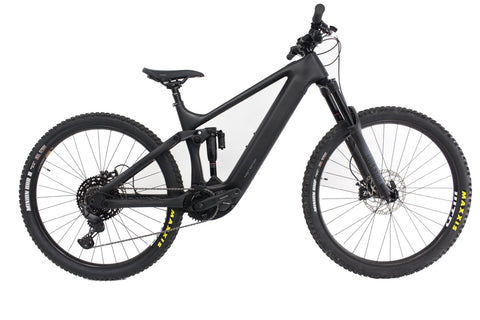

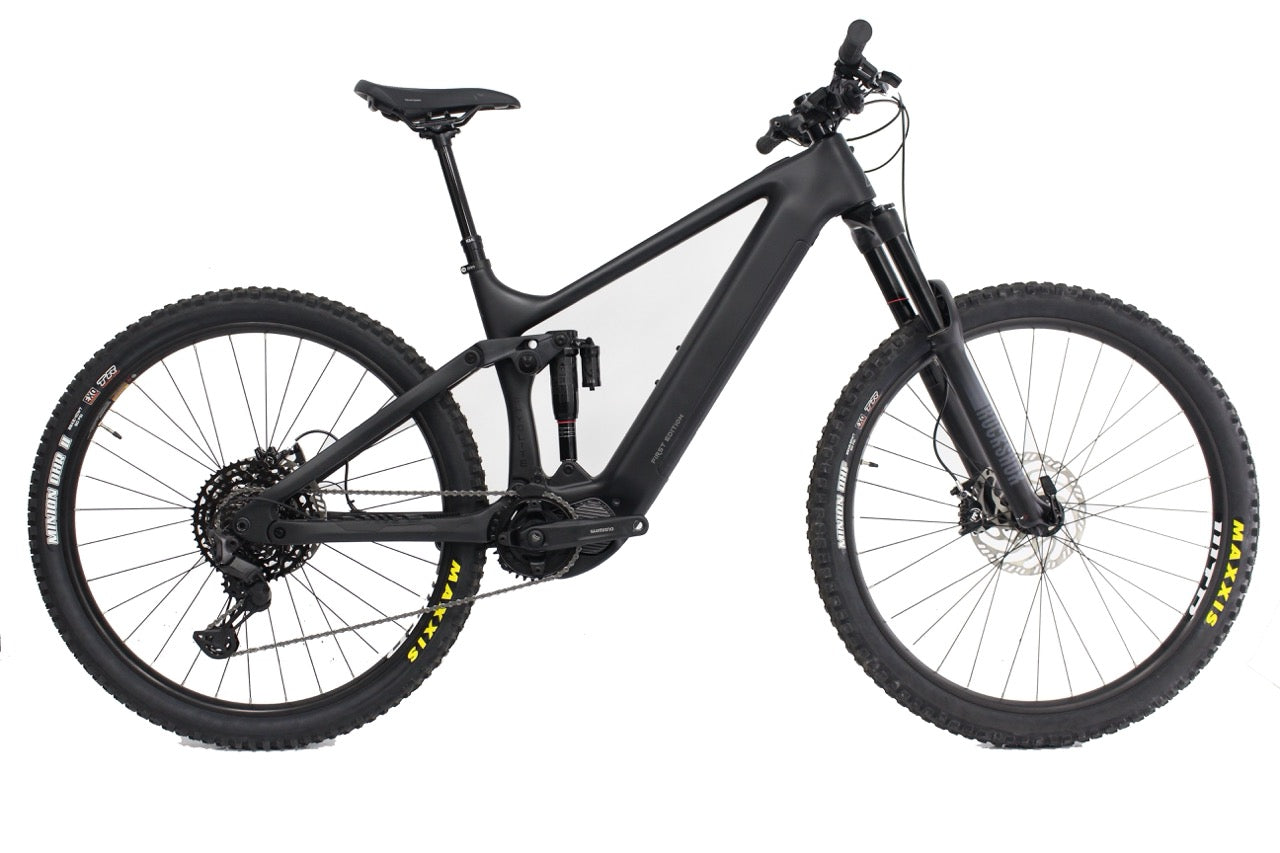

Carbon Frame
Seamless sleek looks which deliver exceptional strength and a lightweight frame, thanks to hand laid carbon fibre.

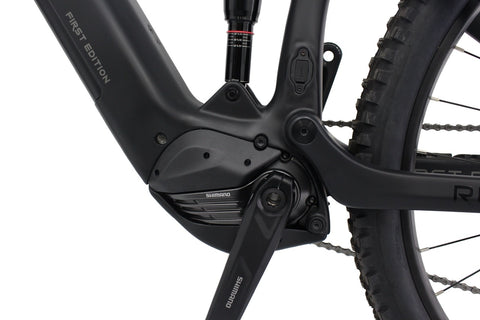

SHIMANO EP801 (45 km/h) Drive and Battery System
Internally Routed Cables
Internally routed cables tidy your cockpit and allow you to focus on the stuff that matters
Trail Focused Geometry
Our dual geometry design allows you to run either both 29 inch wheels or swap the rear wheel for a 27.5 to run slacker angles, or even two 27.5 wheels. Pair this with being able to run a 150-170mm fork which again slackens the head angle and you have a choice of 6 geometry numbers before choosing your parts
E-BIKE SPECIFIC

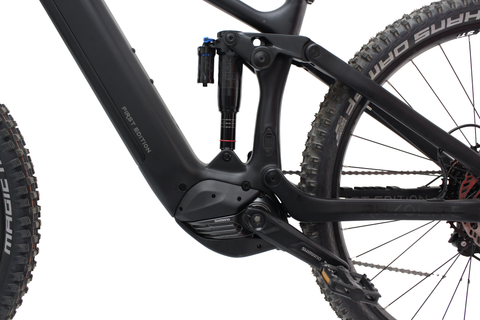

DRIVE UNIT SHIMANO EP8 (EP801) Drive Unit, 85Nm | Assist up to 45 km/h
BATTERY SHIMANO STEPS Integrated Battery (630 Wh)
DISPLAY & REMOTE SHIMANO STEPS Cycle computer and Switch Unit
SPECIFICATIONS
- FRAME
Strong Sleek Look Carbon Fibre Frame, option to run both 29'' wheels, or a 27.5'' wheel in the rear to run slacker angles - FORK

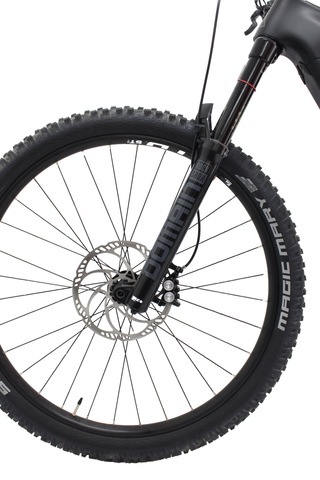

Rockshox 35 29'' Boost 160mm - SHOCK
Rockshox Super Deluxe RT - WHEELS
WTB 29'', 6-bolt - HEADSET

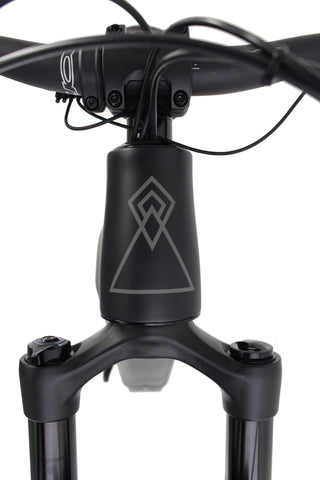

Headset with internal cable routing - TYRES
Front: Maxxis Minion DHF 29" - 2.50 WT MINION DHF EXO/TR
Rear: Maxxis Minion DHR 29" - 2.40 WT MINION DHR II EXO/TR - CRANK SET

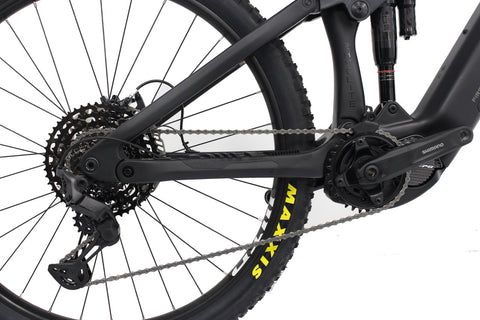

Shimano crank arm set, FC-EM600, 160MM - CHAIN
Shimano Chain, CN-LG-500, 11 speed - REAR DERAILLEUR
Shimano Link Glide Derailleur RD-M8130, Deore XT, SGS 11-Speed
- SHIFTER
Shimano Shift Lever, SL-M8130-R, Deore XT, Right, 11-speed - CASETTE
Shimano Cassette Sprocket, CS-LG700-11, 11-speed - HANDLEBAR

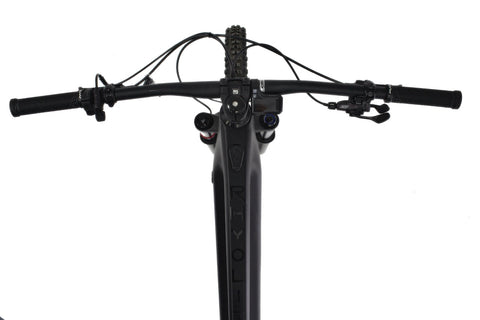

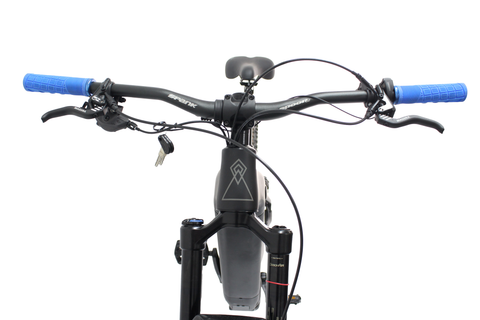

MTB ZOOM ALLOY 31.8MM X 780MM 20MM RISE MATT BLACK - GRIPS
Funn Lock-on - STEM
M-WAVE ST-M4.1 35MM length X 31.8MM D - BRAKES
Magura MT Trail Sport 1 Finger set, Magura MDR-C 203mm rotors - SADDLE
SL A050U - SEATPOST
KS EXA 31.6 / 150mm drop - COLOUR
Matt Black - PEDALS
Kore - WEIGHT
TBC
- Geometry 29-inch wheels set-
- Geometry Mullet wheels set-up
- Size Chart
Rhyolite First Editions Demo E-bike
We have Rhyolite's available in small, medium, large and extra large.
Currently at a flat rate of $129, with maximum demo period of 8-hours.
Experience the speed, power and playfulness of a Rhyolite E-bike.
The Rhyolite First Edition features the Shimano EP801 motor system and a 630Wh battery. What is special about this motor system is that it assists up to 45km/hr. Where most E-bikes in New Zealand assist up to 32km/hr.
This; together with a fully carbon frame, makes it a lightweight, full-power E-bike - Where power, speed and playfulness are combined in one.
Rhyolite’s mission is to put the power of choice back into the hands of the rider. To create an E-bike that fits your individual wants, needs and riding style. Talk to us about your dream Rhyolite build today!
