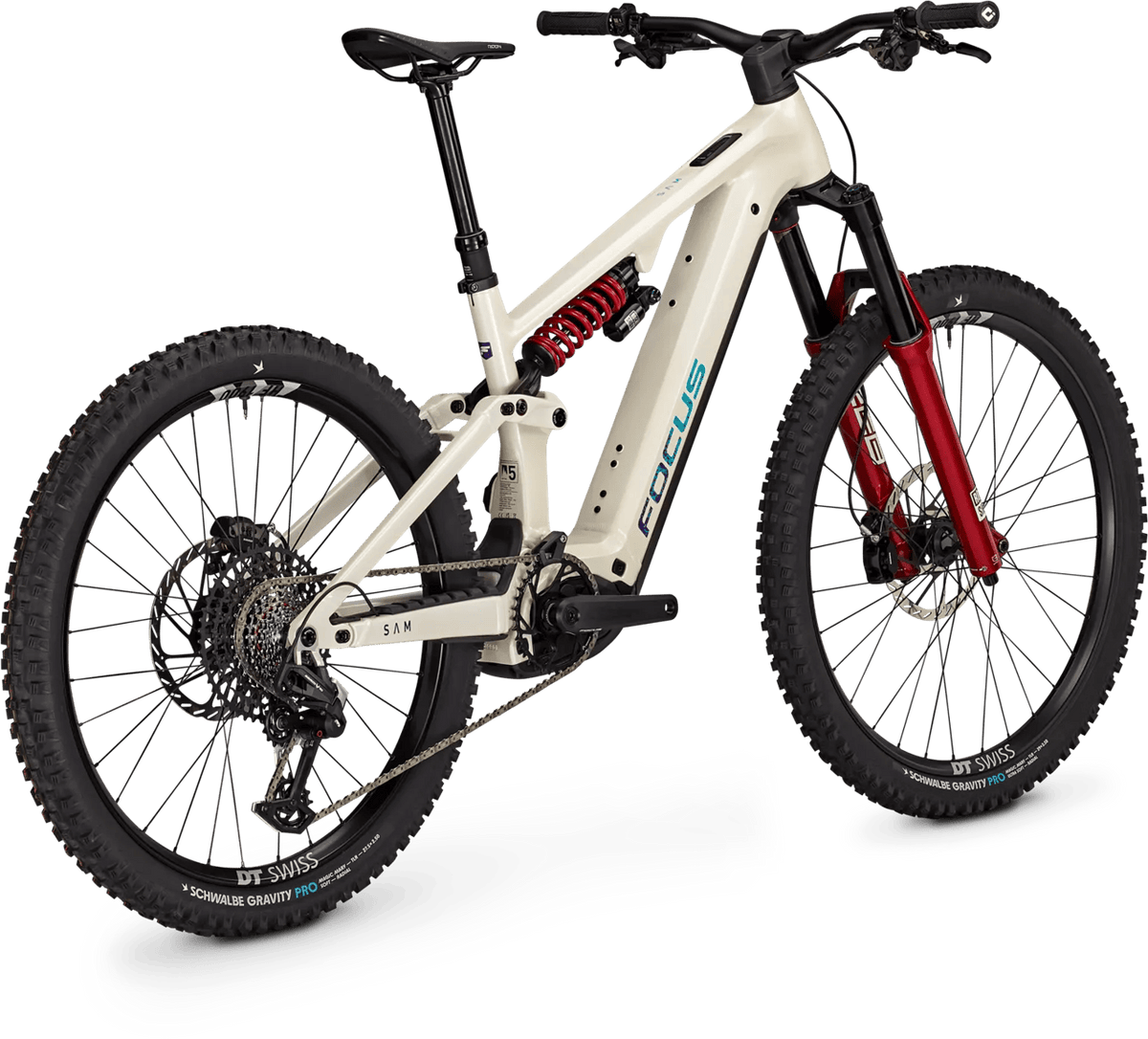

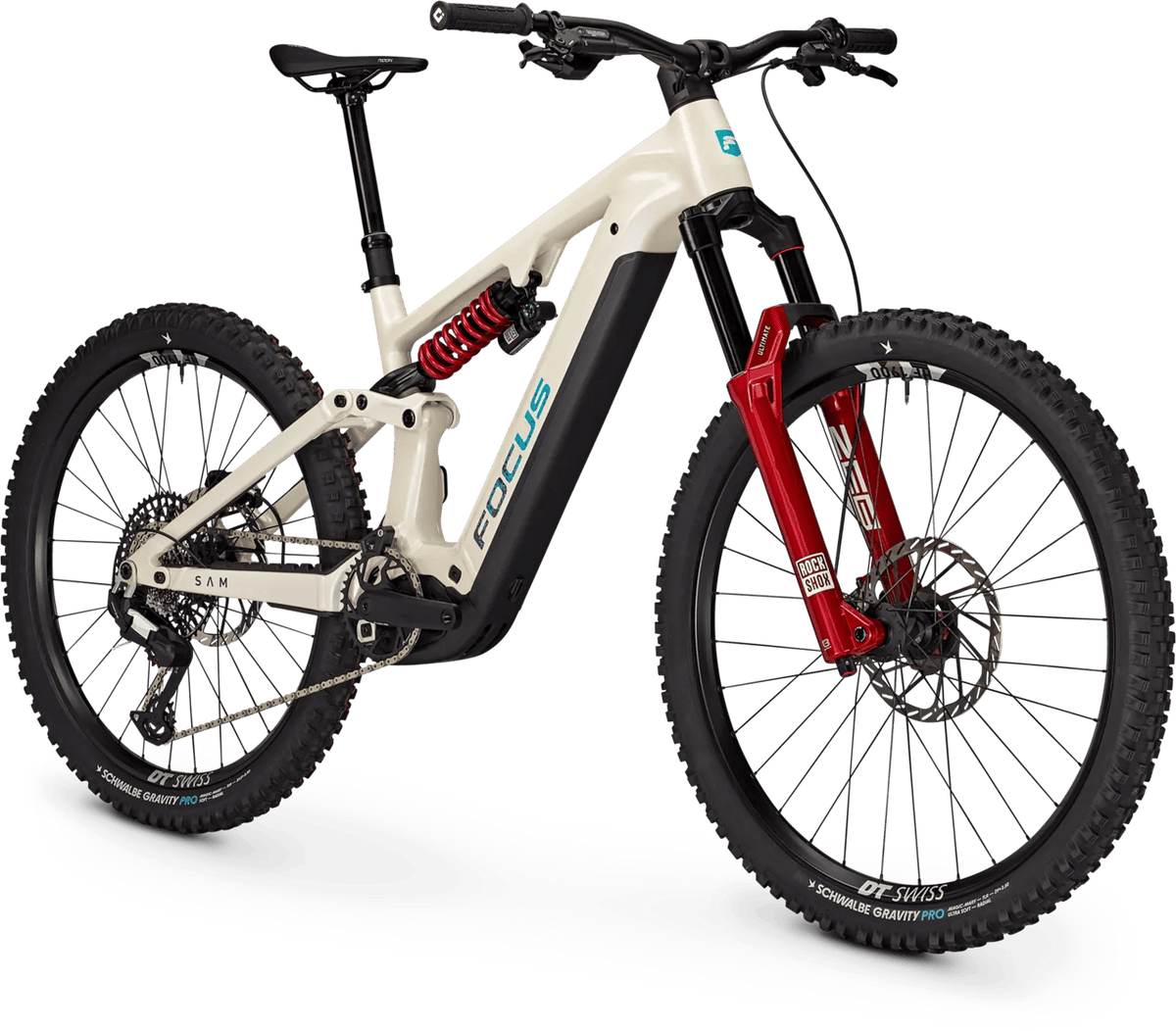

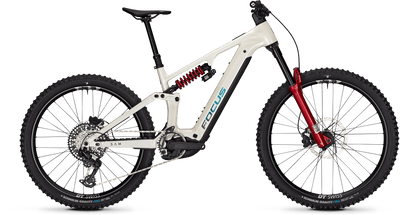

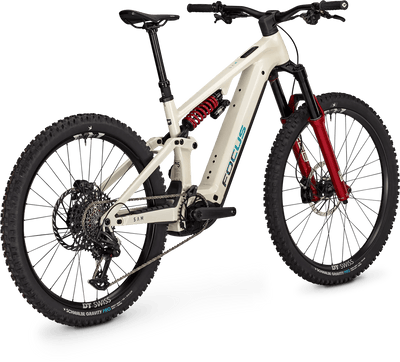

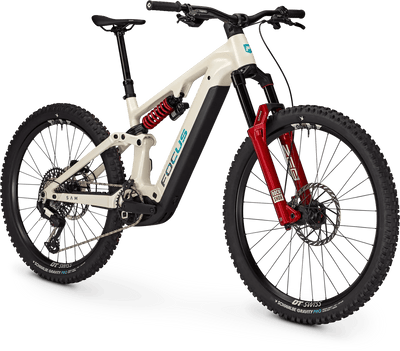

Focus SAM 9 2027 Champagne / Shellwhite – 800Wh E-Mountain Bike

Focus

Focus SAM 9 2027 Champagne / Shellwhite – 800Wh E-Mountain Bike

UP YOUR GAME ON ANY TRAIL

$10,999.00

Size: Small

Small
Medium
Large
Extra Large

Color: White

WhiteWhite

Product variants

Pickup currently unavailable at Electric Bike Rotorua store

All NEW SAM 9 arriving in NZ from January! Get your pre-order in today!

Pairs well with

First Service Included

Finance Available

Nationwide NZ Shipping! Find out more here.

Share:

Share

Product details

Description

SAM E-MTB: MOTOR, BATTERY, GEOMETRY & SUSPENSION

Total control even at top speeds and the steepest descents: the SAM is designed for fearless gravity riders.

EXTRA TUNE FOR DOWNHILL

The kinematics of the SAM are specifically designed for coil shocks and precision-tuned for downhill action. With it, you will make light work of rock gardens, road gaps, and root-laden sections. You can find our recommendations for the perfect suspension set-up in the FAQ.

Mullet wheels perfectly round off the concept, while adjustable headset angle and chainstay settings provide room for personal preferences.

ROCKSHOX ZEB ULTIMATE FORK AND VIVID ULTIMATE COIL

With the RockShox ZEB ultimate fork hardest impacts can't stop your ride. It's accompanied by the RockShox Vivid Ultimate coil, which you can change or set up according to your weight.

SRAMs GX EAGLE shifiting is a perfect fit as it is not impressed by any rock garden. For maximum traction and grip, we specced the SAM 9 with Schwalbe Magic Mary in the soft version.

PUSHES YOU LONGER AND STRONGER

The SAM is powered by the Bosch Performance Line CX motor (generation 5) to keep you riding longer and harder, with zero distractions. You can push the maximum torque up to 120 Nm with the eBike FlowApp. Choose between a 600 Wh or 800 Wh battery.

600 WH OR 800 WH BATTERY

With the SAM, you have the choice between the lighter and more affordable 600 Wh battery and the larger 800 Wh version. You can choose according to your preferences, and both are easily removable from the downtube. There’s also nothing stopping you from upgrading later; you’ll just need a different downtube cover.

PURPOSE DRIVES SPECS

The 38 mm suspension fork, coil shock, and 40 mm stem are just as much part of the purpose-oriented spec as the deliberate choice of an all-aluminum package: frame, wheels, and handlebar can endure hits without issue, ensuring you can always continue riding, even when things get rough.

FULL CONTROL

The SAM is specced from front to back with an uncompromising setup for gravity use. This starts with the DH tyres and doesn’t end with the powerful brakes. The used soft 2.5” tyres not only provide plenty of grip but also offer excellent puncture protection, while the 220 mm brake discs reliably clamp down even on the longest descents, bringing the SAM to a halt in record time. In combination, the tyres and the active rear during braking always generate enough traction to translate braking power into deceleration.

FLIP CHIP

With the FLIP CHIP at the chainstays, you can choose between 441 mm or 448 mm chainstay lengths to tune the balance of the SAM. Rowdy or stable – you decide! Both settings work with the same number of chain links.

ACTIVE REAR END

Added to this is the great maneuverability space at the rear, thanks to the dropper post with plenty of travel. The short seat tube provides enough space for long dropper posts despite the charging port: depending on the size, between 150 mm and 210 mm.

DURABLE DETAIL SOLUTIONS

The particularly thick, bolted chainstay protector ensures the bike is quieter than ever. The motor cover is exceptionally robust.

ALUMINIUM FRAME WITH CARBON LOOK

Is that a carbon frame? With its smooth and polished welds and striking two-tone metallic paint job featuring a painted main link, the SAM exudes a level of sophistication rarely seen in aluminum bikes.

COMPACT FRAME BAG

Leave your backpack at home! Thanks to the compact frame bag for a tube, multitool, and spare parts, plus ample space for large water bottles, you’ll always have all your trail essentials on board.

E-bike Specific

DRIVE UNIT
Bosch Performance Line CX, 100 Nm. Upgrade to 120 Nm* and 45 km/h maximum assisted speed.**
BATTERY
Bosch PowerTube Li-Ion (800 Wh) (optional: 600Wh battery and 250Wh range extender)
DISPLAY
Bosch Mini Remote + System Controller

*Via the Bosch eBike Flow App with Performance Upgrade 2.0, unlocking faster acceleration, more powerful support, up to 120 Nm of torque, and up to 600% maximum assistance.

**This drive unit is also compatible with the official Bosch 45 km/h maximum assisted speed software update.

Technical Info

FRAMESET

FRAME
7005 hydroformed aluminium, 165 mm F.O.L.D. kinematics, 148×12 mm thru axle, Pos
FRAME SIZE
S | M | L | XL
FORK
RockShox ZEB Ultimate, LinearXL, Charger 3.2 RC2 w/ ButterCups, 170 mm
SHOCK
RockShox Vivid Ultimate, Coil: 350/400/500/600 lbs (S/M/L/XL), 165 mm
HEADSET
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated angle headset
SPECIAL FEATURES
Geometry adjustment of head angle and chainstay length, Tool bag (exluding size S), Hidden AirTag or Chipolo holder
Find geometry specs in different setup [here]

DRIVETRAIN

CHAIN
SRAM GX Eagle Transmission
CHAINRING
SRAM T-Type, 36 T
REAR DERAILLEUR
SRAM Eagle 90, 12-speed
CRANK SET
Samox, 160 mm
CASSETTE
SRAM GX EAGLE Transmission, 10-52T
SHIFTERS
SRAM Eagle 90

BRAKES

BRAKES
SRAM Maven SLV, 4-piston, SRAM Maven SLV, 4-piston
ROTORS
SRAM HS2, front: 220 mm / rear: 220 mm

WHEELS

WHEELSET
DT Swiss HF 1900, alloy, front: 29", rear: 27,5"
TYRES
Schwalbe Magic Marry, Gravity Pro, Addix Ultra Soft, 29 x 2,5" | Schwalbe Magic Marry, Gravity Pro, Addix Soft, 27,5 x 2,5"

COMPONENTS

GRIPS
ODI Elite Pro
HANDLEBAR
OneUp Riser, width: 800 mm, rise: 35 mm
STEM
FOCUS C.I.S. 2.0, 40 mm
SADDLE
fi'zi:k Ridon X5
SEATPOST
Post Moderne DP-212, S / M /L / XL: 125 / 170 / 200 / 230 mm, 34,9 mm

OTHERS
SIZES
S, M, L, XL
WEIGHT (size medium)
26.3 kg (600 Wh)
27.3 kg (800 Wh)
PERMISSIBLE SYSTEM WEIGHT
150 kg

Bosch Performance Line CX, 120Nm*, 45km/h**
Bosch PowerTube Li-Ion (800 Wh)
RockShox ZEB Ultimate 170 | RockShox Vivid Ultimate, Coil
SRAM Maven SLV, 4-piston, SRAM Maven SLV, 4-piston
Mullet (F:29" R:27,5")
