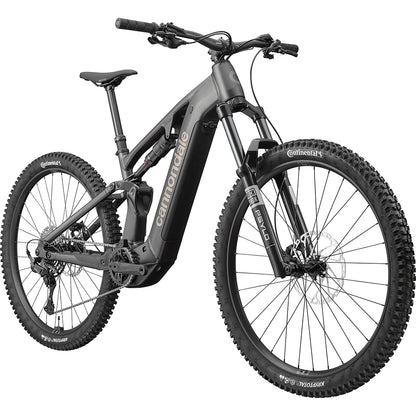

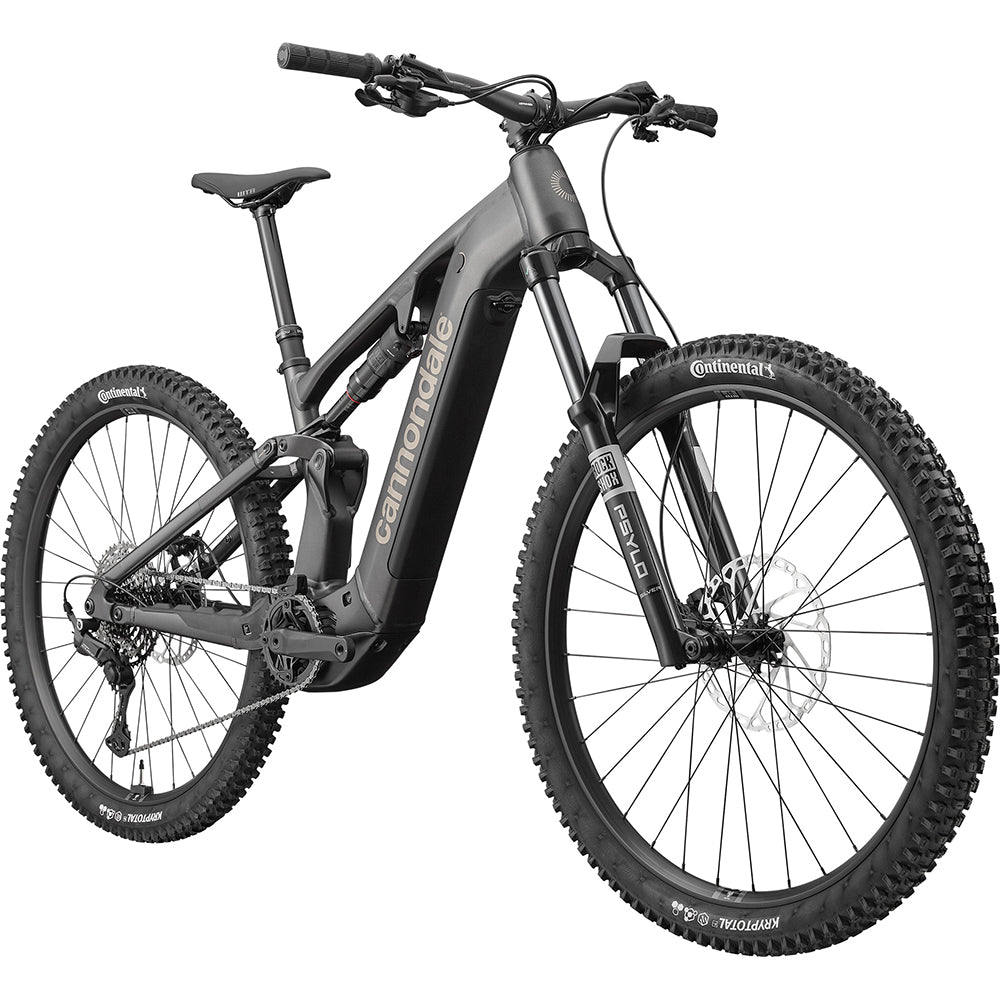

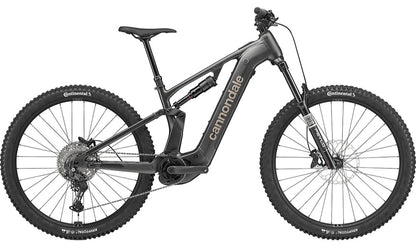

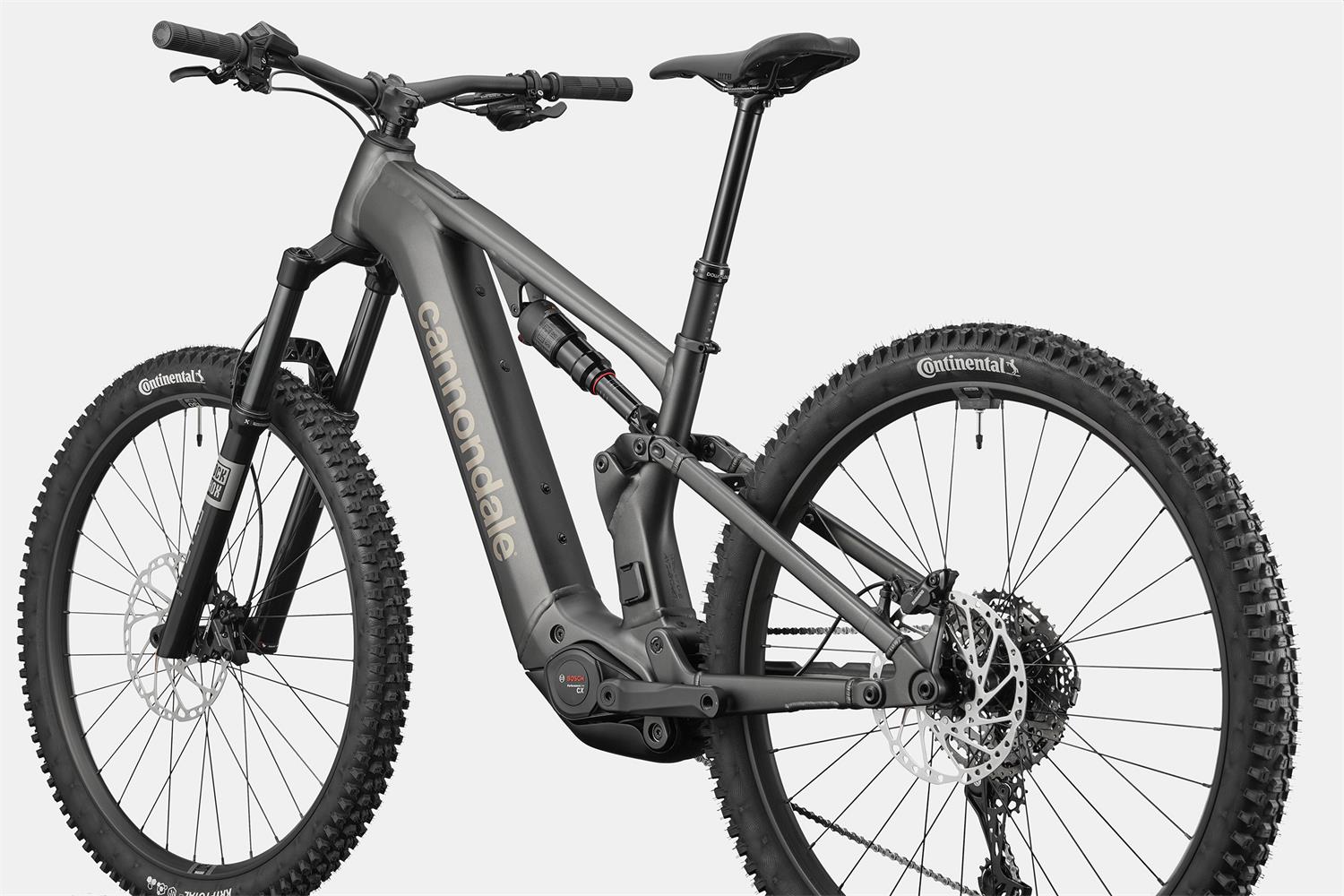

CANNONDALE MOTERRA 3

More Juice, No Excuse.

The new Moterra is more than capable—it’s relentless. With a light and agile frame wrapped around Bosch's most powerful drive system, it handles steep ascents and rugged descents with the confidence of a luxury off-roader. Built for the seekers, the adventurers, the riders who live to see what’s over the next ridge. Go far. Go fast. Come back happy.

Light, Nimble, Ready.

Designed for riders who refuse to compromise, the SmartForm Alloy frames of Moterra 3 take agility to new heights.. With 150mm of rear travel, 160mm up front and 29” wheels, it has an incredibly balanced ride feel - lively and precise on the descents, steady on climbs, and so responsive you forget you’re on an eMTB. Less weight, more freedom, and all the control you need.

Power to the Pedal.

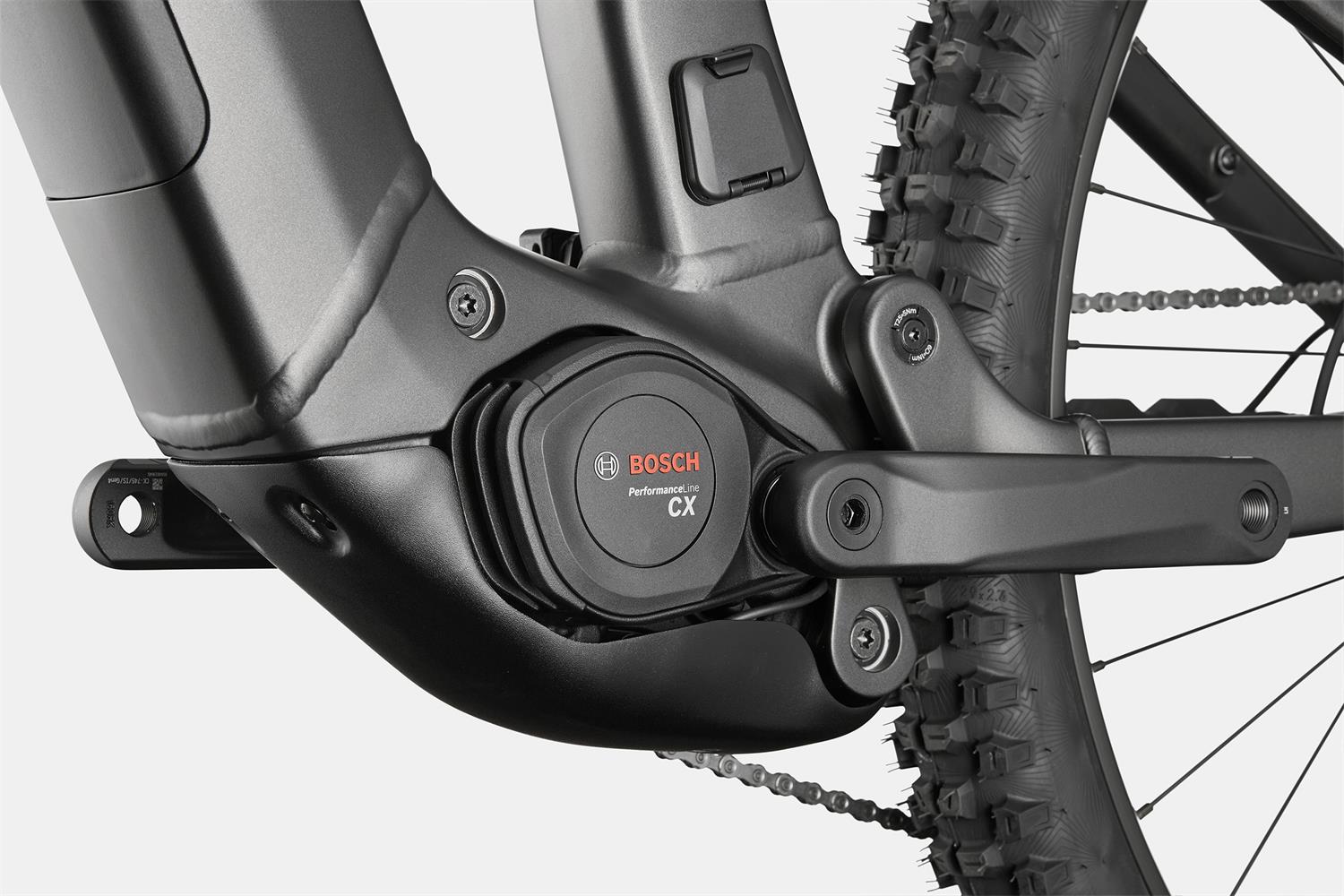

Moterra gets its all-conquering boost from the latest version of Bosch’s most powerful drive system. The updated Performance Line CX drive unit delivers delivers its powerful torque more quietly, smoothly and naturally than ever before, slaying even the nastiest climbs with silent ease, while the massive 800 or 600Wh interchangeable battery options offer the range to roll for hours. Whether conquering steep climbs or cruising alpine paths, this system ensures maximum power and battery longevity, ride after ride.

E-bike Specific
  • DRIVE UNIT
    Bosch Performance Line CX 250W
  • BATTERY
    Bosch PowerTube 800Wh
  • DISPLAY
    Bosch Purion 200
  • CHARGER
    Bosch 4A
  • BATTERY OPTIONS
    Options to change/fit internal battery to 600Wh and fits a Bosch Powermore 250Wh Range Extender
Technical Info

FRAMESET

  • FRAME
    Moterra, SmartForm C1 Alloy, 29" wheels,150mm travel, Proportional Response Tuned Suspension
  • FORK
    RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir, 15x110mm Maxle, tapered steerer, 44mm offset
  • REAR SHOCK
    RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm
  • HEADSET
    Acros ICR, 1.5" to 1.8", sealed bearings

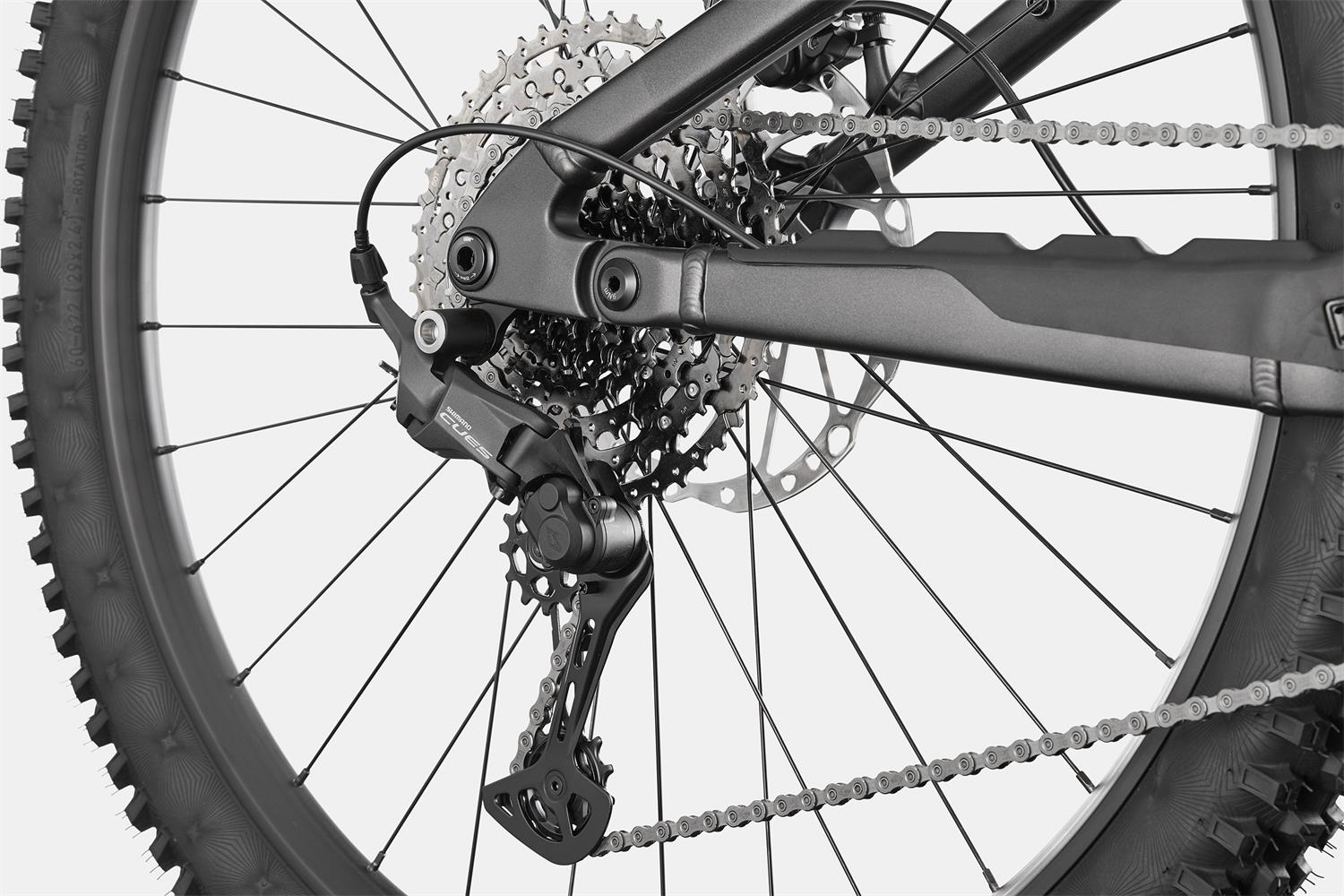

DRIVETRAIN

  • CHAIN
    Shimano LG500, LinkGlide, 11-speed
  • REAR DERAILLEUR
    Shimano CUES U6000, LinkGlide
  • CRANK SET
    FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
  • CASSETTE
    Shimano CUES LG400, LinkGlide, 11-50, 11-speed
  • SHIFTERS
    Shimano CUES U6000, 11-speed, LinkGlide


BRAKES

  • BRAKES
    Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors
  • BRAKE LEVERS
    Shimano MT501 hydraulic disc
  • ROTORS
    203mm RT64 rotors

WHEELS

  • RIMS
    WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible
  • HUBS
    (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
  • SPOKES
    DT Swiss Champion 2.0
  • TYRES
    (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable

COMPONENTS

  • GRIPS
    Cannondale TaperRidge
  • HANDLEBAR
    Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
  • STEM
    Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
  • SADDLE
    WTB Silverado Medium
  • SEATPOST
    Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
  • PEDALS
    N/A

OTHERS

  • SIZES
    S, M, L, XL
  • COLOUR
    Obsidian (OBS)
  • Extras
    Bosch PowerMore range extender compatible
  • WEIGHT
    26.6kg

Although we've taken every effort to ensure the accuracy of the information listed here, sometimes things change, so we reserve the right to change or update bike specifications, features, prices and colours as and when required, as per the manufacturer.

Bike Geometry

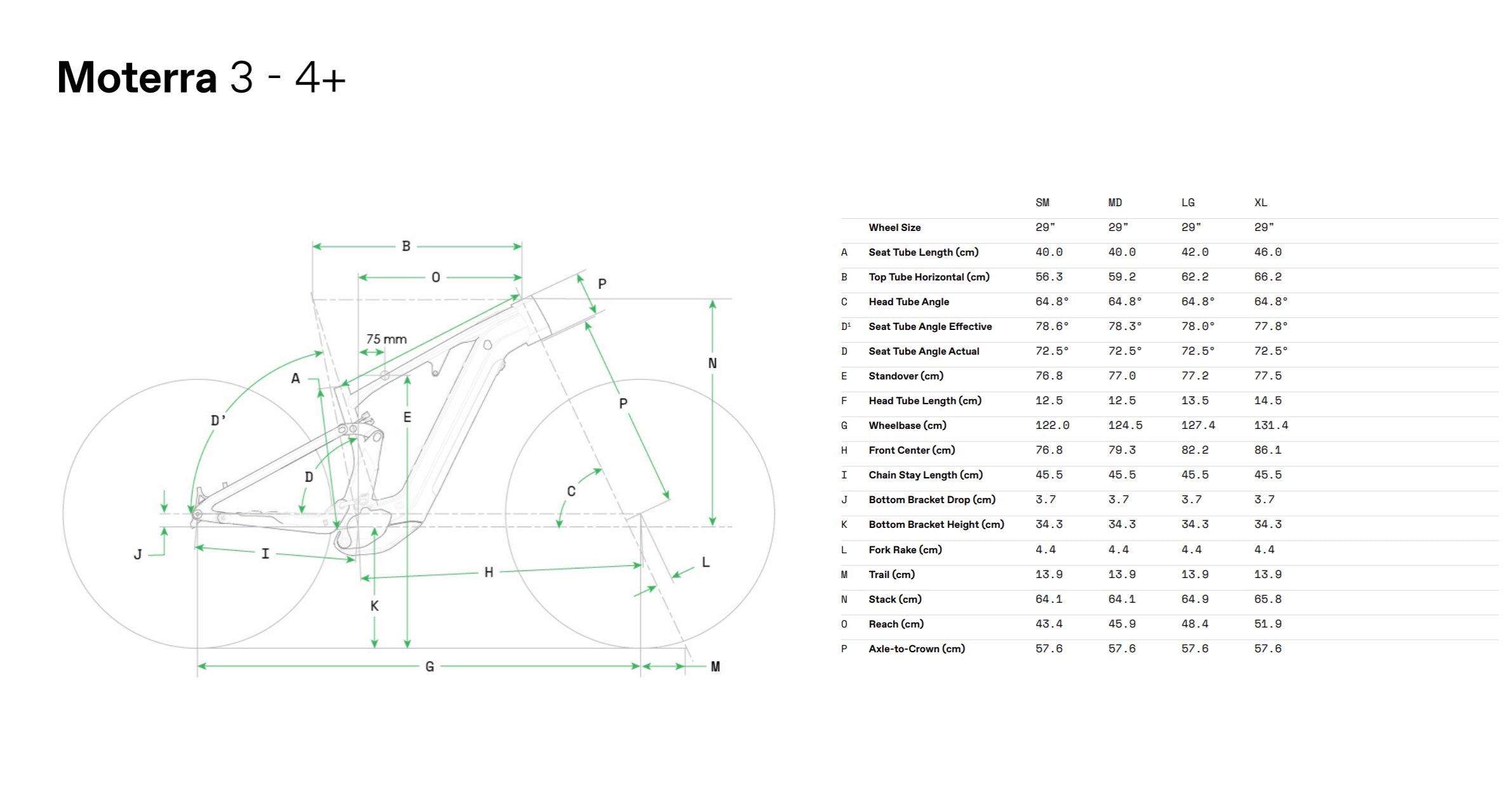

Bike geometry
Bike Size Guide

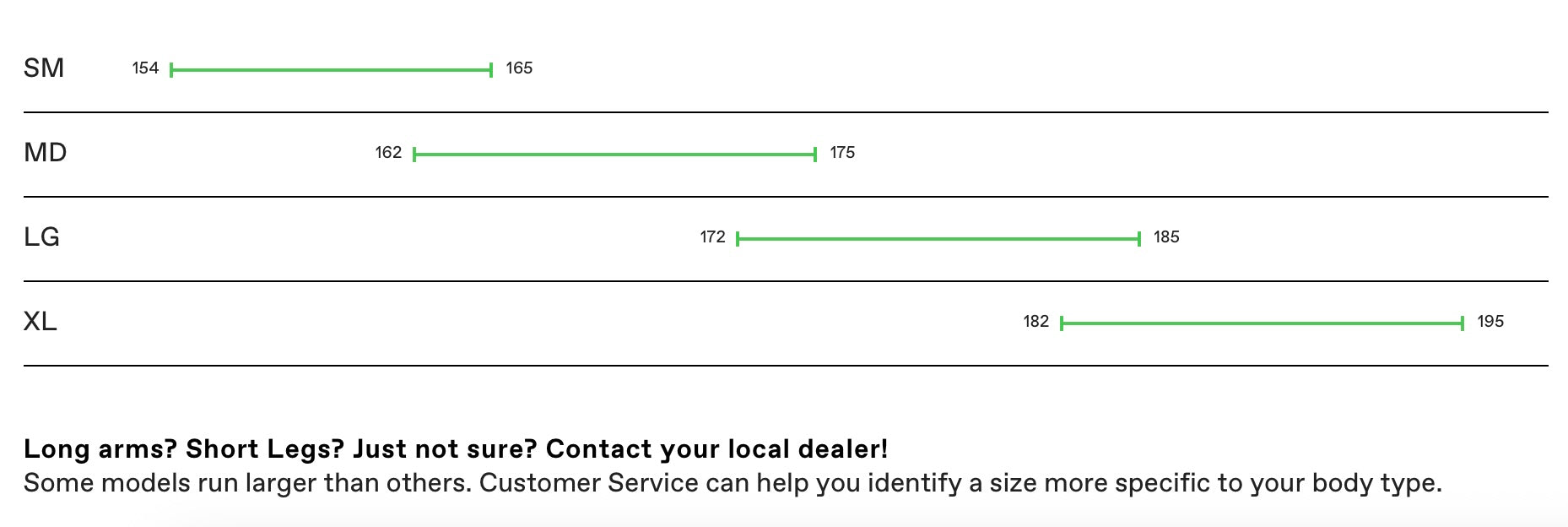

Size chart

  • Bosch Performance Line CX 250W

  • Bosch PowerTube 800Wh

  • RockShox Psylo Silver RC, 160mm| Deluxe Select, DebonAir+

  • Shimano MT520 4-piston

  • 29"

Contact Us

Complete the contact form below if you are interested in this E-bike or if you would like more information.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

FAQs

Why can I not order this bike through the webshop?

We aim to provide you with the best service in finding the right E-bike. As a result, we don't directly sell our bikes from our online store. However, we do provide delivery of E-bikes nationwide. Please contact our team using the form above to get in touch, +64 7 460 0844.

Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

What is the battery range on this E-bike?

Determining the exact range of your E-bike is not straightforward, as it depends on various factors such as the total load, the terrain, temperature, battery size, and motor unit. Some motor brands provide a range indication or provide a tool, like the Bosch Range Calculator.

--> Please reach out to the EBR team, and we can provide you with a good estimate by asking a few simple questions, +64 7 460 0844.

Are there any services included in the bike sale?

We offer an in-house complimentary first check for all bikes purchased at Electric Bike Rotorua. The first check is done at 6 weeks (after the bike purchase) or 250km, whichever comes first.
