Inno INH122 Hitch – HD Carrier
This Product is custom order only! Contact the EBR team via the form below to order.
Pairs well with
Product details
Product Information

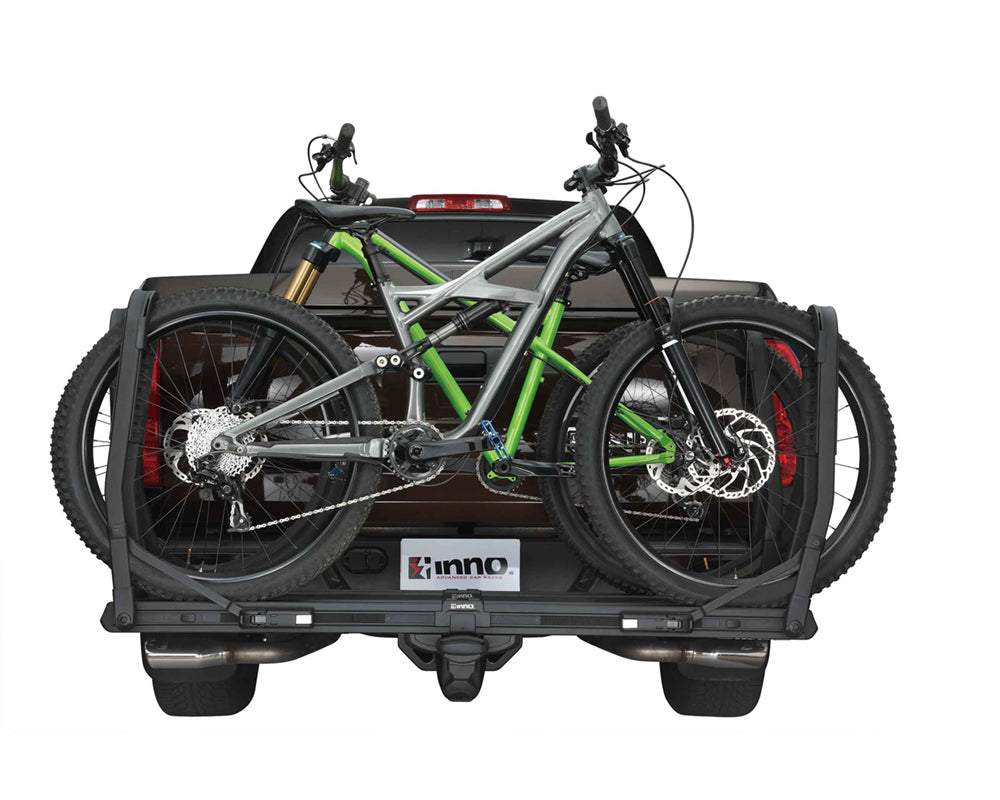

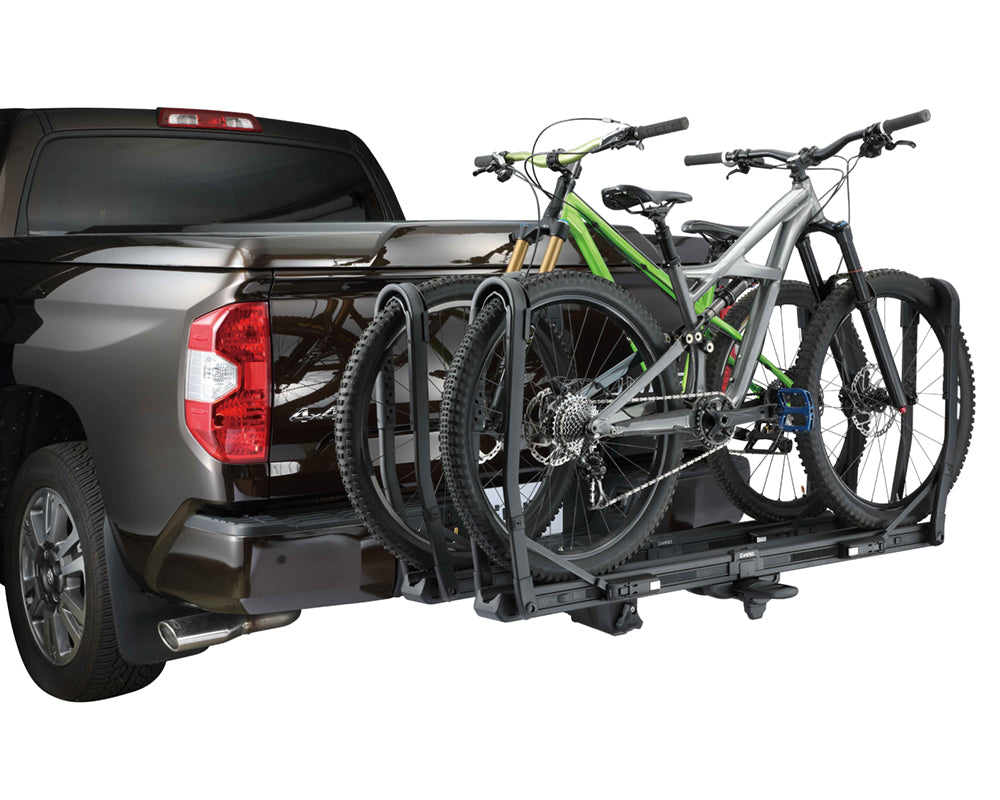

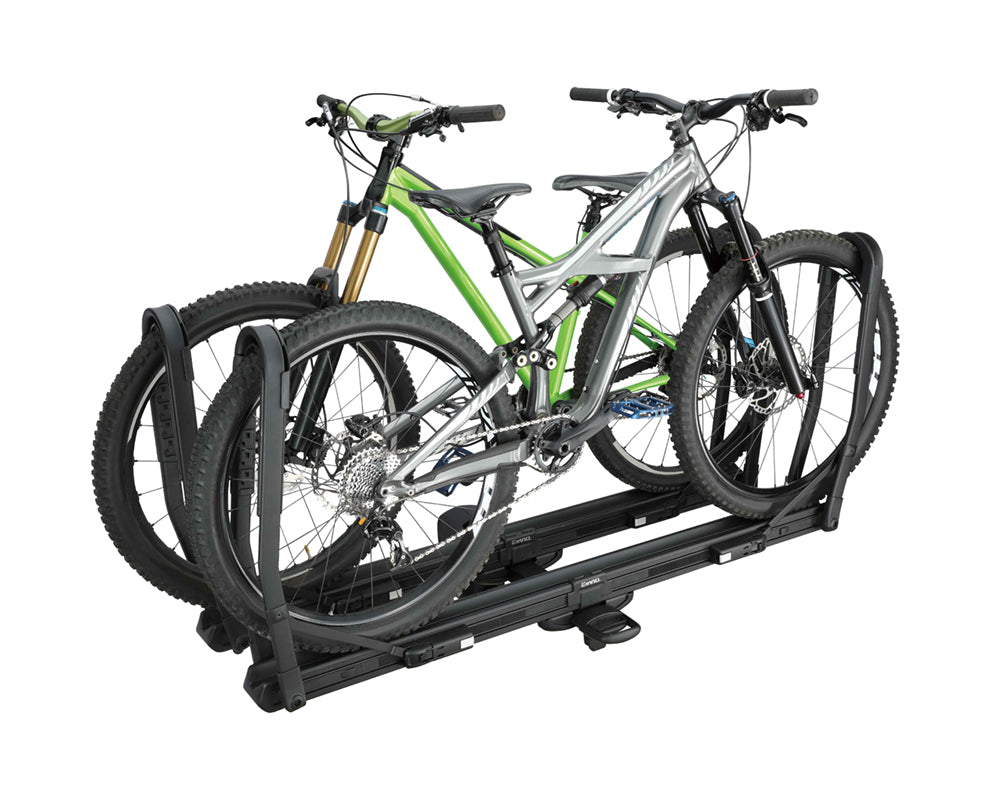

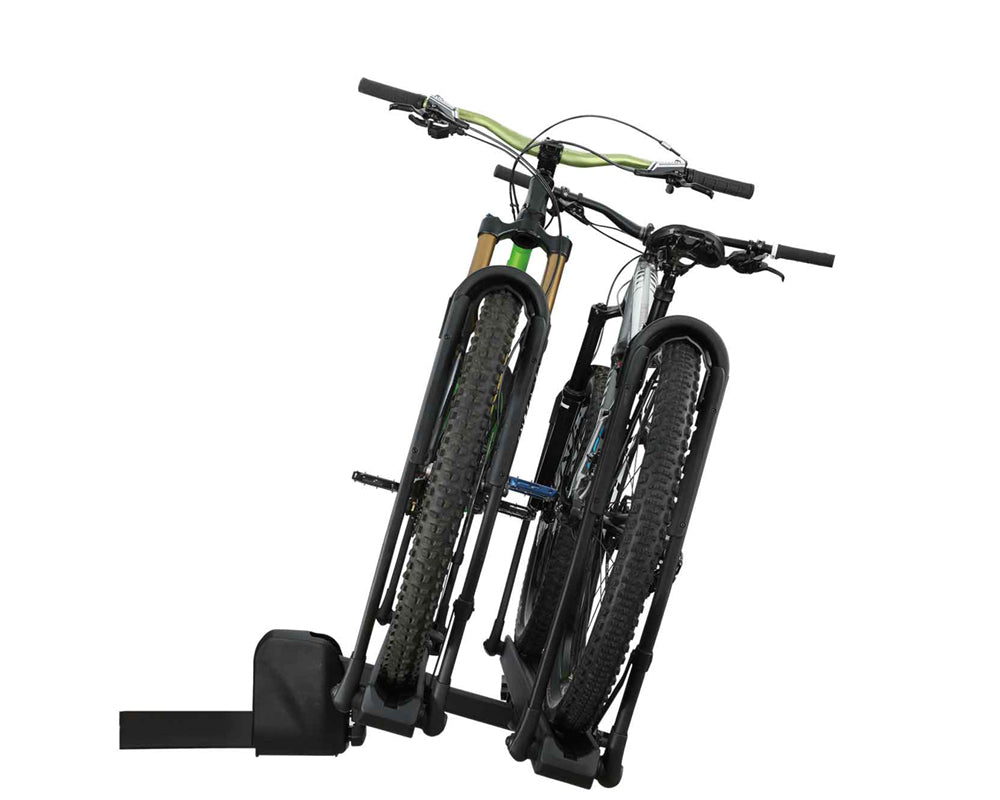

Inno INH122 Tire Hold Hitch Rack HD
The ultimate new Heavy Duty Inno Tire Hold Hitch 2 Bike Carrier is a premium bike carrier that will carry almost anything that you can put on it.
- Designed for most heavy bikes like E-bikes
- Each tray can carry up to 36 kg
- Max total is 68kg
NEW MODEL now in store. Order yours now.
To make easier to load heavy bikes, IOP20 Ramp option is available.
Features
- E-bike capability (Each tray can carry up to 36 kg)
- Designed to carry e-bikes and heavy bikes
- Max carrying capacity 68 kg
- Weight 24kg
- Tray length 1530mm. (Could carry bikes up to 1530mm wheel base depending on tyre size etc).
- Distance between bikes 28.5cm.
- Carrier secures bike without touching bike frame or forks
- Good for carbon frames, large size fork and 27.5 semi fat bikes
- Fits wheel sizes from 20" to 29"
- Fits tyres from 18C up to 3.5"
- Wheel base sizes can be fitted from 850mm to 1300mm
- Wheel trays can be off set for extra handlebar and seat clearance
- Wheel trays sit high enough to clear heat from most exhaust pipes
- Some bikes with rear mud guards do not fit. (Unless you can trim the mudguard).
- Fits 2″ receivers

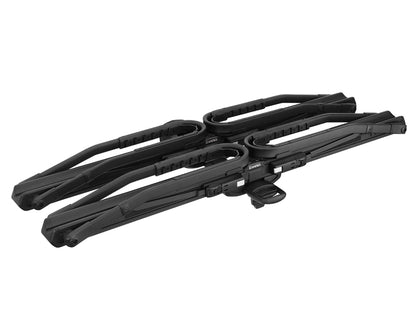

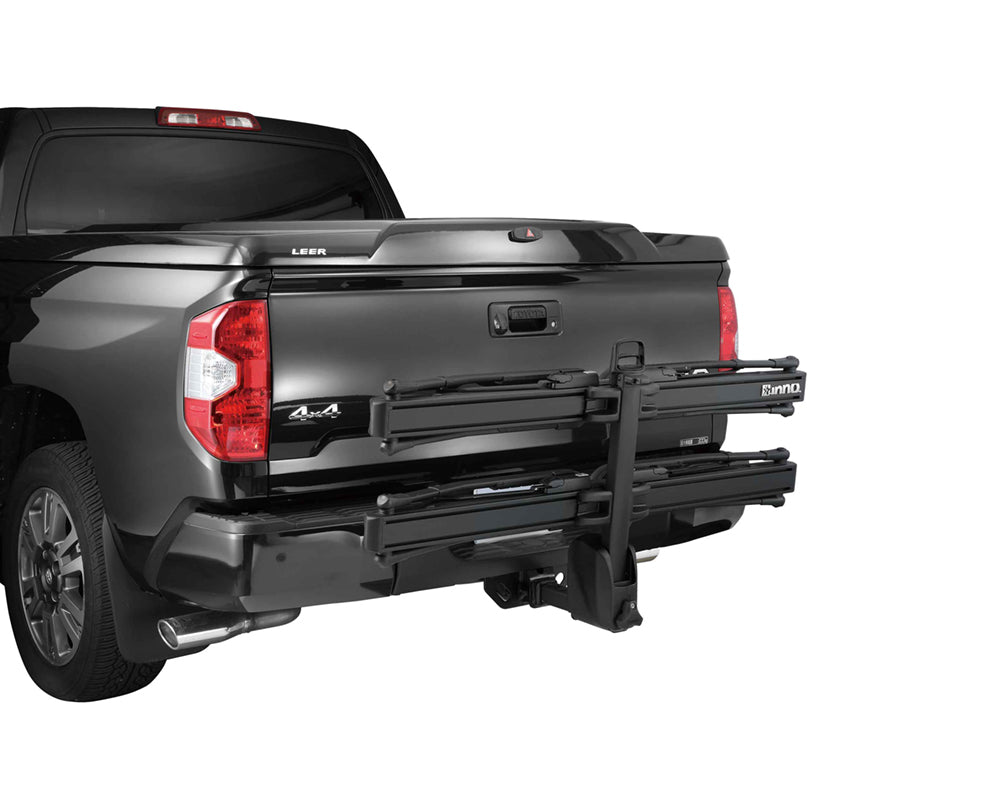

- Folds up behind vehicle when not in use.
- Trays easily tilt down to allow access to the boot

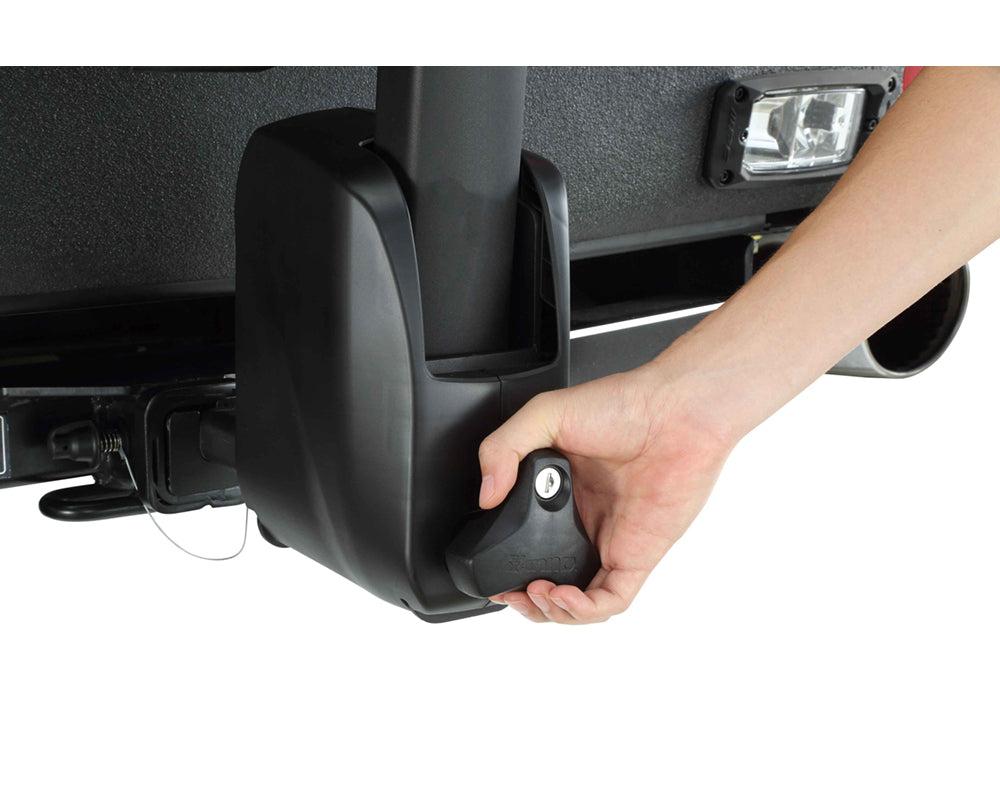

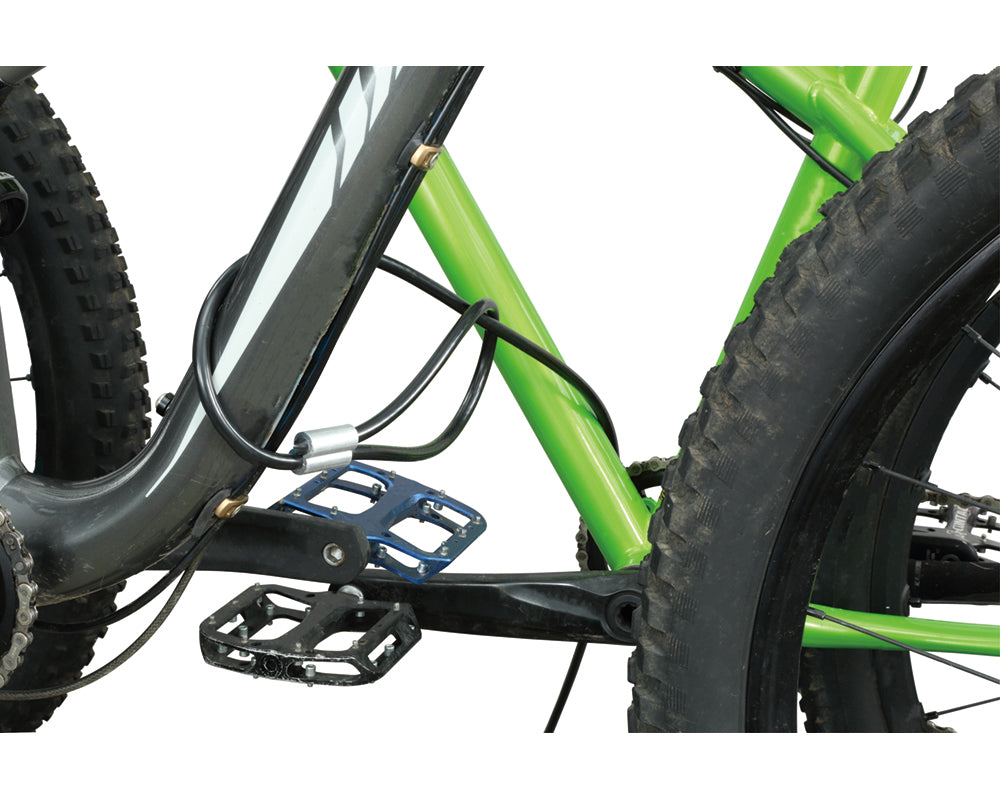

- Includes lock, keys, and security cables for both bike hitch and bikes
- Easily fits the Ranger, Everest, RangeRover, RR Sport and Defender etc.
Technical Specifications
- Capacity for 2 bike
- Weight 22 kg
- Does not fit some bikes with rear mud guards
- Centre of Bolt Pin hole to end of hitch (receiver) aprox 50mm
- Can not be installed to a vehicle with less than 50mm between the pin hole centre and the end of the receiver.
- Can be used off road with reduced weight carrying capacity. Approx MAX 50 kg.
- Please remove e-bike batteries if using on unsealed roads and/or for longer journeys.
- Limited Life Time Warranty
