Product details

Description

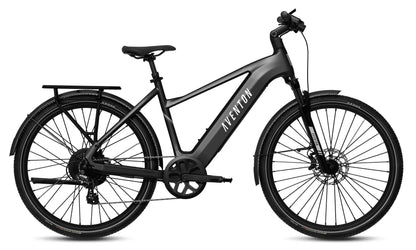

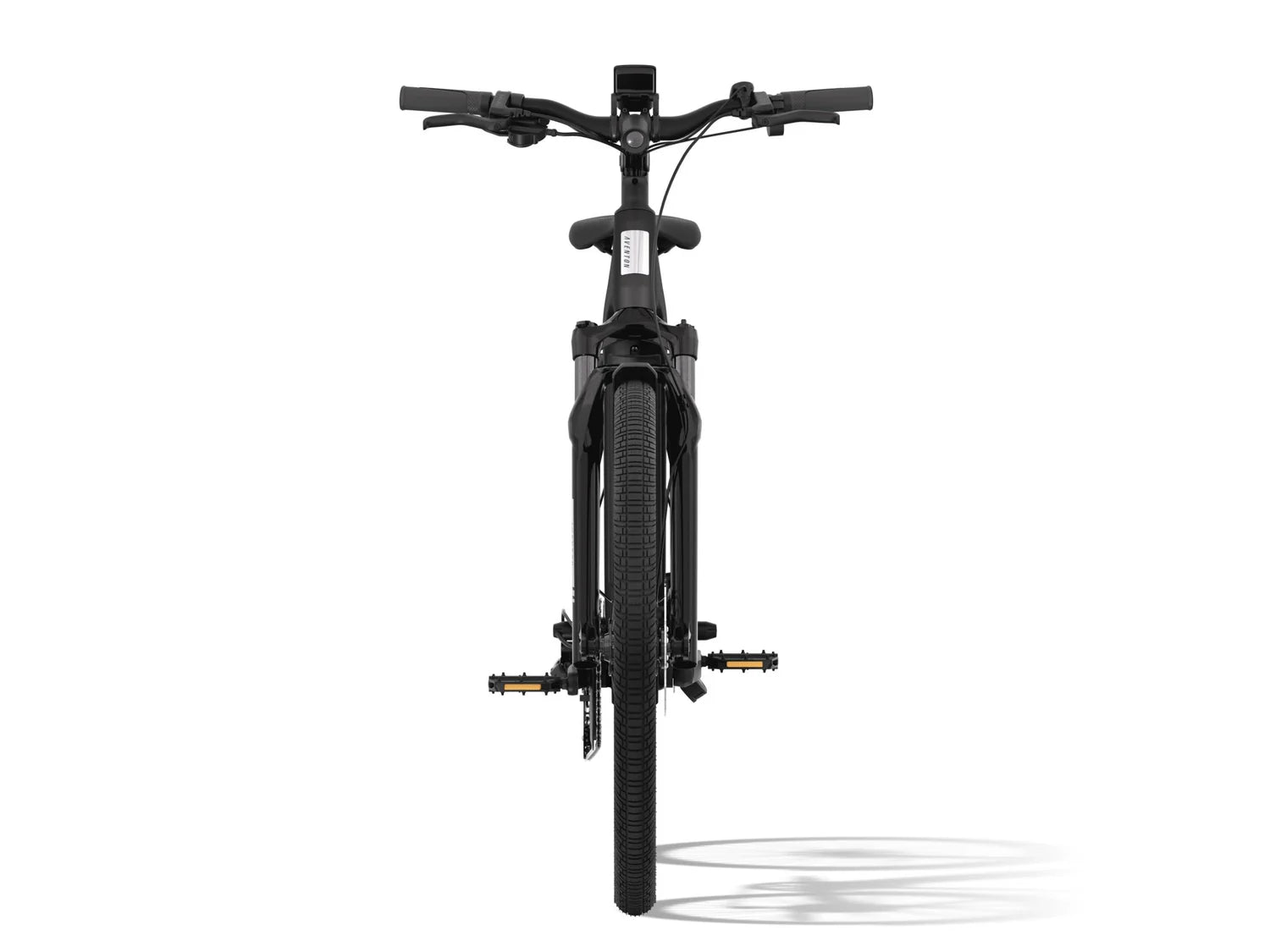

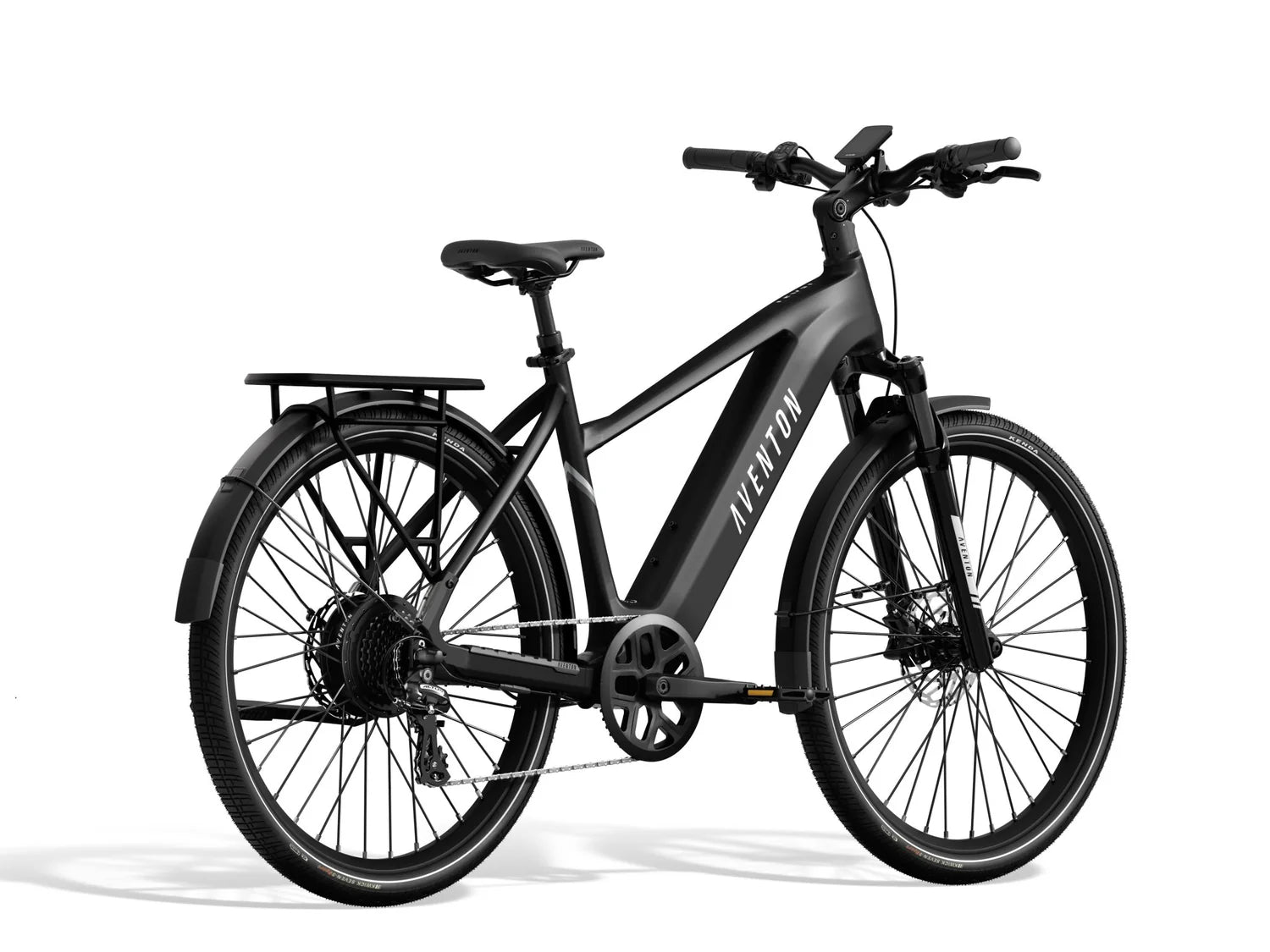

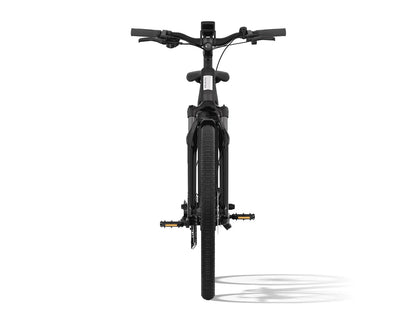

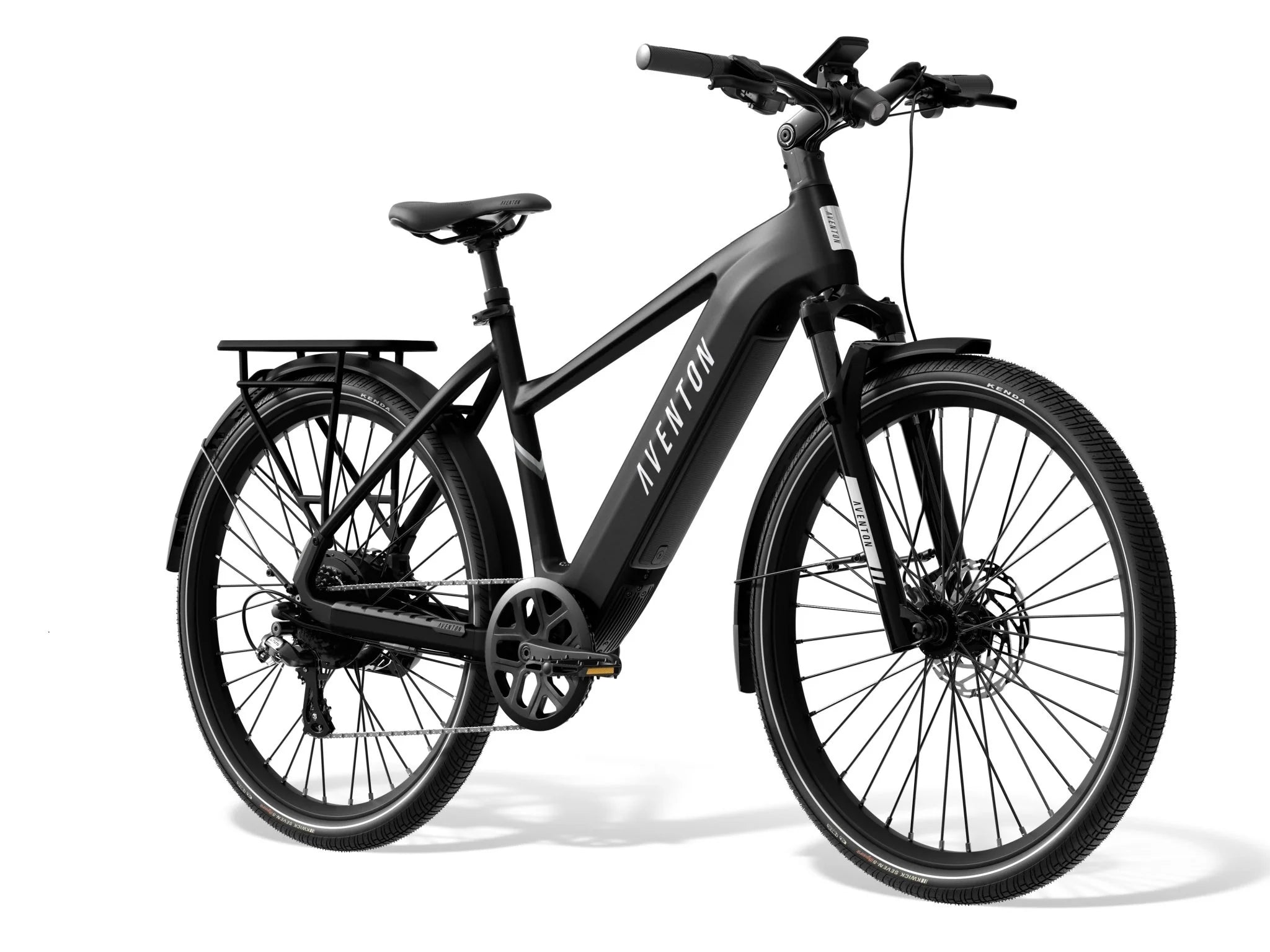

From the USA's #1 e-bike brand, take your commutes to the next LEVEL. The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS† tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities allow user adjustments. Built-in indicators provide better safety when riding around town. Ditch the traffic, and elevate your daily commutes with the Level 3.

E-bike Specific

MOTOR & BATTERY

  • MOTOR
    300W torque sensing hub drive
  • THROTTLE
    Aventon LH handlebar mounted
  • BATTERY
    Removable internal lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells/
  • BATTERY WEIGHT
    3.9 kg
  • CHARGER
    36V output: 42V / 4A, 5 hours charging time
  • DISPLAY
    Aventon BC280
  • SENSORS
    Double sided bottom bracket torque sensor
  • WATER RESISTANCE
    IPX6

Technical Info

FRAMESET
FRAME
6061 aluminum, gravity cast front triangle
FORK
Aventon suspension fork, 80mm travel, with lockout, coil spring, 15x100mm thru-axle, 43mm offset
REAR SPACING
142mm
FORK SPACING
110mm

DRIVETRAIN
REAR DERAILLEUR
Shimano Altus RD-M310
SHIFTER
Shimano 8 speed trigger SL-M315-8R
CASSETTE
12-32T / 8 speed Shimano CS-HG200-8
CHAIN
7/8 speed 120L
CHAINRING
48T
CRANKSET
3-piece, 170mm crank arm
BOTTOM BRACKET
Square taper, sealed, double sided torque sensor, 83mm x 158.5mm

BRAKES
BRAKES
Magura AT-2 hydraulic disc brakes, front and rear

WHEELS
FRONT WHEEL
27.5in, 13g, 36 hole, double wall aluminum, thru axle, Schrader valve, black
REAR WHEEL
27.5in, 12g, 36 hole, double wall aluminum, nutted hub drive motor, Schrader valve, black
TYRES
Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20 tyres

COCKPIT & SEATING
HANDLEBARS
Aluminum 31.8mm, 680mm
GRIPS
Aventon lock-on grips
SADDLE
Aventon saddle
SEATPOST
30.9mm Aventon suspension seatpost with 50mm travel
HEADSET
Sealed bearing headset

ACCESSORIES
LIGHTS
Front and rear lights integrated
PEDALS
9/16" composite platform
FENDERS
Included
REAR RACK
Included (27 kg weight limit)

OTHERS
CLASS
Class 2 eBike
MAX. RIDER WEIGHT
136 kg

Although we've taken every effort to ensure the accuracy of the information listed here, sometimes things change, so we reserve the right to change or update bike specifications, features, prices, and colours as and when required, as per the manufacturer.

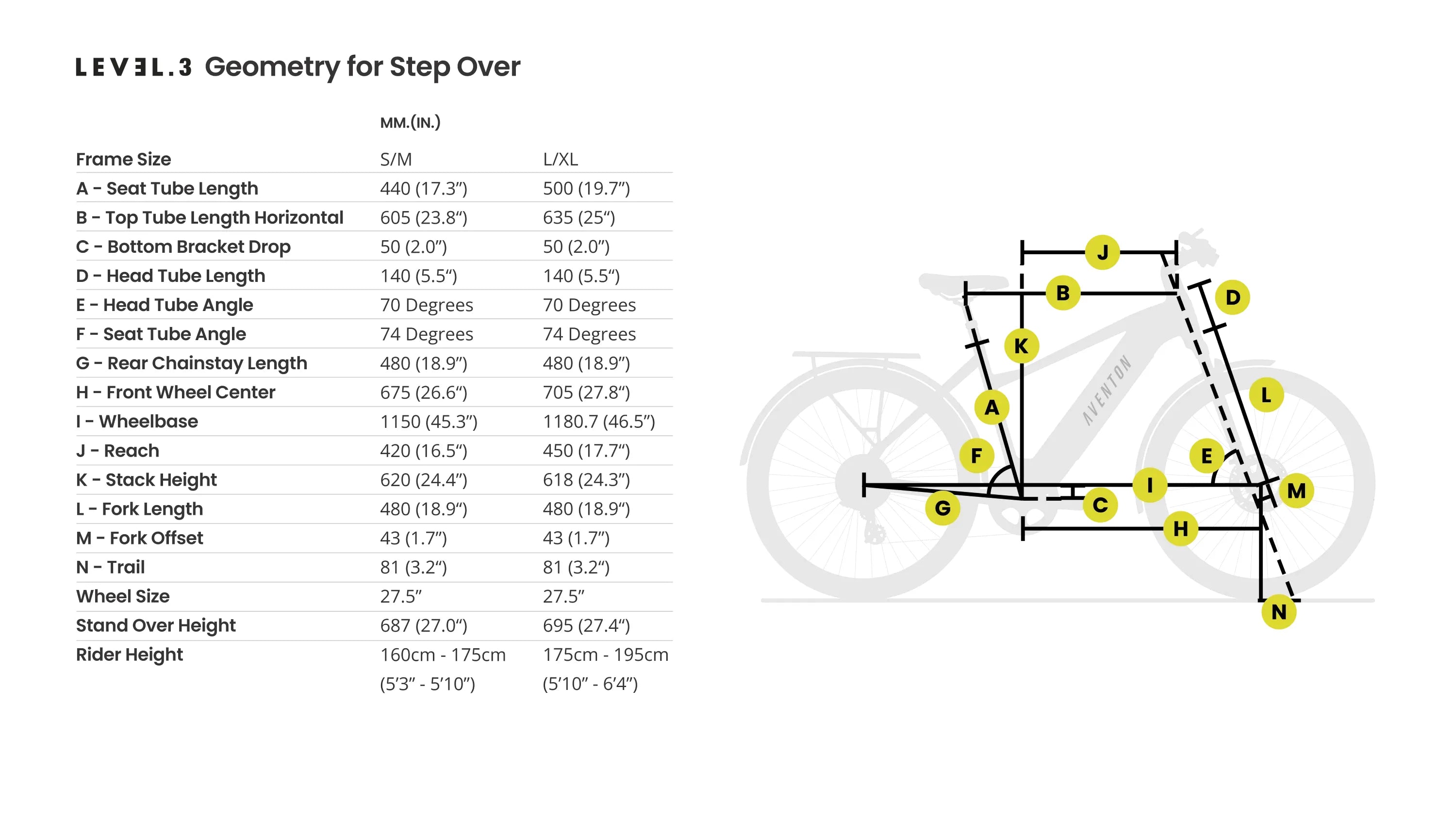

Bike Geometry
Bike geometry

  • 300W torque sensing hub drive

  • Removable Internal Lithium-ion, 733Wh

  • Aventon Suspension Fork, 80mm travel

  • Magura AT-2 Hydraulic disc brakes

  • 27,5"

Contact Us

Complete the contact form below if you are interested in this E-bike or if you would like more information.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

FAQs

Why can I not order this bike through the webshop?

We aim to provide you with the best service in finding the right E-bike. As a result, we don't directly sell our bikes from our online store. However, we do provide delivery of E-bikes nationwide. Please contact our team using the form above to get in touch, +64 7 460 0844.

Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

What is the battery range on this E-bike?

Determining the exact range of your E-bike is not straightforward, as it depends on various factors such as the total load, the terrain, temperature, battery size, and motor unit. Some motor brands provide a range indication or provide a tool, like the Bosch Range Calculator.

--> Please reach out to the EBR team, and we can provide you with a good estimate by asking a few simple questions, +64 7 460 0844.

Are there any services included in the bike sale?

We offer an in-house complimentary first check for all bikes purchased at Electric Bike Rotorua. The first check is done at 6 weeks (after the bike purchase) or 250km, whichever comes first.
