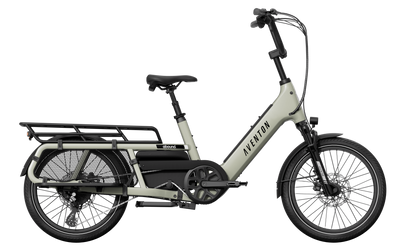

Electric Aventon Abound LR cargo bike with a white frame and black components on a transparent background

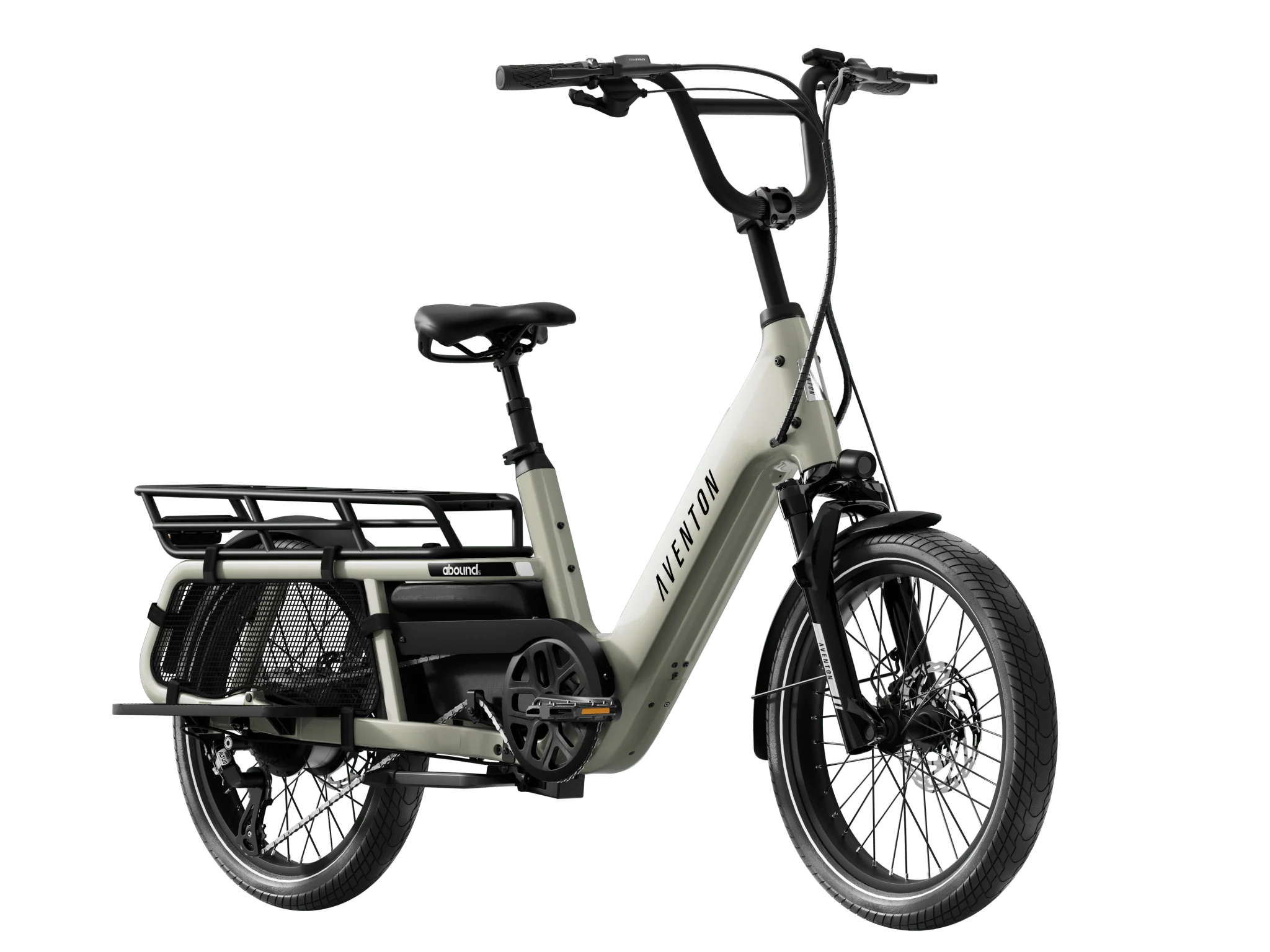

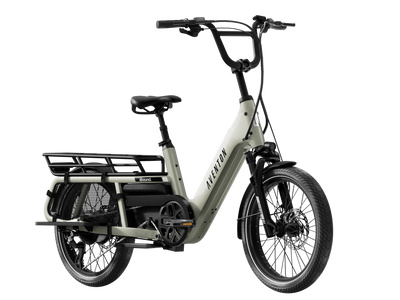

Aventon Abound LR Electric bike with a cargo rack on a white background

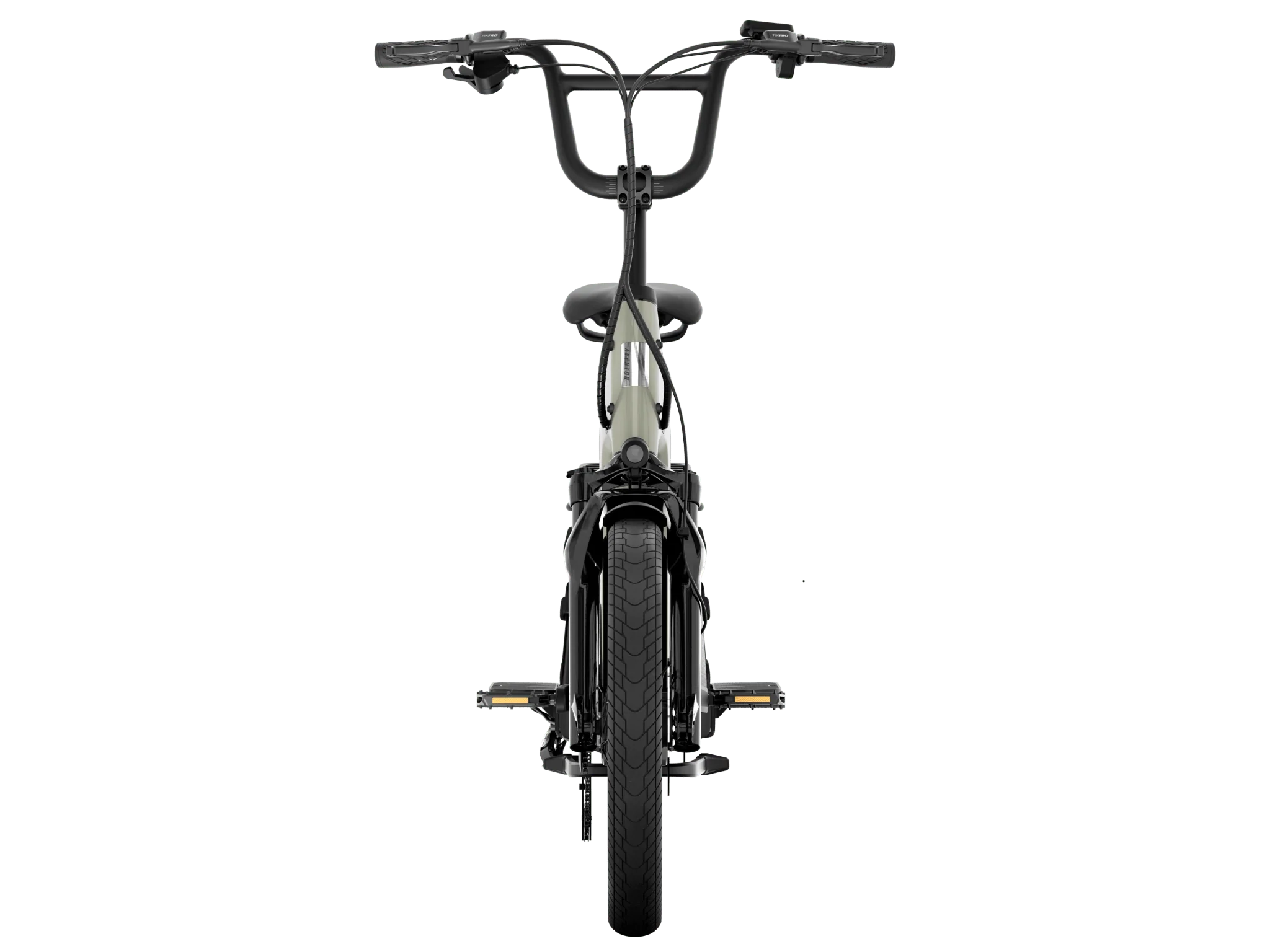

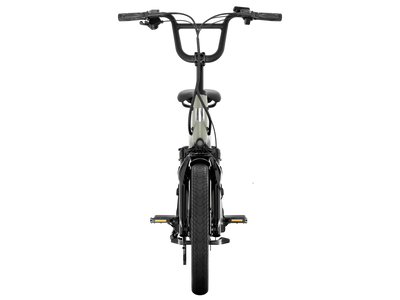

Abound electric cargo bike on a white background

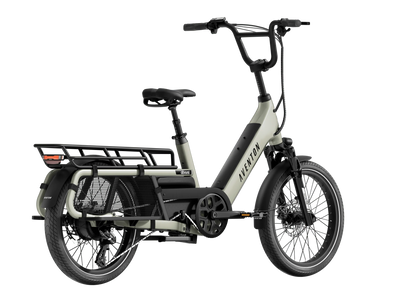

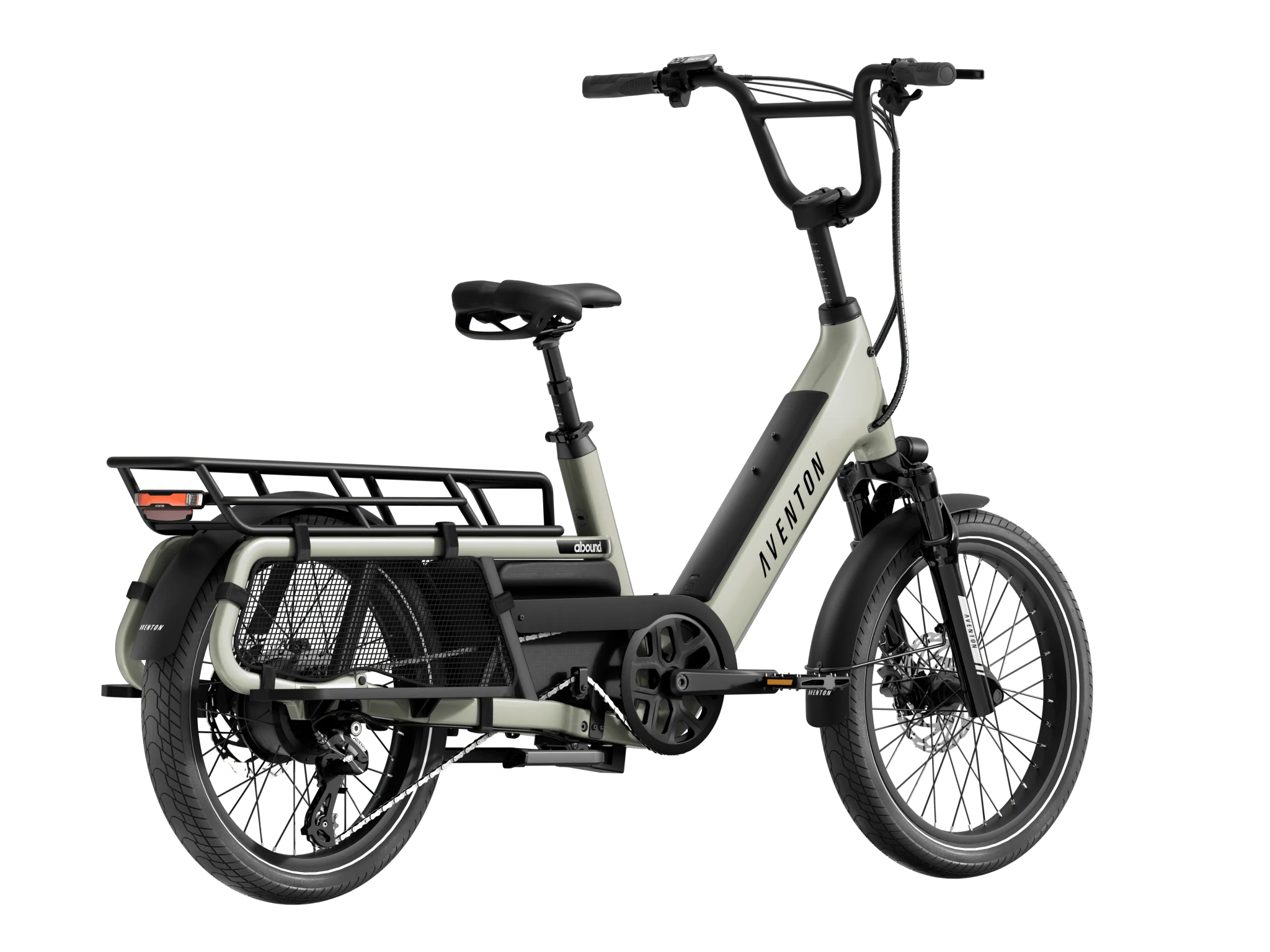

Electric Abound cargo bike with a black basket on a white background

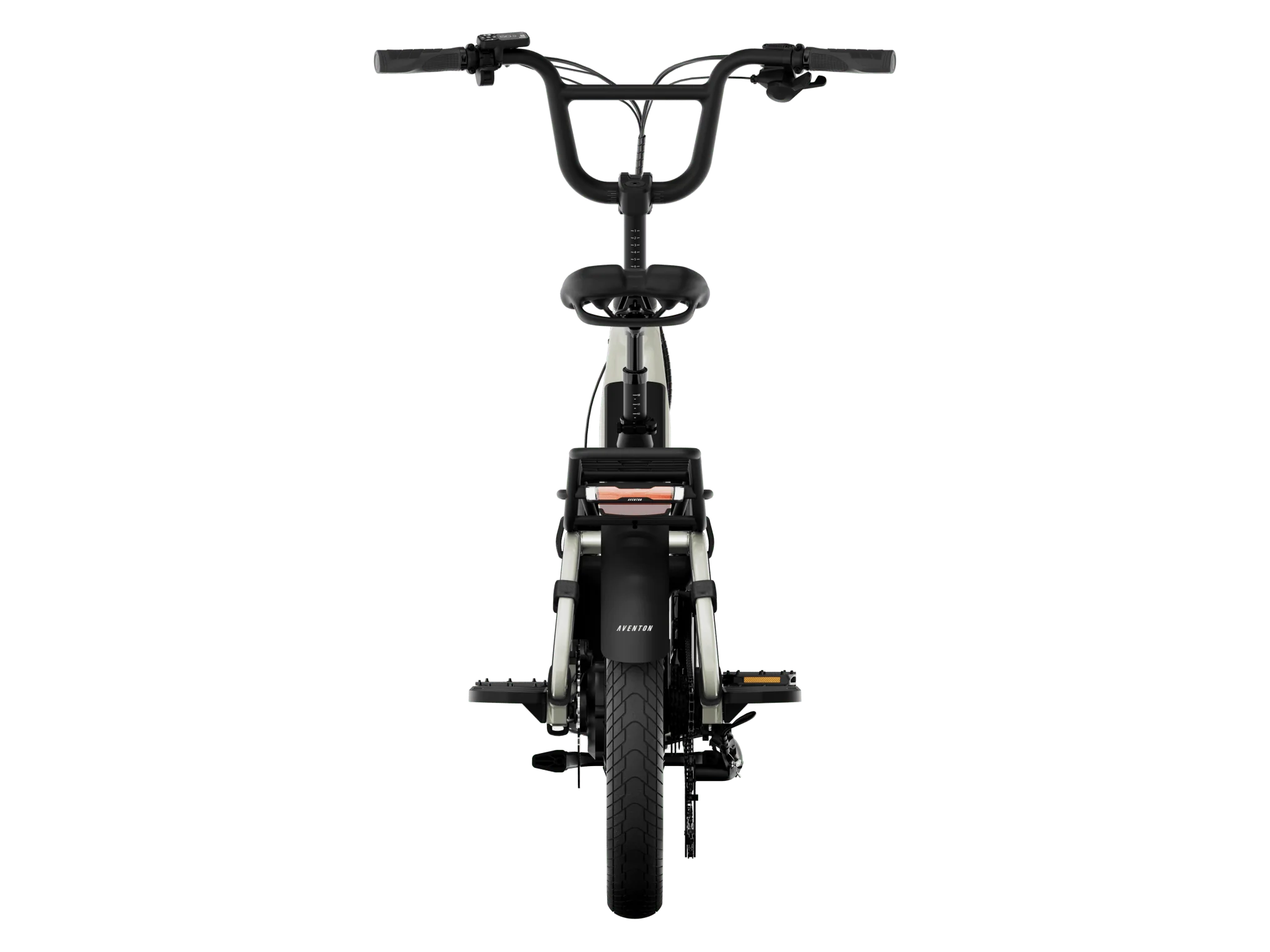

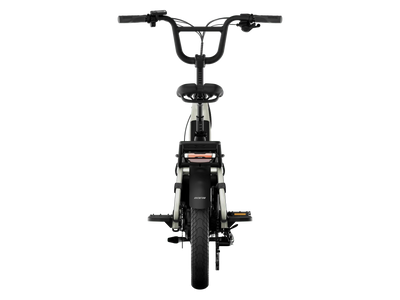

Black electric bike on a white background

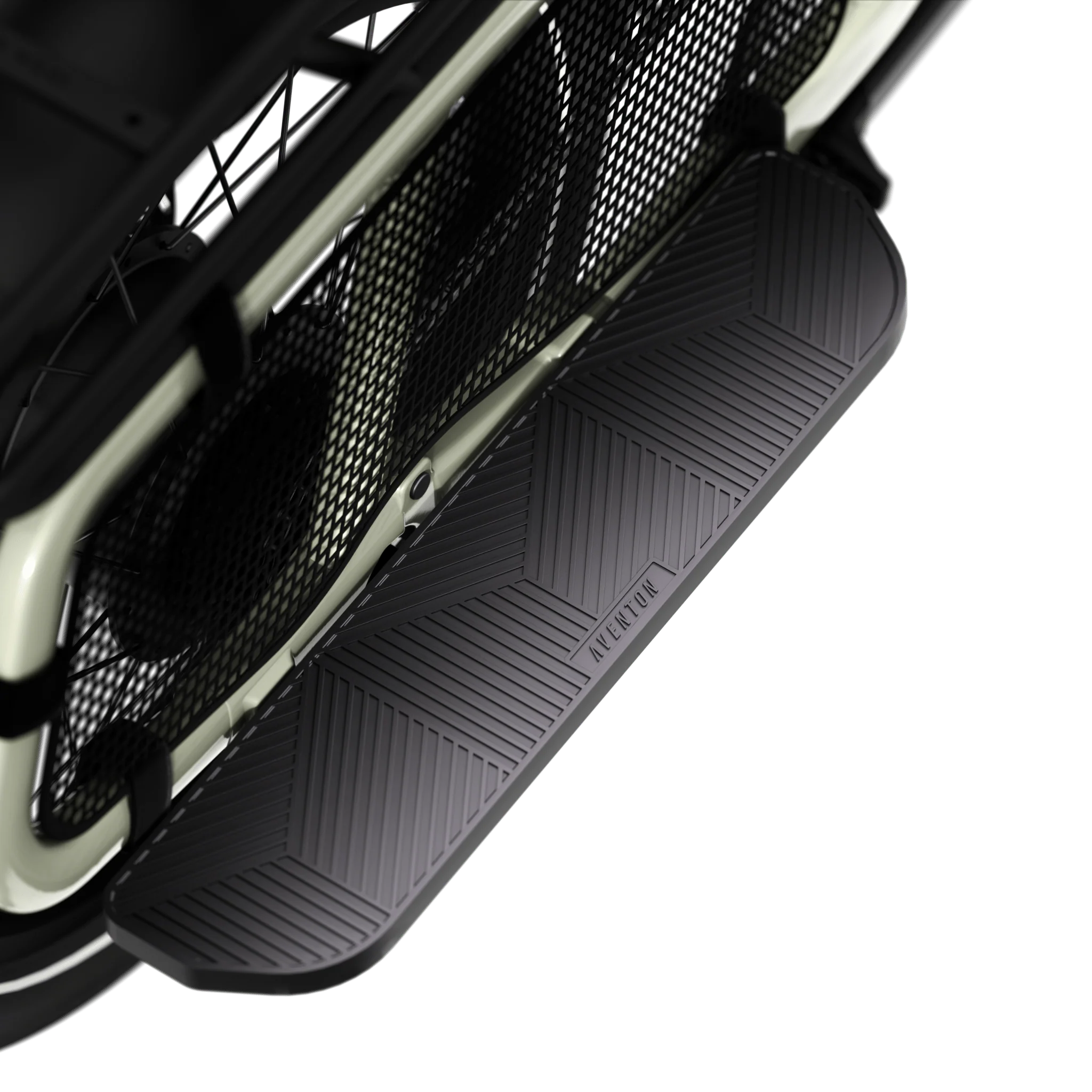

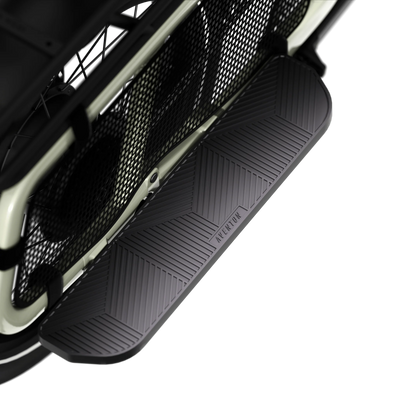

Close-up of a black car step pad aventon abound on a white background

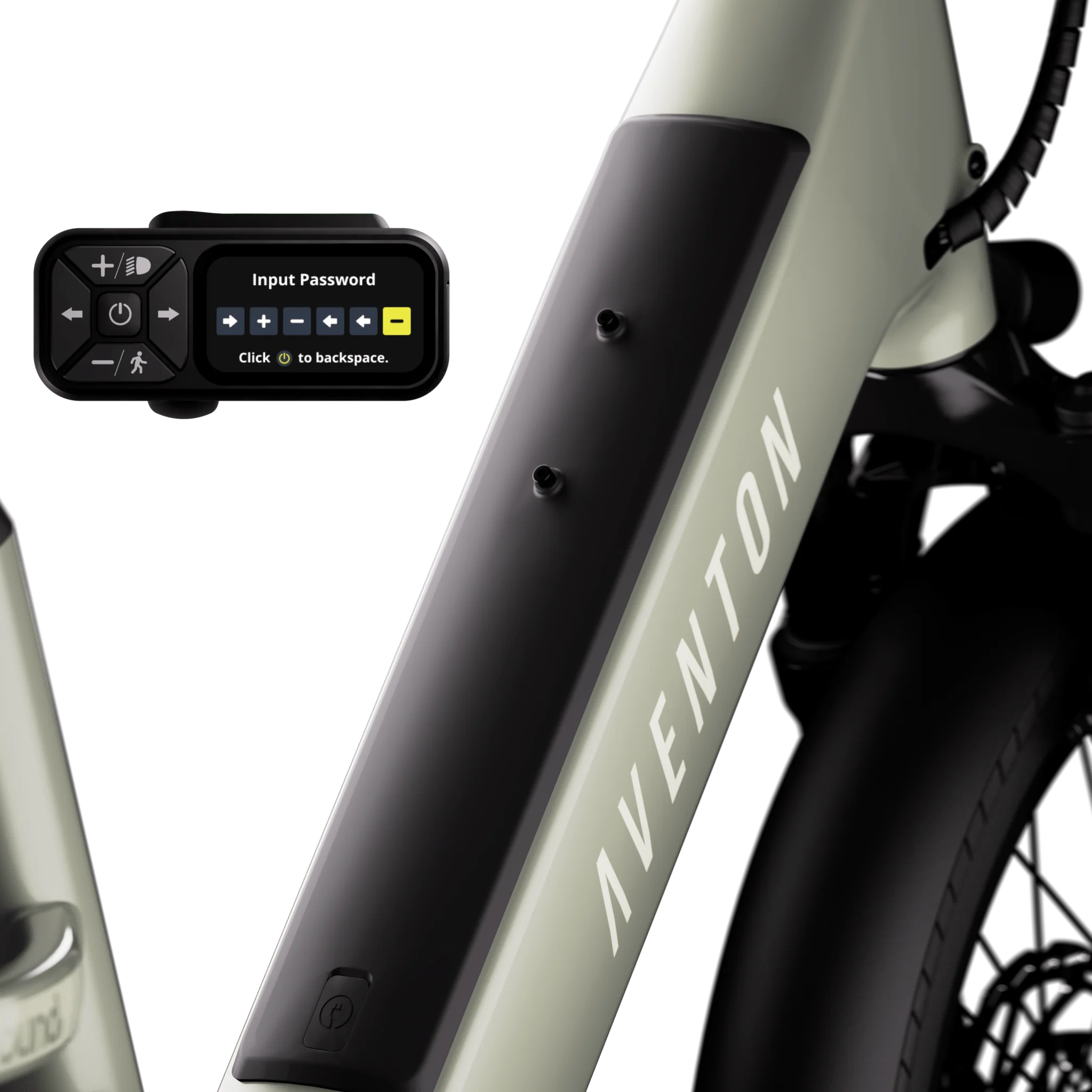

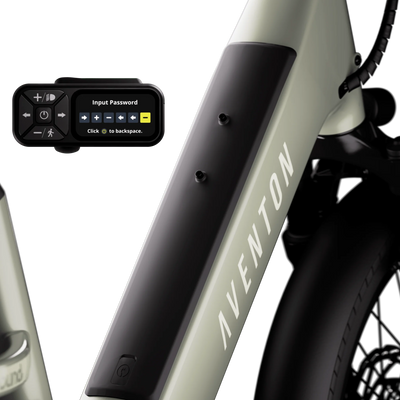

Close-up of a bicycle with a control panel and 'Aventon' branding on a white background

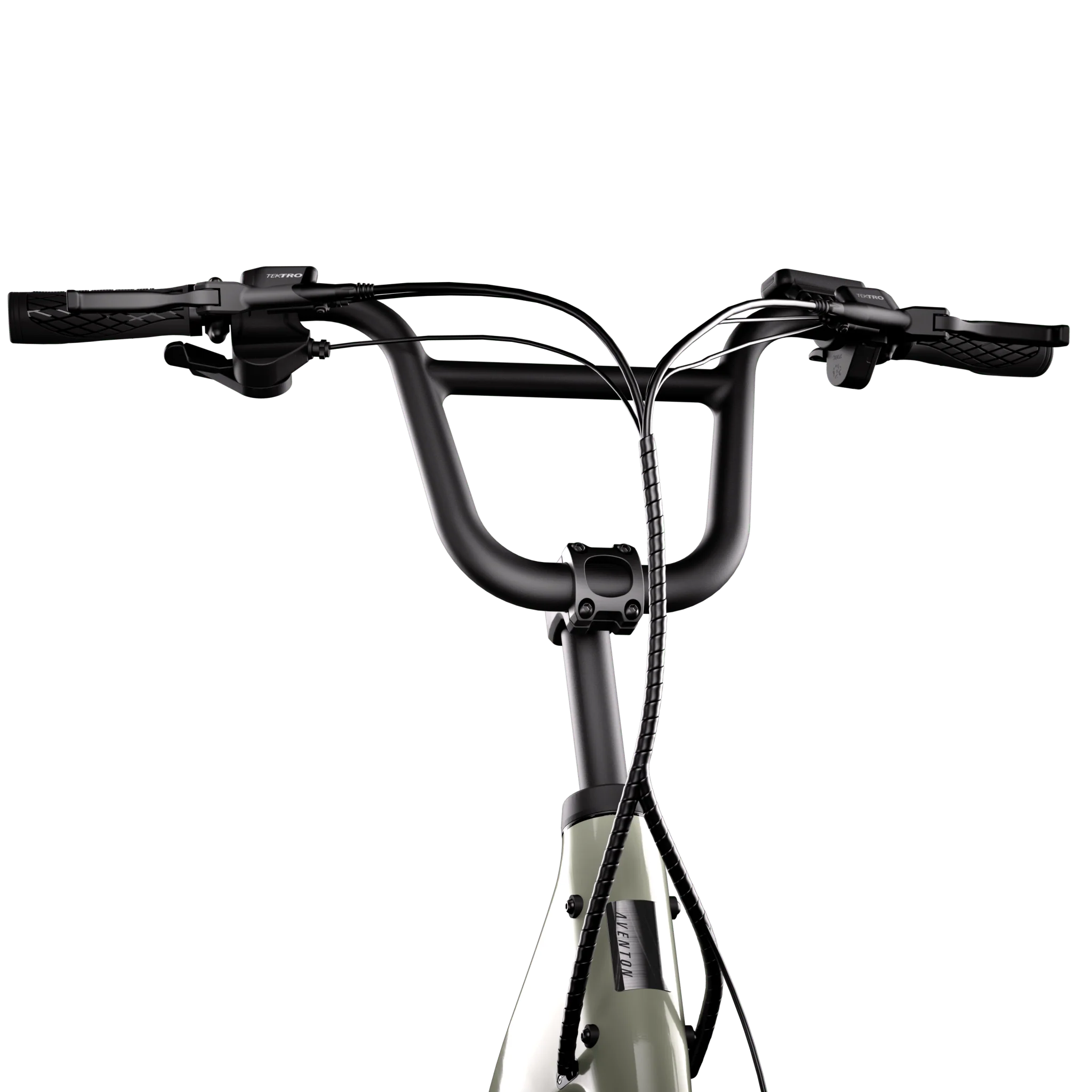

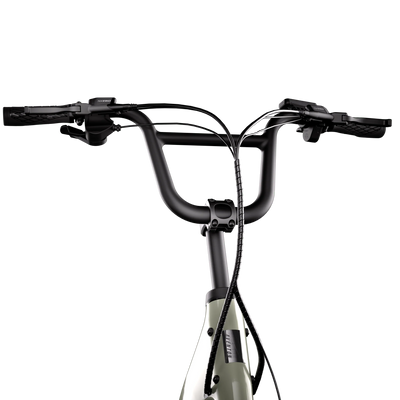

Close-up of a bicycle handlebar with black grips and brake levers on a white background

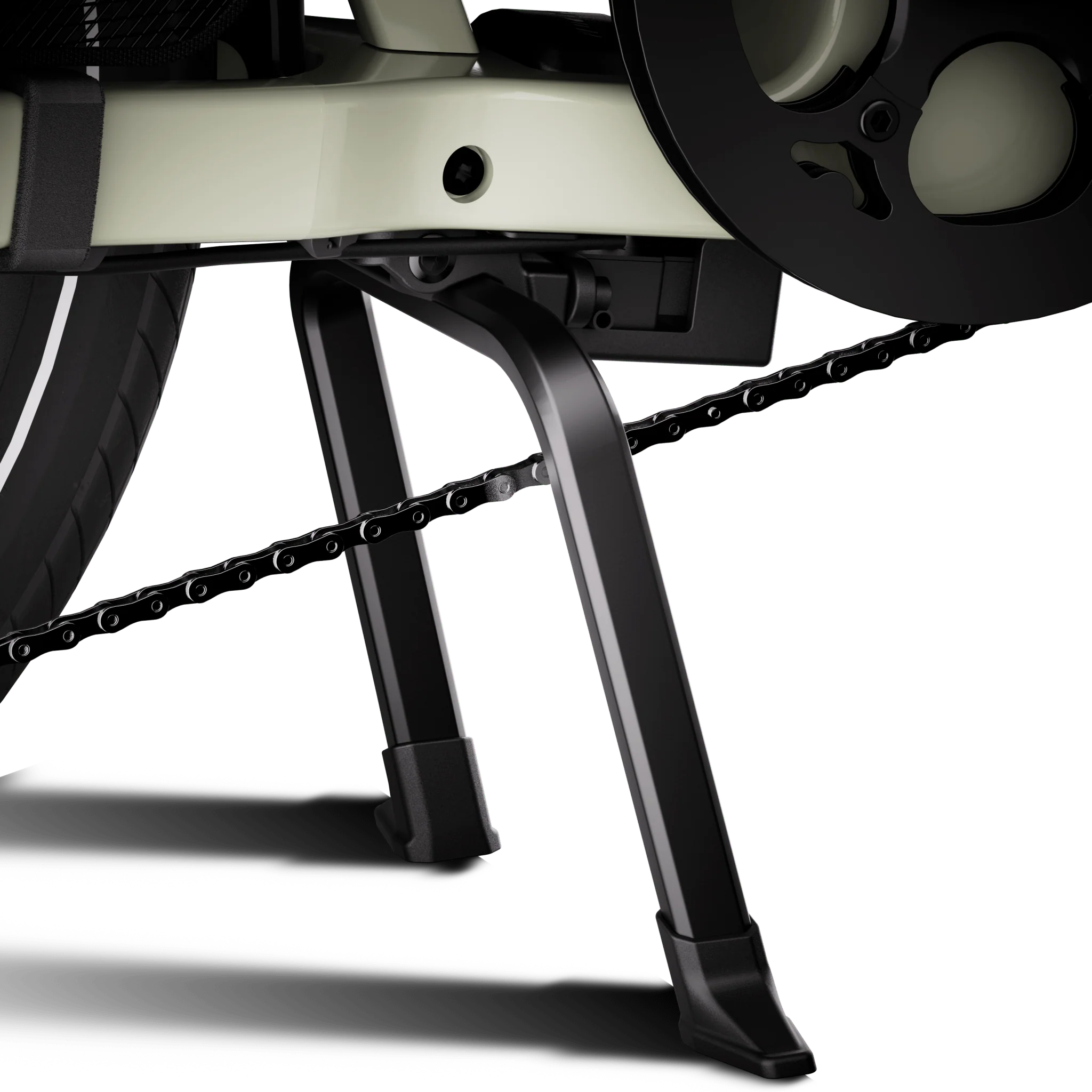

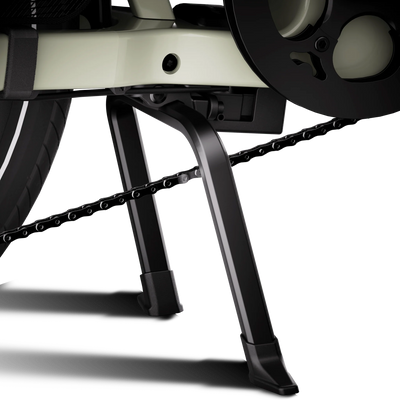

Aventon Abound LR Cargo E-bike kickstand

Aventon

Aventon Abound LR Cargo E-bike

ETA Late June

Carry More, Ride More

$4,199.00

Product variants

ETA Late June – Contact us to Pre-order

Pairs well with

First Service Included

Finance Available

Nationwide NZ Shipping! Find out more here.

Share:

Share

Product details

Description

From the USA's #1 e-bike brand, the Abound LR is the answer to all your cargo conundrums! The powerful motor, long rear rack, and 200kg payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. Built-in indicators provide better safety when riding around town. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.

The Abound LR has a wide range of accessories available — including passenger seating, child carrier kits, panniers, cargo racks, baskets, and storage solutions — allowing you to customize the bike to suit your lifestyle and everyday needs. Contact us for availability.

View more information on the Aventon Abound LR website [here]

E-bike Specific

MOTOR & BATTERY

MOTOR
Hub Drive with 6 speed sensors 300W, 80Nm
THROTTLE
Aventon LH Handlebar Mounted
BATTERY
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
UL 2271 Battery | UL and TUV Safety Certified  UL 2849
CHARGER
36V Output: 42V/ 4A
DISPLAY
Aventon BC147
PEDAL ASSIST
3 Levels (with Ride Tune Customization)

*†Certain features of this electric bike require a 4G data connection. A complimentary 4G connection subscription is included for the first year, beginning from the product service registration date.

Technical Info

FRAMESET
• FRAME
Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery

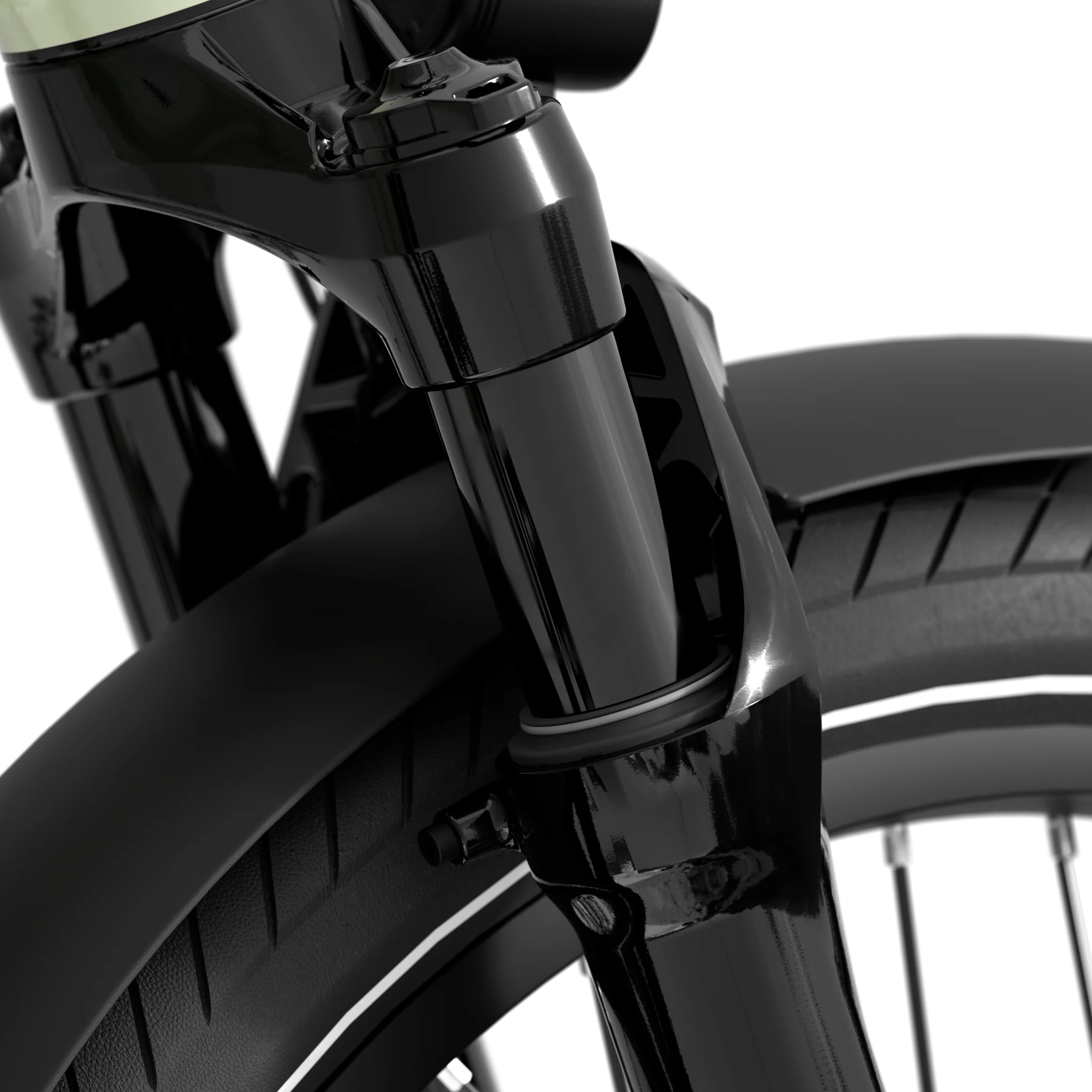

• FORK
Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions

DRIVETRAIN
• REAR DERAILLEUR
Shimano Altus RD-M310 8 Speed
• SHIFTER
Shimano 8 Speed Trigger SL-M315-8R
• CASSETTE
12-32T / 8 Speed Shimano CS HG200-8
• CHAIN
7/8 speed 154L
• CRANKSET
3pc, 165mm crank arm

BRAKES
• BRAKES
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
• BRAKE ROTORS
Front: 180mm 6 bolt
Rear: 203mm 6-bolt

WHEELS
• WHEELS
Front: Double Wall Aluminum, 20in, 36hole, 13g, 20x110 Thru Axle, Schrader Valve.
Rear: Double Wall Aluminum, 20in, 36hole, 12g, Nutted Hub Drive Motor, Scharder Valve
• TYRES
20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls

COCKPIT & SEATING
• HANDLEBARS
BMX Style Aluminum 31.8mm, 720mm
• GRIPS
Aventon Ergonomic Comfort lock on grips
• SADDLE
Aventon Saddle w/ grab handle by Selle Royal

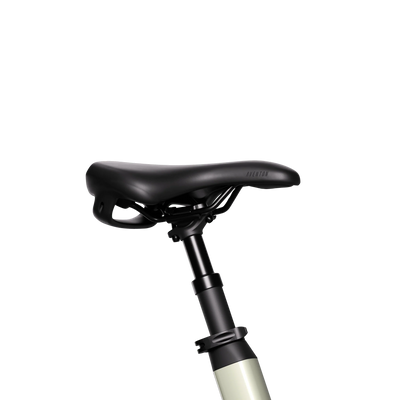

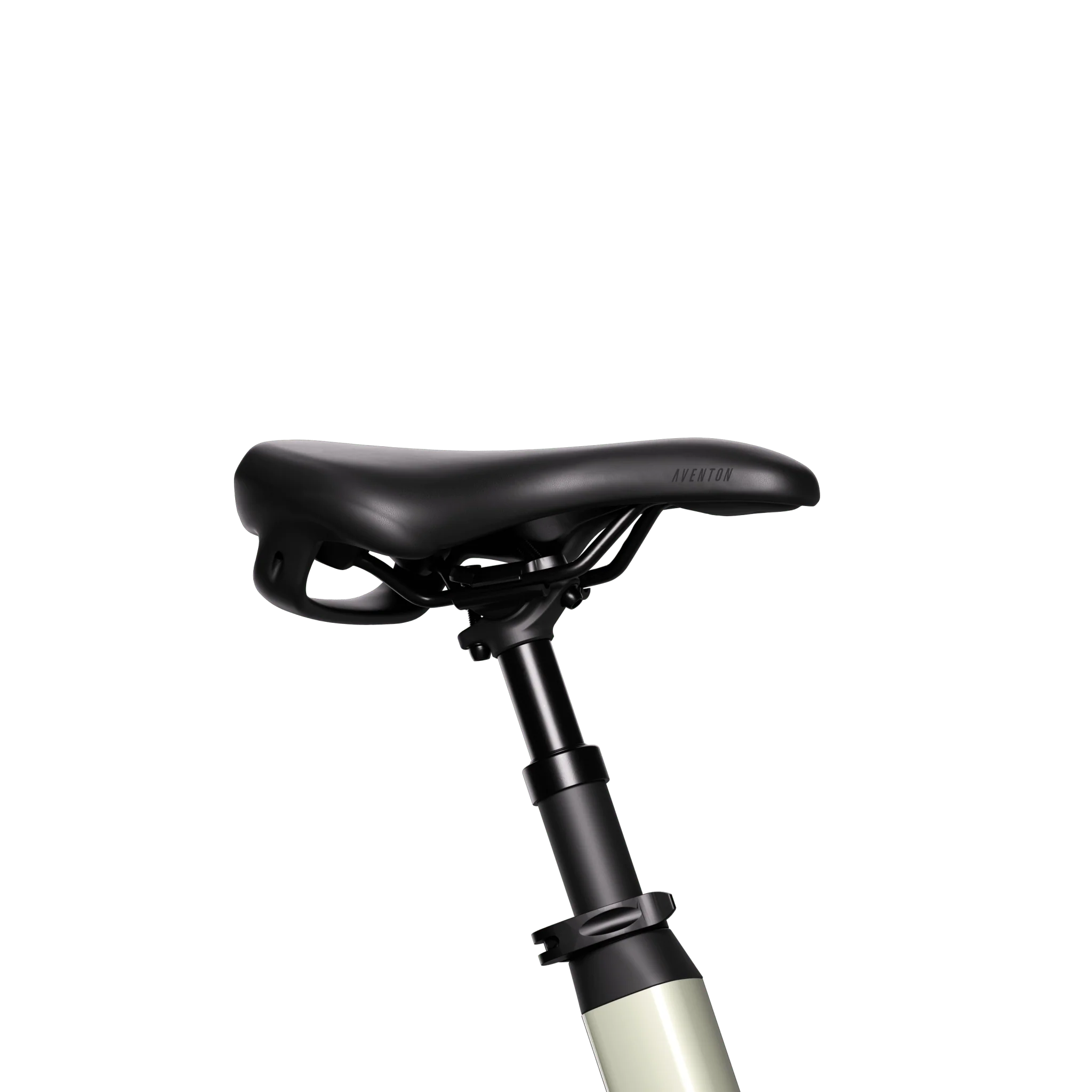

• SEATPOST
Aventon uspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel

ACCESSORIES
• LIGHTS
Front and Rear Lights Integrated w/ Turn Signals
• PEDALS
9/16" Composite Platform
• FENDERS
Included
• REAR RACK
Included, with 64kg limit
•ADDITIONAL EXTRAs
The Abound LR has a wide range of accessories available — including passenger seating, child carrier kits, panniers, cargo racks, baskets, and storage solutions — allowing you to customize the bike to suit your lifestyle and everyday needs.

OTHERS
• CLASS
Class 2 eBike
• BIKE WEIGHT
39.9 kgs
• TOTAL WEIGHT LIMIT
199.5 kg
• WATER RESISTANCE
Bike - IPX5 // Components - IPX6

Although we've taken every effort to ensure the accuracy of the information listed here, sometimes things change, so we reserve the right to change or update bike specifications, features, prices, and colours as and when required, as per the manufacturer.

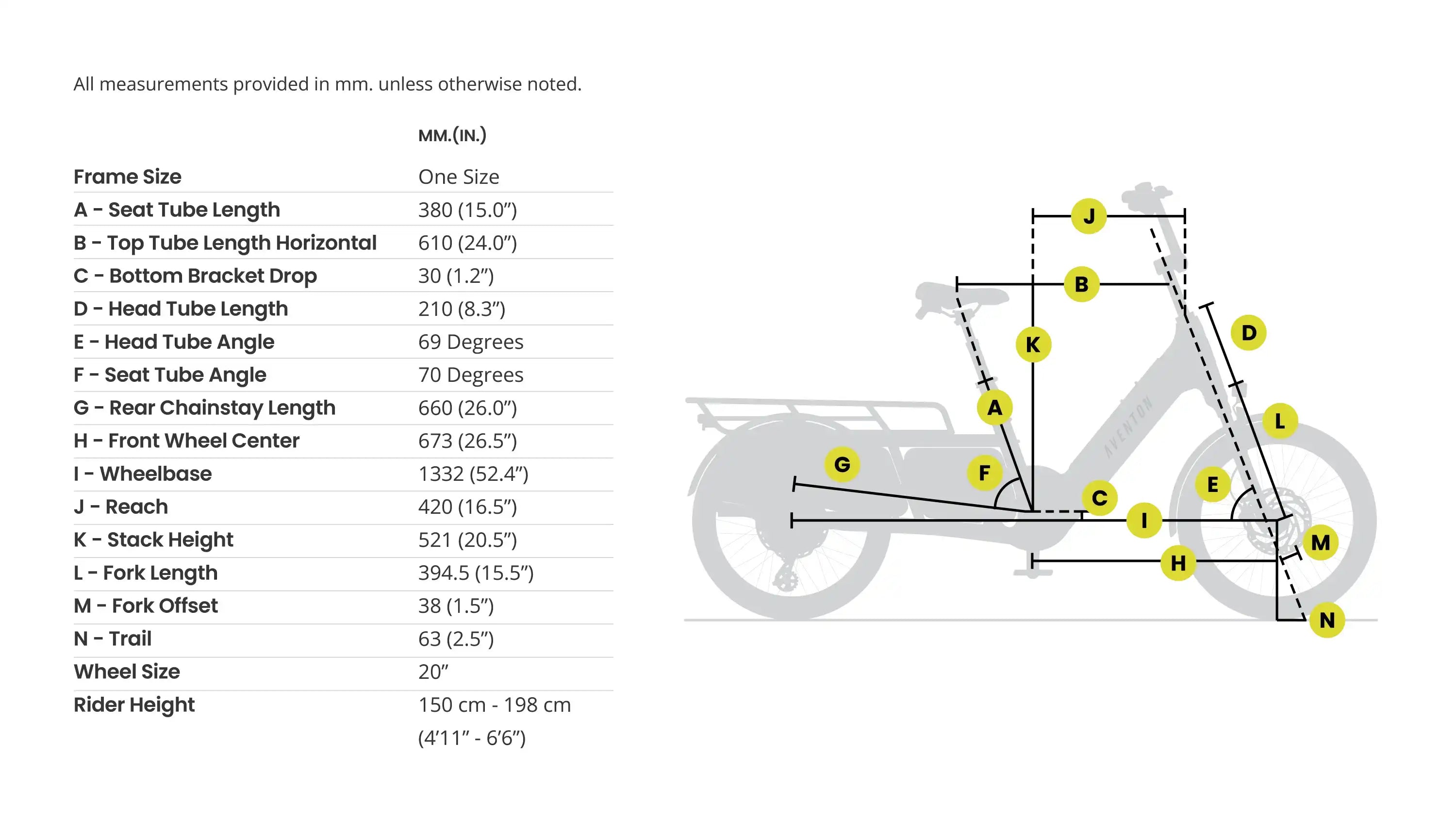

Bike Geometry

Bike geometry

Shengyi 36V 750w Hub Drive, 1188W peak power
733Wh, Removable Internal Lithium-ion.
51mm travel, adjustable lockout
Tektro HD-E3520 hydraulic disc brakes
20"
