Shimano STEPS Integrated Battery 504Wh
Shimano STEPS Integrated Batteries

Shimano STEPS Integrated Battery – 504Wh

Brand: Shimano

$1,349.99
Tax included.Shipping calculated at checkout.

Pickup available at Electric Bike Rotorua store

Usually ready in 24 hours

Pairs well with

Product details

Product Information

PLEASE NOTE:

Batteries are classed as dangerous good which means shipping times can be longer than usual. All batteries will be shipped in a separate, battery specific parcel.

Experience better handling, range, and charge times thanks to the high-quality cells in this compact down tube battery

Our second-generation 504Wh integrated down tube battery features a compact design and a low center of gravity for a more natural riding experience. High-quality cells help it charge quickly and retain max capacity longer



FEATURES

Capacity: 504 Wh (36 V, 14 Ah)
Fully charge in 5 hours with EC-8004 charger
Temperature: 0°C - 40°C (charging) -10°C - 50°C (operating)
Long-lasting battery retains more than 60% of its initial maximum capacity after 1,000 full charges
Compatible with SHIMANO STEPS second-generation down tube battery mount
Durable construction with IPX5 water resistance stands up to the elements and low-pressure washes
Same mount as BT-EN805-L and BT-EN806

Supports sleek frame design



PRODUCT SPECIFICATIONS

MODEL NO BT-EN805
SERIES EP8 EP801 Series
Color Standard
Average weight 2.9
Remarks * By EC-E8004 (** In case of 100 V AC) *** with SM-BTE80 or EW-CP100
Chemistry Li-Ion
Position Integrated
Rated voltage (V) 36
Rated capacity (Ah) 14
Rated capacity (Wh) 504
Cyclelife span for charge (times) 1,000 (more than 60%)
Time to charge (hour)|SOC = 100% * 4 (** 4.5)
Time to charge (hour)|SOC = 80% * 2.5 (** 3.2)
Charge level display ✔
Error signal ✔
Charging port *** -
System on/off switch ✔

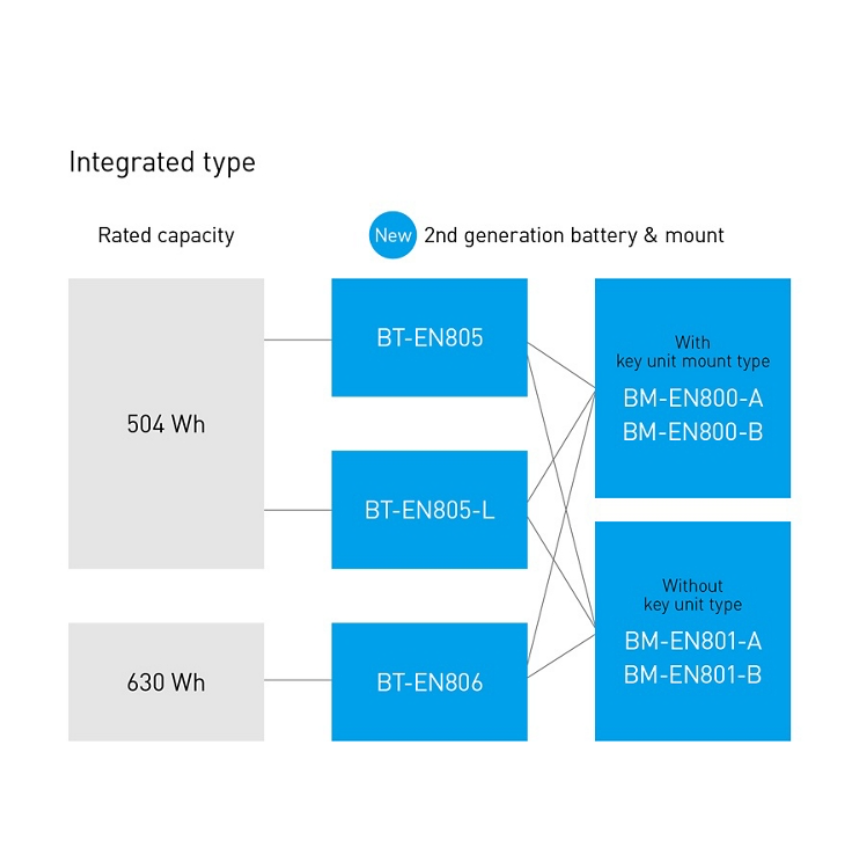

Compatible battery mount BM-EN800-A BM-EN800-B BM-EN801-A BM-EN801-B
Compatible charger EC-E6002, EC-E8004
Compatible adaptor for charge SM-BTE80
