Product details

Description

Go faster, go bigger – then go again

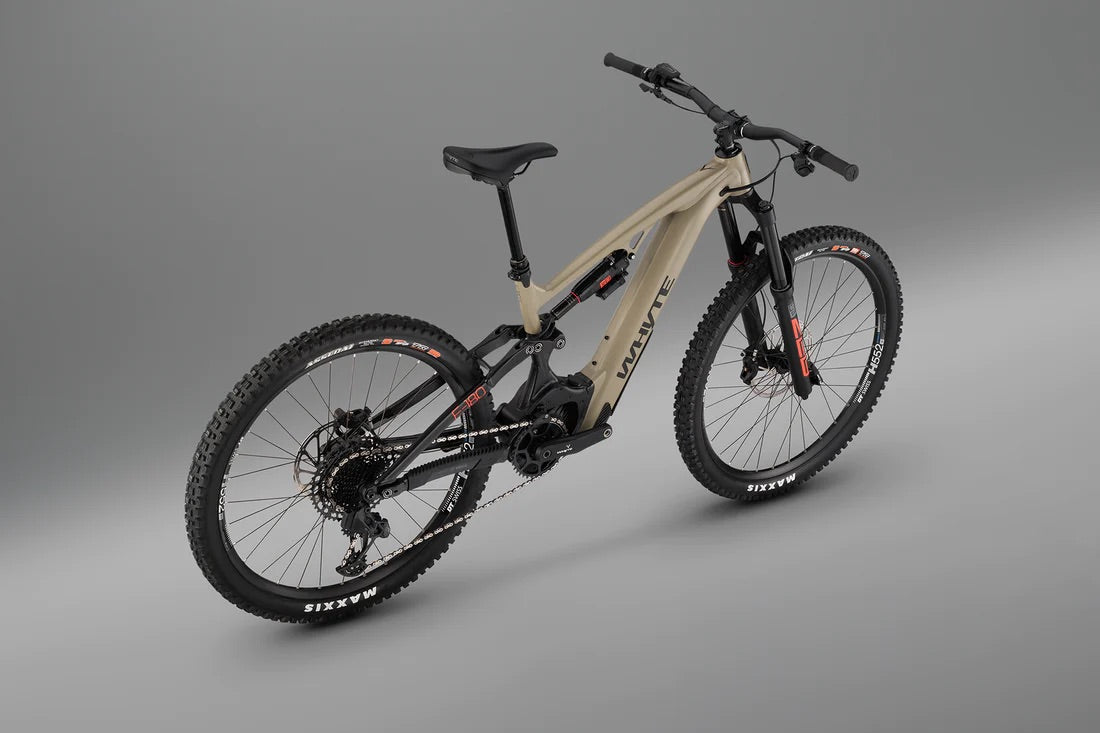

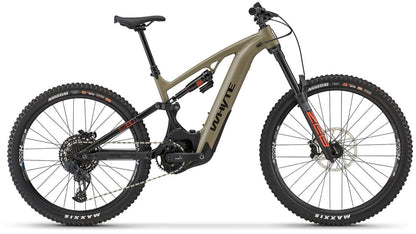

Our E-180 S is our most affordable, unstoppable, maximum control gravity e-bike for self-shuttled gravity riding, bike park play, and big mountain terrain. Bosch’s large internal 750Wh battery delivers hour after hour, run after run range on the biggest tracks and bike park lines, shrinks the biggest mountains and opens up epic back-country. If the biggest terrain is your playground, the E-180 S is your access all areas pass.

Highlights

  • Optimised low centre of gravity gives you untouchable gravity handling.
  • 180mm front + 170mm rear of trail-dominating suspension travel.
  • Multi-butted 6061 T-6 aluminium hydroformed frame is built to last.
  • Bosch Performance CX 85Nm motor (600W peak power) for class-leading performance and reliability.
  • 750Wh battery gives you the range to get more runs in between charges.
  • MX wheels (29er front, 27.5in rear) so you can tackle everything full-gas – no matter how rowdy or steep.

Performance that punches above its pricetag


To give you the best performance possible for when you’re pushing hard on the biggest terrain but without breaking the bank, we've equipped the E-180 S with 'sorted right from the box' parts selection headlined by RockShox's capable ZEB fork and Whyte custom-tuned Super Deluxe Select R rear shock; wireless electronic shifting across the 1x12 tranmission from SRAM's GX Eagle AXS; reliable and controllable braking power on even the longest, roughest descents with SRAM Code R four-piston hydraulic disc brakes (220mm front rotor; 200mm rear), and much more.

E-bike Specific

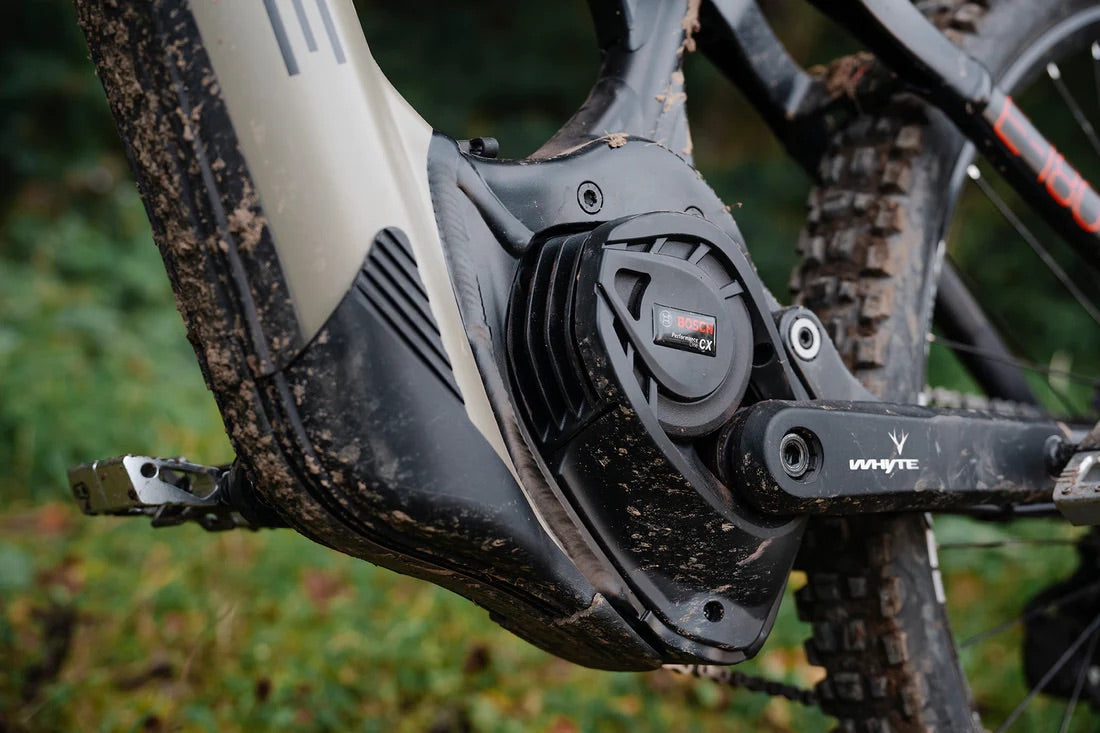

  • DRIVE UNIT
    85Nm Performance Line CX drive unit (600W peak power), the smart system
  • BATTERY
    Bosch 750Wh battery

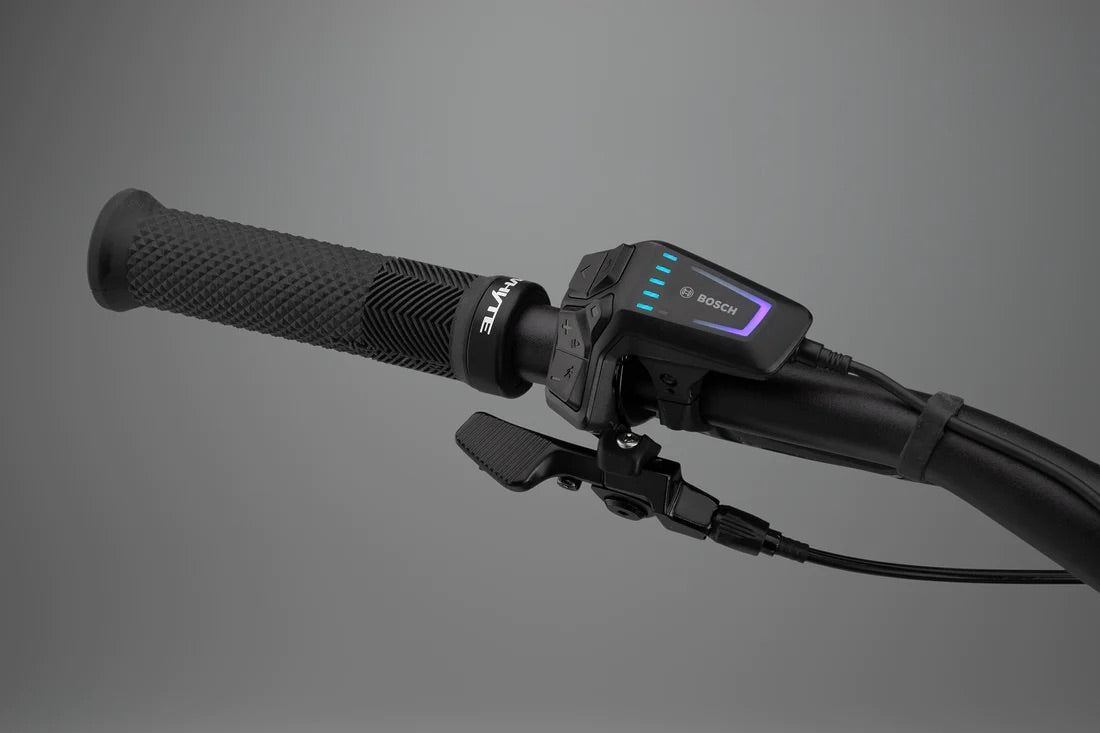

  • DISPLAY
    Bosch LED remote
Technical Info

FRAMESET

  • FRAME
    6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link and 12mm x 148mm Boost dropouts
  • FORK
    RockShox ZEB, 180mm Travel, 44mm Offset, DebonAir+, Rush RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle Ultimate
  • REAR SHOCK
    RockShox Super Deluxe Select R, DebonAir, Fast Black coating
  • HEADSET
    RockShox Super Deluxe Select R, DebonAir, Fast Black coating

DRIVETRAIN

  • CHAIN
    SRAM GX Eagle, 12 speed

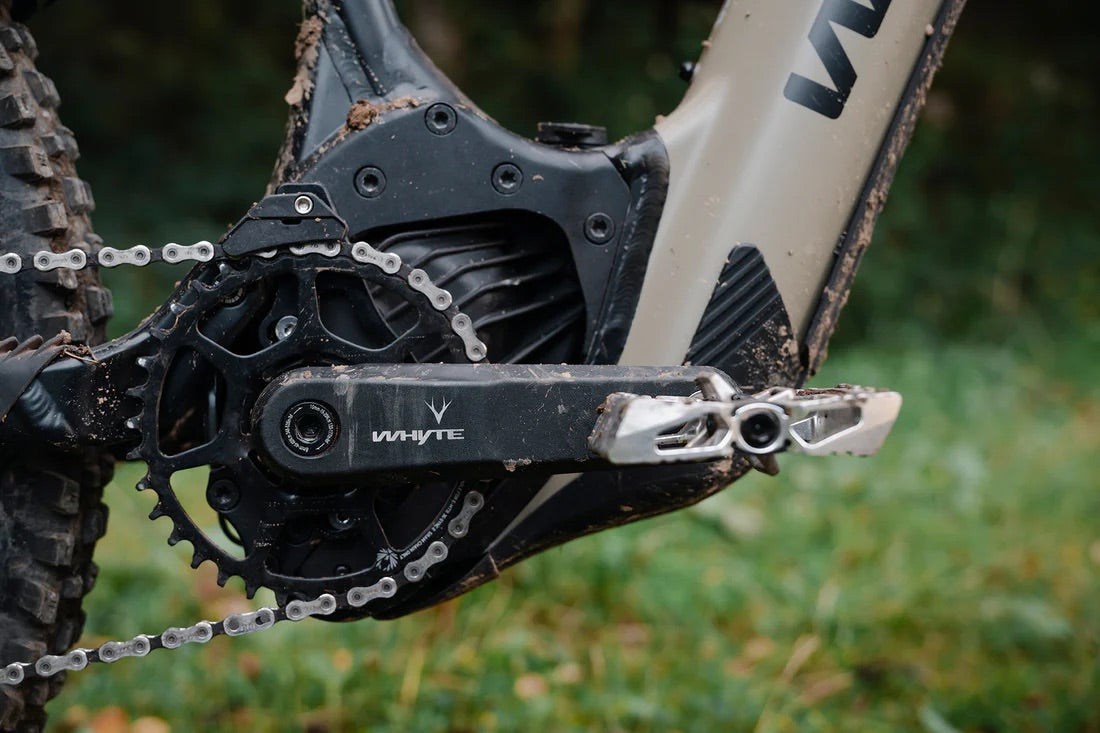

  • CRANK SET
    Whyte, forged alloy, 155mm, direct mount 36T chainring
  • CASSETTE
    SRAM PG-1210 Eagle, 11-50T, 12 speed
  • REAR DERAILLEUR
    SRAM PG-1210 Eagle, 11-50T, 12 speed
  • SHIFTERS
    SRAM GX AXS Eagle, two button, MMX, 12 speed


BRAKES

  • BRAKES
    SRAM Code R, four piston hydraulic with sintered metal pads, 220mm diameter disc rotor front, 200mm rear

WHEELS

  • HUBS
    Rear: Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole
    Front:  Alloy, double sealed cartridge bearings, 15mm x 110mm Boost spacing, 31mm torque caps, 32 hole
  • RIMS
    DT Swiss Hybrid 30, sleeved joint, 32 Hole
  • SPOKES
    DT Swiss New Champion 2.0mm, black stainless, brass nipples
  • TYRES
    Front: Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead,
    Rear; Maxxis Assegai WT, TR, 27.5in x 2.5in 120TPI, Double Down Casing, 3C MaxxGrip, Dual Compound

COMPONENTS

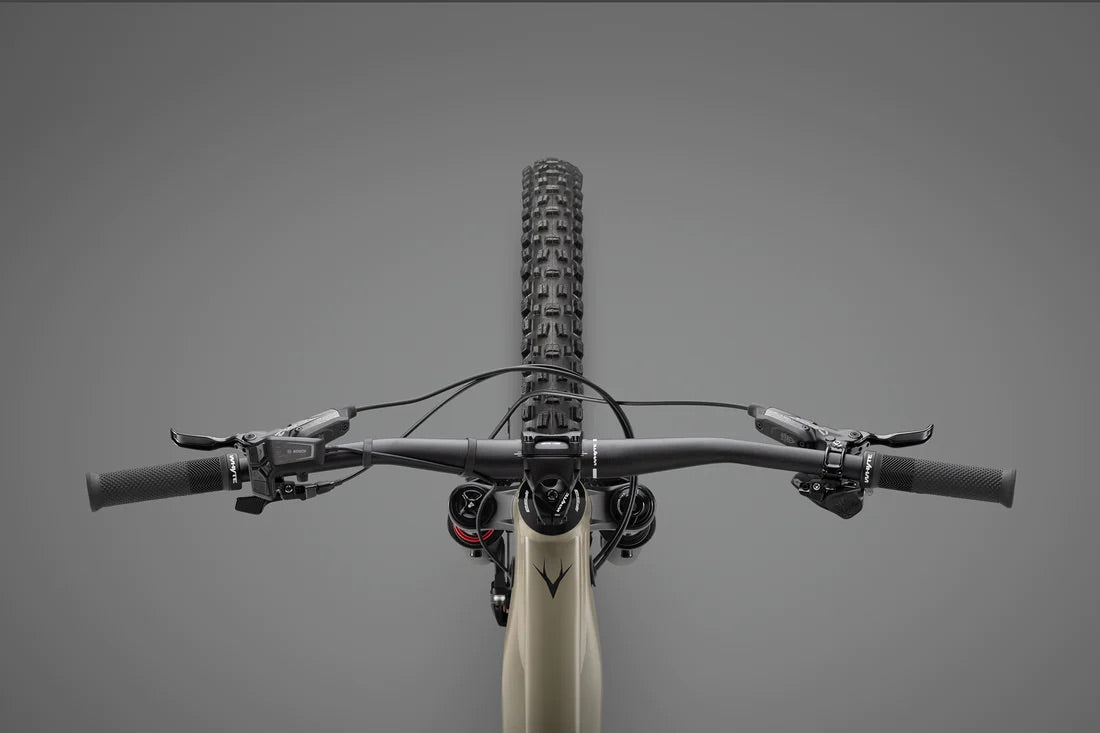

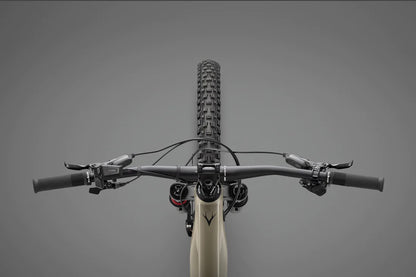

  • GRIPS
    Whyte Lock-On Enduro Grip

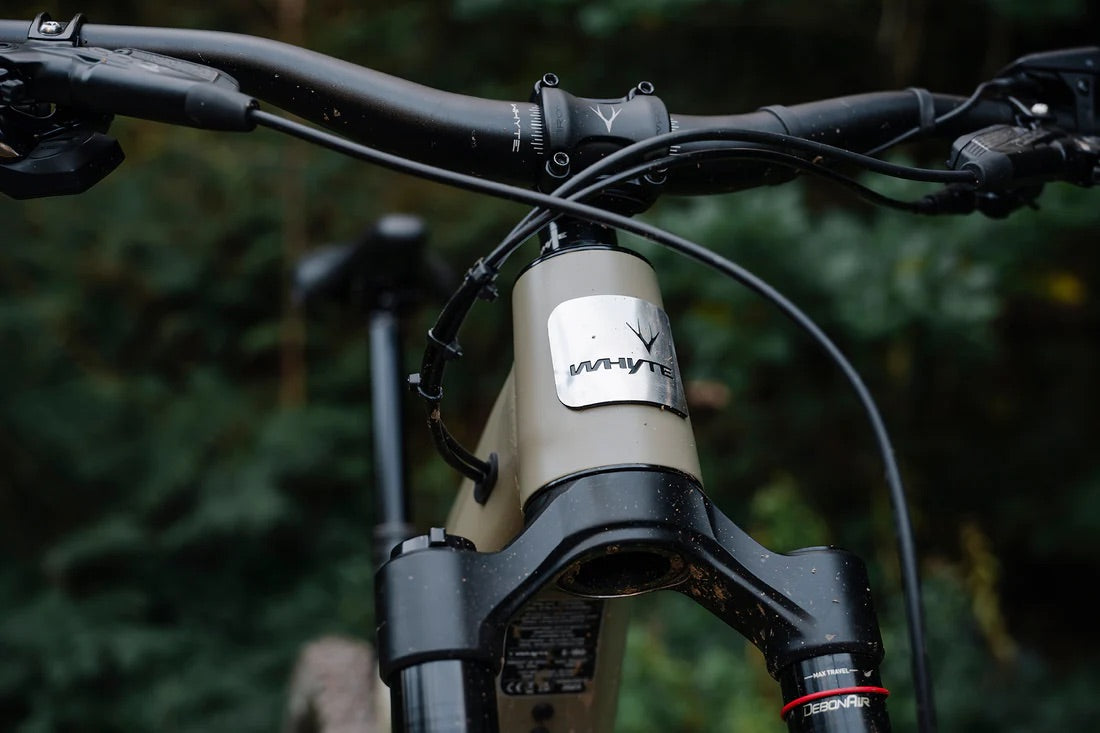

  • HANDLEBAR
    Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide
  • SADDLE
    Whyte Custom
  • SEATPOST
    Whyte drop.it II Adjust 30.9mm (sizes M/L 140-170mm travel; size XL 170-200mm travel), MMX Paddle remote lever
  • STEM
    Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension

OTHERS

  • COLOUR
    Matt olive with matt black
  • SIZES
    M, L, XL
  • WEIGHT
    26.4 kg's (medium)
  • BOSCH POWERMORE COMPATIBLE
    No

Although we've taken every effort to ensure the accuracy of the information listed here, sometimes things change, so we reserve the right to change or update bike specifications, features, prices and colours as and when required, as per the manufacturer.

Bike Geometry
Bike geometry
Bike Size Guide
Size chart

  • Performance Line CX, (BDU374Y)

  • Bosch 750Wh battery

  • RockShox ZEB, 180mm | Super Deluxe Select R

  • SRAM Code R, 4-piston

  • Mullet (F:29" R:27,5")

Contact Us

Complete the contact form below if you are interested in this E-bike or if you would like more information.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

FAQs

Why can I not order this bike through the webshop?

We aim to provide you with the best service in finding the right E-bike. As a result, we don't directly sell our bikes from our online store. However, we do provide delivery of E-bikes nationwide. Please contact our team using the form above to get in touch, +64 7 460 0844.

Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

What is the battery range on this E-bike?

Determining the exact range of your E-bike is not straightforward, as it depends on various factors such as the total load, the terrain, temperature, battery size, and motor unit. Some motor brands provide a range indication or provide a tool, like the Bosch Range Calculator.

--> Please reach out to the EBR team, and we can provide you with a good estimate by asking a few simple questions, +64 7 460 0844.

Are there any services included in the bike sale?

We offer an in-house complimentary first check for all bikes purchased at Electric Bike Rotorua. The first check is done at 6 weeks (after the bike purchase) or 250km, whichever comes first.
