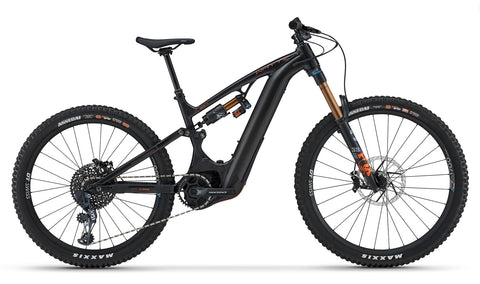

The new E-180 RSX MX is the chaos-crushing, downhill dominating, climb-shrinking super eMTB for self-shuttled gravity riding, bike park play, and big mountain terrain.
The E-180 RSX is built around Bosch’s Performance Line CX 85Nm motor with its four climb-shrinking power modes so you can effortlessly self-shuttle or conquer the most challenging natural terrain; combined with huge 180mm front/170mm rear suspension and MX (29er front/27.5” rear) wheels, the E-180 RSX is ready for sending the biggest lines, jumps, drops and features with total confidence.
The new frameset maximises the advantage of our unique tilted motor and super low-slung battery arrangement, which brings the bike’s centre of gravity as low as possible, to deliver you ultra-stable, dynamically centred and confident handling at any speed and on any terrain – so you can corner on rails and not high-side wide – while short 165mm cranks deliver maximum pedal control and ground clearance.
To give you the best performance possible for when you’re pushing hard on the biggest terrain, we optimised the suspension to be ultra-sensitive and reactive for traction but still support the e-bike weight super well through G-outs and the biggest berms; we also tweaked our Total Geometry system and used an MX wheel set up so the E-180 plays and slays on the tightest, steepest tracks but still has your back when you’re flat out through boulder fields with handling that’s agile and alive for maximum fun.
The extra-large 750Wh battery gives hour after hour, run after run on the biggest tracks and bike park lines, with a unique slide-out system for fast home charging removal and smaller battery options. Our innovative in-tube design is far stronger and stiffer than open tube frames, surviving almost metric ton slam loads in testing so you can feel totally safe full-sending on the hill. Lifetime warranty bearings, full weather sealing and hardcore, proven Hope wheels back up Bosch’s legendarily bombproof reliability. Because when a bike rides this great, downtime is a disaster.
If having the best time doing the biggest rides in the biggest terrain is why you ride, the E-180 RSX MX is ready.

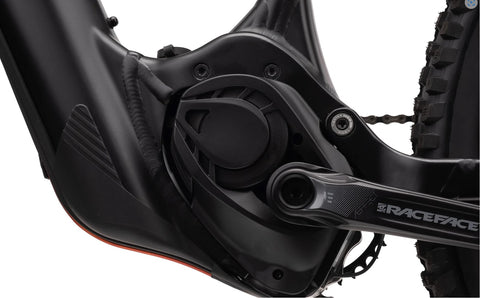

DRIVE UNIT The new 85Nm Performance Line CX drive unit, the smart system
BATTERY Bosch’s largest capacity 750Wh battery

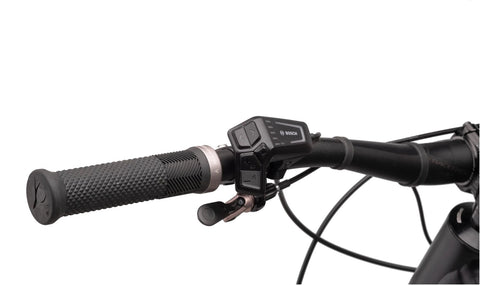

DISPLAY Bosch LED remote

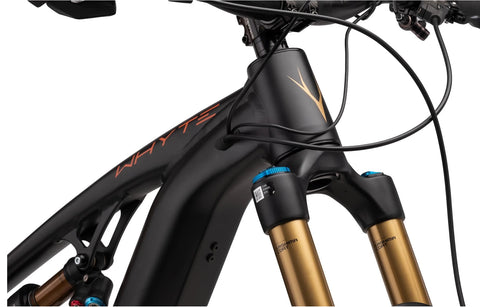

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts

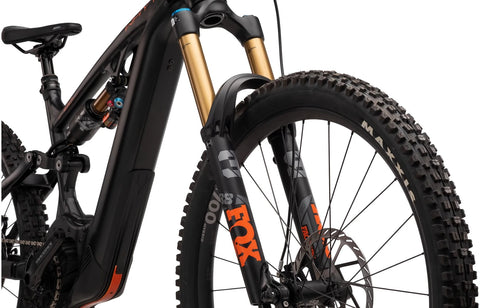

Fox Float 38, Factory 29"", 180mm Travel, 44mm Offset with Grip 2 Damper and custom tune, Tapered Steerer, Kashima Coating, 110mm x 15mm Boost, E-Thru Axle

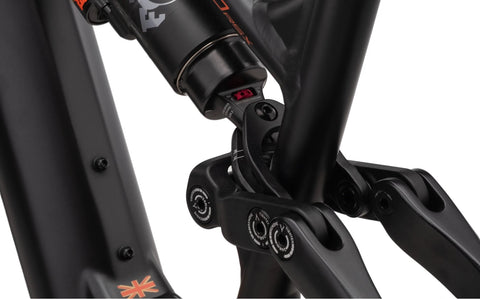

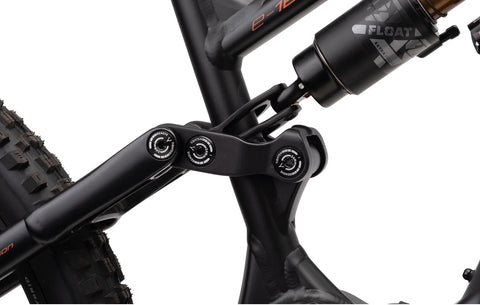

Fox Float X2, Factory, independently adjustable Compression and Rebound damping, Kashima coating
Hope Fortus 30, Tubless Ready, 32 Hole
Rear: Hope Pro 4, Stainless Steel Bearings, 12mm x 148mm Boost, XD Driver, 32 Hole
Front: Hope Pro 4, Stainless Steel Bearings, 15mm x 110mm Boost Thru Axle, 32 Hole
Black Sapim Race stainless steel double butted spokes built with silver brass nipples
FSA No. 55/35 Orbit 1.5 ZS, 1.8"" Lower and 1 1/8"" Upper Sealed Cartridge Bearings
Maxxis Assigai WT, TR, 29"" x 2.5"" 120TPI, EXO + Sidewall Protection, 3C MaxxGrip, Dual Compound, Folding Bead, Front,
Maxxis Assigai WT, TR, 27.5"" x 2.5"" 120TPI, Double Down Casing, 3C MaxxGrip, Dual Compound, Rear
- CRANK SET

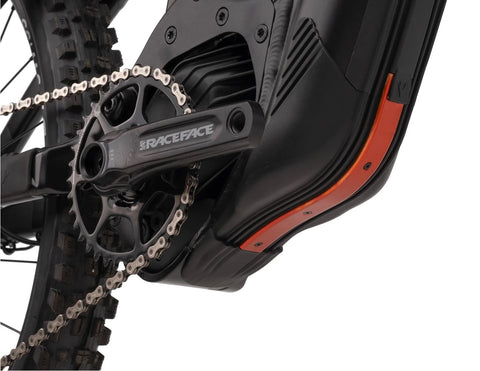

Race Face Affect E-Bike, 165mm, ISIS with X-SYNC Direct Mount 36T for Bosch Performance Line CX, Black
SRAM GX Eagle, 12 Speed
- REAR DERAILLEUR
SRAM X01 Eagle AXS 12 Speed, with Battery Protector
SRAM AXS Rocker Paddle, MMX, Eagle 12 Speed
SRAM XG-1275 Eagle, 10-50, 12 Speed
Race Face Turbine R, 35mm Rise, 35mm Bar Bore, 800mm Wide
Whyte Lock-on Enduro Grip
Race Face Atlas, 35mm Bar Bore, 35mm Extension
- BRAKES FRONT

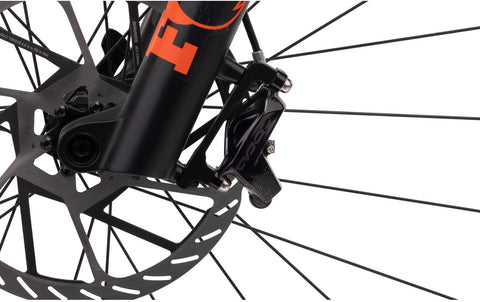

SRAM Code RSC, 4 Piston with Sintered Metal Pads, 220mm Disc
- BRAKES REAR
SRAM Code RSC, 4 Piston with Sintered Metal Pads, 200mm Disc
- BRAKE LEVERS
SRAM Code RSC, MMX
Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Crank Bro High-Line 3, 30.9mm, M/L 150mm Travel, XL 170mm Travel, High-Line Ball Socket Remote Lever
M, L, XL
Matt Black with Burnt Orange & Gold
