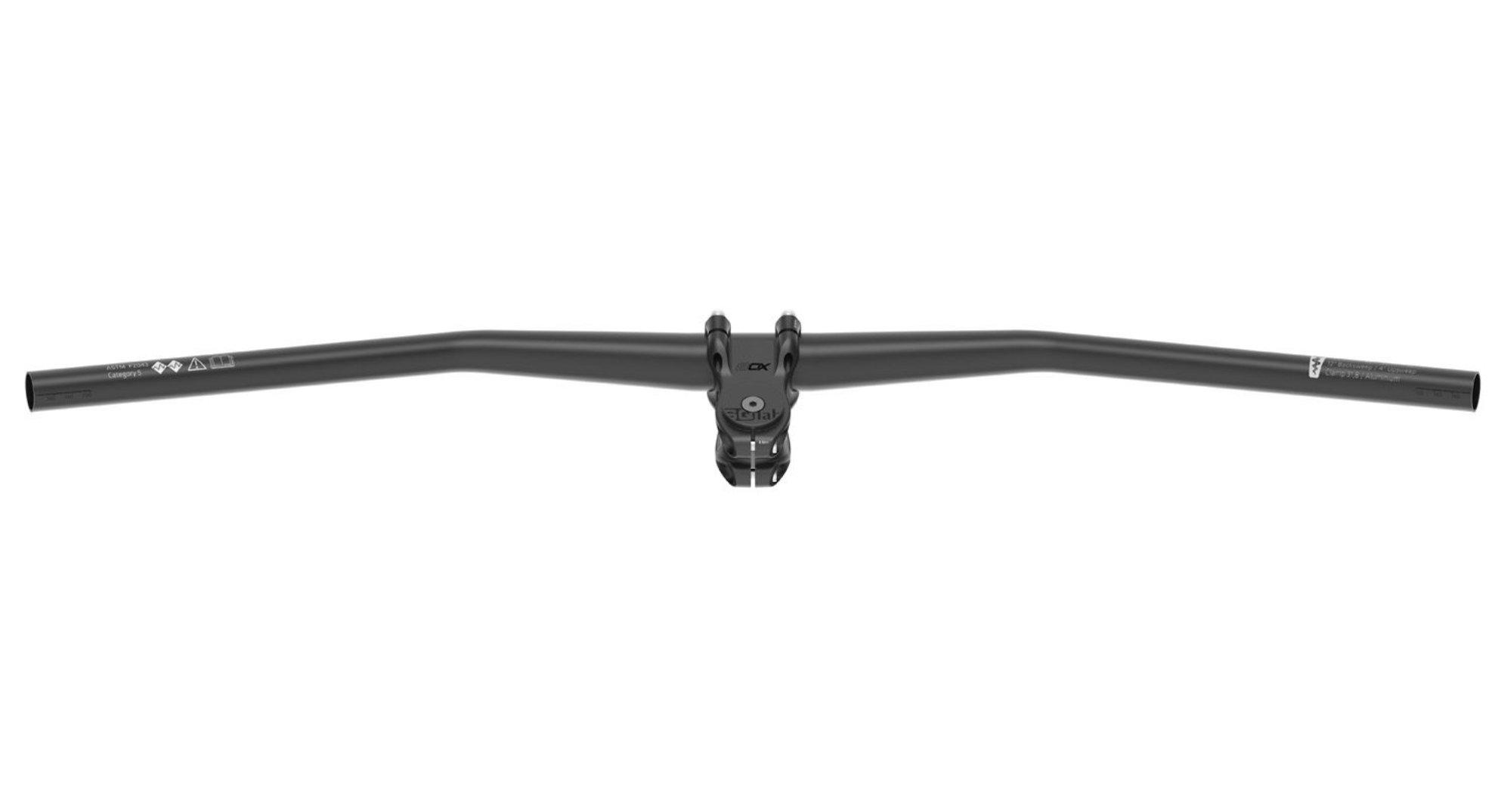

Description
The 12° backsweep with its short reach provides a natural transition from the lower arm to the hand when in a more upright riding position thus protecting the wrist from the extreme strain occurring in downhill [riding].
The 4° upsweep brings the elbows into a perfect position for a dynamic riding style.
The 15mm, 30mm or 45mm rise allow individualized positions.
31,8mm clamp diameter.
Also available in carbon.
Passed the “Zedler End of Life” test with flying colors The perfect combination of form, wall thickness and diameter with the corresponding anatomically optimized bend for various riding dynamics, currently make the new SQlab 30X handlebar series the most stable as well as the lightest bar in its field.
The pictured stem is not included in the scope of delivery.
12° Backsweep
with its short reach provides a natural transition from the lower arm to the hand.
Rise
allow individualized positions. Available in 15mm, 30mm oder 45mm Rise.
4° Upsweep
brings the elbows into a perfect position for a dynamic riding style.
Which Backsweep-Type are you?
16° Backsweep
stretched out riding position, Hardtail, Racefully
12° Backsweep
upright riding position, All Mountain, Enduro
Which Backsweep-Type are you?
16° Backsweep
stretched out riding position, Hardtail, Racefully
12° Backsweep
upright riding position, All Mountain, Enduro
Technical specifications
- AREA OF USE
- GRAVITY & E-PERFORMANCE
- WIDTH IN (MM)
- 780
- SHORTENED MAXIMUM WIDTH (MM)
- 720
- RISE (MM)
- 15 | 30 | 45
- BACKSWEEP (°)
- 12
- UPSWEEP (°)
- 4
- STRETCH (MM)
- 0
- MATERIAL
- ALUMINIUM
- WEIGHT (G)
- APPROX. 325
- CLAMPING WIDTH OF THE STEM
- MIN. 46 MM – MAX. 58MM
Unbreakable only SQlab without damage!
The BIKE magazine has tested in its issue 04/2019 more than 70 handlebar stem combinations for their break resistance..
