Product details

Description

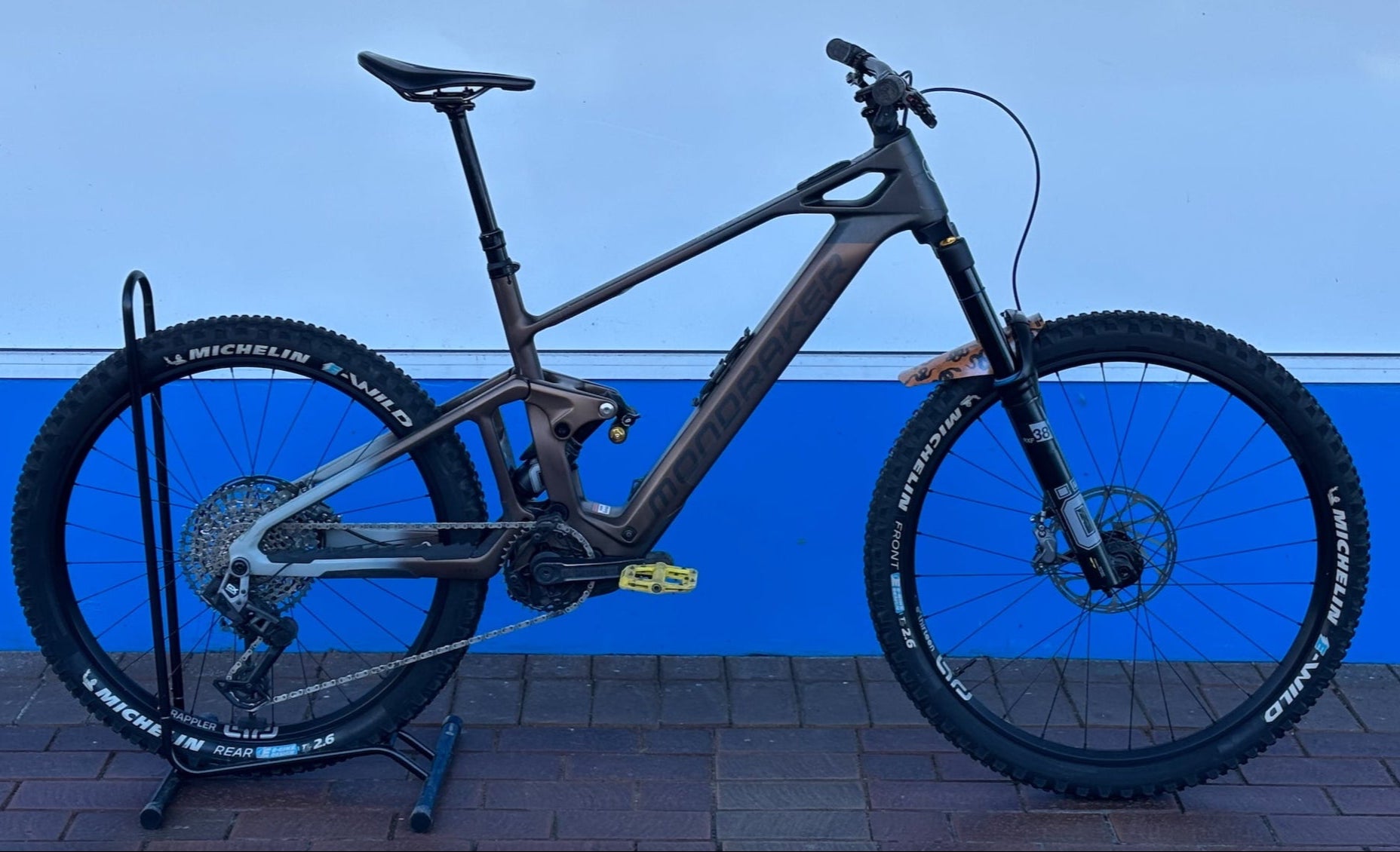

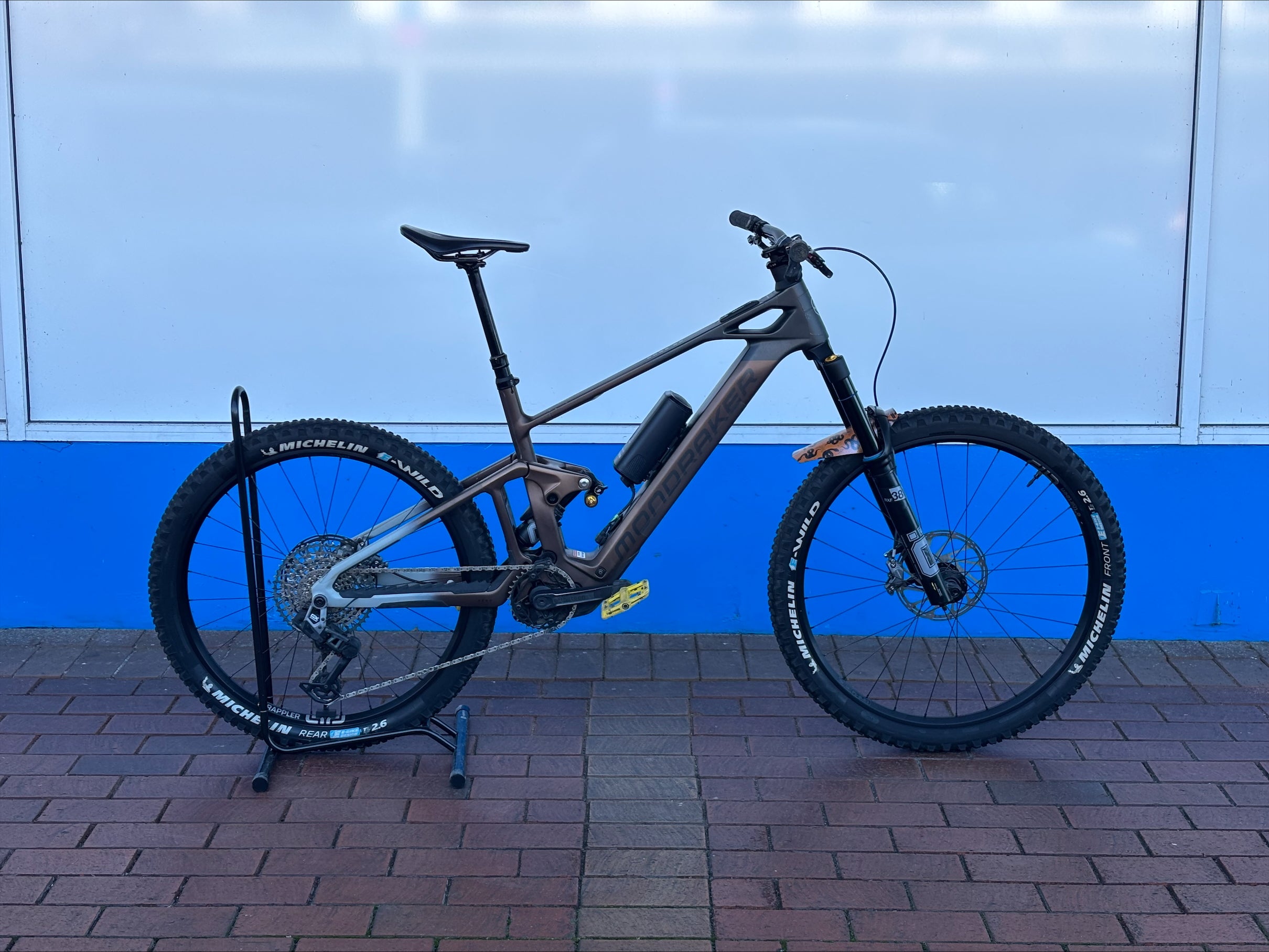

GRAVITY ENDURO / BIKEPARK

The intermediate build comes with a 170mm Öhlins RXF 38 M.2 29 fork, Öhlins TTX Air 205X65mm shock, SRAM transmission with GX Eagle AXS T-Type rear mech, E.13 E*Spec Plus cranks, ONOFF Pija dropper post, SRAM Code Bronze Stealth 4-pot brakes and e*thirteen Grappler Race wheels with 30mm wide aluminium rims.

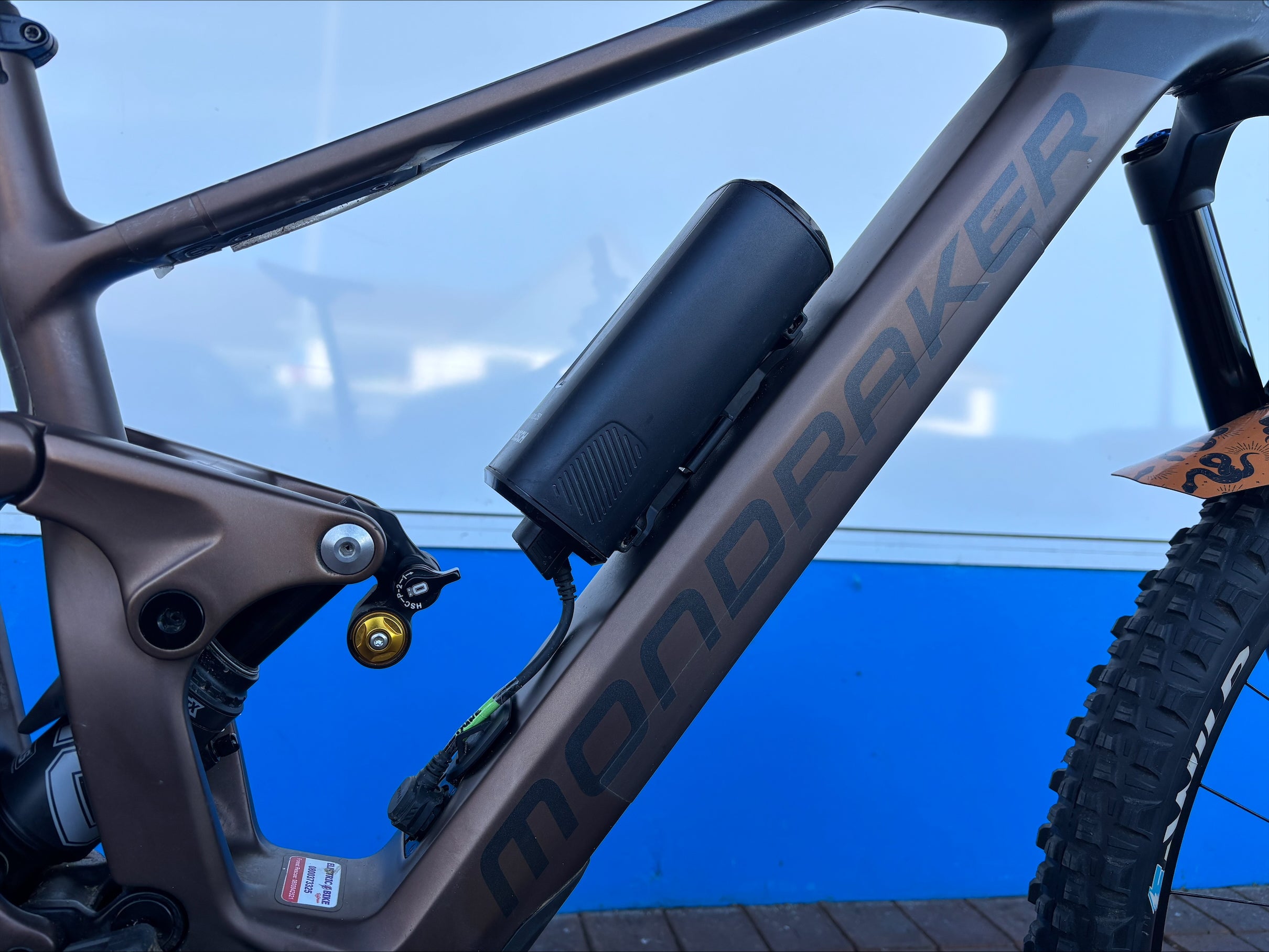

The Bosch Power More range extender Boosts your battery by an extra 250Wh, and is an addition for just $500.

E-bike Specific
  • DRIVE UNIT
    Bosch Performance Line SX (32Km/h) GEN4 SMART SYSTEM Diagonal, Wide
  • BATTERY
    Bosch Compact Powertube 400Wh
  • DISPLAY
    Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Technical Info
  • FRAME
    Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers
  • FORK

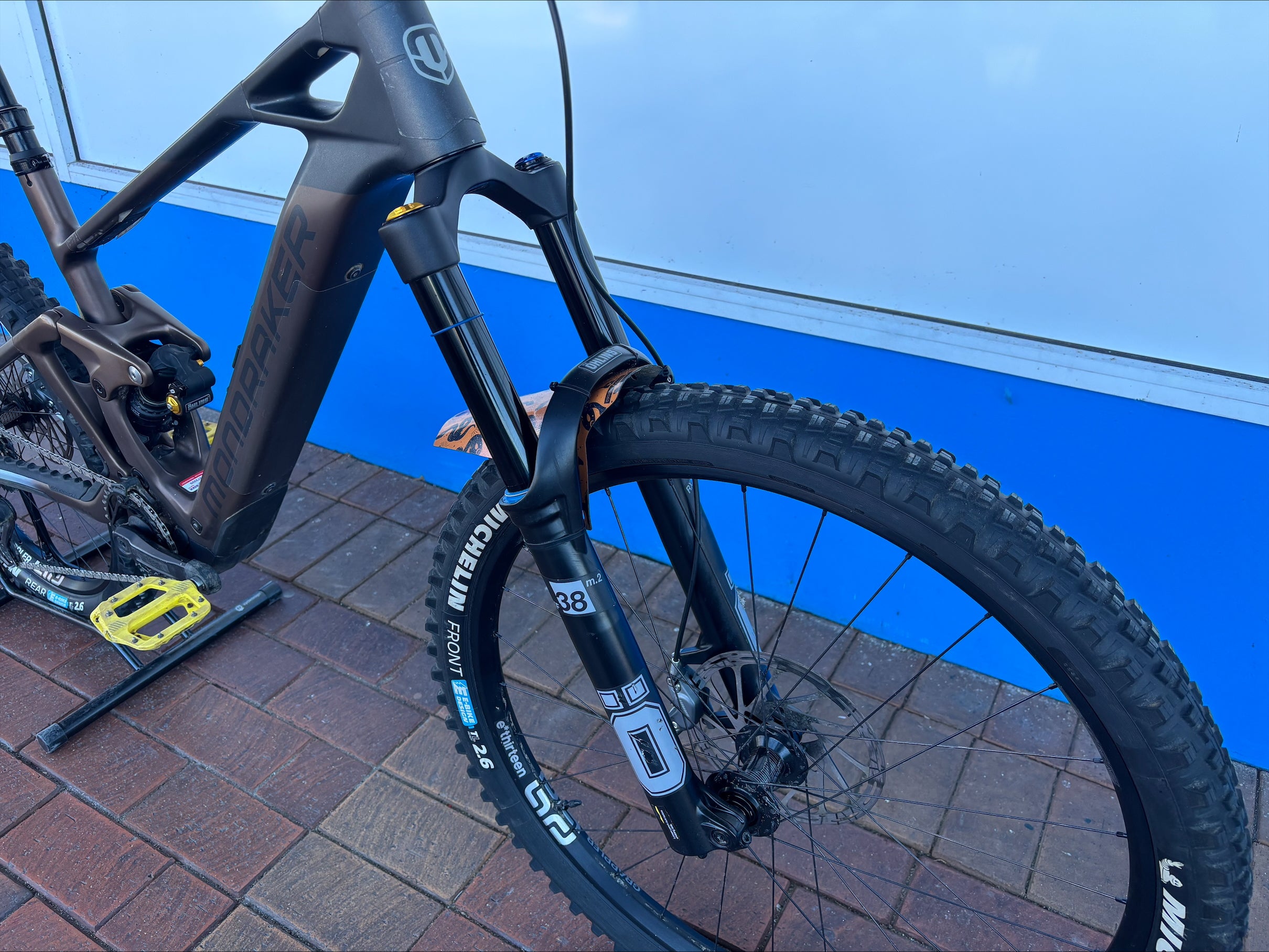

    Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
  • SHOCK
    Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
  • SEATPOST
    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
  • BRAKES
    Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

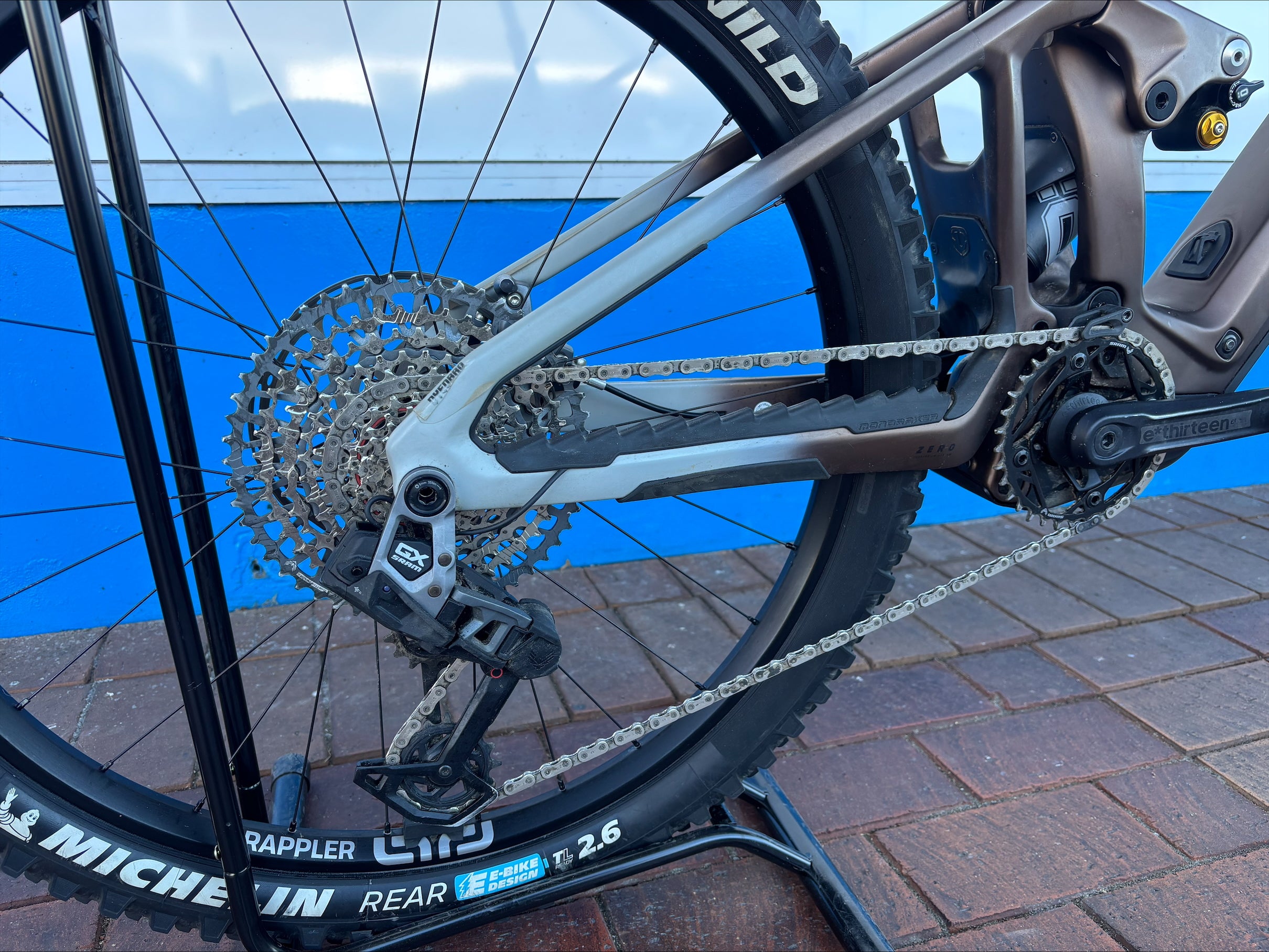

  • DERAILLEUR
    Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s
  • CASSETTE
    Sram XS-1275, 10-52T, T-Type, 12s
  • CHAIN
    Sram GX Eagle T-Type, 12s, Powerlock
  • SHIFTER
    Sram Eagle AXS Pod MMX, 12s
  • RIMS
    e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes 29 front, 27.5 rear
  • HUBS
    Front: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
    Rear: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
  • TYRES
    Front: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MaxxGrip compound, EXO+ casing, 60TPI, folding bead                                                                                  Rear: Maxxis Minion DHR II 27.5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead
  • HANDLEBAR

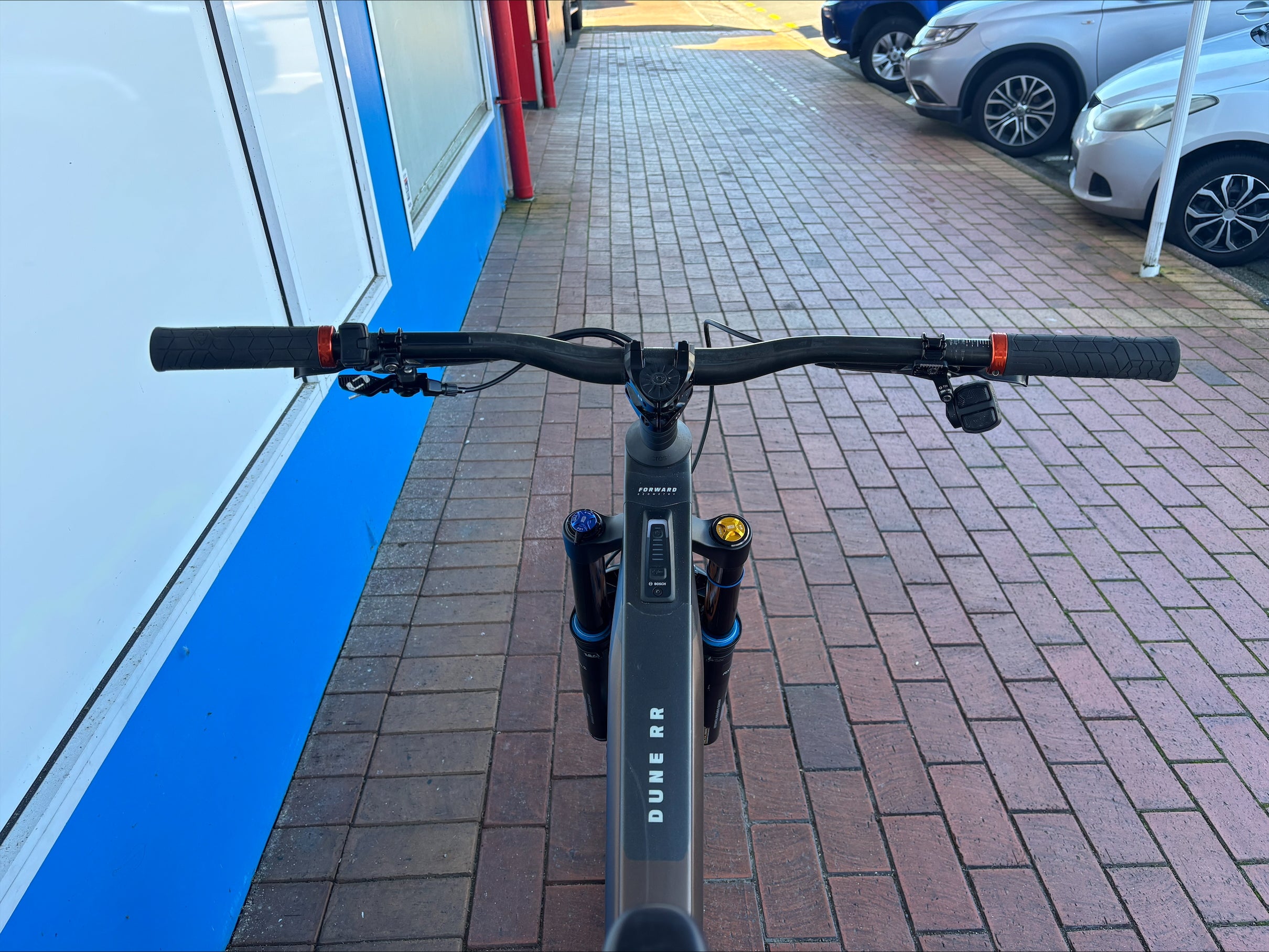

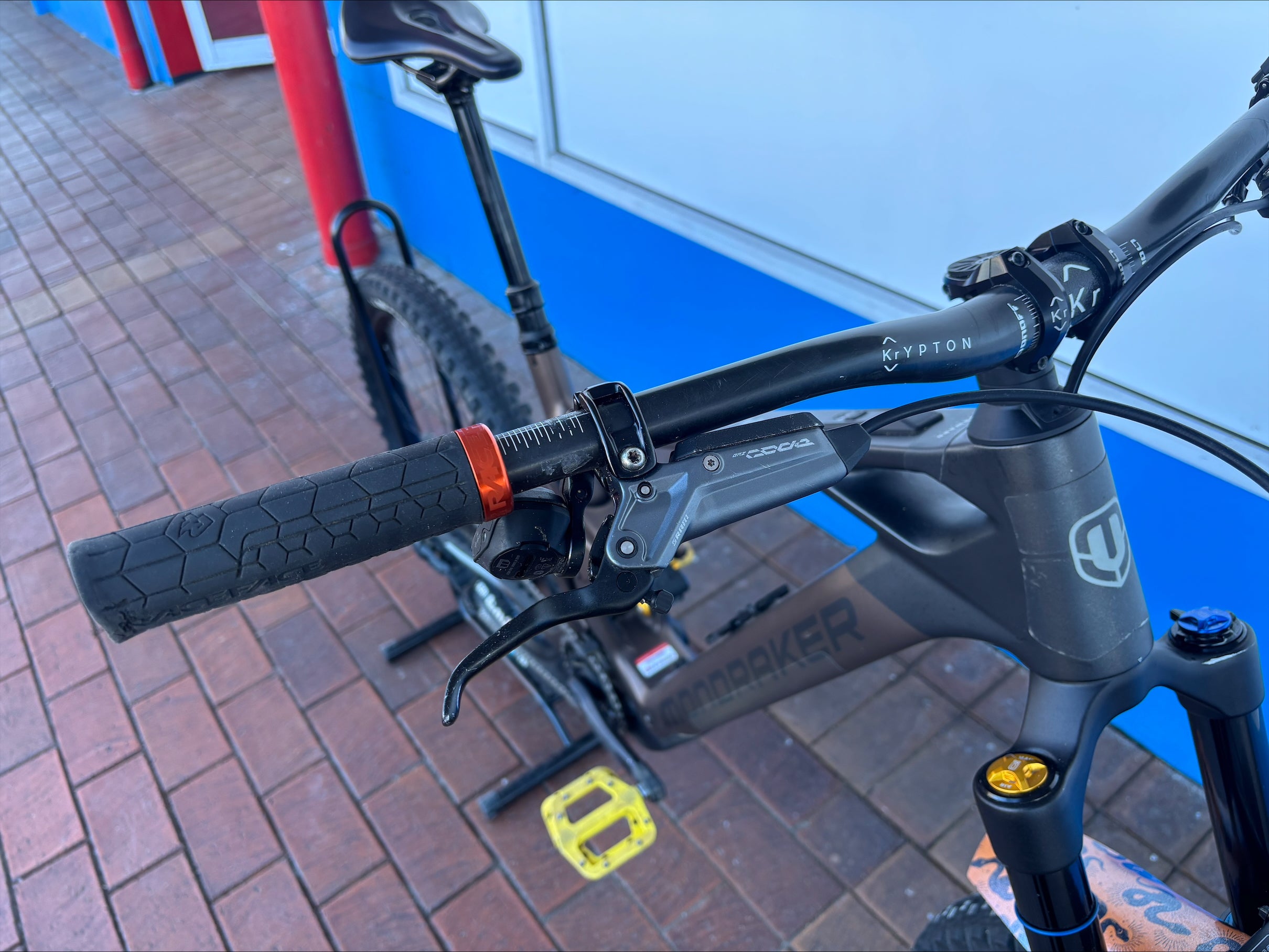

    Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm bar bore
  • STEM
    Onoff Krypton FG 30mm, CNC, 31.8mm bar bore
  • HEADSET
    Acros custom for 1-1/2” head tube, angular contact bearings 40x52x7, Internal cable routing
  • CRANKSET
    E.13 E*Spec Plus, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
  • GRIPS
     Onoff Desert, 1lock-on, 135mm
  • SADDLE
    Fizik Terra Aidon Slim X5, 145mm
  • WEIGHT
    19.6kg
  • BOSCH POWERMORE COMPATIBLE
    Yes

* Subject to technical modification without notice. Errors and omissions excepted.

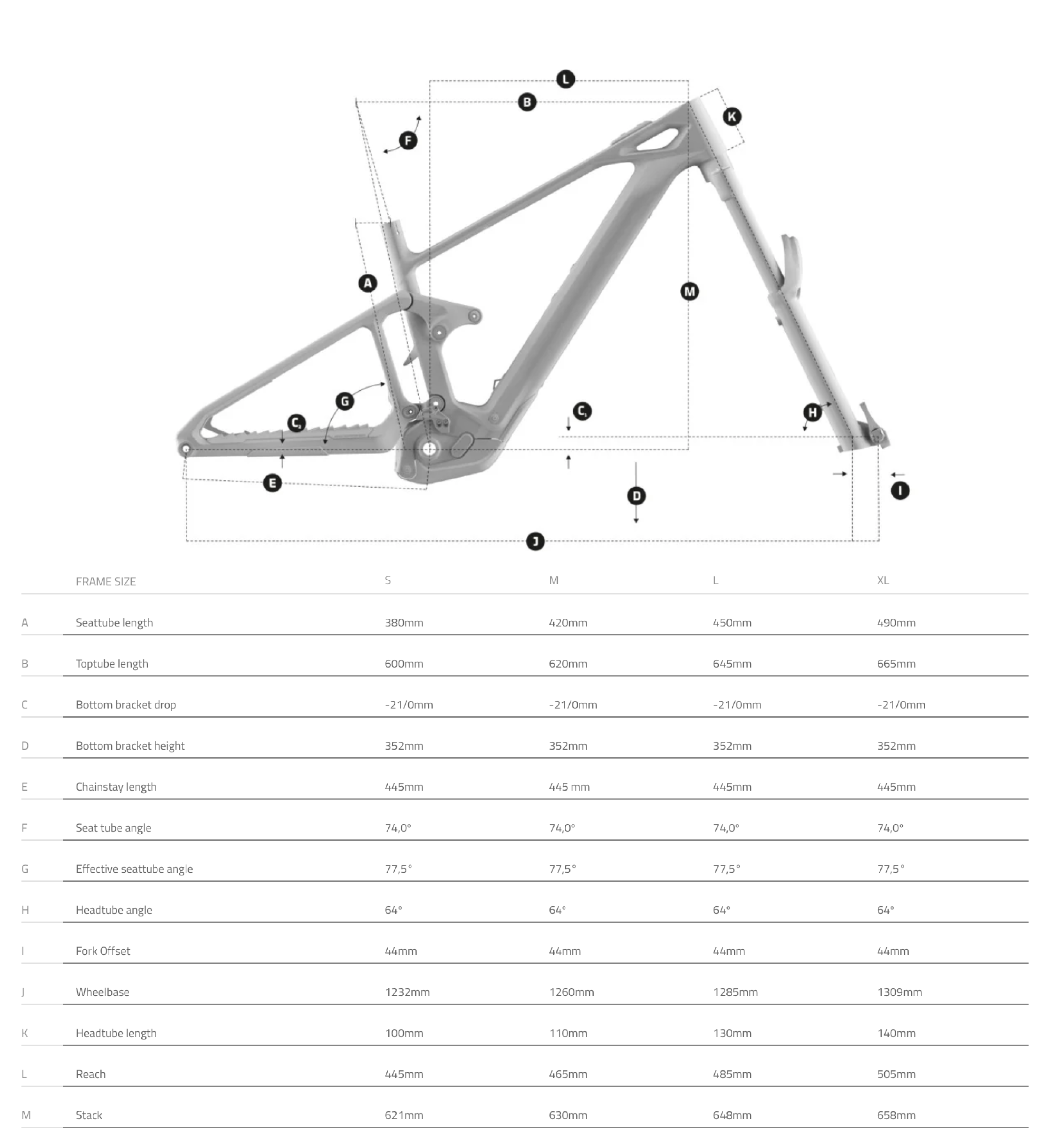

Bike Geometry
Bike geometry

  • Bosch Performance Line SX (32Km/h) GEN4 SMART SYST

  • Bosch Compact Powertube 400Wh

  • FORK Öhlins RXF 38 M.2 29, 170mm | Öhlins TTX Air 205X65mm

  • Sram Code Bronze Stealth, oversized 4-piston caliper

  • Mullet (F:29" R:27,5")

Contact Us

Complete the contact form below if you are interested in this E-bike or if you would like more information.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

FAQs

Why can I not order this bike through the webshop?

We aim to provide you with the best service in finding the right E-bike. As a result, we don't directly sell our bikes from our online store. However, we do provide delivery of E-bikes nationwide. Please contact our team using the form above to get in touch, +64 7 460 0844.

Can I test-ride this E-bike?

Feel free to visit our shop at 1280 Fenton Street, Rotorua and take the bike for a test ride around the block. Please remember to bring some photo ID, as it is required before taking the bike out. The test ride should be limited to the town area and should not include off-road or forest riding. Check with our team before your visit to see if the bike is in stock and available for test riding.

What is the battery range on this E-bike?

Determining the exact range of your E-bike is not straightforward, as it depends on various factors such as the total load, the terrain, temperature, battery size, and motor unit. Some motor brands provide a range indication or provide a tool, like the Bosch Range Calculator.

--> Please reach out to the EBR team, and we can provide you with a good estimate by asking a few simple questions, +64 7 460 0844.

Are there any services included in the bike sale?

We offer an in-house complimentary first check for all bikes purchased at Electric Bike Rotorua. The first check is done at 6 weeks (after the bike purchase) or 250km, whichever comes first.
