- DESCRIPTION
- TECH SPECS

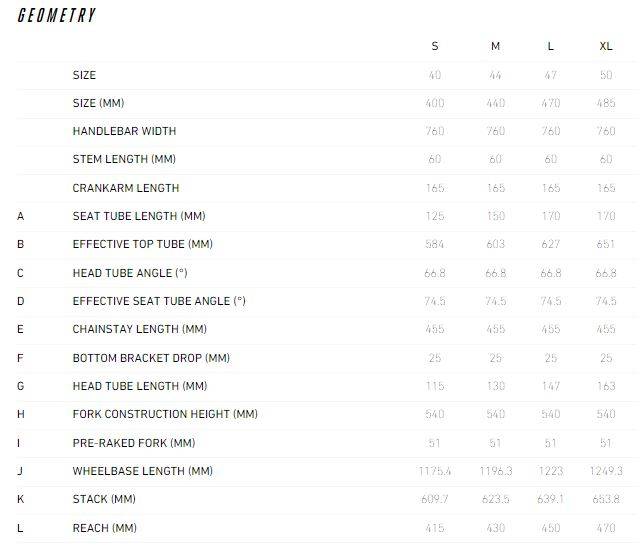

- GEOMETRY

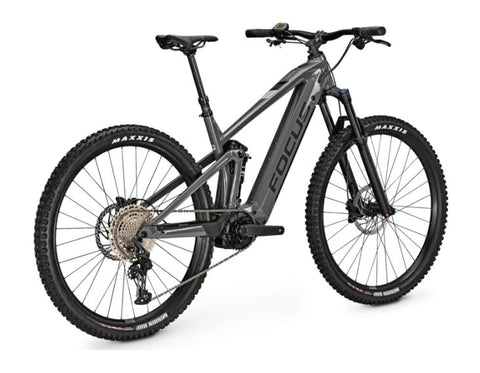

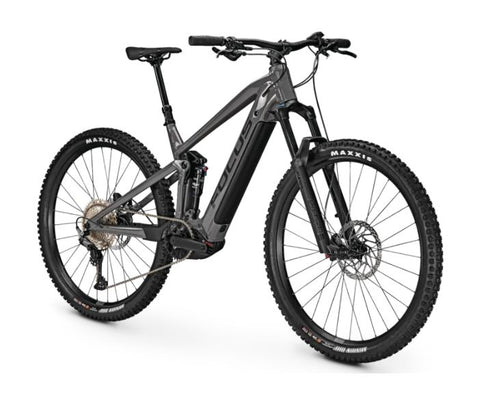

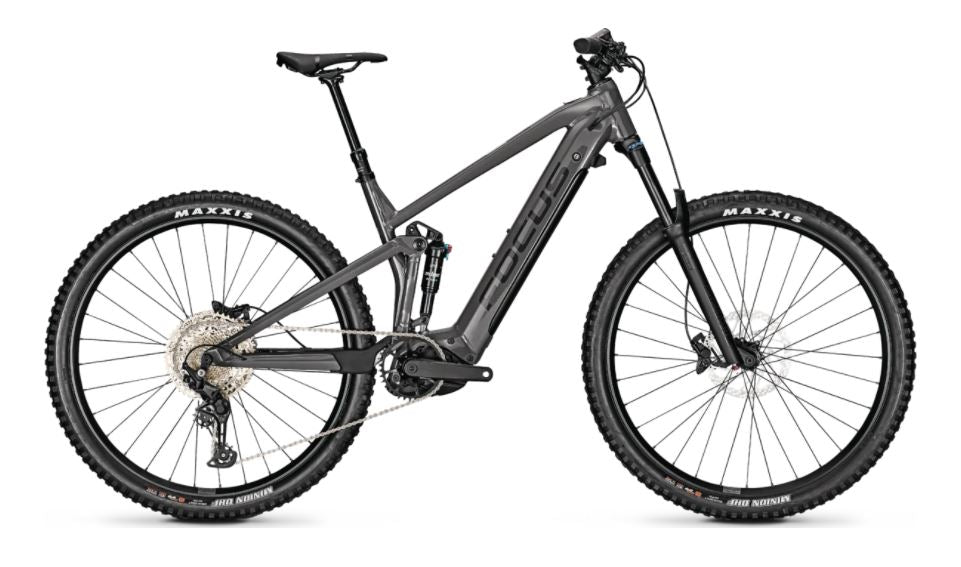

THRON² 6.7 FEATURES
POWERFUL BOSCH PERFORMANCE CX E-DRIVE WITH PURION DISPLAY AND INTEGRATED, REMOVABLE 625 WH BATTERY
130 MM TRAVEL WITH F.O.L.D. KINEMATICS: SR SUNTOUR XCR 34 AIR FORK AND SR SUNTOUR REAR SHOCK
RELIABLE SHIMANO DEORE 11-SPEED SHIFTING WITH WIDE GEAR RATIO
SUPER POWERFUL AND DYNAMIC E-MOTOR
The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 32 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the THRON² rides well-balanced. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 625 Wh battery, you can ride all your trails again and again.
DIVERSE USAGE
From trail tours through alpine terrain to your daily commute and bikepacking: anything is possible with the THRON². With certain changes to the build, you can add various features to your THRON² – depending on where your e-MTB tour is going.
OPTIMAL SUSPENSION PERFORMANCE IN ANY SITUATION
With the THRON², the emphasis is on comfort and fun while out on the trail. This is thanks to our proprietary F.O.L.D. The chainstay works efficiently in a kinematic manner each time you push the pedals, while the sensitive suspension absorbs all bumps.
KEY FEATURES
DRIVE UNIT Bosch Performance CX Gen4, 85 Nm
BATTERY 625 Wh
DISPLAY Bosch Purion
SPECIFICATIONS
- FRAME
7005 hydroformed aluminium, 3D forging, 130mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 180 mmm - FORK
SR SUNTOUR XCR 34 ,110x15 mm, 130 mm travel - SHOCK
130mm, SR Suntour Edge LOR, 190/45 mm, hardware: 25,0 x 8mm, custom tune - RIMS
Rodi Tryp 30 custom for FOCUS - REAR HUB
Novatec D162 Disc, 12x148 mm - FRONT HUB
Novatec D041, 15x110 mm thru axle - HEADSET
ACROS ZS56/ZS56, FOCUS C.I.S. Integrated - TYRES
MAXXIS MINION DHF, 63-622 - CHAIN
Shimano CN-HG601 - REAR DERAILLEUR
Shimano Deore RD-M5100
- SHIFTER
Shimano Deore M5100, 11-speed - CASETTE
Shimano Deore CS-M5100, 11-speed - HANDLEBAR
Aluminium, riserbar, 760mm - GRIPS
FOCUS Sport Ergo - STEM
FOCUS aluminium, 31,8 mm, 60 mm, 17° - BRAKES
Shimano MT420, 4-piston, hydraulic disc brake - BRAKE LEVERS
Shimano MT420 - SADDLE
Proxim W350 - SEATPOST
Post Moderne PM-MT171, 31,6mm - SIZES
40,44,47,50 - WEIGHT
23,50 kg (including battery)
