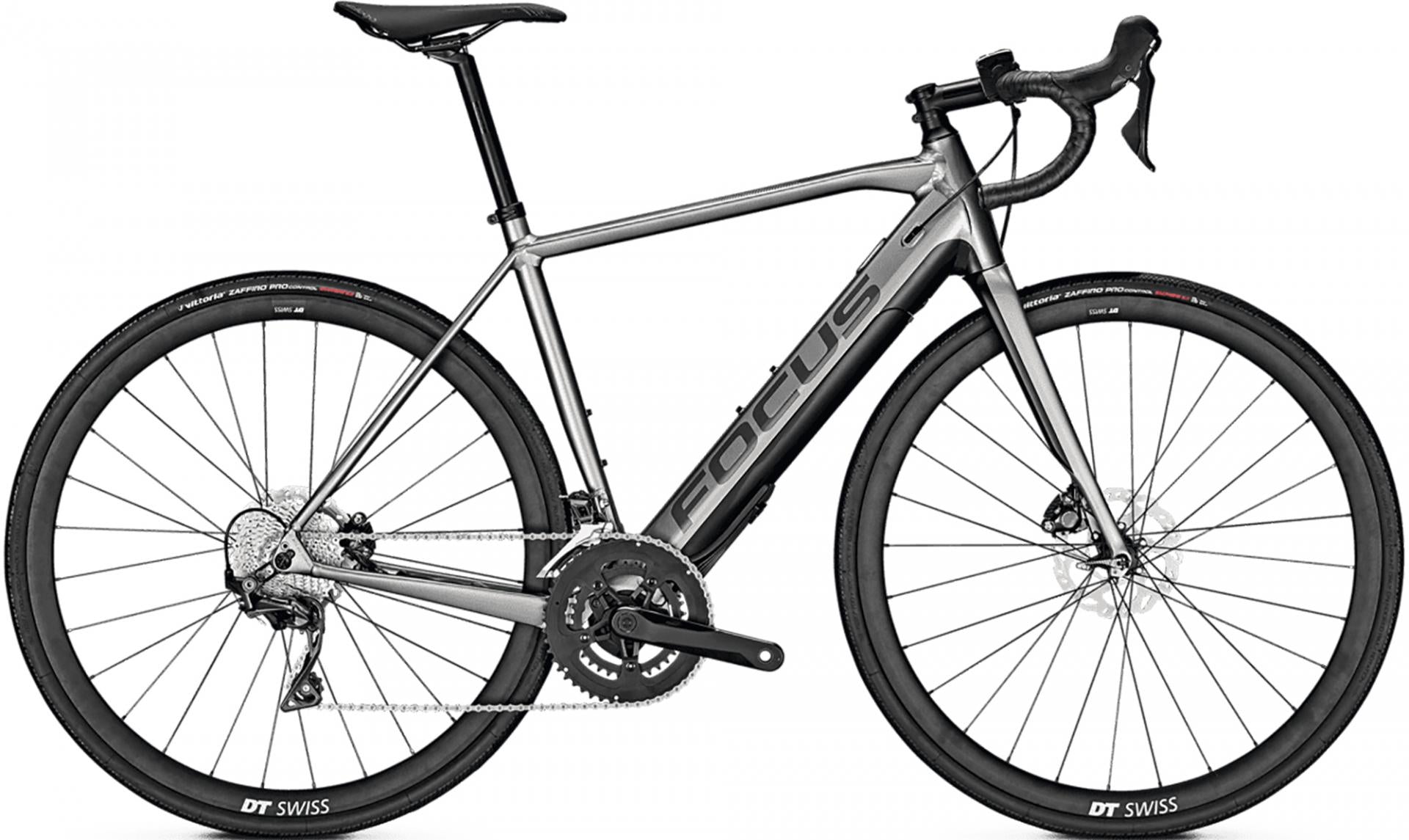

COMBINES THE ADVANTAGES OF A ROAD BIKE WITH THOSE OF AN E-BIKE
Light and agile, but with an extra push up to 25 km/h from the Fazua Evation e-drive when you need a little extra support: the removable motor/battery unit with its 252 Wh battery capacity is uncoupled from the drive and only noticeable when it is making your ride easier. If you want to ride without any support, you can easily replace the Fazua motor (3,2 kg) with a lightweight cover.
RELIABLE AND VERSATILE
Disc brakes ensure you can brake safely and reliably in any weather conditions. Additionally, every PARALANE² comes with matching high-quality Curana fenders that you can mount quickly and easily on the frame. Thanks to the maximum tyre clearance of up to 35 mm, you can mount wider tyres and those with a tread pattern with knobs – depending on what surface you want to ride.
OPTIMAL SHIFTING FUNCTION
Thanks to our revolutionary Road Boost Standard with its broad 148 and 110 mm R.A.T.* axles, we guarantee an optimal chain line for e-road bikes and therefore an optimal shifting function and less wear. Furthermore, wheel changes can be carried out fast and easily within seconds with our R.A.T.* thru-axles.
KEY FEATURES
DRIVE UNIT FAZUA evation, 60 Nm, 250 W
BATTERY FAZUA 250Wh
DISPLAY FAZUA evation 1.0 remote
SPECIFICATIONS
- FRAME
Aluminium E-Road, disc, road boost 148x12 mm thru axle, R.A.T Evo technology, flat mount 160 mm, internal cable routing - FORK
Carbon, disc, road boost 110x12 mm, thru axle, R.A.T Evo technology, flat mount 160/140 mm, internal cable routing - WHEELS
DT Swiss RR521 SPLINE DB, 32mm height w/ DT Swiss 370 boost hub - HEADSET
IS42/28.6 - IS52/40 - TYRES
Vittoria Zaffiro Pro , 700 x 28C, Folding - CRANK SET
FSA, aluminium - CHAIN
Shimano HG701- FRONT DERAILLEUR
Shimano Ultegra R8000
- FRONT DERAILLEUR
- REAR DERAILLEUR
Shimano Ultegra R8000 - SHIFTER
Shimano Ultegra R8000 - CASETTE
Shimano Ultegra R8000
- HANDLEBAR
BBB Basic, aluminium, drop: 125 mm, reach: 70mm - BARTAPE
FOCUS Bartape SL - STEM
BBB Deluxe, aluminium, 31.8mm, +/- 7 degree - BRAKES
Shimano Ultegra R8020 hydraulic disc, 160 / 160 mm - SADDLE
Prologo Scratch - SEATPOST
BBB Deluxe, Aluminium, 27,2mm, 350mm, set-back 20mm - COLOUR
Silver/Black - WEIGHT
