DESCRIPTION

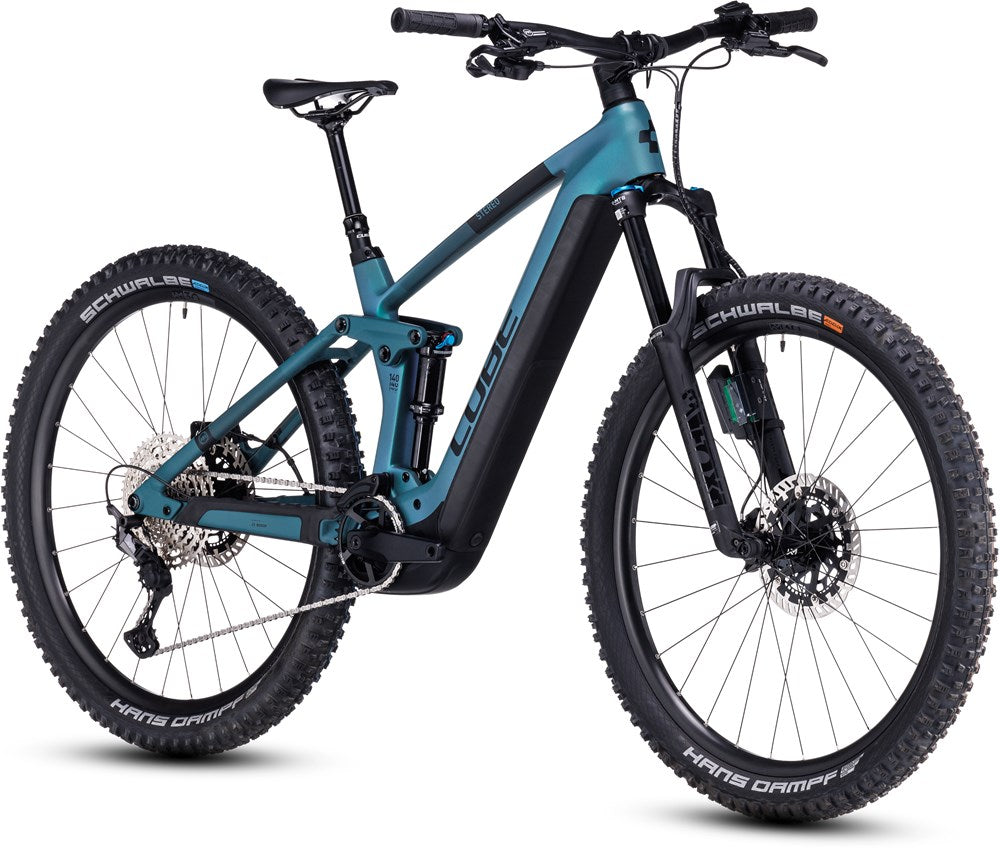

The hills are calling, and you need a bike that’s up to the challenge. The Stereo Hybrid 140 HPC Pro 625’s fourth-generation Bosch CX drive unit and 625Wh battery won’t let you down. Paired with the smooth shifting and wide range of Shimano’s Deore 1×11 gears, it’ll make light work of any climb. And for the way back down, you’ve got 140mm of RockShox travel, with a Recon Silver Air fork up front and a Deluxe Select shock at the rear. Grippy 2.6in Schwalbe tyres hook you up to the trail, while powerful Magura MT Thirty hydraulic disc brakes with four-piston calipers and oversize rotors ensure you’re always in full control. It’s up for it. Are you?
E-BIKE SPECIFIC SPECIFICATIONS
MOTOR - Bosch Drive Unit Performance Line CX Gen4
BATTERY - Bosch PowerTube 625
DISPLAY - Bosch Purion
CHARGER - Bosch 2A
SPECIFICATIONS
- FRAME
C:62 Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery - SIZES
Size Split: 27.5: XS (15") // 29: S (16"), M (18"), L (20"), XL (22") - FORK
RockShox Recon Silver RL Air, Tapered, 15x110mm, eMTB Approved, 140mm, Lockout - SHOCK
RockShox Deluxe Select, 185x55mm, Rebound Adjust, Trunnion Mount - SHOCK HARDWARE
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm - BRAKE SYSTEM
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) - REAR DERAILLEUR
Shimano Deore RD-M5100-SGS, 11-Speed - SHIFTER
Shimano Deore SL-M5100, Rapidfire-Plus - CRANK SET
ACID E-Crank, 165mm (27.5: 36T // 29: 34T) - CHAIN GUIDE
e*thirteen Plus e*spec - CASSETTE
Shimano Deore CS-M5100, 11-51T - CHAIN
KMC X11
- FRONT HUB
Shimano HB-MT400-B, 15mm, Boost, Centerlock - REAR HUG
Shimano FH-MT400-B, 12mm, Boost, Centerlock - RIMS
CUBE EX30, 32H, Disc, Tubeless Ready - TYRES
Schwalbe Nobby Nic, PerfL, 2.6 - HANDLEBAR
Newmen Evolution SL 318.25, 760mm - STEM
CUBE Performance Stem E-MTB, 31.8mm - GRIPS
Natural Fit MTB Performance Lock On - SEAT POST
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (XS, S: 100mm, M: 120mm, L, XL: 130mm) - SEAT CLAMP
CUBE Screwlock Semi Integrated, 34.9mm - SADDLE
Natural Fit Venec - HEADSET
27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) - COLOUR
Prismagrey 'n' Blue - LOCK
Abus Art.-Nr. 64444 - WHEEL SIZE
29" (sizes M - XL) / 27.5" (sizes XS - S)
