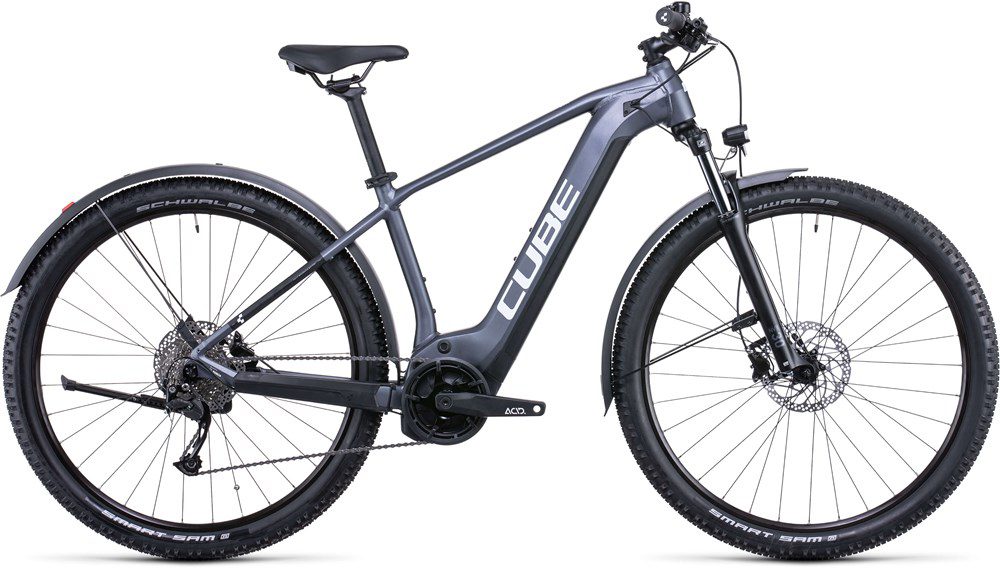

Take the road less travelled, and see where it takes you. The Reaction Hybrid Performance takes the power of Bosch's third-generation drive system and adds sophisticated PowerTube design and easy-to-use Shimano 9-speed gears. A wider saddle and lock-on grips with a 100m Suntour suspension fork ensure you're comfortable for the long haul. And we fitted Shimano hydraulic disc brakes for safe, all-weather control. Follow your curiosity...

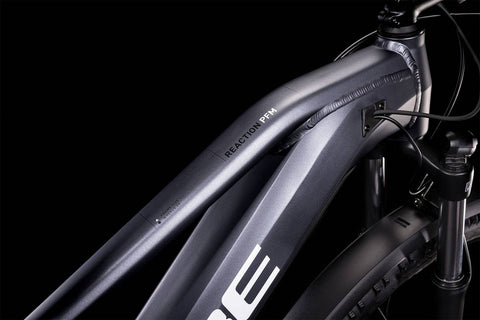

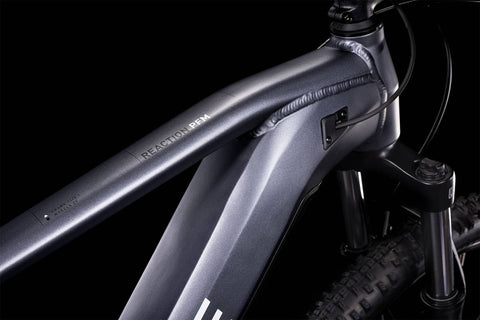

Form follows function. The Reaction Hybrid Performance's elegant PowerTube frame conceals a large-capacity Bosch battery inside the down tube for sleek looks and better protection from the elements. Internally routed cables match the clean design aesthetic, offering long-lasting, low-maintenance gear-shifting accuracy. A Trapeze frame option gives riders who are more comfortable with a lower top tube an easy access option, without compromising performance. And, with Size Split, you can be assured of finding the perfect fit.
E-BIKE SPECIFIC
DRIVE UNIT Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
BATTERY Bosch PowerTube 500
DISPLAY Bosch Purion
SPECIFICATIONS
- FRAME
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points - SIZE
Size Split: 27.5: XS (13.5"), S (15") // 29: M (17"), L (19"), XL (21"), XXL (23"); Trapeze: 27.5: S (15") // 29: M (17"), L (19") - FORK
SR Suntour NVX30 Coil, 100mm - BRAKE SYSTEM
Shimano BR-MT200, Hydr. Disc Brake (180/180) - REAR DERAILLEUR
Shimano RD-M3100-SGS, 9-Speed - SHIFTERS
Shimano SL-M3100-R, Rapidfire-Plus - CRANKSET

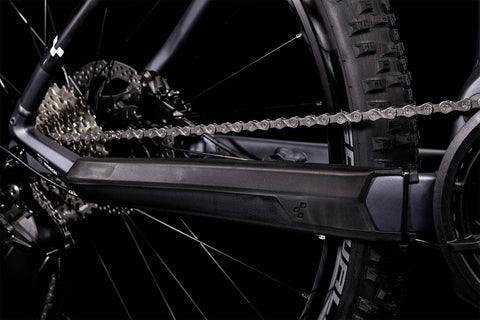

ACID E-Crank, 175mm, 38T - CASSETTE
Shimano CS-HG201, 11-36T - CHAIN
KMC X9 - FRONT HUB
Shimano HB-TX505, QR, Centerlock - REAR HUB
Shimano FH-TX505, QR, Centerlock - RIMS
Rodi Blackrock 23, 32H, Disc, Tubeless Ready - TYRES
Schwalbe Smart Sam, Active, K-Guard, 2.35 - STEM
CUBE Performance Stem Pro, 31.8mm - HANDLEBAR
CUBE Rise Trail Bar, 720mm - GRIPS
CUBE Race Grip 31mm, 1-Clamp
- SEAT POST
CUBE Performance Post, 30.9mm - SEATCLAMP

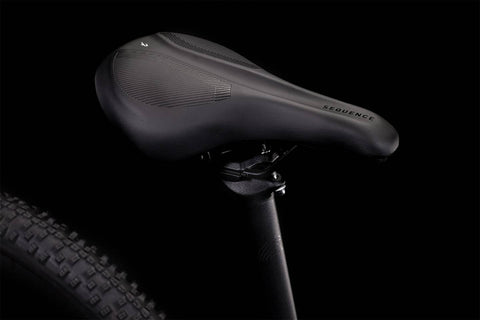

CUBE Varioclose, 34.9mm - SADDLE
Natural Fit Sequence - HEADSET
27.5: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) - PEDALS
ACID PP MTB - FRONT LIGHT

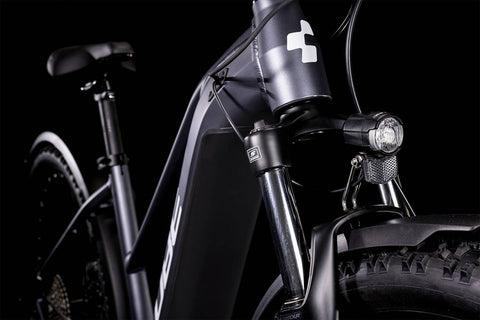

CUBE Shiny 50 Lux, 12V, DC - REAR LIGHT
ACID Mudguard Rear Light PRO-E, 12V, DC - KICKSTAND
CUBEstand Cmpt - MUDGUARDS
ACID 65 BB-Mount - BELL
Easy Bell - WEIGHT
23,2 kg - COLOUR
metallicgrey´n´white - MAXIMUM WEIGHT LIMIT
135 kg
The weight refers to the combined weight of the rider and bike including all clothing and equipment carried on the rider's person (backpacks etc.) and must not be exceeded.
