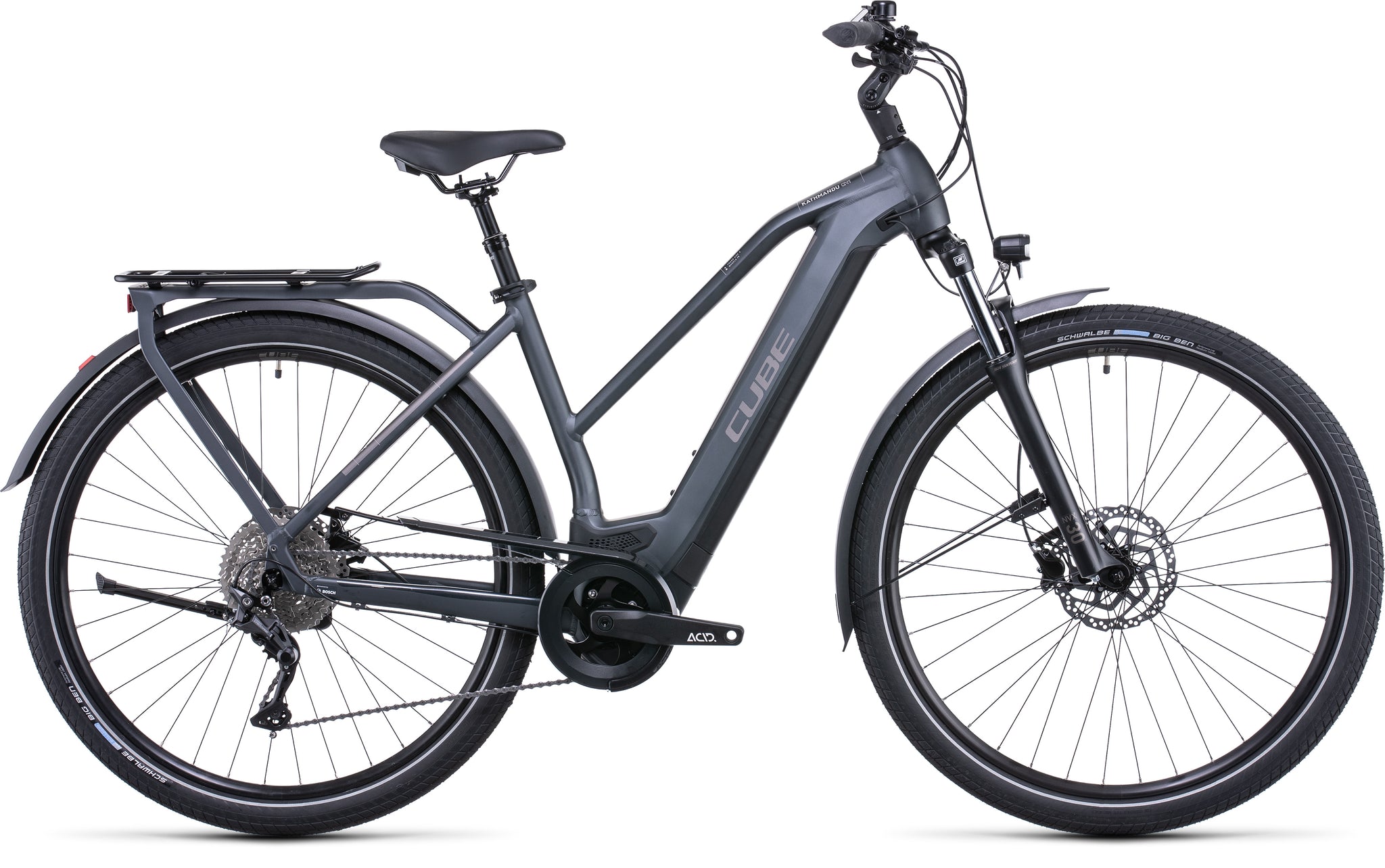

The Kathmandu Hybrid ONE 625 will help you get to wherever your imagination leads you. Shimano's easy-to-use, legendarily reliable 1x10 gears work seamlessly with Bosch's smooth, fourth-generation drive unit and high-capacity 625Wh battery to make light work of any journey, whether it's across town or across countries. The Suntour suspension fork, suspension seatpost and adjustable stem ensure you're comfortable for the duration. Powerful Shimano hydraulic disc brakes bring you safely to a stop in all weathers. And a full complement of accessories - from lights and mudguards to our neat Integrated Carrier - means you're ready for anything.

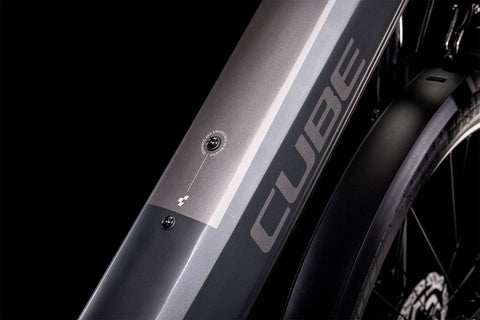

Based around our Modular Battery System, the Kathmandu Hybrid's elegant frame design completely encloses the Bosch battery for sleek looks and better protection. A tapered head tube ensures accurate steering whether you're riding laden or unladen, so you can be assured of a ride that's comfortable and safe. The incredibly neat Integrated Carrier is a strong, stable platform with which to carry whatever you need for your journey. And our Efficient Comfort Geometry will help keep you pedalling for miles of smiles - so whether you choose the Easy Entry, Trapeze, or standard frame, the Kathmandu Hybrid will be a pleasure to own and ride.
E-BIKE SPECIFIC
DRIVE UNIT Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
BATTERY Bosch PowerTube 625
DISPLAY Bosch Purion
SPECIFICATIONS
- FRAME
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Semi-Integrated Carrier 2.0 - SIZE
Men: S (50cm), M (54cm), L (58cm), XL (62cm); Trapeze: XS (46cm), S (50cm), M (54cm); Easy Entry: XS (46cm), S (50cm), M (54cm), L (58cm) - FORK
SR Suntour NVX30 Coil, 100mm - BRAKE SYSTEM
Shimano BR-MT200, Hydr. Disc Brake (180/180) - REAR DERAILLEUR
Shimano Deore RD-M4120-SGS, 10-Speed - SHIFTERS
Shimano Deore SL-M4100, Rapidfire-Plus - CRANKSET
ACID E-Crank, 38T, 175mm (EE: 170mm) - CASSETTE
Shimano Deore CS-M4100, 11-42T - CHAIN
KMC X10 - FRONT HUB
Shimano HB-TX505, QR, Centerlock - REAR HUB
Shimano FH-TX505, QR, Centerlock - RIMS
CUBE EX23, 36H, Disc, Tubeless Ready - TYRES
Schwalbe Big Ben, Performance, K-Guard, 55-622 - STEM
CUBE Comfort Stem Pro, 31.8mm, Adjustable - HANDLEBAR
CUBE Comfort Trail Bar, 700mm - GRIPS
Natural Fit Comfort
- SEAT POST
CUBE Suspension Seatpost HD, 30.9mm - SEATCLAMP
CUBE Varioclose, 34.9mm - SADDLE
Natural Fit Sequence Comfort - HEADSET
M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) - PEDALS
ACID PP Trekking - FRONT LIGHT
CUBE Shiny 50 Lux, 12V, DC - REAR LIGHT

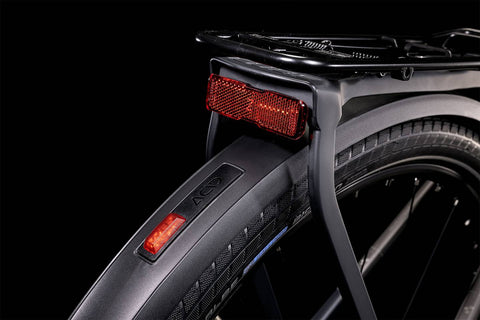

ACID Mudguard Rear Light PRO-E, 12V, DC - KICKSTAND
CUBEstand Cmpt - MUDGUARDS
ACID 65 BB-Mount - BELL
Easy Bell - CARRIER
CUBE Integrated Carrier 2.0, ACID RILink Adapter Compatible, SnapIt Compatible - WEIGHT
26,1 kg - COLOUR
grey´n´teak - MAXIMUM WEIGHT LIMIT
135 kg
The weight refers to the combined weight of the rider and bike including all clothing and equipment carried on the rider's person (backpacks etc.) and must not be exceeded.
