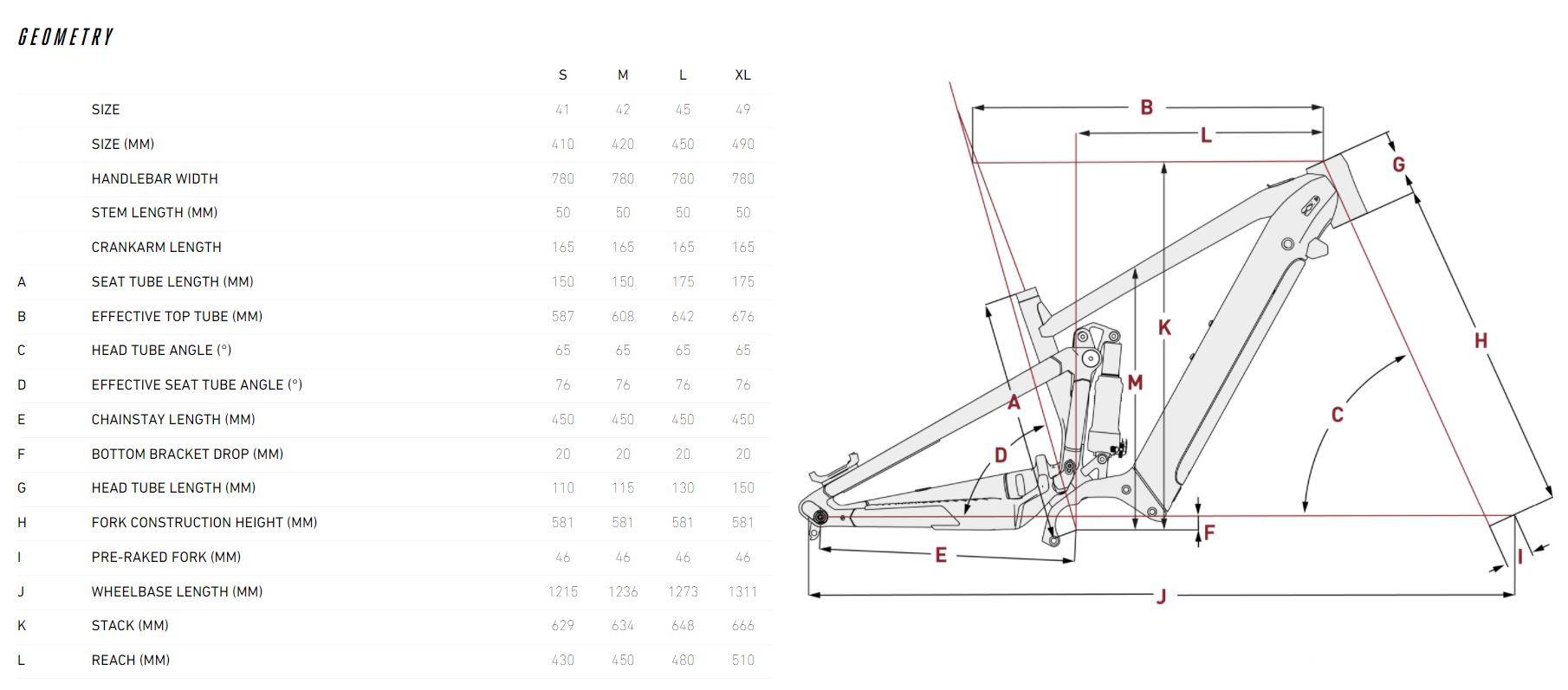

- GEOMETRY
SUPER POWERFUL AND DYNAMIC E-MOTOR
The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 32 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the SAM² rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 625 Wh battery, you can ride all your trails again and again.
MADE FOR DOWN
A modern, downhill-oriented geometry, 170 mm travel and fast 29" wheels make the FOCUS SAM² ready for the roughest trails. The downhill-oriented focus is enhanced by suspension forks with 38 mm stanchions. The fully integrated C.I.S. cable routing ensures a clean cockpit and thanks to the FOCUS Flip Chip you have the option to also ride 27,5" wheels and super short chainstays (430 mm).
OPTIMAL SUSPENSION PERFORMANCE IN ANY SITUATION
Our F.O.L.D. chassis has been specially designed to meet the increased demands placed on e-MTBs. This means that we can also guarantee the perfect mix for the e-Enduro FOCUS SAM²: F.O.L.D. is extremely sensitive while being progressive enough to prevent a harsh bottom out.
KEY FEATURES
DRIVE UNIT Bosch Performance CX Gen4, 85 Nm, 250 W
BATTERY Bosch Powertube 625 Wh
DISPLAY Bosch Purion
SPECIFICATIONS
- FRAME
7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 203 mm - FORK
FOX 38 Float Factory 29, E-Bike, Grip 2, 110 x 15 mm, 44 mm rake, 170 mm travel - SHOCK
FOX Van Performance Coil, 230/65 mm, hardware: 25,0 x 8mm - RIMS
RaceFace AR30 Offset - HUBS
Rear: Novatec D162 Disc, 12x148 mm
Front: Novatec D041, 15x110 mm - HEADSET
Acros AZX-212 AH [1-1/8", tapered, 44/286-ZS56/40] - TYRES
Front: Schwalbe Magic Mary 2.6 Super Trail Soft
Rear: Schwalbe Magic Mary 2.6 Super Gravity Soft - CRANK SET
Samox EC40 ISIS - CHAIN
Shimano SLX CN-M7100 - REAR DERAILLEUR
Shimano Deore XT M8100, 12-speed
- SHIFTER
Shimano Deore XT M8100, 12-speed - CASETTE
Shimano SLX M7100, 12-speed - HANDLEBAR
RaceFace Chester 35, aluminium, 780mm, rise: 35mm, backsweep: 8degree - GRIPS
RaceFace Getta Grip - STEM
FOCUS C.I.S. integrated, 50 mm, 0 degrees, 35 mm, aluminium - BRAKES
Shimano XT M8120, 4 piston - BRAKE LEVERS
Shimano XT M8120, 4 piston - SADDLE
Proxim W350 - SEATPOST
FOX Transfer RL Factory, 31,6mm - SIZES
41,42,49,45 - COLOUR
Milk Brown - WEIGHT
25,95 kg (including battery)
