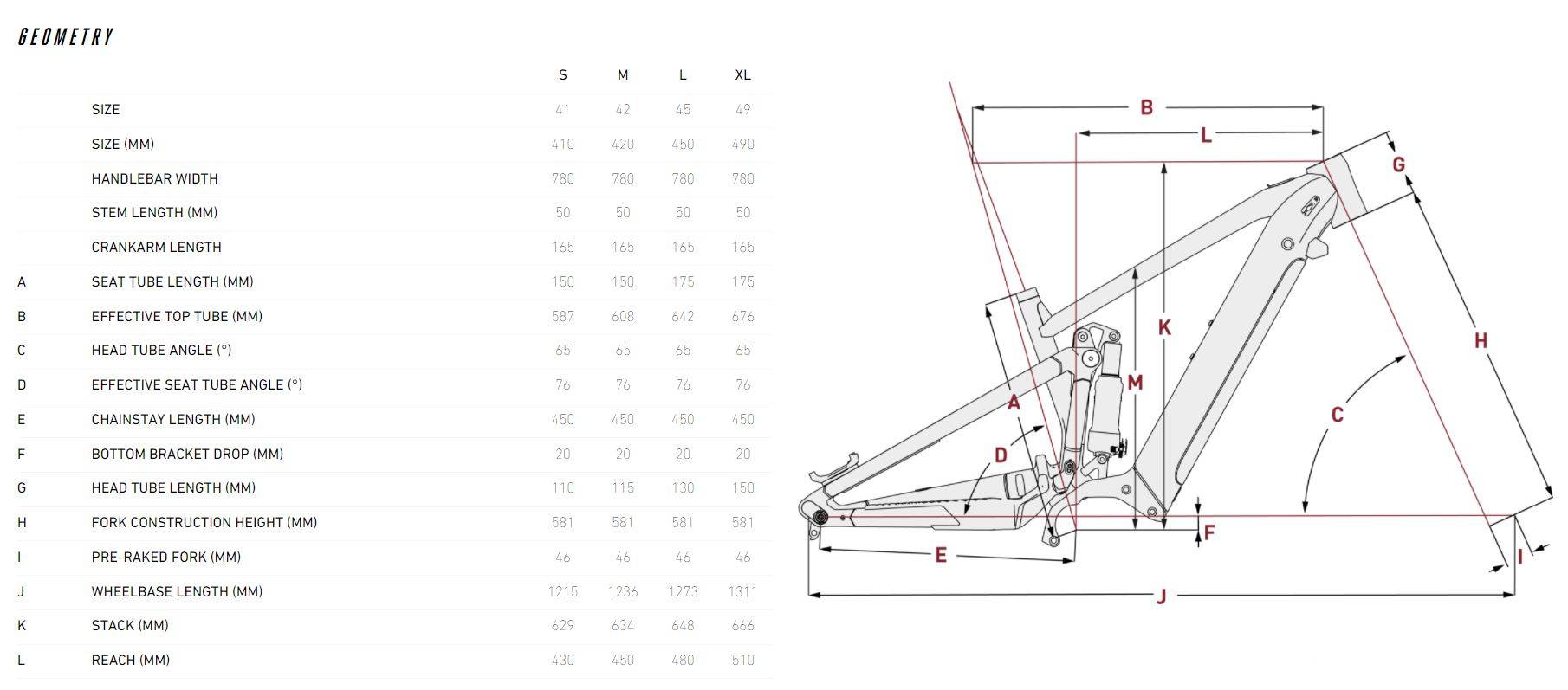

- GEOMETRY
SUPER POWERFUL AND DYNAMIC E-MOTOR
The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 32 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the SAM² rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 625 Wh battery, you can ride all your trails again and again.
MADE FOR DOWN
A modern, downhill-oriented geometry, 170 mm travel and fast 29" wheels make the FOCUS SAM² ready for the roughest trails. The downhill-oriented focus is enhanced by suspension forks with 38 mm stanchions. Additionally, the fully integrated C.I.S. cable routing ensures a clean cockpit and thanks to the FOCUS Flip Chip you have the option to also ride 27,5" wheels and super short chainstays (430 mm).
OPTIMAL SUSPENSION PERFORMANCE IN ANY SITUATION
Our F.O.L.D. chassis has been specially designed to meet the increased demands placed on e-MTBs. This means that we can also guarantee the perfect mix for the e-Enduro FOCUS SAM²: F.O.L.D. is extremely sensitive while being progressive enough to prevent a harsh bottom out.
KEY FEATURES
DRIVE UNIT Bosch Performance CX Gen4, 85 Nm, 250 W
BATTERY Bosch Powertube 625 Wh
DISPLAY Bosch Purion
SPECIFICATIONS
- FRAME
7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 203 mm - FORK
Rock Shox Domain R 29, 110x15 mm, 44 mm rake, 170 mm travel, 170 mm travel - SHOCK
Rock Shox Deluxe Select, 230/65 mm, hardware: 25.0 x 8.0 mm - RIMS
RODI TRYP30, 30-622 - HUBS
Rear: Novatec D462 Disc, 12x148 mm thru axle
Front: Novatec D041, 15x110 mm thru axle - HEADSET
Novatec D041, 15x110 mm thru axle - TYRES
MAXXIS MINION DHF, 63-622 - CRANK SET
Samox EC40 ISIS - CHAIN
SRAM NX Eagle, 12-speed - REAR DERAILLEUR
SRAM NX Eagle
- SHIFTER
SRAM SX Eagle, 12-speed - CASETTE
SRAM PG-1230 Eagle, 12-speed - HANDLEBAR
Handlebar, 800 mm, rise: 35 mm, backsweep: 9° - STEM
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium - BRAKES
SRAM GUIDE T - BRAKE LEVERS
SRAM GUIDE T - SADDLE
FOCUS Trail SL - SEATPOST
Post Moderne PM-MT171, 31,6mm - SIZES
41,42,49,45 - COLOUR
Grey - WEIGHT
25,30 kg (including battery)
