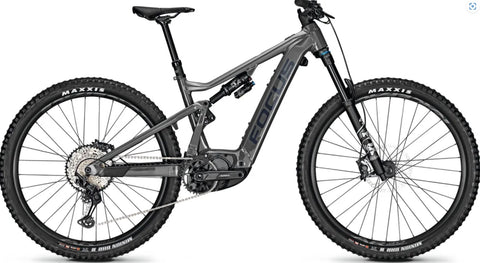

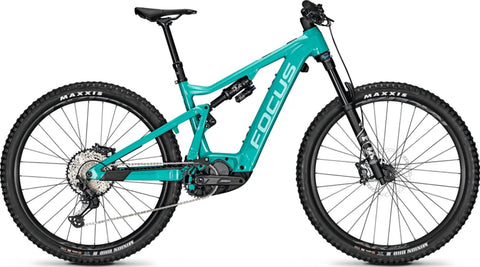

MORE DYNAMIC AND RANGE, BUT LESS WEIGHT
Shimano's EP8 e-drive offers dynamic power and a lightweight system that supports the JAM² 7.9's agile geometry. You have two motor support profiles that you can customise to your needs. Thus, you can easily switch via the display between a smooth and continues profile for your ride to the trails and a very dynamic, progressive profile for your actual trail ride. It's all up to your preferences. Furthermore, our specially developed, integrated, yet removable battery supports your super long rides with 720 Wh. Additionally, a USB C port on the top tube gives you the opportunity to charge your devices.
OPTIMIZED KINEMATICS FOR STRONG PROGRESSION
With the upgrade of our well-known F.O.L.D. kinematics, your JAM² 7.9 is ready to shred even more. We kept the well-liked sensitivity of the F.O.L.D. but changed the positioning of our kinematics within the frame for strong bottom-out resistance. The characteristics are completely progressive which results in a chassis that offers a lot of stability in rough terrain. Especially e-mountain bikes with their additional weight of motor and battery benefit from more progression. This allows you to handle any trail while the chassis still provides comfort for long laps. Furthermore, the lower standover of the JAM² 7.9 gives you more space to play on the trail.
MORE FUN ON THE TRAILS
Riding performance first. The JAM² 7.9 will make your ride better – every time. An agile, nimble geometry in a slim, compact design will push you over all kind of trails whether technical or flow. The FLIP CHIP at your JAM² 7.9's linkage can be used to adjust your geometry to an even more aggressive riding style. The small adjustment of the head angle from 65,5° to 65° changes your whole set-up goal making it even more downhill-oriented. Additionally, the specially developed C.I.S. (Cockpit Integration Solution) design ensures a clean cockpit and constantly seamless shifting and braking. All cables run from the handlebar into the stem and through the headset into the frame. On top, all your essentials fit in the tool bag between top and down tube.
KEY FEATURES
DRIVE UNIT Shimano Steps EP8, 36V / 250 W / 85 Nm
BATTERY 720 Wh
DISPLAY Shimano Steps EM800
SPECIFICATIONS
- FRAME
7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. GEN2 kinematics, 148x12 mm thru axle, internal cable routing, USB-C port, post mount 203 mm - FRAME MATERIAL
Aluminium - FORK
FOX 36 Float Rhythm 29, Grip Remote, 110x15 mm, 44 mm rake - TRAVEL FORK
150 mm - SHOCK
FOX Float X Performance, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing - SHIFTER
Shimano Deore XT M8100, 12-speed - REAR DERAILLEUR
Shimano Deore XT M8100, 12-speed - SPROCKET
Shimano SLX M7100, 12-speed - CHAIN
Shimano SLX CN-M7100, 12-speed - CRANKSET
Shimano FC-EM600, 12-speed - BOTTOM BRACKET
Integrated in Drive Unit - TRANSMISSION OF DRIVE
Front: 36T, Rear: 10-51T - HANDLEBAR
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
- STEM FOCUS C.I.S.
integrated, 50 mm, 0°, 35 mm, aluminium - HEADSET
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset - SADDLE
Proxim W400 - SEATPOST
FOCUS Post Moderne dropper post PM-214, 34.9 mm - BRAKES
Shimano XT M8120, 4 piston - BRAKE LEVER
Shimano XT M8120, 4 piston - BRAKE
Disc - RIMS
RaceFace AR30 Offset - REAR HUB
Novatec D462, 12x148 mm - FRONT HUB
Novatec D041, 15x110 mm - TYRES
Maxxis Minion DHF II, 2.6, 66-622 - GEARS
12 - BIKE WEIGHT
INCL. BATTERY IN KG 24.85 kg - SIZE
S, M, L, XL
