SUPER POWERFUL AND DYNAMIC E-MOTOR
The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 32 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the JAM² rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power.
MORE TRAILS
The Bosch Powertube battery is perfectly integrated into the down tube, yet it can also be removed at any time for charging. For sure, you can also charge it directly on the bike. Thanks to 625 Wh battery capacity, you can ride all your trails again and again.
OPTIMAL SUSPENSION PERFORMANCE IN ANY SITUATION
Our F.O.L.D. chassis has been specially designed to meet the increased demands placed on e-MTBs. This means that we can also guarantee the perfect mix for the e-All-Mountain JAM²: F.O.L.D. is extremely sensitive while being progressive enough to prevent a harsh bottom out.
KEY FEATURES
DRIVE UNIT Bosch Performance CX Gen4, 85 Nm, 250 W
BATTERY Bosch Powertube 625 Wh
DISPLAY Bosch Purion
SPECIFICATIONS
- FRAME
7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 203 mm - FORK
FOX 36 Float Rhythm 29, E-Bike, Grip Remote, 110x15 mm, 44 mm rake,
160 mm travel - SHOCK
FOX Float DPS Performance, 3-position lever, 210/55 mm, hardware: 25,0 x 8mm, custom tune - WHEEL SET
DT SWISS H1900, 622-30, 6-bolt, 15x110 / 12x148 - HEADSET
ACROS ZS56/ZS56, FOCUS C.I.S. Integrated - FRONT TYRE
Schwalbe Magic Mary 2.6 Super Trail Soft - REAR TYRE
Schwalbe Magic Mary 2.6 Super Gravity Soft - CRANKS
Samox EC40 ISIS - CHAIN
Shimano SLX CN-M7100 - REAR DERAILLEUR
Shimano Deore XT M8100, 12-speed
- SHIFTER
Shimano Deore XT M8100, 12-speed - CASETTE
Shimano SLX M7100, 12-speed, rear: 10-51 - HANDLEBAR
RaceFace Chester 35, aluminium, 780mm, rise: 35mm, backsweep: 8degree - GRIPS
BBB Cobra BHG-96 - STEM
FOCUS C.I.S. integrated, 50 mm, 0 degrees, 35 mm, aluminium - BRAKES
Shimano XT M8120, 4 piston - BRAKE LEVERS
Shimano XT M8120, 4 piston - SADDLE
Proxim W350 - SEATPOST
Kind Shock RAGE, 31,6 x 495 mm,Kind Shock RAGE, 31,6 x 392 mm,Kind Shock RAGE, 31,6 x 442 mm - SIZES
49,45,40,42 - WEIGHT
25,15 kg (including battery)

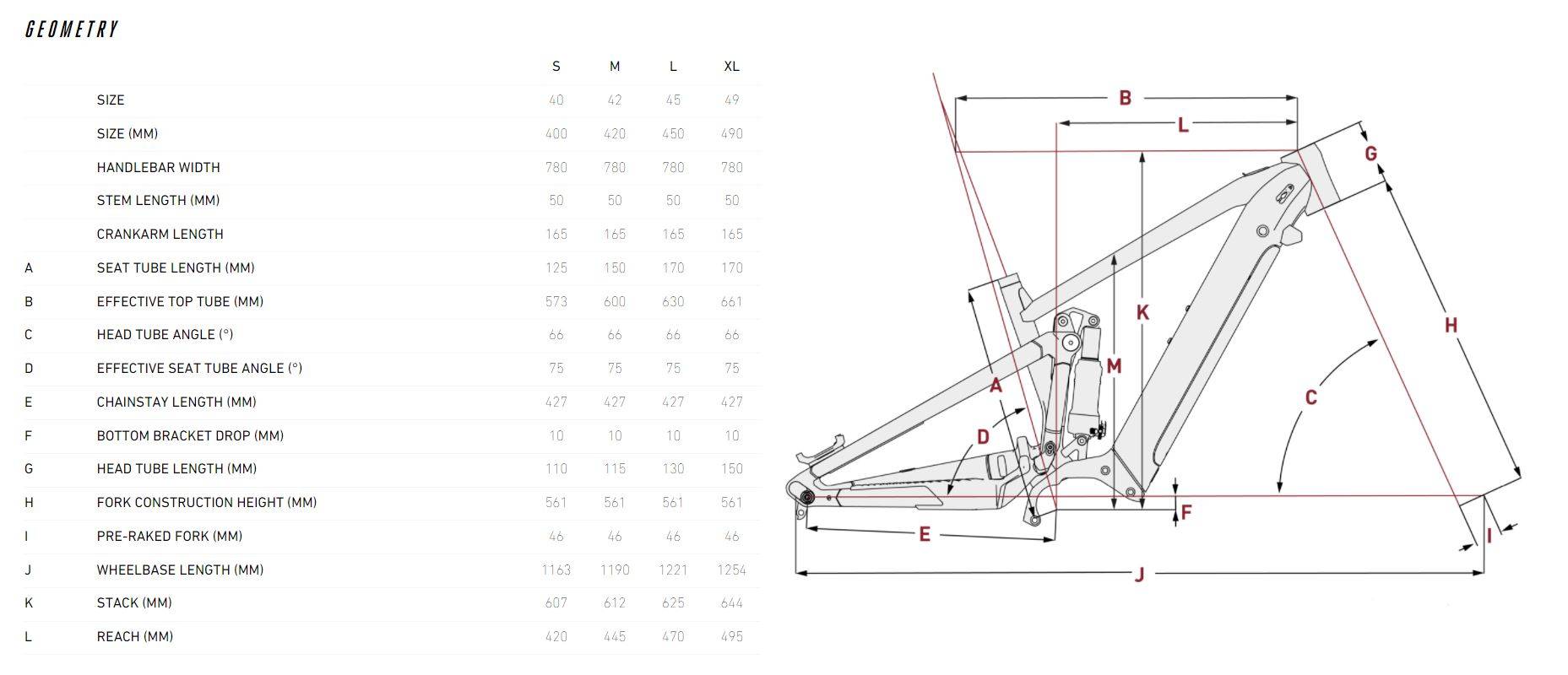

SIZE CHART
