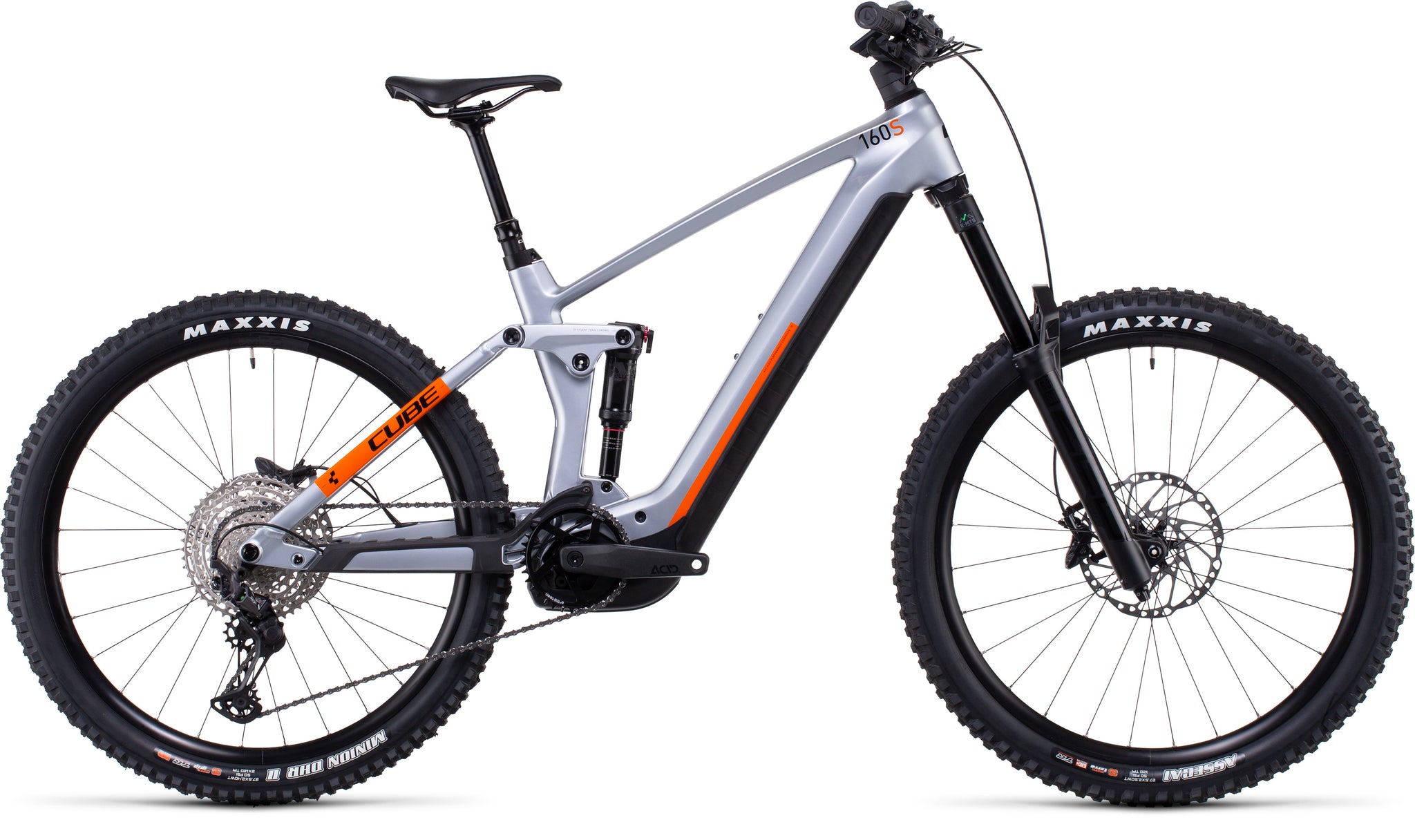

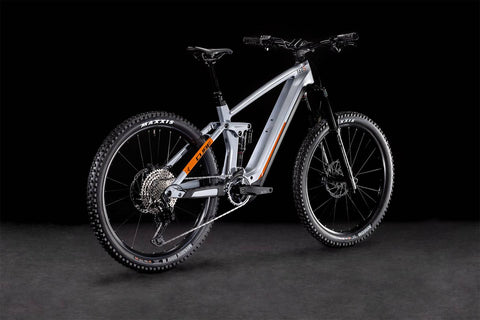

This is the e-mtb that re-writes the rules. Powered by Bosch's fourth-generation CX drive system and a high-capacity 750Wh battery for more range than ever, our Stereo Hybrid 160 HPC SL 750's blend of gravity prowess and all-round trail ability sets it apart. The RockShox Zeb Select fork's bump-swallowing ability works with the Deluxe Select+ rear shock and carefully tuned kinematics to tame any trail. Shimano's legendary XT 1x12 transmission gives you the range you need to tackle any climb. And powerful, progressive Shimano hydraulic disc brakes - with oversize rotors front and rear - combined with a remote dropper post put you in full control. It's time to get your enduro on.

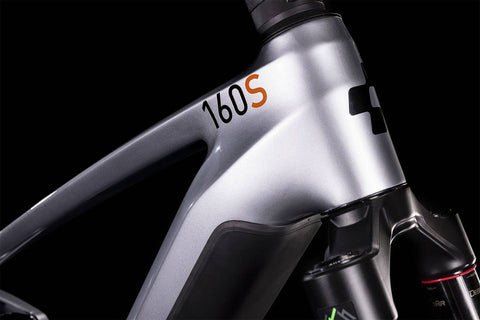

Completely new for 2022, the Stereo Hybrid 160 HPC 750's frame is designed to blend world-class trail-taming abilities with superb handling and more range than ever before. With the high-capacity 750Wh battery and fourth-generation Bosch drive unit housed entirely inside the down tube, it's as powerful as it is good to look at. Hidden by a cover with shock protection, push-button access and a hidden lock, the battery is both secure and easy to access. Integrated cable routing removes cable holes from the head tube area for greater strength and a neater appearance. The trunnion shock mount, oversize linkage bearings, Boost 148 rear end and 1.5in head tube all contribute to accurate tracking, even when it's all coming at you thick and fast. And sorted, race-inspired geometry gives you the advantage you need to show the trail exactly who's boss.
E-BIKE SPECIFIC
DRIVE UNIT Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
BATTERY Bosch PowerTube 750
DISPLAY Bosch Kiox 300
CHARGER Bosch 4A
SPECIFICATIONS
- FRAME
62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH, Full Integrated Battery, Advanced Internal Cable Routing - SIZE
M (18"), L (20"), XL (22") - FORK
RockShox ZEB Select Charger RC, 15x110mm, Tapered, eMTB Approved, 170mm - SHOCK
RockShox Deluxe Select+, 205x65mm, Rebound Adjust, Trunnion Mount, Lockout - SHOCK HARDWARE
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm - BRAKE SYSTEM
Shimano Deore BR-M6120, Hydr. Disc Brake (203/203) - REAR DERAILLEUR
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed - SHIFTERS
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus - CRANKSET
ACID E-Crank, 165mm, 36T - CHAIN GUIDE
Reverse Flip-Guide E-Kettenführung, Direct Mount, GEN4 - CASSETTE
Shimano Deore CS-M6100, 10-51T - CHAIN
Shimano CN-M6100 - WHEELSET
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready - FRONT TYRE
Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT - REAR TYRE
Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT
- STEM
CUBE Performance Stem E-MTB, 31.8mm - HANDLEBAR
Newmen Evolution SL 318.25, 780mm - GRIPS
ACID Disrupt, Soft Compound - SEAT POST
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (M: 125mm, L,XL: 150mm) - SEATCLAMP
CUBE Screwlock Semi Integrated, 34.9mm - SADDLE

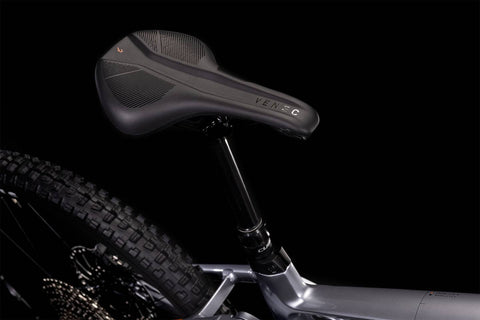

Natural Fit Venec - HEADSET
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) - WEIGHT
24,5 kg - COLOUR
polarsilver´n´orange - MAXIMUM WEIGHT LIMIT
135 kg
The weight refers to the combined weight of the rider and bike including all clothing and equipment carried on the rider's person (backpacks etc.) and must not be exceeded.
