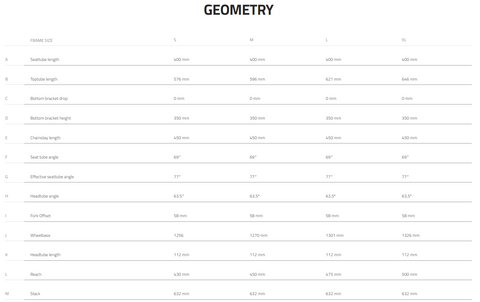

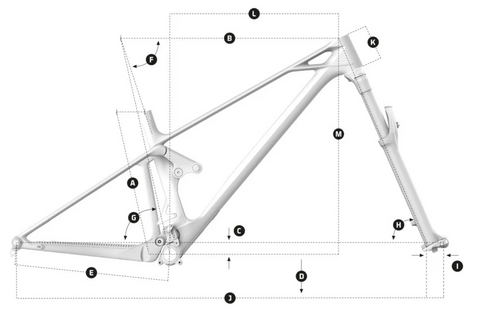

- GEOMETRY

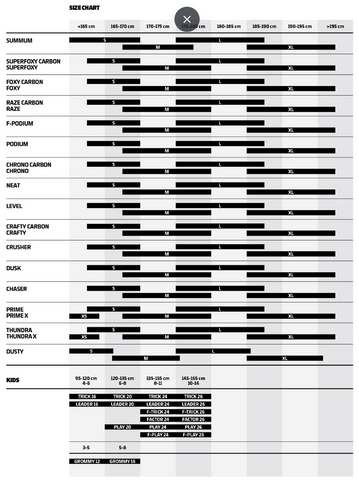

- SIZING

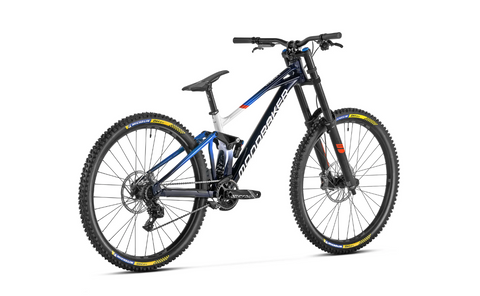

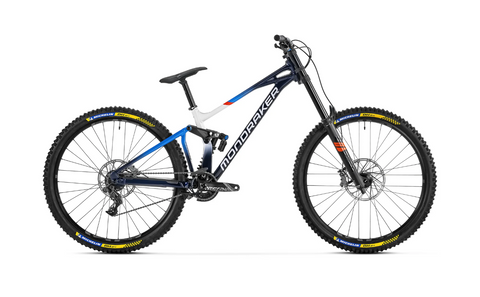

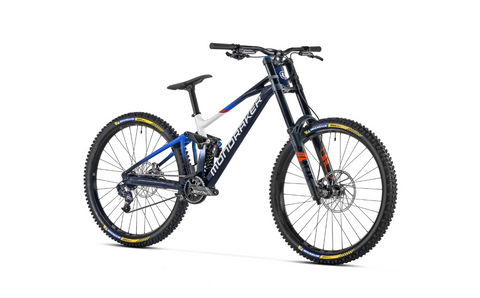

Mondraker summum r
DH IS OUR PASSION. DH AND RACING ARE IN OUR DNA
Our DNA comes from DH racing, there’s no denying it and we’re proud of it. DH is the Formula 1 of mountain biking. It’s where prototypes are put through the wringer, hammered by the tracks and the riders. That’s why at Mondraker we have a top-level international team: the MS Mondraker Team, which includes world-class riders such as Eleonora Farina from Italy, who stood on several World Cup podiums (Lourdes, Fort Williams, Leogang, Lenzerheide, Mont-Sainte-Anne...) in the 2022 season. For 2023 our DH bikes will continue to be available as carbon or aluminium framed versions, depending on rider preference.
DOWNHILL
The fastest discipline needs the fastest bike. Beautifully designed and refined for racing on the most extreme downhill tracks, under some of the world's best riders.
The Summum is our all-out, flat-out, downhill offering, built to spend every second at the absolute limit, on the toughest terrain you can ride.
SPECIFICATIONS
Summum 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit
Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload
Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings. ECC010 compression, M rebound. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs
Sram trigger GX DH 7s, X-actuation 1:1
Sram GX DH, 7s, medium cage, X-actuation 1:1
Mondraker M068
E.13 Vario Compact Upper Slider, Alloy backplate, DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Sram PG 720 11-25T, 7s
Sram PC1110 11s, Powerlock
34T, steel, X-SYNC
Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL
Sram DUB BSA, sealed bearings, 83mm
SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
- SADDLE
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides - HANDLEBAR
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore - GRIPS
Onoff Desert, 1lock-on, 135mm - STEM
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer - HEADSET
Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm - BRAKES
Front: Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear: e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub - RIMS
e*thirteen LG1 Plus DH, IW29 29" Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes
- HUBS
Front: e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear: e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub - SPOKES
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers - TYRES
Front: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Rear: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead - WEIGHT
18.3 Kg - SIZES
S, M, L & XL - OTHERS
*Geometry kit included: +-1º / +-2º headset cups
